HTC AT588 Rechargeable Hair and Beard Trimmer User Manual

1. Important Safety Warnings

To ensure safe operation and prevent injury or damage, please read all instructions carefully before using the HTC AT588 trimmer. Keep this manual for future reference.

• Water Exposure: Do not use this appliance near water, in bathtubs, showers, or other vessels containing water. Avoid contact with wet hands.
• Children: This appliance is not intended for use by children without adult supervision. Keep out of reach of infants.
• Blades: Handle blades with extreme care to prevent skin irritation or injury. Ensure blades are properly attached before use.
• Power Source: Use only the provided USB charging cable. Ensure the power source matches the specified voltage.
• Damage: Do not operate the trimmer if it has a damaged cord, plug, or casing, or if it is not working properly. Contact customer support for assistance.
• Storage: Store the trimmer in a dry place, away from direct sunlight and extreme temperatures.

2. Product Overview

The HTC AT588 is a versatile rechargeable hair and beard trimmer designed for precise grooming. It features a T-shaped blade, two-speed settings, and an LED display for battery status.

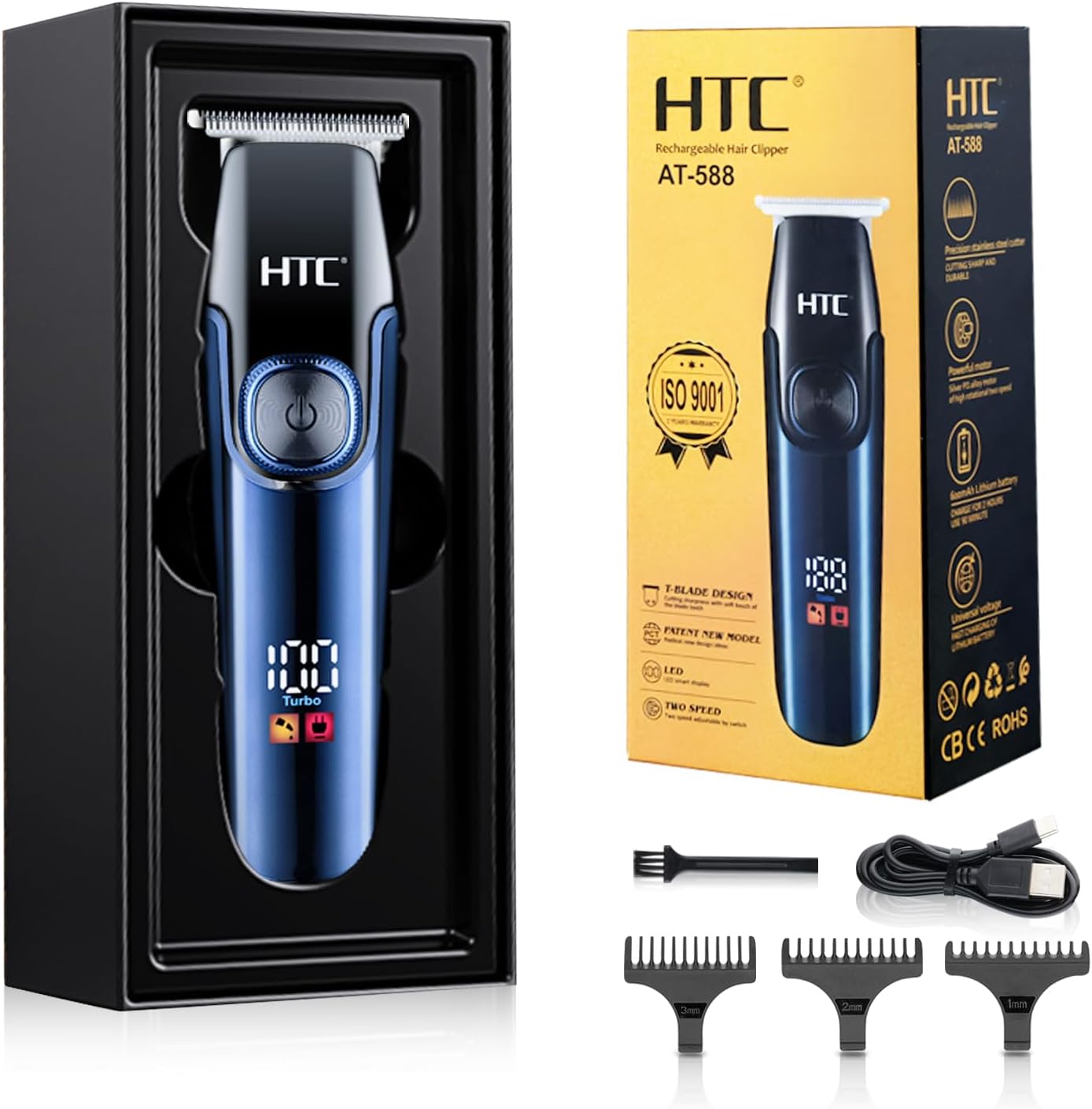

Figure 2.1: HTC AT588 Trimmer with included accessories (charging cable, cleaning brush, 1mm, 2mm, 3mm guide combs).

Key Components:

• T-shaped Blade: Precision stainless steel blade designed for sharp, anti-pinching, and safe trimming.
• Power Button: Controls power on/off and speed settings.
• LED Smart Display: Shows battery level, charging status, and current speed mode (e.g., "Turbo").
• USB Charging Port: For convenient charging via USB.
• Guide Combs: Three precision combs (1mm, 2mm, 3mm) for varying hair lengths.
• High-Frequency Copper Core Motor: Provides powerful and efficient trimming performance.

Figure 2.2: Detail of the T-shaped alloy sharp angle cutter head, designed for precision and skin protection.

Figure 2.3: Illustration of the high-frequency copper core motor, emphasizing its power and durability.

3. Setup and Charging

3.1 Initial Charging

Before first use, fully charge the trimmer. The device is powered by a powerful Li-ion battery.

1. Connect the provided USB charging cable to the trimmer's charging port.
2. Plug the other end of the USB cable into a compatible USB power source (e.g., computer, power bank, or USB wall adapter).
3. The LED display will indicate the charging status. A full charge takes approximately 2 hours and provides up to 90 minutes of cordless operation.
4. The trimmer can also be used while connected to the charging cable (corded operation).

Figure 3.1: USB charging port and LED display indicating charging status. The trimmer supports charging via computer, power bank, or wall adapter.

3.2 Attaching Guide Combs

The trimmer comes with three precision guide combs (1mm, 2mm, 3mm) for different cutting lengths.

1. Ensure the trimmer is turned off before attaching or detaching combs.
2. Select the desired guide comb.
3. Align the comb with the trimmer blade and push it firmly until it clicks into place.
4. To remove, gently pull the comb away from the blade.

Figure 3.2: The three precision limit combs (1mm, 2mm, 3mm) included with the trimmer for various cutting lengths.

4. Operating Instructions

4.1 Power On/Off and Speed Settings

1. To Power On: Press and hold the power button for approximately 1 second. The trimmer will start in the default speed mode, and the LED light will illuminate.
2. To Change Speed: While the trimmer is on, press the power button again briefly to switch to the high-speed mode (indicated by "Turbo" on the LED display). Pressing it again will cycle back to the standard speed.
3. To Power Off: Press and hold the power button for approximately 1 second until the trimmer stops.

Figure 4.1: Close-up of the LED smart display and power button, showing the two levels of power adjustment.

4.2 Trimming Hair and Beard

The HTC AT588 is suitable for trimming hair on various body parts, including the head, beard, armpits, back, chest, and legs.

1. Ensure your hair is clean and dry before trimming.
2. Attach the desired guide comb for the preferred hair length. For precise edging or very short cuts, the trimmer can be used without a comb.
3. Hold the trimmer with the blade flat against the skin or at a slight angle, depending on the desired cut.
4. Move the trimmer slowly and steadily against the direction of hair growth for an even cut.
5. For detailing, outlining, or shaving, use the trimmer without a guide comb, exercising caution around sensitive areas.

Figure 4.2: Example of using the HTC AT588 trimmer for beard grooming.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your trimmer.

1. After Each Use: Turn off the trimmer and detach the guide comb. Use the provided cleaning brush to remove loose hairs from the blade and the trimmer body.
2. Blade Cleaning: For a more thorough clean, the blade head can often be carefully removed (refer to specific instructions if provided, otherwise proceed with caution). Rinse the blade head under running water. Ensure it is completely dry before reattaching. Do not submerge the main body of the trimmer in water.
3. Lubrication: Periodically apply a small drop of clipper oil (not included) to the blades to maintain smooth operation and prevent rust. Turn the trimmer on for a few seconds to distribute the oil.
4. Storage: Store the trimmer and its accessories in a clean, dry place.

6. Troubleshooting

If you encounter issues with your HTC AT588 trimmer, refer to the following common problems and solutions:

If the problem persists, please contact customer support.

7. Specifications
