Bellemave Wooden Daybed with Trundle Bed Instruction Manual

Introduction

Thank you for choosing the Bellemave Wooden Daybed with Trundle Bed. This manual provides essential instructions for the safe assembly, operation, and maintenance of your new daybed. Please read this manual thoroughly before assembly and retain it for future reference.

Image: The Bellemave Wooden Daybed with Trundle, shown in an espresso finish, configured as a twin bed in a room.

Important Safety Information

• Always follow assembly instructions carefully.
• Ensure all bolts and connectors are securely tightened before use.
• Do not exceed the recommended weight capacity for the bed and trundle.
• Keep small parts away from children during assembly to prevent choking hazards.
• Regularly check all connections to ensure they remain tight.
• Use only the recommended mattress thickness to ensure proper fit and safety.

Setup and Assembly

The Bellemave Daybed is designed for straightforward assembly. All necessary tools and clear instructions are included in the packaging. It is recommended to have two people for assembly to ensure ease and safety.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all components are present against the parts list provided in your package.
2. Assemble Frame: Follow the step-by-step diagrams and instructions provided to assemble the main daybed frame. Ensure all bolts are finger-tightened initially.
3. Install Slats: Securely attach the wooden slats to the main bed frame.
4. Assemble Trundle: Assemble the trundle bed frame according to the instructions.
5. Install Trundle Slats: Attach the wooden slats to the trundle bed frame.
6. Final Tightening: Once all components are in place, fully tighten all bolts and screws using the provided tools. Do not overtighten.
7. Position Bed: Place the assembled daybed in its desired location.
8. Add Mattresses: Place the main mattress on the daybed frame and the trundle mattress on the trundle frame. No box spring is required.

Note: For detailed, step-by-step visual instructions, refer to the assembly guide included in your product packaging.

Operating the Extendable Trundle Bed

The Bellemave Daybed features a versatile trundle bed that can be extended to transform the twin daybed into a king-sized sleeping area or used as a separate twin bed.

To Extend to King Size:

1. Pull Out Trundle: Gently pull the trundle bed out from underneath the main daybed. The trundle is equipped with smooth-gliding wheels for easy movement.
2. Lift and Lock: Once fully pulled out, lift the trundle frame until it locks into place at the same height as the main daybed. This creates a continuous sleeping surface, effectively transforming the twin bed into a king size.
3. Add Mattress: If not already in place, position the trundle mattress on the extended frame.

Image: The trundle bed partially pulled out from under the main daybed, showing the wooden slats.

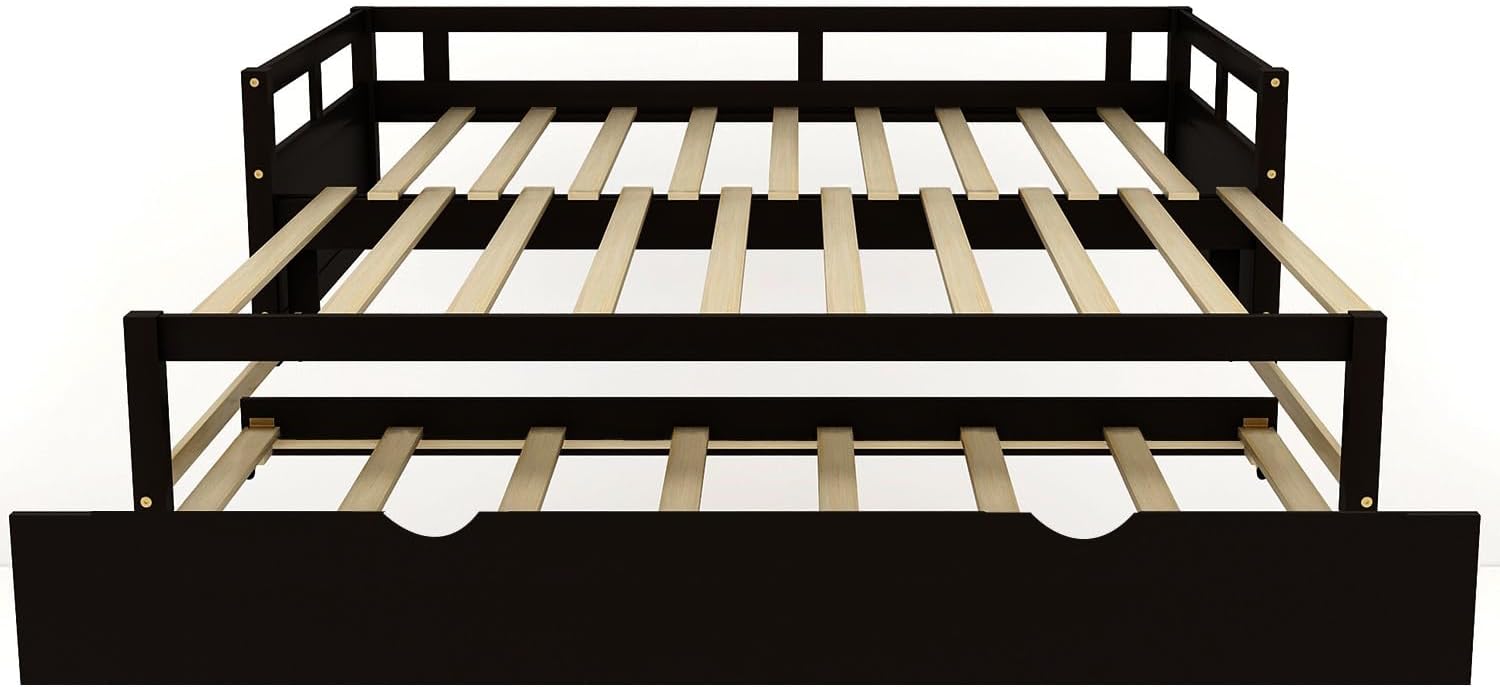

Image: The trundle bed fully extended and raised to create a king-sized sleeping surface.

To Use as Separate Twin Bed:

The trundle can also be pulled out and left in its lower position, providing an additional twin bed separate from the main daybed. This is ideal for accommodating an extra guest without needing to combine the sleeping surfaces.

Image: The trundle bed pulled out and remaining in its lower position, functioning as a separate twin bed.

To Retract Trundle:

1. Lower Trundle: If the trundle is in the raised position, gently disengage the locking mechanism and lower the trundle frame.
2. Push In Trundle: Push the trundle bed back underneath the main daybed until it is fully stored.

Care and Maintenance

Proper care will ensure the longevity and appearance of your Bellemave Daybed.

• Cleaning: Wipe the wooden surfaces with a dry cloth or a damp cloth as needed. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
• Regular Checks: Periodically inspect all bolts, screws, and connections to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
• Avoid Overloading: Do not place excessive weight on the bed or trundle beyond the specified weight capacities.
• Protect from Moisture: Keep the daybed away from excessive moisture or direct sunlight to prevent warping or fading of the wood.

Troubleshooting

Product Specifications

• Model Number: WF194887P
• Product Dimensions: 78.1"L x 41.8"W x 23.2"H
• Material: Plywood + MDF + Pinewood (Engineered Wood, Pine Wood)
• Color: Espresso
• Finish Type: Painted
• Weight Capacity (Main Bed): 275 LBS
• Weight Capacity (Trundle Bed): 175 LBS
• Recommended Mattress Thickness (Upper Bed): 4"
• Recommended Mattress Thickness (Trundle Bed): 4"
• Number of Slats (Upper Bed): 19
• Number of Slats (Trundle Bed): 8
• Assembly Required: Yes (Instructions Included)
• Item Weight: 100 pounds
• UPC: 733805898571, 733805446048

Image: Diagram showing the detailed dimensions of the daybed and trundle in inches.

Warranty and Customer Support

For specific warranty information regarding your Bellemave Wooden Daybed, please refer to the warranty card included with your purchase or contact Bellemave customer support directly. If you encounter any issues or have questions not covered in this manual, please reach out to our customer service team for assistance.

Contact Information: Please visit the official Bellemave website or refer to your purchase documentation for the most up-to-date customer support contact details.
