Introduction
This manual provides essential information for the safe and effective use of your GUPUP Neon Light Strip. Designed for versatile indoor decoration, this flexible and waterproof LED strip offers bright, uniform illumination for various applications. Please read this manual thoroughly before installation and operation.
Key Features
- Bright Green Illumination: Features 600 LEDs for vibrant, consistent green light.
- Soft and Flexible Silicone: Made from environmentally friendly silicone, allowing for easy bending and shaping to fit various designs.
- Cuttable Design: Can be cut every 2.5cm (0.98in) at marked intervals for custom lengths.
- IP65 Waterproof: Suitable for both indoor and outdoor use, resistant to water splashes and rain. Note: The power adapter (not included) and charging part are NOT waterproof.
- Full Sideway Shining Design: Ensures uniform light without visible spots or gaps between LEDs.
- Safer Silicone Material: Non-combustible and odorless for enhanced safety.
- High Flexibility: Easily bendable to create custom shapes and designs.
- Versatile Application: Ideal for gaming rooms, custom signs, bedrooms, living rooms, kitchens, backyards, patios, and various events.
- Control Methods: Supports App, Voice Control, and Infrared connectivity.
Product Overview
Figure 1: GUPUP Neon Light Strip (Green) in a coiled state, showcasing its flexibility and bright illumination.
Figure 2: A close-up view of the GUPUP Neon Light Strip, highlighting its smooth, uniform light output without visible individual LED spots.
Figure 3: Visual representation of key features: soft silicone material, cuttable design with marks, and waterproof capability.
Setup and Installation
Before beginning installation, ensure you have a compatible 24V DC power adapter (not included) and any necessary mounting hardware.
- Plan Your Design: Determine the desired shape and placement of your neon light strip. Consider the length needed and where cutting might be required.
- Prepare the Surface: Ensure the installation surface is clean, dry, and smooth for optimal adhesion or clip attachment.
- Cut (if necessary): If a shorter length is required, cut the strip only at the designated marks (every 2.5cm / 0.98in). Cutting elsewhere may damage the strip.
- Attach Mounting Clips: Designate clip placements. Use screws (recommended) or strong adhesive stickers to securely attach the mounting clips to the surface.
- Secure the Light Strip: Gently press the neon light strip into the attached clips along your planned design.
- Connect Power: Connect the light strip to a compatible DC 24V power adapter (not included). Ensure the connection is secure.
- Test Illumination: Plug in the power adapter to test the light strip.
Figure 4: Illustrated guide for installing the neon light strip, showing design planning, clip attachment, and securing the strip.
Operating Instructions
Once installed and connected to power, the GUPUP Neon Light Strip can be operated using various methods depending on your specific setup (e.g., a smart controller, remote, or app if your power adapter supports these features).
- Power On/Off: Typically controlled via the power adapter's switch or connected smart device.
- Brightness Adjustment: If your power adapter or controller supports dimming, adjust the brightness as desired.
- Color Control: This specific model is bright green. If you have a multi-color variant or a controller that allows color changes, refer to your controller's manual.
- Smart Control: For App, Voice Control, or Infrared functionality, ensure your power adapter/controller is compatible and follow its specific instructions for pairing and use.
Maintenance and Care
Proper maintenance ensures the longevity and performance of your GUPUP Neon Light Strip.
- Cleaning: Gently wipe the silicone surface with a soft, damp cloth. Avoid abrasive cleaners or solvents.
- Storage: If storing the strip, coil it loosely to prevent kinks or damage. Store in a cool, dry place away from direct sunlight.
- Water Exposure: While the strip is IP65 waterproof, ensure the power connection and adapter remain dry. Do not submerge the power adapter.
- Handling: Avoid sharp bends or excessive force when handling the strip to prevent internal damage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light strip does not illuminate. | No power, loose connection, incorrect voltage, damaged strip. | Check power adapter connection. Ensure it's a 24V DC adapter. Verify all connections are secure. Inspect the strip for visible damage. |
| Light is dim or flickers. | Insufficient power, faulty adapter, loose connection. | Ensure power adapter meets wattage requirements. Check connections. Try a different power outlet or adapter. |
| Section of the strip is not lighting up. | Damage to that section, improper cut. | If cut, ensure it was done precisely at the marked intervals. If not cut, the section may be damaged and require replacement. |
Specifications
| Attribute | Detail |
|---|---|
| Brand | GUPUP |
| Model Number | WFDS202212 |
| Color | Green |
| Light Source Type | LED |
| Number of Light Sources | 600 |
| Power Source | DC |
| Voltage | 24 Volts |
| Wattage | 36 watts |
| Material | Silicone |
| Water Resistance Level | IP65 Waterproof (Strip only) |
| Form Factor | Flexible |
| Indoor/Outdoor Usage | Indoor (Strip can be used outdoor, but charger is indoor only) |
| Connectivity Technology | Infrared |
| Controller Type | Voice Control |
| Control Method | App |
| Item Weight | 12.3 ounces |
| Package Dimensions | 8.15 x 8.03 x 0.87 inches |
Product Applications
The GUPUP Neon Light Strip's flexibility and vibrant color make it suitable for a wide range of decorative applications:
Figure 5: Enhancing a gaming room setup with the bright green neon light strip, providing ambient lighting.
Figure 6: Example of a custom "Custom Neon Sign" created using the flexible light strip, ideal for personalized decor.

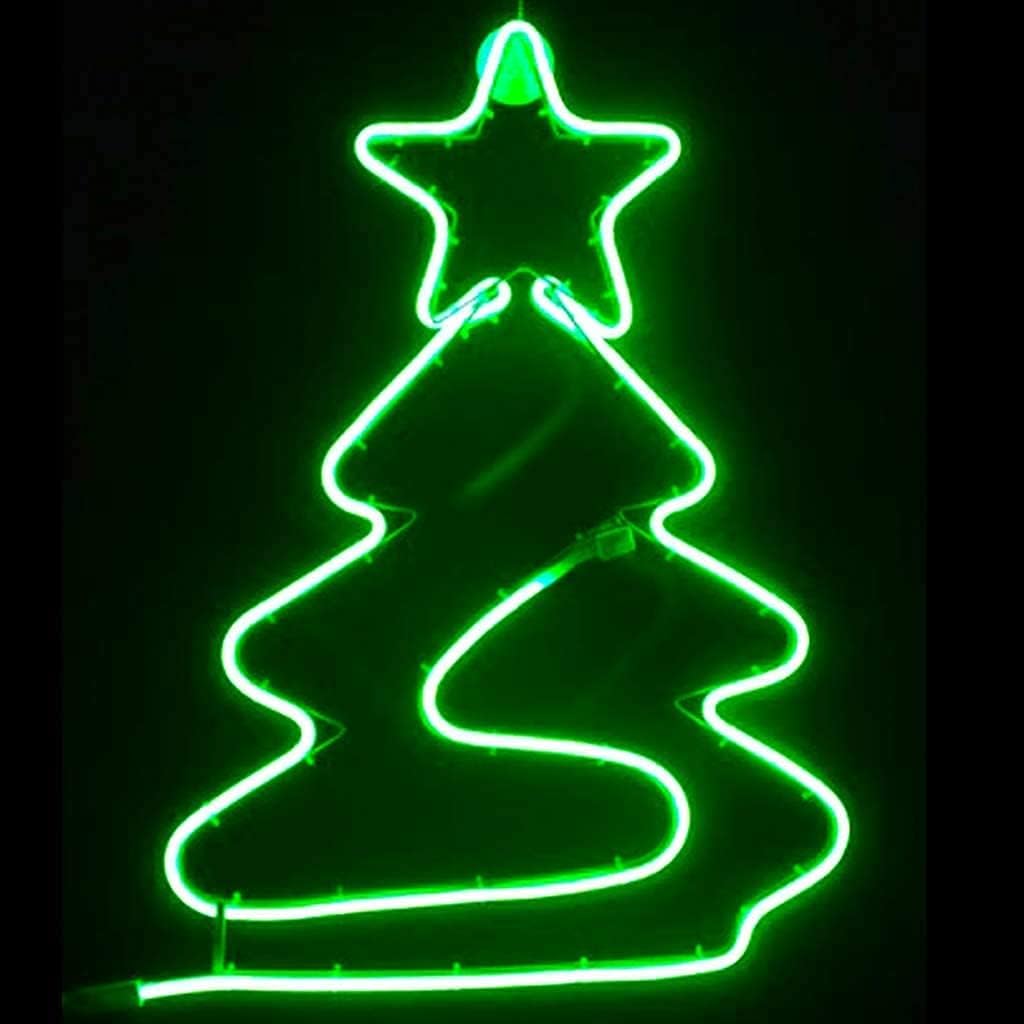

Figure 7: A festive Christmas tree shape formed by the light strip, demonstrating its ability to hold intricate designs.
Figure 8: A collage showcasing diverse applications, including "Home" lettering, wall art, and animal shapes, highlighting its versatility for DIY projects.
Figure 9: An example of the light strip used for ambient lighting in a living room, creating a vibrant atmosphere.
Figure 10: The light strip providing functional and aesthetic under-cabinet lighting in a modern kitchen.
Figure 11: The light strip installed along a wall, creating a dynamic green light pattern in a room.
Figure 12: A sofa area illuminated by a blue neon light strip, demonstrating its use for accent lighting.
Figure 13: A bedroom featuring the green neon light strip as a decorative element, adding a modern touch.
Product Demonstration Video
Video 1: This video demonstrates the GUPUP Neon Light Strip's key attributes, including its high flexibility, uniform light output without spots, safety features (non-combustible, no bad smell), and IP65 waterproof rating. It also showcases various indoor decoration possibilities.
Safety Information
- Always use a compatible 24V DC power adapter. Using an incorrect voltage may damage the product or pose a safety risk.
- The light strip itself is IP65 waterproof, but the power adapter and connection points are NOT waterproof. Ensure these components are protected from moisture, especially during outdoor use.
- Do not cut the light strip anywhere other than the designated cutting marks. Improper cutting can lead to malfunction or electrical hazards.
- Avoid exposing the light strip to extreme temperatures or direct flame, despite its safer silicone material.
- Keep out of reach of children and pets.
- If the product is damaged, discontinue use immediately and contact customer support.
Warranty and Support
GUPUP is committed to providing high-quality products. For warranty information, technical support, or any inquiries regarding your Neon Light Strip, please refer to the contact information provided with your purchase or visit the official GUPUP store on Amazon: GUPUP Store.
