Coleman-Mach 48004-066 Mach 15 Signature Series Heat Pump User Manual

Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Coleman-Mach 48004-066 Mach 15 Signature Series Medium-Profile Heat Pump. Please read this manual thoroughly before attempting to install or operate the unit.

The Coleman-Mach Mach 15 Signature Series is designed for superior climate control, offering both cooling and heating capabilities. This medium-profile unit delivers 15,000 BTU/h and features a durable textured white shroud.

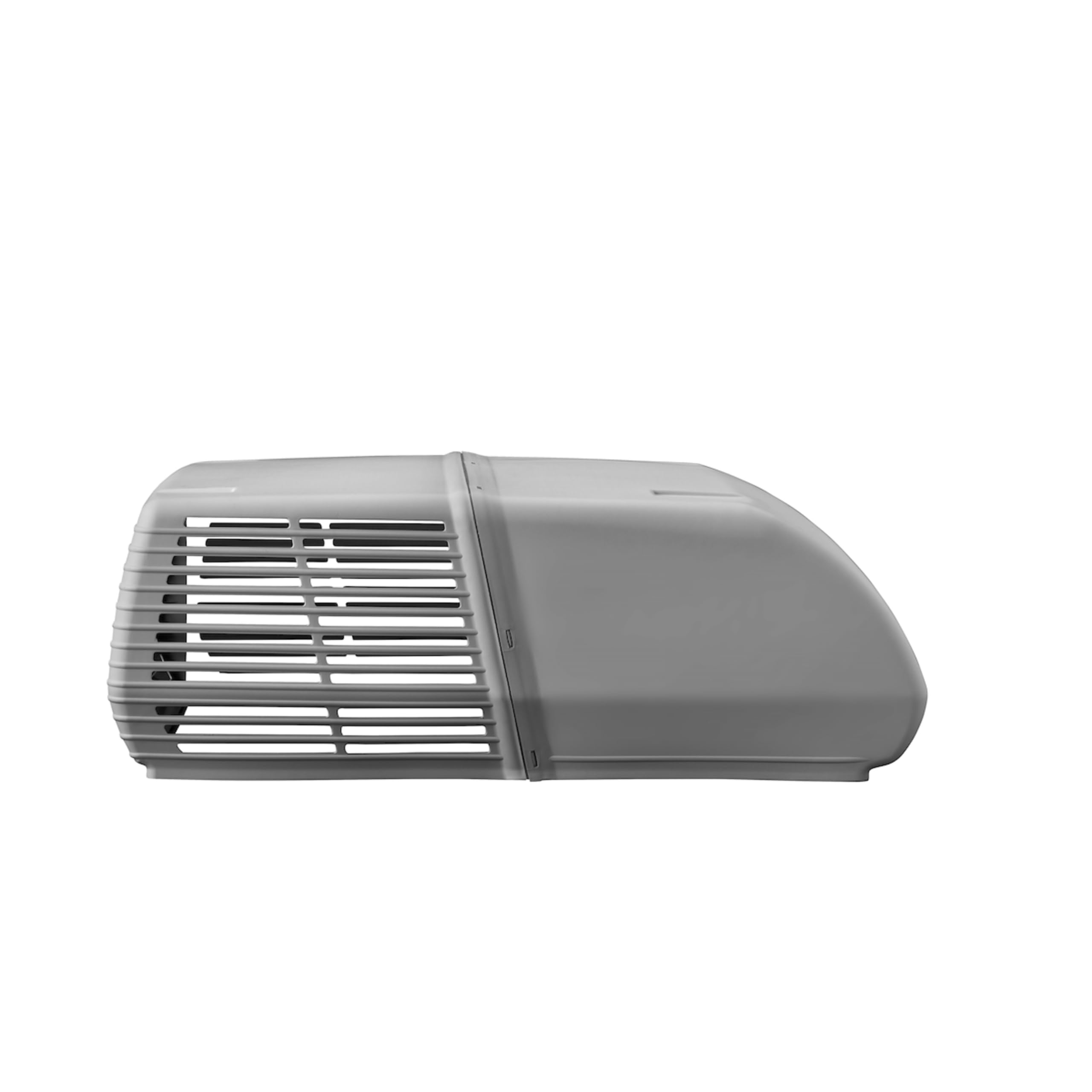

Image: The Coleman-Mach 48004-066 Mach 15 Signature Series Medium-Profile Heat Pump in textured white.

Key Features:

• Mach 15 HP2 Heat Pump functionality
• Medium-profile design for reduced height
• 15,000 BTU/h cooling and heating capacity
• Durable textured white shroud

Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always disconnect power before servicing the unit.
• Installation and service should be performed by a qualified installer or service agency.
• Ensure all electrical connections comply with local and national electrical codes.
• Do not operate the unit with damaged wiring or components.
• Keep clear of moving parts during operation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Package Contents

Upon opening the package, verify that all components are present and undamaged. If any items are missing or damaged, contact your dealer immediately.

• Coleman-Mach 48004-066 Mach 15 Signature Series Medium-Profile Heat Pump
• Wood Skid (for shipping protection)
• Installation and User Manual (this document)
• Mounting Gasket (as noted in a review, often included)

Setup and Installation

Installation of the Coleman-Mach 48004-066 heat pump requires specialized knowledge and tools. It is highly recommended that installation be performed by a certified RV technician or a qualified professional.

General Installation Steps (Consult full installation guide for details):

1. Preparation: Ensure the mounting surface is clean, level, and structurally sound to support the unit's weight (approximately 94 lbs).
2. Mounting: Carefully lift and position the heat pump onto the roof opening. Secure it using the provided mounting hardware and gasket to ensure a watertight seal.
3. Electrical Connection: Connect the unit to the appropriate power supply, ensuring all wiring conforms to the unit's specifications and local electrical codes. This typically involves 120V AC power.
4. Ducting (if applicable): Connect any necessary air ducts for proper air distribution within the RV.
5. Thermostat Connection: Wire the unit to a compatible thermostat for control.
6. Testing: After installation, perform a thorough operational test to ensure all functions (cooling, heating, fan) are working correctly and there are no leaks.

Refer to the separate detailed installation instructions provided with the unit for specific wiring diagrams, torque specifications, and sealing procedures.

Operating Instructions

The Coleman-Mach 48004-066 heat pump is controlled via a compatible RV thermostat (not included with the unit). Familiarize yourself with your thermostat's operation manual for specific controls.

Basic Operation:

• Power On/Off: Use the thermostat to turn the unit on or off.
• Mode Selection: Select desired mode (Cool, Heat, Fan Only) on your thermostat.
• Temperature Setting: Adjust the desired temperature using the thermostat controls.
• Fan Speed: Choose fan speed (High, Low, Auto) as available on your thermostat.
• Heat Pump Operation: In heat mode, the unit will extract heat from the outside air and transfer it indoors. Performance may decrease in very low ambient temperatures.
• Cooling Operation: In cool mode, the unit will remove heat from the indoor air and dissipate it outdoors.

For optimal performance, ensure all windows and doors are closed when the unit is operating in cooling or heating mode.

Maintenance

Regular maintenance ensures efficient operation and extends the lifespan of your heat pump. Always disconnect power to the unit before performing any maintenance.

Recommended Maintenance Schedule:

• Air Filter Cleaning (Monthly or as needed): The return air filter (located inside the RV, typically in the ceiling assembly) should be cleaned regularly. Remove the filter, wash it with mild soap and water, rinse thoroughly, and allow it to dry completely before reinstallation.
• Condenser and Evaporator Coils (Annually): Inspect the outdoor condenser coils and indoor evaporator coils for dirt and debris. Carefully clean them with a soft brush or coil cleaner if necessary. Avoid bending the fins.
• Drain Pan and Drain Holes (Annually): Check the condensate drain pan and drain holes for blockages. Clear any obstructions to ensure proper water drainage.
• Shroud Inspection (Seasonally): Inspect the outdoor shroud for cracks or damage. Replace if necessary to protect internal components.
• Electrical Connections (Annually): Have a qualified technician inspect all electrical connections for tightness and corrosion.

Do not use harsh chemicals or abrasive cleaners on any part of the unit.

Troubleshooting

Before contacting customer support, review the following common issues and solutions. Always disconnect power before inspecting the unit.

If troubleshooting steps do not resolve the issue, contact a qualified service technician.

Specifications

Note: Product dimensions provided in source data (1x1x1 inches) are likely placeholders. Refer to official product documentation for accurate physical dimensions.

Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Coleman-Mach website. Keep your proof of purchase for warranty claims.

If you require technical assistance, parts, or service, please contact Coleman-Mach customer support. Provide your model number (48004-066) and serial number (if applicable) when contacting support to expedite service.

You can often find contact information on the manufacturer's website or through your authorized dealer.
