Graywind Vertical Blinds Instruction Manual

1. Introduction

Thank you for choosing Graywind Vertical Blinds. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new blinds. Please read this manual thoroughly before installation and keep it for future reference.

2. Product Features

• Easy Installation: Designed for straightforward installation, suitable for both ceiling and face mounting.
• Rotatable Louvers: Polyester louvers can rotate up to 180 degrees, allowing precise light control and privacy adjustment.
• High-Quality Fabric: Made from durable polyester material, offering a luxurious feel and various color options.
• Removable Louvers: Louvers are detachable for easy cleaning and maintenance.
• Customizable Sizes: Available in custom sizes with 0.1cm increments.
• Blackout Performance: Features a 3-layer blackout fabric for enhanced light blocking, UV protection, heat insulation, and soundproofing.

3. Package Contents

Please ensure all components are present before beginning installation:

• Vertical Blinds (Louvers)
• Headrail
• Mounting Brackets
• Wand or Cord & Chain Control Mechanism
• Screws and Wall Plugs
• Bottom Chains (connecting louvers)
• Installation Manual

4. Safety Information

• Keep cords and chains out of reach of children and pets to prevent strangulation hazards.
• Ensure all mounting hardware is securely fastened to prevent the blinds from falling.
• Do not hang heavy objects from the blinds.
• Avoid using harsh chemicals or abrasive cleaners on the fabric.

5. Installation Guide

Installation is simple and can be completed with a drill. Refer to the provided video for a visual guide.

5.1. Measurement Considerations

For optimal blackout performance, it is recommended to extend the width and length of the blinds by at least 10cm beyond the window frame. When installing near a wall, ensure a minimum 0.3cm space on each side.

Image: Detailed measurement guide for ceiling mount and face mount installations.

5.2. Mounting Types

Our blinds support both face mounting and ceiling mounting. For ceiling mounting, ensure the window frame depth is at least 6cm. Face mounting generally offers superior blackout compared to ceiling mounting.

5.3. Step-by-Step Installation

1. Prepare Tools: Gather a drill, measuring tape, pencil, and screwdriver.
2. Mark Bracket Positions: Hold the headrail in place and mark the positions for the mounting brackets. Ensure the brackets are evenly spaced (approximately 50cm apart).
3. Drill Holes: Drill pilot holes at the marked positions. Insert wall plugs if necessary.
4. Attach Brackets: Securely fasten the mounting brackets using screws.
5. Install Headrail: Clip the headrail into the installed mounting brackets.
6. Attach Louvers: Hook each louver onto the carriers in the headrail.
7. Connect Bottom Chains: Connect the bottom of the louvers using the provided bottom chains to ensure even spacing and stability.

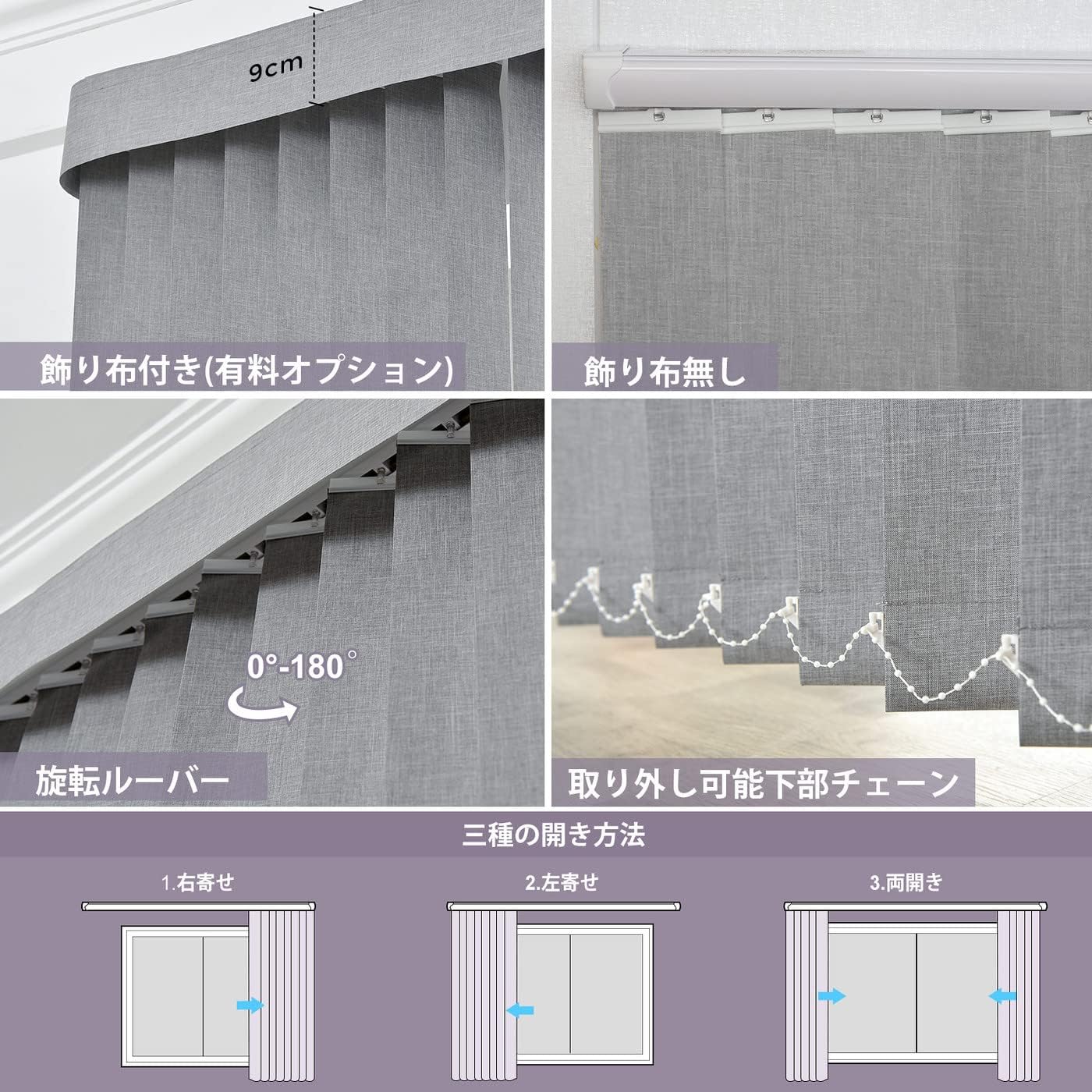

Image: Close-up of vertical blind components, showing headrail, louvers, and bottom chains.

6. Operating Instructions

Your Graywind Vertical Blinds offer versatile control for light and privacy. The blinds can be operated using either a wand or a cord & chain mechanism, depending on your chosen control type.

6.1. Wand Control

To operate with a wand:

• To Open/Close Blinds: Gently pull or push the wand to slide the louvers across the track.
• To Rotate Louvers: Twist the wand to adjust the angle of the louvers, controlling the amount of light entering the room.

6.2. Cord & Chain Control

To operate with a cord & chain:

• To Open/Close Blinds: Pull the cord to draw the louvers open or closed.
• To Rotate Louvers: Pull the chain to rotate the louvers to your desired angle.

Image: Graywind Vertical Blinds installed in a bedroom, showcasing light control.

Image: Illustration of the 99% blackout capability and the 3-layer fabric structure for UV cut and heat insulation.

7. Maintenance

Proper care will extend the life and appearance of your Graywind Vertical Blinds. The louvers are removable for easier cleaning.

7.1. Regular Dusting

Gently remove dust from the louvers using a feather duster or a soft, clean cloth. For deeper cleaning, a handheld vacuum with a brush attachment can be used. Ensure the blinds are fully extended when dusting or vacuuming.

7.2. Spot Cleaning

For partial cleaning of stains, use a well-wrung cloth or sponge dipped in a solution of mild dish-washing detergent and lukewarm water. Gently dab the stained area. Avoid harsh detergents or excessive scrubbing, as this may damage the fabric.

8. Troubleshooting

If you encounter any issues with your blinds, refer to the following common solutions:

• Blinds not opening/closing smoothly: Check the track for any obstructions or debris. Ensure the louvers are properly aligned in their carriers.
• Louvers not rotating: Inspect the wand or chain mechanism for any damage or tangles. Ensure the louvers are freely moving.
• Uneven louver spacing: Verify that the bottom chains are correctly connected and not broken.
• Blinds falling: Re-check all mounting brackets and screws to ensure they are securely fastened to the wall or ceiling.

If the problem persists, please contact Graywind customer support for assistance.

9. Specifications

10. Warranty and Support

Graywind provides a 2-year warranty on the main body and parts of this product. In case of any defects upon arrival, we will arrange for an exchange with a new product of the same specifications, rather than a cancellation or refund.

Production typically takes 3-7 business days, and delivery takes approximately 4-7 business days, resulting in an estimated arrival within 7-14 business days from order confirmation.

For any inquiries or support, please contact us via Amazon message or email at opm-jp@graywindhome.com before placing your order if you have specific requests or if contacting us within 30 minutes of ordering is difficult.
