Respekta Fully Integrated Dishwasher

1. Introduction

Thank you for choosing the Respekta GSP45VV fully integrated dishwasher. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before using the dishwasher and keep it for future reference.

Image: The Respekta GSP45VV dishwasher with its door open, revealing the upper and lower racks, and the removable cutlery basket. The control panel is visible at the bottom of the door.

2. Safety Information

Always adhere to the following safety guidelines to prevent injury or damage to the appliance.

• Electrical Safety: Ensure the appliance is properly grounded. Do not use extension cords. Disconnect power before any maintenance or cleaning.
• Water Safety: Ensure water connections are secure to prevent leaks. Do not operate the dishwasher if there is visible water leakage.
• Children and Pets: Keep children and pets away from the dishwasher when it is operating. Detergents and rinse aids can be harmful.
• Detergents: Use only detergents and rinse aids specifically designed for automatic dishwashers. Store them out of reach of children.
• Loading: Load sharp items (knives, forks) with the handles up to prevent injury. Do not overload the dishwasher.
• Installation: Installation should be performed by a qualified professional to ensure proper electrical and plumbing connections.

3. Setup and Installation

The Respekta GSP45VV is a fully integrated dishwasher designed to blend seamlessly into your kitchen cabinetry. Proper installation is crucial for optimal performance and safety.

3.1. Unpacking

Carefully remove all packaging materials. Inspect the dishwasher for any signs of damage during transit. Report any damage to your retailer immediately.

3.2. Positioning and Leveling

The dishwasher features 5 cm height-adjustable feet, allowing it to be adapted to various worktop heights. Ensure the appliance is level to prevent water leakage and ensure proper door alignment.

Image: Side view of the Respekta GSP45VV dishwasher, highlighting the adjustable feet at the bottom and the mounting brackets at the top for secure integration into kitchen cabinetry.

3.3. Water and Electrical Connections

Connect the water inlet hose to a cold water supply and the drain hose to a suitable drain. Ensure all connections are tight to prevent leaks. The appliance requires a 230 Volt electrical supply. It is recommended that a qualified electrician handles the electrical connection.

3.4. Included Components

The dishwasher comes with the following components:

• Dishwasher unit
• Operating manual
• Inlet hose
• Drain hose
• Cutlery basket

4. Operating Instructions

The Respekta GSP45VV dishwasher features electronic buttons for comfortable and intuitive operation.

4.1. Control Panel Overview

Image: A detailed view of the Respekta GSP45VV dishwasher's control panel, showing the power button, program selection buttons (P1, P2, P3, P4), and function indicators for rinse aid, salt, and delay start.

4.2. Loading the Dishwasher

Arrange dishes to allow water to reach all surfaces. The dishwasher includes a foldable plate holder, 2 cup holders, an adjustable upper basket, and a cutlery basket for flexible loading.

4.3. Adding Detergent and Rinse Aid

Open the detergent dispenser and add the appropriate amount of dishwasher detergent. If using rinse aid, ensure the rinse aid dispenser is filled. The dishwasher has indicators for both rinse aid and regenerating salt.

Image: A close-up view of the detergent and rinse aid dispenser located on the inside of the dishwasher door, showing the compartments for each.

4.4. Program Selection

The dishwasher offers 4 programs to cover various cleaning needs:

• Pre-rinse (00:15): For rinsing dishes that will be washed later, preventing odors.
• Eco (03:42): An energy and water-saving program for normally soiled dishes.
• Super (00:50): A quick program for lightly soiled dishes.
• Intensive (02:15): For heavily soiled dishes, pots, and pans.

4.5. Special Functions

• Half Load: Allows for efficient washing with a reduced load, saving water and energy.
• Extra Dry: Provides enhanced drying performance.
• Start Time Delay: Delay the start of a program by 3, 6, or 9 hours.

5. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your dishwasher.

5.1. Cleaning the Filters

The dishwasher's interior is made of stainless steel. Regularly clean the filter system at the bottom of the dishwasher to prevent food particles from clogging the spray arms and affecting wash performance.

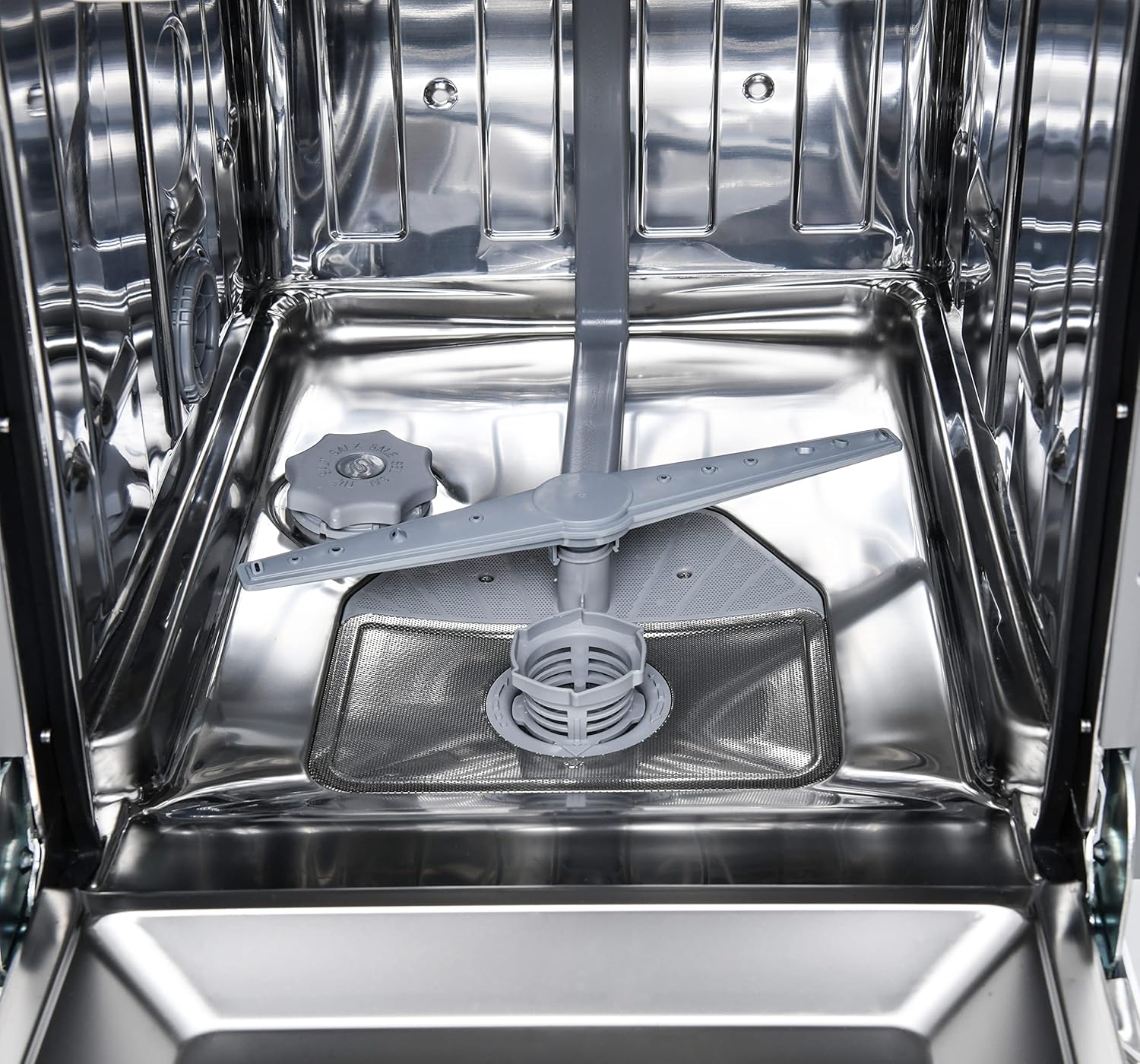

Image: A close-up view of the bottom of the dishwasher's interior, showing the removable filter assembly and the rotating lower spray arm.

5.2. Refilling Rinse Aid and Salt

Monitor the rinse aid and regenerating salt indicators on the control panel. Refill as needed to ensure streak-free drying and prevent limescale buildup, especially in areas with hard water.

5.3. Exterior Cleaning

Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.

6. Troubleshooting

Before contacting customer service, please refer to the following common issues and their solutions:

For issues not listed here or if problems persist, please contact Respekta customer support or a qualified service technician.

7. Technical Specifications

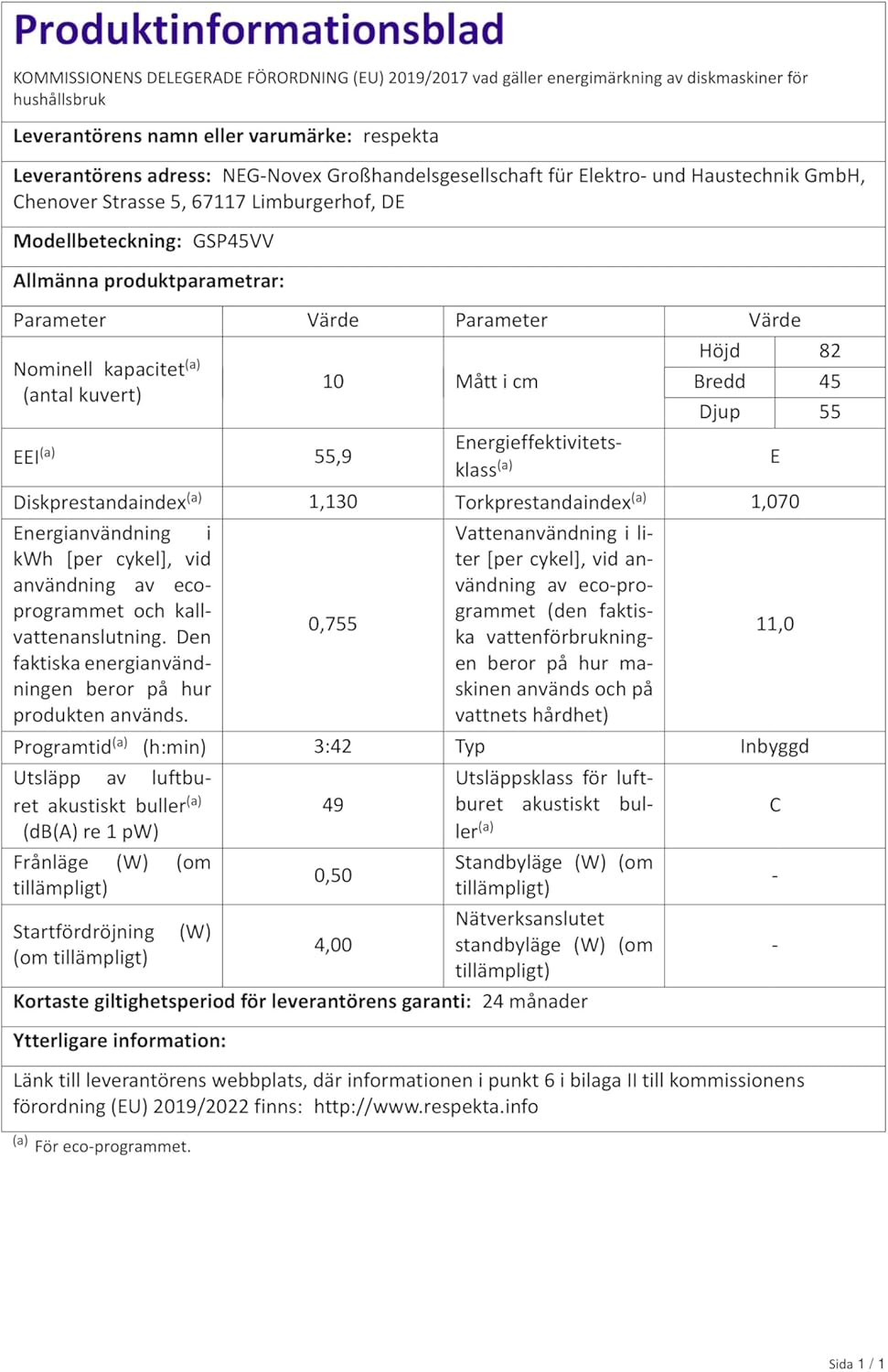

Image: The official EU energy label for the Respekta GSP45VV dishwasher, indicating its energy efficiency class E, energy consumption, water consumption, noise level, and program duration.

For more detailed product information, you can visit the EPREL database: https://eprel.ec.europa.eu/qr/982881

8. Warranty and Support

The minimum duration of the guarantee offered by the supplier is 24 months from the date of purchase.

For further information, support, or to register your product, please visit the official Respekta website:

Visit Respekta Official Website

Please have your model number (GSP45VV) and purchase details ready when contacting support.
