INGCO Jig Saw Instruction Manual

1. Introduction

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your INGCO Corded Jig Saw, Model JS400285-new. Please read this manual thoroughly before using the tool to ensure proper and safe operation.

The INGCO Jig Saw is a versatile power tool designed for cutting various materials, primarily wood, with precision. It features a 400W motor, variable speed control (800-3000 SPM), 4-position orbital action, and the ability to perform bevel cuts up to ±45°.

Image Description: This image shows the INGCO Corded Jig Saw in its packaging, highlighting its main features and the inclusion of one saw blade. The tool is yellow and black, with the brand logo prominently displayed.

2. Safety Instructions

Always follow basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury.

General Power Tool Safety Warnings:

• Work Area Safety: Keep work area clean and well lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
• Electrical Safety: Power tool plugs must match the outlet. Do not modify the plug in any way. Avoid body contact with earthed or grounded surfaces.
• Personal Safety: Stay alert, watch what you are doing and use common sense. Always wear eye protection and hearing protection. Use dust mask if operation is dusty.
• Power Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Service: Have your power tool serviced by a qualified repair person using only identical replacement parts.

Specific Jig Saw Safety:

• Hold the tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
• Secure the workpiece. Use clamps or a vise to hold the workpiece.
• Ensure the blade is sharp and suitable for the material being cut.
• Do not touch the blade immediately after use as it may be hot.

3. Product Components

Familiarize yourself with the main parts of your INGCO Jig Saw:

Image Description: This image displays the INGCO Jig Saw from a side angle with key components labeled. These include the Rubber Handle, Lock Button, Speed Control, Heat Vent, Input Power area, and the Platform (base plate). This visual aid helps users identify each part of the tool.

• Rubber Handle: Provides a comfortable and secure grip during operation.
• Lock Button: Allows for continuous operation without holding the trigger, reducing user fatigue.
• Speed Control: Dial or trigger mechanism to adjust the blade's strokes per minute (SPM).
• Heat Vent: Designed for heat dissipation to prevent motor overheating.
• Input Power: Area where the power cord connects to the tool.
• Platform (Base Plate): The flat base that rests on the workpiece, providing stability and guiding the cut.

4. Setup

4.1 Blade Installation

1. Ensure the tool is unplugged from the power source.
2. Locate the blade clamp mechanism on the front of the tool.
3. Open the blade clamp (refer to tool diagram for specific mechanism, usually a lever or screw).
4. Insert the shank of the jig saw blade into the blade clamp, ensuring it is fully seated.
5. Securely close the blade clamp. Gently pull on the blade to confirm it is firmly held.

4.2 Base Plate Adjustment (Bevel Cutting)

The base plate can be adjusted for bevel cuts up to ±45°.

1. Unplug the tool.
2. Loosen the screw or lever that secures the base plate.
3. Tilt the base plate to the desired angle (0°, 15°, 30°, or 45°). The tool may have detents for common angles.
4. Tighten the securing screw or lever firmly to lock the base plate in position.

5. Operating Instructions

5.1 Powering On/Off

• To start the tool, press the trigger switch.
• To stop the tool, release the trigger switch.
• For continuous operation, press the trigger and then engage the lock button. To disengage, press the trigger again.

5.2 Speed Control

The jig saw features a variable speed control dial (800-3000 SPM) to match the cutting speed to the material and application.

• Use lower speeds for harder materials like metal or thick wood, and for more precise cuts.
• Use higher speeds for softer materials like thin wood or plastic, and for faster cuts.
• Adjust the speed dial before starting the cut.

Image Description: This image shows close-up details of the jig saw's controls. It highlights the Lock Button for continuous operation, the Thrust Adjustable dial (likely for orbital action or speed adjustment), the Rubber Handle for grip, and the Heat Dissipation vents, illustrating how air flows out to cool the motor.

5.3 Orbital Action (Thrust Adjustable)

The 4-position orbital action allows the blade to move in an elliptical motion, providing faster cutting in certain materials.

• Position 0 (No Orbital Action): For fine, precise cuts and cutting metal.
• Positions 1-3 (Increasing Orbital Action): For faster cutting in wood and softer materials. Higher numbers indicate more aggressive cutting.
• Adjust the orbital action lever or dial based on the material and desired cut speed.

5.4 Cutting Techniques

• Straight Cuts: Guide the base plate along a straight edge or marked line. Apply steady, even pressure.
• Curve Cuts: Use a narrower blade for tighter curves. Guide the tool slowly along the marked curve.
• Plunge Cuts: For starting a cut in the middle of a workpiece without a pilot hole, tilt the tool forward so the front of the base plate rests on the workpiece and the blade is clear. Start the tool, then slowly pivot it down until the blade cuts through the material.
• Dust Blower: The integrated dust blower helps keep the cutting line clear of sawdust for better visibility.

Image Description: This image shows a person wearing work gloves operating the INGCO Jig Saw to cut a piece of wood. The tool's base plate is resting firmly on the wood, and sawdust is visible, indicating active cutting. This demonstrates the tool in a typical use scenario.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your jig saw.

• Cleaning: After each use, unplug the tool and clean it with a soft, damp cloth. Remove any sawdust or debris from the vents and blade clamp area. Do not use harsh chemicals or abrasive cleaners.
• Blade Care: Always use sharp blades. Dull blades can cause splintering, overheating, and strain on the motor. Replace worn or damaged blades promptly.
• Cord Inspection: Regularly inspect the power cord for any signs of damage, cuts, or fraying. If damaged, have it repaired by a qualified technician.
• Storage: Store the jig saw in a dry, secure place, out of reach of children.

7. Troubleshooting

8. Specifications

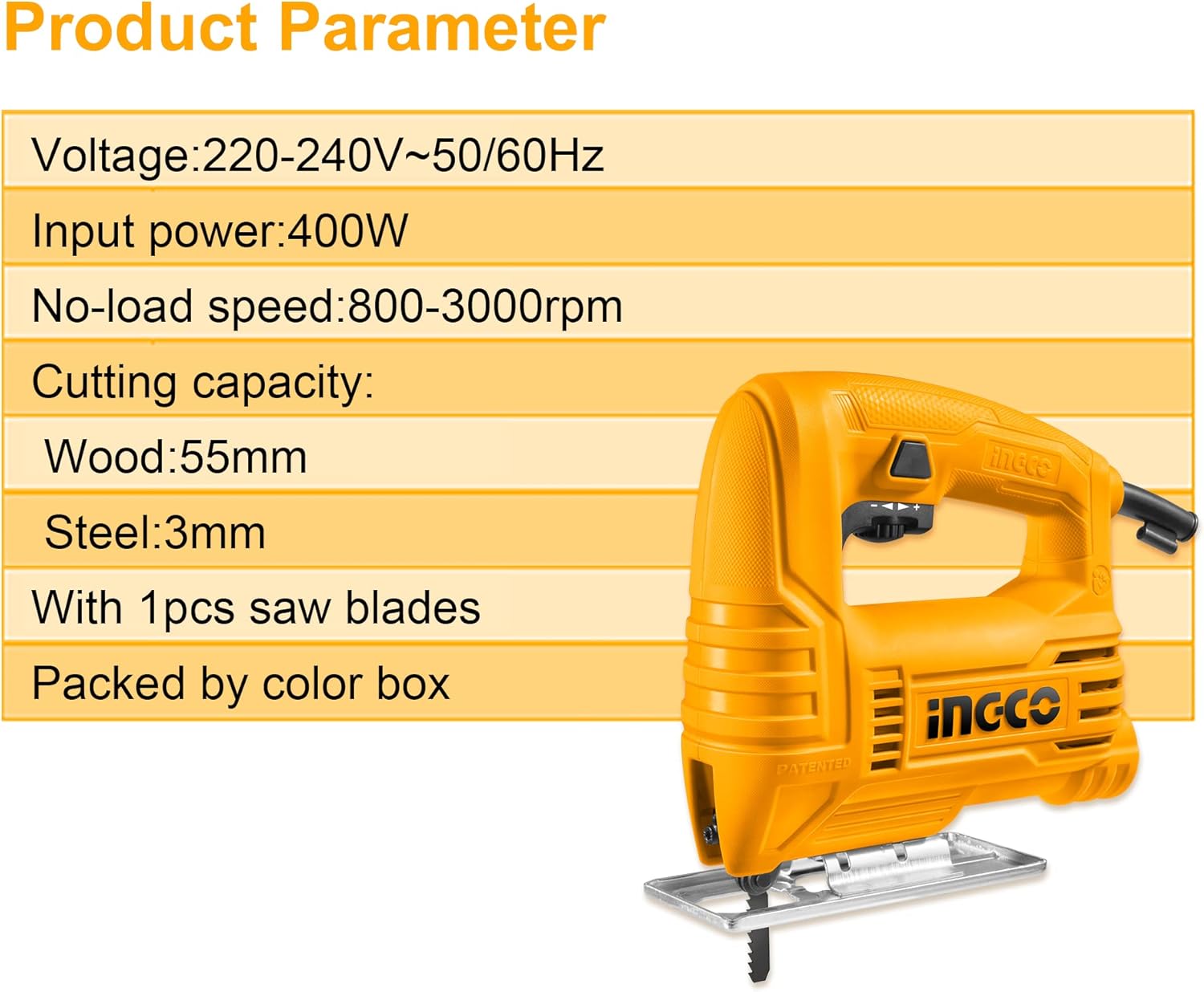

Image Description: This image presents a table detailing the product parameters of the INGCO Jig Saw. It lists Voltage (220-240V~50/60Hz), Input power (400W), No-load speed (800-3000rpm), Cutting capacity for Wood (55mm) and Steel (3mm), and notes that it comes with 1pcs saw blades and is packed by color box.

9. Warranty and Support

Specific warranty details for this product are not provided in the available information. For warranty claims, technical support, or service inquiries, please contact your local INGCO distributor or the retailer from whom you purchased the product. Keep your purchase receipt as proof of purchase.

For general product information, you may visit the official Ingco website or refer to the contact information provided on the product packaging.
