Important Safety Instructions
Please read all instructions carefully before using your new wine cooler. Keep this manual for future reference.
- Electrical Safety: Ensure the power outlet matches the voltage requirements of the appliance. Do not use extension cords.
- Ventilation: Allow adequate space around the unit for proper ventilation. Do not block air vents.
- Placement: Place the wine cooler on a stable, level surface away from direct sunlight, heat sources, and excessive moisture.
- Children: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Flammable Materials: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Product Overview
The GUTSTARK 18-Bottle Wine Cooler is designed to preserve your wine collection at optimal temperatures. It features digital temperature control, integrated LED lighting, and a modern aesthetic suitable for any small space.

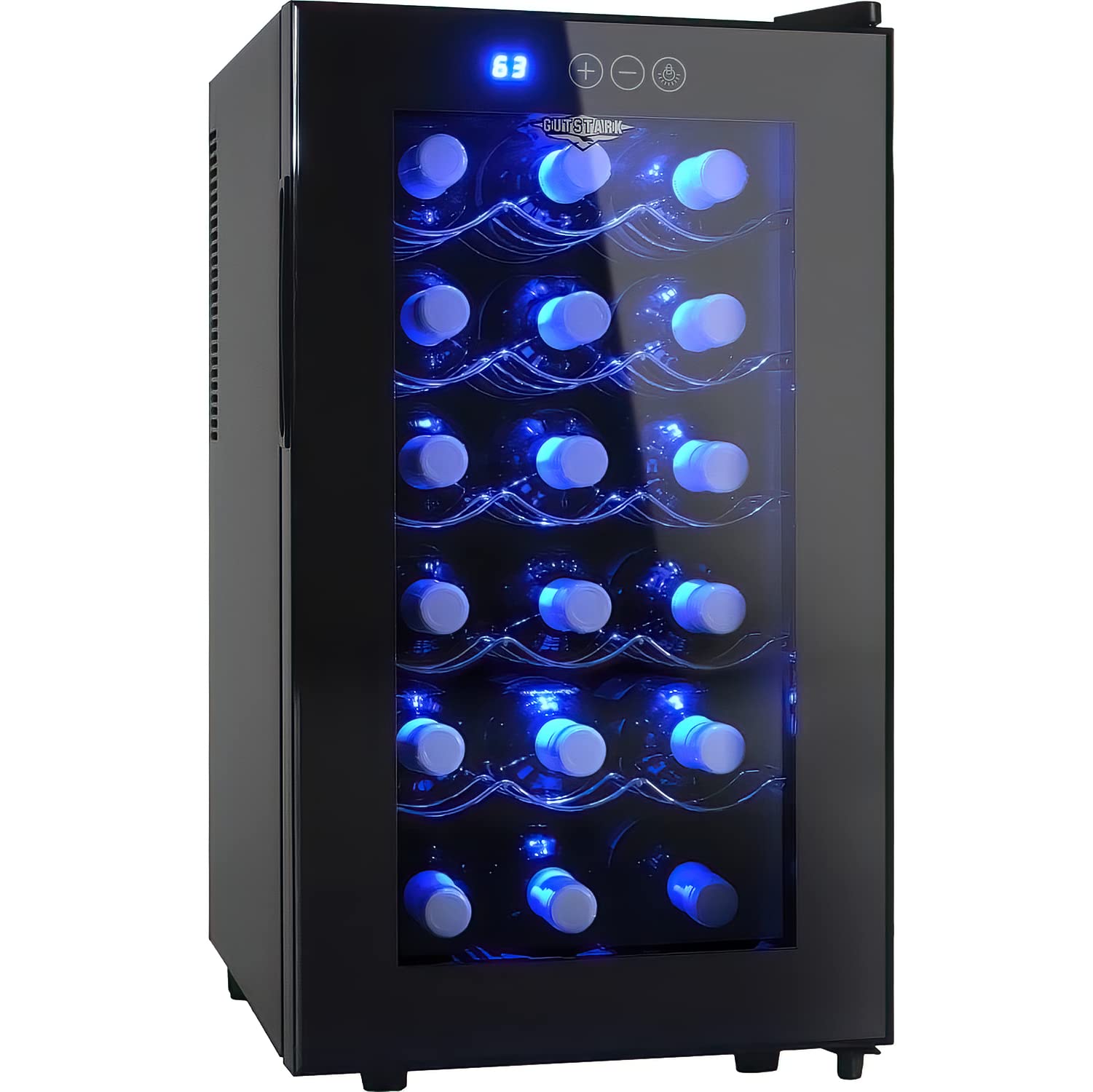

Figure 1: GUTSTARK 18-Bottle Wine Cooler, a sleek appliance for wine storage.
Key features include:
- Temperature Control: Adjustable digital temperature between 12°C - 18°C (53.6°F - 64.4°F).
- Modern Design: Black finish with a plastic and transparent glass door.
- UV Protection: Glass door protects bottles from UV light, preserving wine characteristics.
- Capacity: Maximum capacity of 18 standard wine bottles.
- Integrated Lighting: Subtle blue LED light illuminates the interior without affecting wine quality or labels.
- Silent Operation: Features a silent and vibration-free cooling system.
Figure 2: Detailed view of the wine cooler's digital control panel, LED lighting, and vibration-free design.
Setup and Installation
Unpacking
- Carefully remove all packaging materials, including the foam base and any adhesive tape.
- Inspect the wine cooler for any damage. If damaged, do not plug it in and contact customer support.
- Clean the interior and exterior of the unit with a soft, damp cloth before use.
Placement
- Place the wine cooler on a flat, sturdy surface that can support its weight when fully loaded.
- Ensure there is at least 10 cm (4 inches) of space at the back and sides for proper air circulation.
- Avoid placing the unit in direct sunlight or near heat-generating appliances (e.g., oven, dishwasher).
- The wine cooler is designed for freestanding installation. Do not build it into cabinetry without ensuring adequate ventilation.
Figure 3: Dimensions of the GUTSTARK wine cooler for proper placement planning.
Initial Use
After placing the unit, wait for at least 2 hours before plugging it into a power outlet. This allows the refrigerant to settle. Once plugged in, the unit will begin to cool to the default temperature setting.
Operating Instructions
Temperature Control
The wine cooler features a digital touch control panel on the top of the door. Use the '+' and '-' buttons to adjust the desired temperature. The temperature range is 12°C to 18°C (53.6°F to 64.4°F).
Figure 4: Digital touch control panel for temperature adjustment.
For optimal wine preservation, it is recommended to store red wines at 16-18°C (60-64°F) and white wines at 12-14°C (53-57°F).
Video 1: This video demonstrates how the wine cooler maintains an ideal temperature for wine storage, showcasing its features for preserving wine quality.
Internal Lighting
The wine cooler is equipped with a soft blue LED light. Press the light bulb icon on the control panel to turn the interior light on or off. This light is designed to illuminate your collection without emitting heat that could affect the wine.
Figure 5: The integrated blue LED lighting illuminates the wine bottles.
Bottle Storage
The wine cooler has wavy shelves designed to cradle bottles securely and prevent vibrations. The shelves are removable to accommodate different bottle sizes or to store other beverages.
Figure 6: The wine cooler's interior showing its 18-bottle capacity on wavy shelves.
Figure 7: A hand removing a shelf, demonstrating the adjustable storage options.
Maintenance
Cleaning
- Exterior: Wipe the exterior with a soft, damp cloth and mild detergent. Avoid abrasive cleaners.
- Interior: Clean the interior with a solution of baking soda and water (2 tablespoons baking soda to 1 liter of water). Rinse thoroughly and dry.
- Shelves: Remove shelves and wash them with mild soap and water. Dry completely before returning them to the unit.
- Door Seal: Regularly clean the door gasket to ensure a tight seal and efficient operation.
Defrosting
This wine cooler features a 'No Frost' system, minimizing the need for manual defrosting. If ice buildup occurs, unplug the unit and allow the ice to melt naturally. Wipe away excess water.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not operate | Not plugged in; circuit breaker tripped; power outage. | Check power connection; reset circuit breaker; check household power supply. |
| Unit is not cold enough | Temperature set too high; door not closed properly; excessive door opening; poor ventilation; unit near heat source. | Adjust temperature setting; ensure door is sealed; reduce door openings; ensure proper ventilation; relocate unit. |
| Excessive noise | Unit not level; loose parts; fan obstruction. | Adjust leveling feet; check for loose components; ensure fan is clear. |
| Light not working | Light switch off; LED malfunction. | Press the light button on the control panel; contact customer support if issue persists. |
Specifications
- Brand: GUTSTARK
- Model: B09S2VMD3D
- Capacity: 18 Bottles / 46 Liters
- Dimensions (Depth x Width x Height): 34.5 cm x 51 cm x 63.5 cm
- Temperature Range: 12°C - 18°C (Digital Control)
- Cooling Method: Thermoelectric
- Defrost System: No Frost
- Number of Shelves: 5 (Plastic, Wavy)
- Door Material: Plastic with Transparent Glass (UV protection)
- Special Features: Silent and vibration-free refrigeration system, air circulation system to prevent flavor mixing, integrated LED lighting.
- Installation Type: Freestanding
- Energy Compliance: Energy Star
Warranty and Support
This GUTSTARK wine cooler comes with a manufacturer's warranty. For specific warranty details, claims, or technical support, please refer to the warranty card included with your product or contact GUTSTARK customer service directly. Keep your proof of purchase for warranty validation.
For further assistance, please visit the official GUTSTARK website or contact their customer support hotline.
