INPHIC Bluetooth Mouse DR01 User Manual

1. Product Overview

The INPHIC DR01 Bluetooth Mouse is a versatile and ergonomic input device designed for seamless multi-device connectivity. It supports 2.4G wireless, Bluetooth 5.0, and Bluetooth 4.0 modes, allowing connection to up to three different devices. Featuring a silent click design and a built-in rechargeable battery, it offers a comfortable and quiet user experience for various computing environments.

Figure 1: The INPHIC DR01 Bluetooth Mouse shown alongside its USB Nano-receiver.

2. Safety Instructions

Please read and follow these safety instructions carefully to ensure proper use and longevity of your INPHIC DR01 mouse:

• Do not operate the device in extremely high or low temperatures (0°C - 40°C, 40%-65% RH).
• Avoid exposing the device to humid environments.
• If the product is exposed to temperatures outside the specified range, immediately turn off the power switch (unplug the USB cable for wired mouse) until the temperature stabilizes within the specified operating range.
• Do not charge rechargeable products in humid environments. Ensure that the charging cable, keyboard, mouse, and USB ports are dry and free of debris during charging.
• If the product's connection cable or charging cable is damaged in any way, stop using it immediately.
• This product contains no user-serviceable parts. If the product does not function properly, please contact customer service.
• Do not attempt to modify or repair the product yourself, as this will void the warranty.
• If rechargeable products are not used for a long period, fully charge them first, turn off the power switch, and store them in a cool, dry place. Charge the product every three months to prevent damage to the battery from long periods without power.

Figure 2: Important safety instructions and warnings for the device.

3. Package Contents

The INPHIC DR01 Bluetooth Mouse package includes the following items:

• 1 x Wireless Mouse (Model: DR01)
• 1 x USB Nano-receiver
• 1 x Charging Cable
• 1 x User Manual

4. Product Features

The INPHIC DR01 mouse is equipped with several features designed for enhanced usability and performance:

4.1 Multi-Device Connectivity

The mouse supports three connection modes: 2.4GHz Wireless, Bluetooth 5.0, and Bluetooth 4.0. This allows you to pair and switch between up to three different devices seamlessly, such as laptops, desktops, tablets, and smartphones.

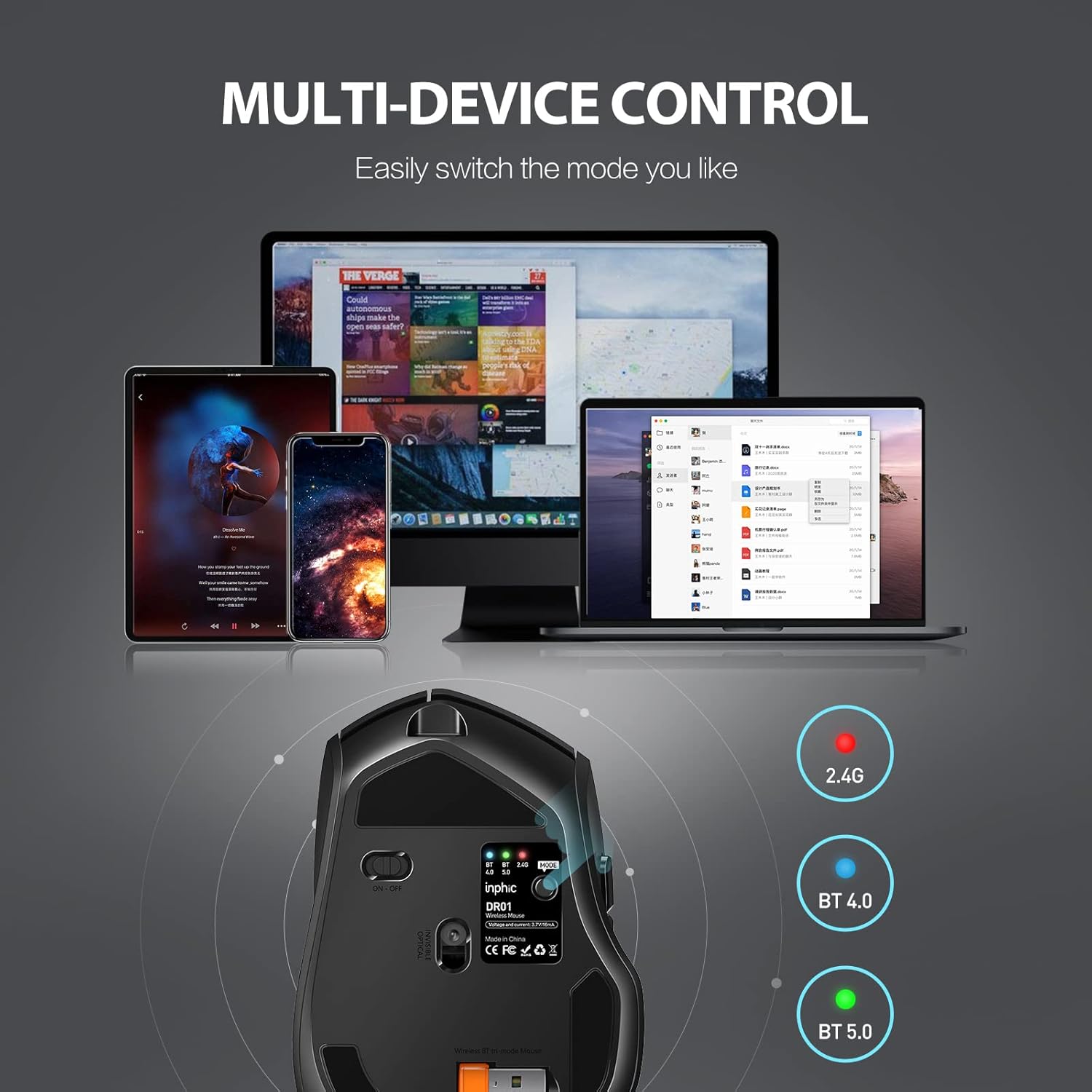

Figure 3: The mouse's multi-device control feature, allowing easy switching between connected devices.

4.2 Rechargeable Battery

Equipped with a built-in 500mAh rechargeable battery, the mouse offers extended usage. A full charge takes approximately 2-3 hours and can last for 1-2 months depending on usage. Charging indicators provide clear status updates.

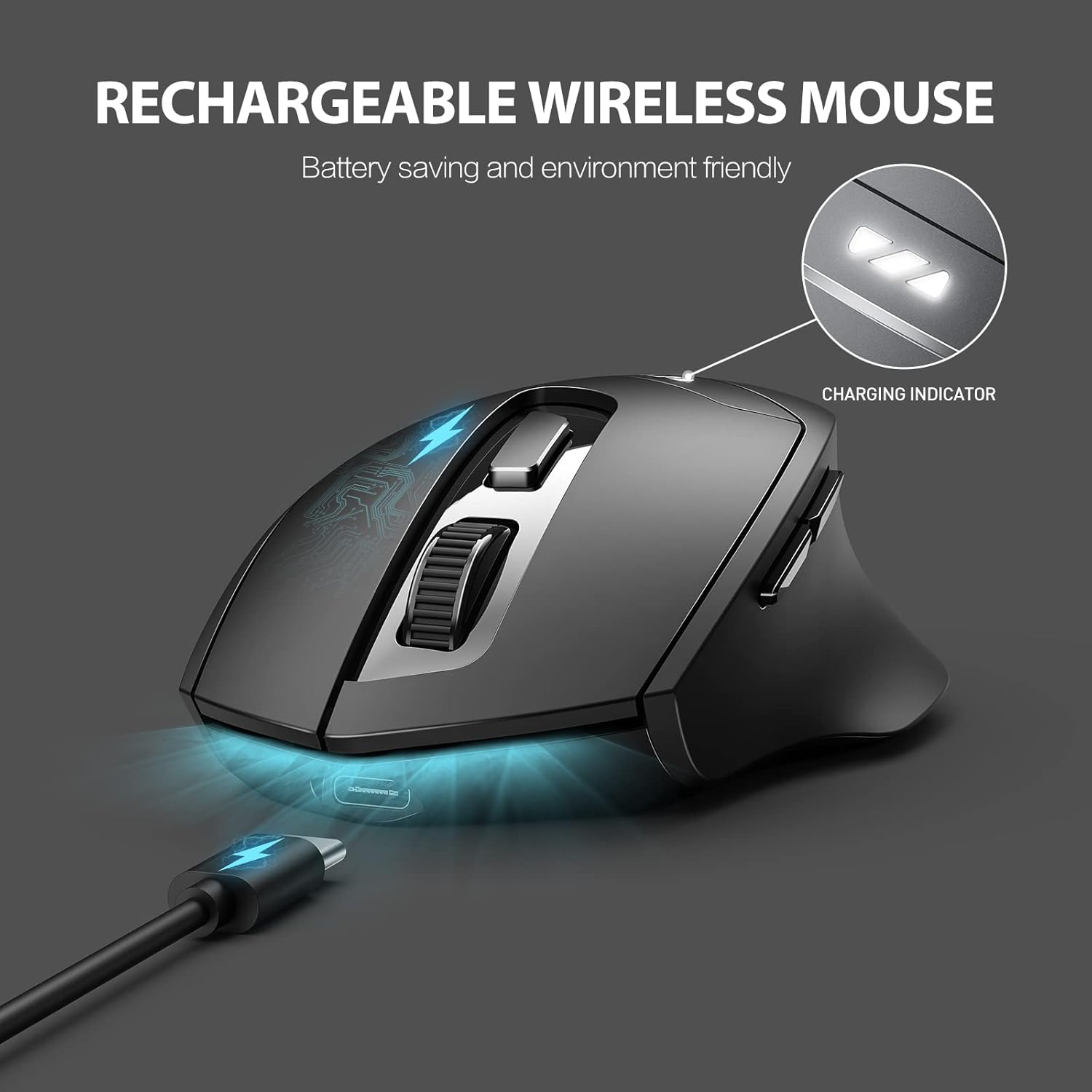

Figure 4: The rechargeable feature of the wireless mouse, highlighting the charging indicator lights.

4.3 Ultra-Silent Clicks

The left and right mouse buttons are designed for ultra-silent operation, reducing click noise by up to 90%. This feature is ideal for quiet environments, ensuring you can work or study without disturbing others.

Figure 5: The noiseless click feature of the mouse, designed to maintain focus without disturbance.

4.4 Ergonomic Design

The mouse features a curved design and a sweat-resistant matte finish, providing a comfortable grip that fits naturally in the palm of your hand. This ergonomic shape helps reduce strain during prolonged use.

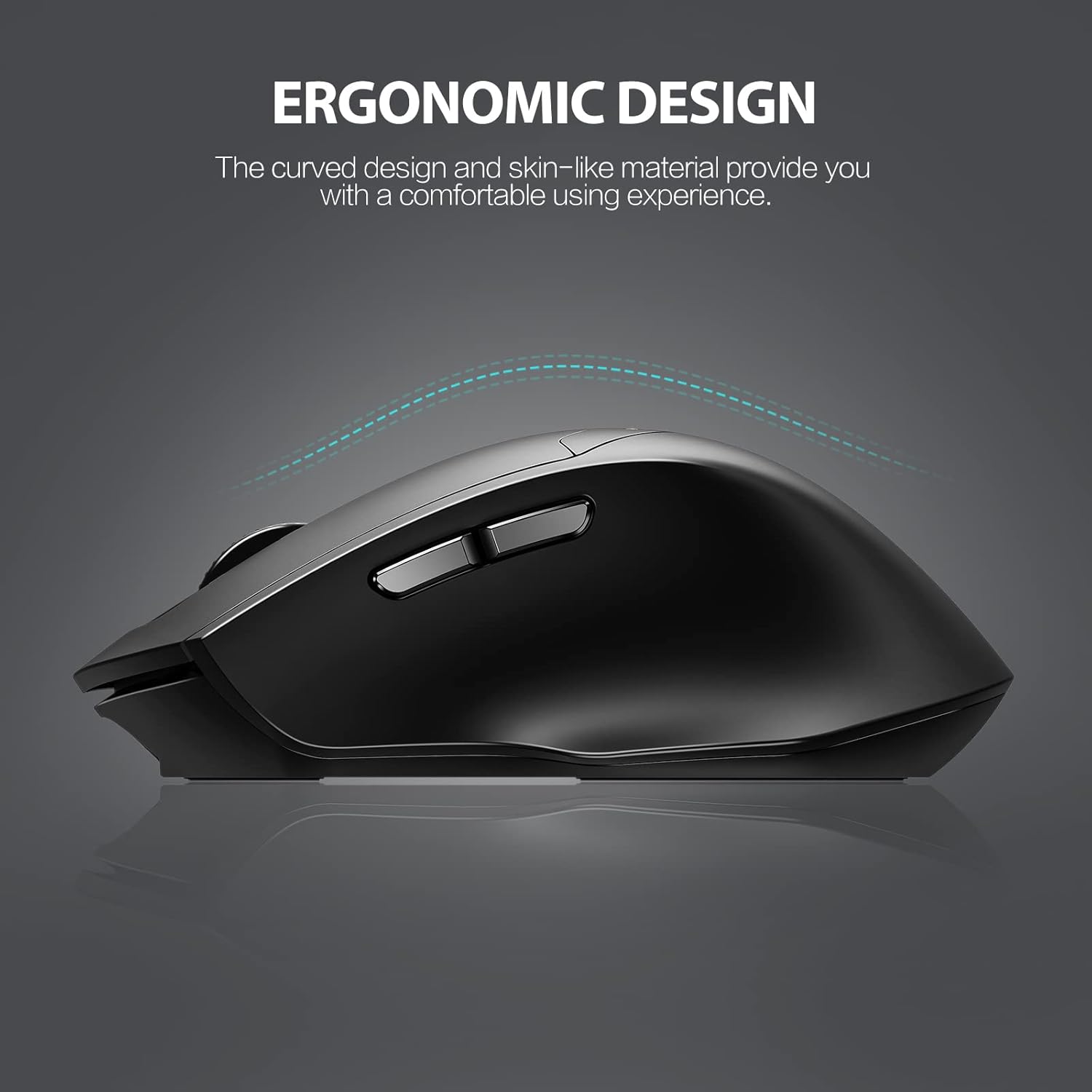

Figure 6: The ergonomic design of the mouse, emphasizing its comfortable curved shape.

4.5 Component Overview

Familiarize yourself with the key components of the mouse:

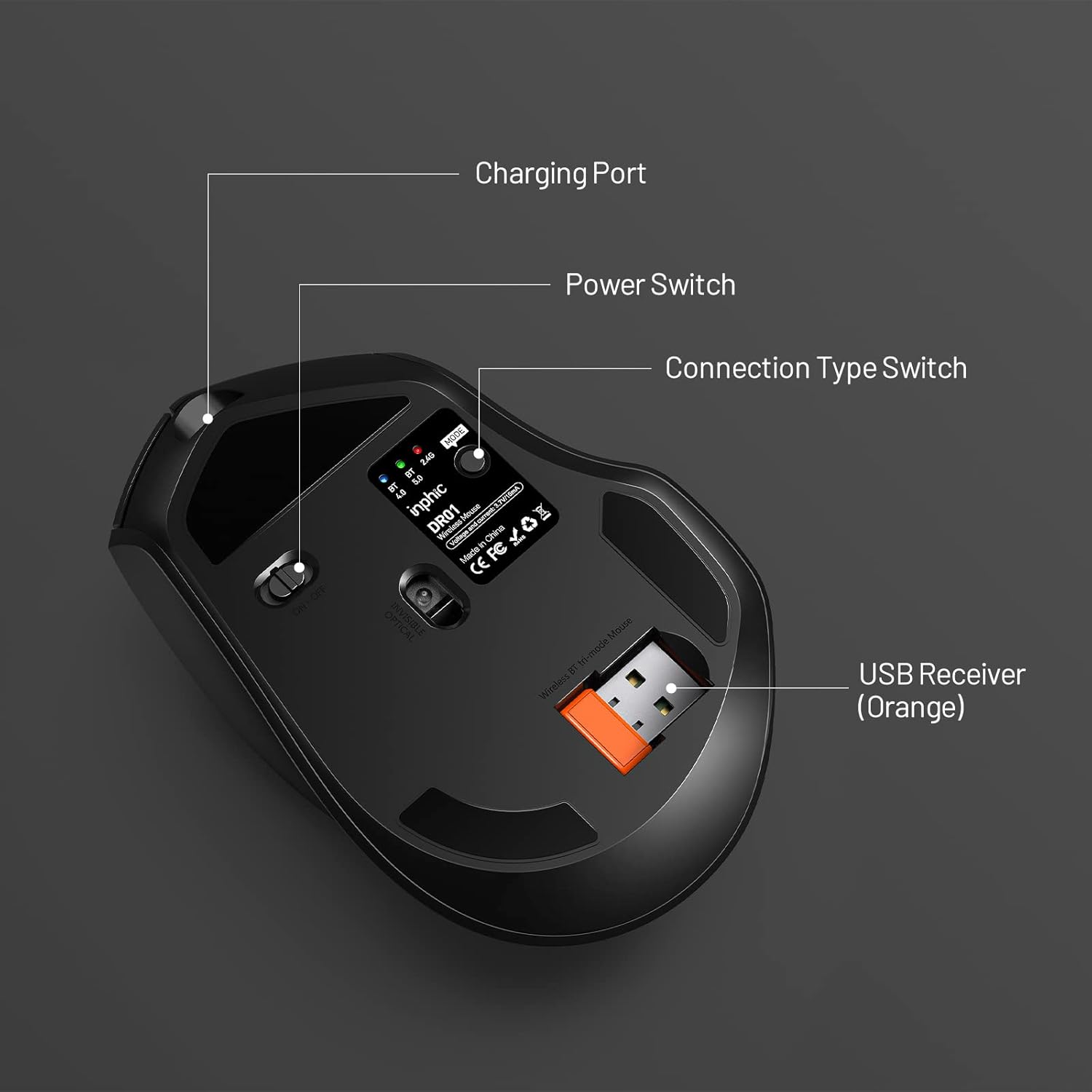

Figure 7: Labeled diagram of the mouse's underside, showing the charging port, power switch, connection type switch, and USB receiver storage.

4.6 Dimensions

The physical dimensions of the mouse are approximately 112mm (length) x 75mm (width) x 42mm (height).

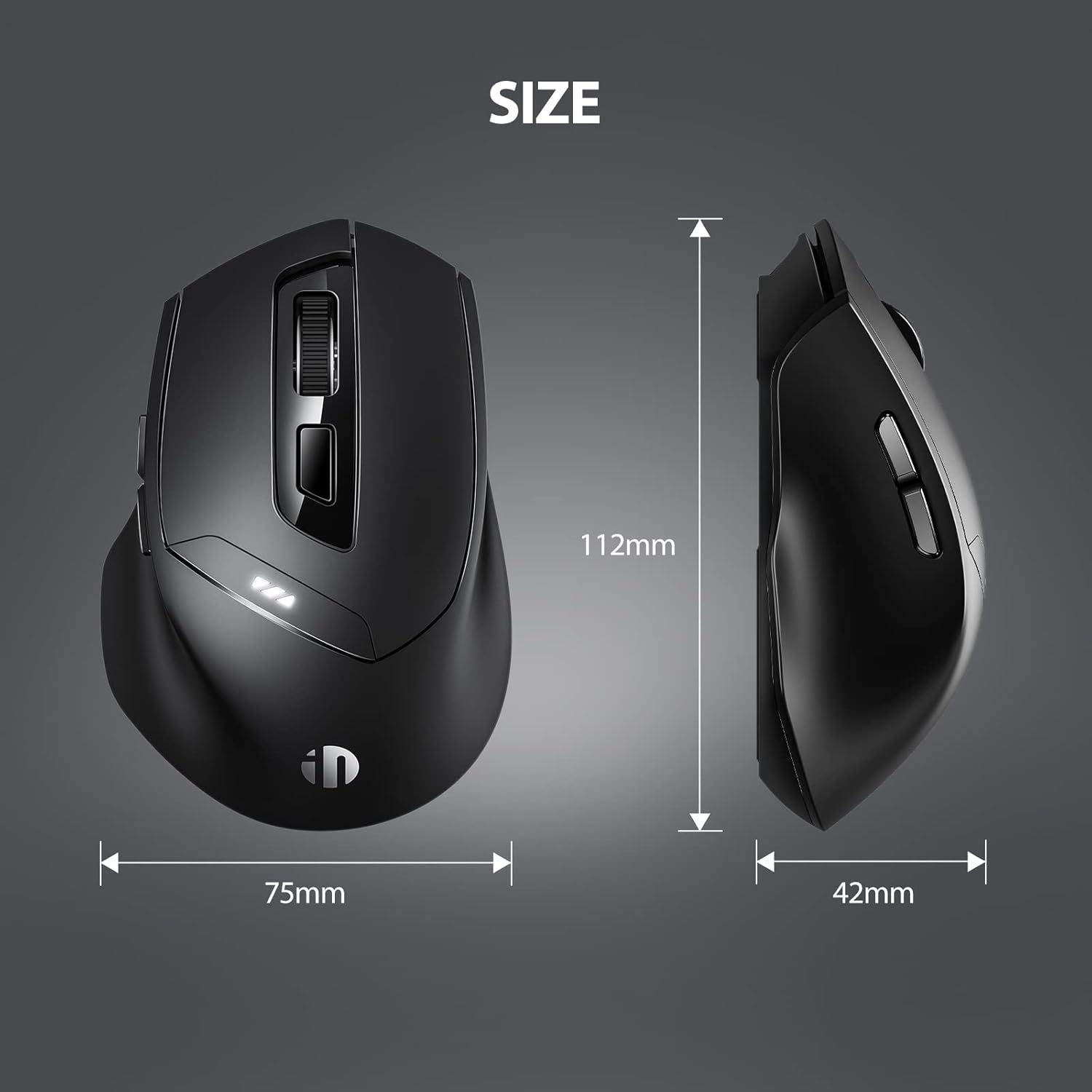

Figure 8: Diagram illustrating the precise dimensions of the mouse.

5. Setup and Connection

The INPHIC DR01 mouse offers three distinct connection modes: 2.4G Wireless, Bluetooth 5.0, and Bluetooth 4.0. Follow these steps to connect your mouse to your device:

5.1 2.4G Wireless Connection

1. Locate the USB Nano-receiver stored in the compartment on the bottom of the mouse.
2. Plug the USB Nano-receiver into an available USB port on your computer or device.
3. Turn on the mouse using the power switch on its bottom.
4. Press the "Connection Type Switch" button on the bottom of the mouse until the 2.4G indicator light (red) is active. The mouse should automatically connect to the receiver.

5.2 Bluetooth Connection (BT 4.0 / BT 5.0)

1. Turn on the mouse using the power switch on its bottom.
2. Press the "Connection Type Switch" button on the bottom of the mouse to select either BT 4.0 (blue light) or BT 5.0 (green light).
3. On your device (laptop, tablet, smartphone), go to Bluetooth settings.
4. Search for new devices. The mouse should appear as "INPHIC Mouse" or similar.
5. Select the mouse to pair. Once paired, the corresponding Bluetooth indicator light will remain solid.

Note: The mouse can be paired with two different Bluetooth devices (one on BT 4.0 and one on BT 5.0) in addition to the 2.4G wireless connection, allowing for quick switching between three devices.

6. Operating Instructions

Once connected, the INPHIC DR01 mouse functions as a standard computer mouse. It features six buttons for various operations:

• Left Click Button: Standard selection and activation.
• Right Click Button: Context menu access.
• Scroll Wheel: Scroll up/down, middle click.
• DPI Adjustment Button: Located near the scroll wheel, cycles through DPI settings.
• Forward Button: (Left side) Navigates forward in web browsers or file explorers.
• Back Button: (Left side) Navigates backward in web browsers or file explorers.

6.1 DPI Adjustment

The mouse offers three adjustable DPI settings: 800, 1200, and 1600. DPI (Dots Per Inch) determines the sensitivity of the mouse cursor. To change the DPI, press the DPI adjustment button located near the scroll wheel. The red gear at the scroll wheel will flash with different frequencies to indicate the current DPI setting:

• 800 DPI: Slower cursor movement, suitable for precise tasks.
• 1200 DPI: Medium cursor movement, general use.
• 1600 DPI: Faster cursor movement, suitable for quick navigation.

7. Charging and Battery

The INPHIC DR01 mouse is powered by a rechargeable lithium metal battery. To ensure optimal performance and battery life, follow these guidelines:

• Charging: Connect the provided charging cable to the mouse's charging port (refer to Figure 7) and to a USB power source (e.g., computer USB interface, 5V/500mA adapter).
• Charging Indicator: During charging, three white lights will flash circularly. Once fully charged, these three white lights will remain steadily on.
• Low Voltage Prompt: When the battery is low, a red light will flash slowly to indicate that charging is required.
• Charging Time: A full charge typically takes 2-3 hours.
• Use Time (per charge): A fully charged mouse can last for 1-2 months, depending on usage intensity.

To conserve battery life, the mouse will enter sleep mode after 3 seconds or 10 minutes of no operation. Press any button to wake it up. You can also switch the power button on the back of the mouse to the "OFF" position when not in use for extended periods.

8. Maintenance

Proper maintenance will extend the lifespan of your INPHIC DR01 mouse:

• Cleaning: Use a soft, dry cloth to clean the mouse. Avoid using harsh chemicals or abrasive materials.
• Storage: When not in use for a long time, turn off the mouse and store it in a cool, dry place.
• Charging: Recharge the mouse every three months even if not in use to prevent battery degradation.
• Avoid Drops: Protect the mouse from drops and impacts, which can damage internal components.

9. Troubleshooting

If you encounter issues with your INPHIC DR01 mouse, refer to the following common problems and solutions:

9.1 Connection Issues

• Mouse not responding: Ensure the mouse is turned on and fully charged. Check if the correct connection mode (2.4G, BT 4.0, or BT 5.0) is selected via the switch on the bottom of the mouse.
• 2.4G Wireless not connecting: Ensure the USB Nano-receiver is securely plugged into a working USB port. Try a different USB port. Re-pair by turning the mouse off and on, then selecting 2.4G mode.
• Bluetooth not connecting: Ensure Bluetooth is enabled on your device. Remove any previous pairings of the mouse from your device's Bluetooth settings and attempt to pair again. Make sure you select the correct BT 4.0 or BT 5.0 mode on the mouse.
• USB receiver location: The USB receiver is typically built into the bottom of the mouse for storage.

9.2 Performance Issues

• Cursor erratic or not moving smoothly: Check the surface you are using the mouse on. A clean, non-reflective surface is ideal. Adjust the DPI setting to a lower value if the cursor is too fast, or a higher value if it's too slow. Ensure the optical sensor on the bottom of the mouse is clean.
• Buttons not responding: Ensure the mouse is fully charged. If using 2.4G, try re-inserting the USB receiver. If using Bluetooth, try re-pairing the device.

9.3 Charging and Battery Issues

• Mouse not charging: Ensure the charging cable is properly connected to both the mouse and the power source. Try a different USB port or charging adapter. Use a 5V/500mA USB interface for charging.
• Battery drains quickly: Ensure the mouse is turned off when not in use for extended periods. Reduce the DPI setting if not needed, as higher DPI can consume more power.

9.4 Compatibility Questions

• MacBook compatibility: This mouse is compatible with MacBook. If your MacBook only has Type-C ports, you will need a Type-C to USB-A adapter (not included) to use the USB Nano-receiver. Bluetooth connection works directly.

10. Specifications

11. Warranty and Support

INPHIC offers a 100% worry-free 12-month warranty for this product. For any questions, technical support, or warranty claims, please contact INPHIC customer service through the retailer where you purchased the product or visit the official INPHIC website for support contact information.

Please retain your proof of purchase for warranty purposes.
