1. Introduction
Thank you for choosing the Toshiba Top-Load Washing Machine, Model AEW-8460SP(DS). This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read these instructions thoroughly before using the washing machine and retain them for future reference.
This washing machine features an 8 kg capacity, smart computer control, automatic water level adjustment, and a hybrid screw pulsator designed to prevent clothes tangling. Additional features include a one-touch tub cleaning function, child lock, and an air-dry spin cycle for enhanced convenience and performance.
2. Safety Instructions
To ensure safe operation and prevent damage, observe the following safety precautions:
- General Safety: Read all instructions before use. Do not allow children to play with or in the appliance. Keep packaging materials out of reach of children.
- Electrical Safety: Ensure the washing machine is properly grounded. Do not use extension cords or adapters. Do not operate the appliance with a damaged power cord or plug. Disconnect power before cleaning or maintenance.
- Installation Safety: Install the washing machine on a firm, level surface. Ensure adequate ventilation around the appliance. Connect water inlet hoses securely to prevent leaks. Do not install in areas exposed to freezing temperatures.
- Operation Safety: Do not wash items that are soiled with flammable substances. Do not reach into the tub while it is spinning. Use only detergents suitable for automatic washing machines.
3. Product Overview
The Toshiba AEW-8460SP(DS) is an 8 kg capacity top-load washing machine designed for efficient and convenient laundry care. It features a silver finish and a durable construction from high-quality, rust-proof materials.

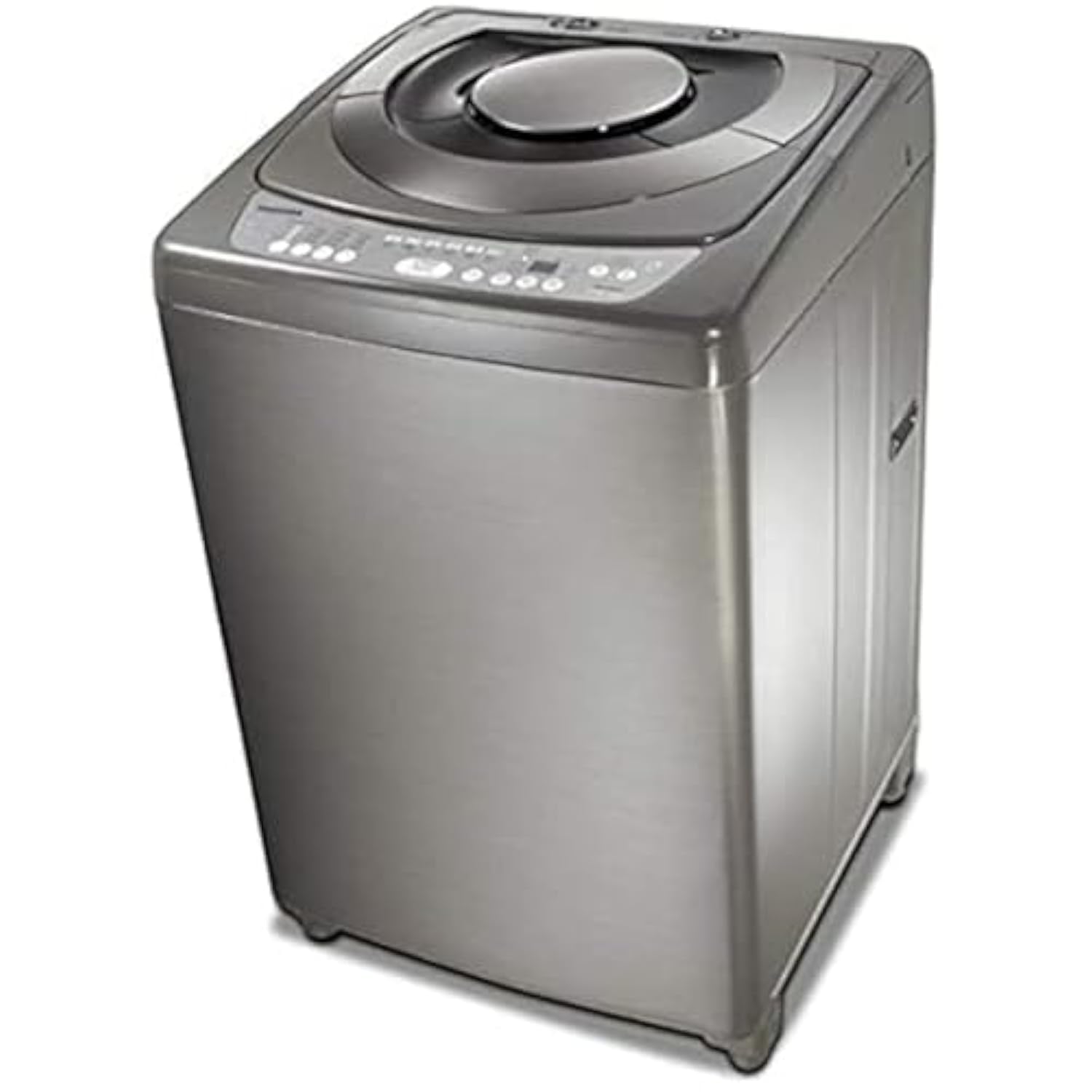

Image 1: Front view of the Toshiba Top-Load Washing Machine AEW-8460SP(DS).
Key Features:
- Smart Computer Control: Full control over operating functions via a smart computer system.
- Automatic Water Level Adjustment: Linear water level sensor automatically adjusts water volume based on laundry load.
- Hybrid Screw Pulsator: Two-layer pulsator design (φ334 mm) to prevent clothes tangling during wash cycles.
- One-Touch Tub Cleaning: Dedicated function for easy and effective cleaning of the washing machine tub.
- Child Lock: Safety feature to prevent accidental operation by children.
- Air-Dry Spin Cycle: Utilizes air vents during the spin cycle for enhanced drying performance.
- Durable Construction: Made from high-quality, rust-proof ABS and stainless steel drum materials.
Image 2: Another perspective of the Toshiba Top-Load Washing Machine AEW-8460SP(DS).
4. Installation
Proper installation is crucial for the performance and longevity of your washing machine. Follow these steps carefully:
- Unpacking: Remove all packaging materials and check for any damage.
- Location: Place the washing machine on a flat, stable, and non-slippery surface. Ensure there is sufficient space for ventilation and door opening. Avoid direct sunlight or extreme temperatures.
- Leveling: Adjust the leveling feet to ensure the machine is perfectly level. This prevents excessive vibration and noise during operation.
- Water Connection: Connect the cold water inlet hose to a cold water tap. Ensure connections are tight to prevent leaks. This model uses a single cold water inlet.
- Drain Hose: Position the drain hose correctly to allow for proper water drainage. Ensure it is not kinked or blocked.
- Electrical Connection: Plug the power cord into a grounded electrical outlet. Do not overload the circuit.
Image 3: Dimensions of the Toshiba Top-Load Washing Machine AEW-8460SP(DS).
5. Operating Instructions
Follow these steps for effective washing:
- Load Laundry: Open the lid and place clothes loosely into the tub. Do not overload the machine beyond its 8 kg capacity.
- Add Detergent: Add the appropriate amount of detergent to the dispenser according to the detergent manufacturer's instructions and the load size.
- Select Program: Use the control panel buttons to select one of the 12 available washing programs. Options include:
- Normal Soak Cycle (up to 60 minutes)
- Heavy Wash Cycle
- Delicate Cycle
- Speed Program
- Spin Cycle
- Start Cycle: Press the 'Start' button to begin the wash cycle. The machine will automatically detect the load and adjust the water level.
- Child Lock: To activate the child lock, press and hold the designated button (refer to control panel diagram in your quick start guide). This prevents accidental changes to settings during operation.
- Air-Dry Spin: For enhanced drying, select the air-dry spin cycle. This feature uses air circulation during spinning.
- End of Cycle: The machine will automatically stop 15 seconds after the wash cycle ends. Remove laundry promptly.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your washing machine:
- Tub Cleaning: Use the one-touch tub cleaning function regularly to remove detergent residue and prevent odors.
- Exterior Cleaning: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Pulsator Care: Periodically check the hybrid screw pulsator for any lint or debris and clean as necessary.
- Filter Cleaning: Clean the lint filter (if applicable) after every few washes to maintain drainage efficiency.
- Water Inlet Filter: Clean the water inlet filter periodically to prevent blockages.
7. Troubleshooting
If you encounter issues with your washing machine, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged; Lid not closed properly; Child lock activated. | Check power connection; Close lid securely; Deactivate child lock. |
| No water filling | Water tap closed; Water inlet hose kinked; Water inlet filter blocked. | Open water tap; Straighten hose; Clean filter. |
| Machine vibrates excessively | Machine not level; Laundry unevenly distributed. | Adjust leveling feet; Redistribute laundry evenly. |
| Water not draining | Drain hose kinked or blocked; Drain pump filter blocked. | Check and clear drain hose; Clean drain pump filter. |
If the problem persists after attempting these solutions, please contact customer service.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | AEW-8460SP(DS) |
| Capacity | 8 kg |
| Maximum Spin Speed | 850 rpm |
| Color | Silver |
| Dimensions (W x H x D) | 63 cm x 92 cm x 53 cm (525 x 920 x 625 mm) |
| Net Weight | 29 kg |
| Gross Weight | 34 kg |
| Water Consumption (High Level) | 129 liters (per cycle) |
| Water Consumption (Low Level) | 23 liters (per cycle) |
| Noise Level | 62 dB |
| Control Type | Push Button |
| Display Type | LED |
| Number of Programs | 12 |
| Pulsator Diameter | φ334 mm (two layers) |
| Drum Material | Stainless Steel |
| Body Material | ABS |
| Country of Origin | Egypt |
9. Warranty and Support
Warranty Information:
This Toshiba washing machine, Model AEW-8460SP(DS), comes with a 5-year full free warranty from the manufacturer. Please retain your purchase receipt as proof of purchase for warranty claims.
Customer Support:
For technical assistance, service requests, or warranty inquiries, please contact Toshiba customer support. Refer to the contact information provided with your purchase documentation or visit the official Toshiba website for your region.
