Bagtecs XR65 65L Motorcycle Rear Bag

Introduction

This instruction manual provides detailed information for the proper installation, operation, and maintenance of your Bagtecs XR65 65L Motorcycle Rear Bag. Please read this manual thoroughly before using the product to ensure safe and efficient use. Keep this manual for future reference.

Safety Instructions

• Ensure the bag is securely fastened to the motorcycle before each ride. Loose bags can cause instability and accidents.
• Distribute weight evenly within the bag to maintain motorcycle balance.
• Do not exceed the maximum load capacity of your motorcycle or the bag.
• Regularly check all straps and buckles for wear and tear. Replace damaged components immediately.
• Be aware that the added weight and size of the bag may affect motorcycle handling, especially at high speeds or during cornering.
• Reflective elements are for increased visibility; they do not replace proper lighting.

Package Contents

Please verify that all items listed below are included in your package:

• 1x Bagtecs XR65 65L Motorcycle Rear Bag
• 1x Waterproof Inner Bag
• 4x Buckle Straps for attachment
• 1x Shoulder Strap

Product Features

• Capacity: 65 liters, suitable for passenger seat or luggage rack.
• Universal Fit: Designed for various motorcycles, including touring, adventure, naked bikes, and choppers.
• Durable Material: Constructed from 1680D Nylon with a water-repellent PU coating, offering high resistance to abrasion, tearing, and UV radiation.
• Secure Attachment: Innovative fastening system with four buckle straps for secure mounting to the motorcycle frame, under the passenger seat, or on the luggage rack.
• Enhanced Visibility: Integrated reflective elements for improved safety during night rides or in low visibility conditions.
• Shape Retention: PE reinforcements on the sides ensure the bag maintains its shape even when empty.
• Waterproof Inner Bag: Includes a separate inner bag to protect contents from moisture.
• Carrying Options: Equipped with a shoulder strap for easy transport off the motorcycle.
• Compartments: Features 2 main compartments for organized storage.

Setup and Installation

The Bagtecs XR65 rear bag features a universal attachment system designed to fit most motorcycles. Follow these steps for secure installation:

1. Positioning the Bag: Place the rear bag on the passenger seat or luggage rack of your motorcycle. Ensure it is centered and does not obstruct any lights or moving parts.
2. Attaching the Buckle Straps: Locate the four buckle straps provided. These straps are designed to secure the bag to your motorcycle.
   • Thread two straps through sturdy points on the motorcycle frame near the rear, or under the passenger seat.
   • Thread the remaining two straps through similar sturdy points further back on the frame or luggage rack.
   • Ensure the straps are routed in a way that they will not interfere with wheels, chain, or exhaust.
3. Connecting the Bag: Connect the buckle straps to the corresponding buckles on the Bagtecs XR65 rear bag.
4. Tightening the Straps: Pull the straps firmly to tighten the bag against the motorcycle. Ensure there is no slack and the bag is stable. Wiggle the bag to confirm it is securely attached and does not shift.
5. Final Check: Before riding, double-check all attachment points and strap tension. The bag should not move or wobble.

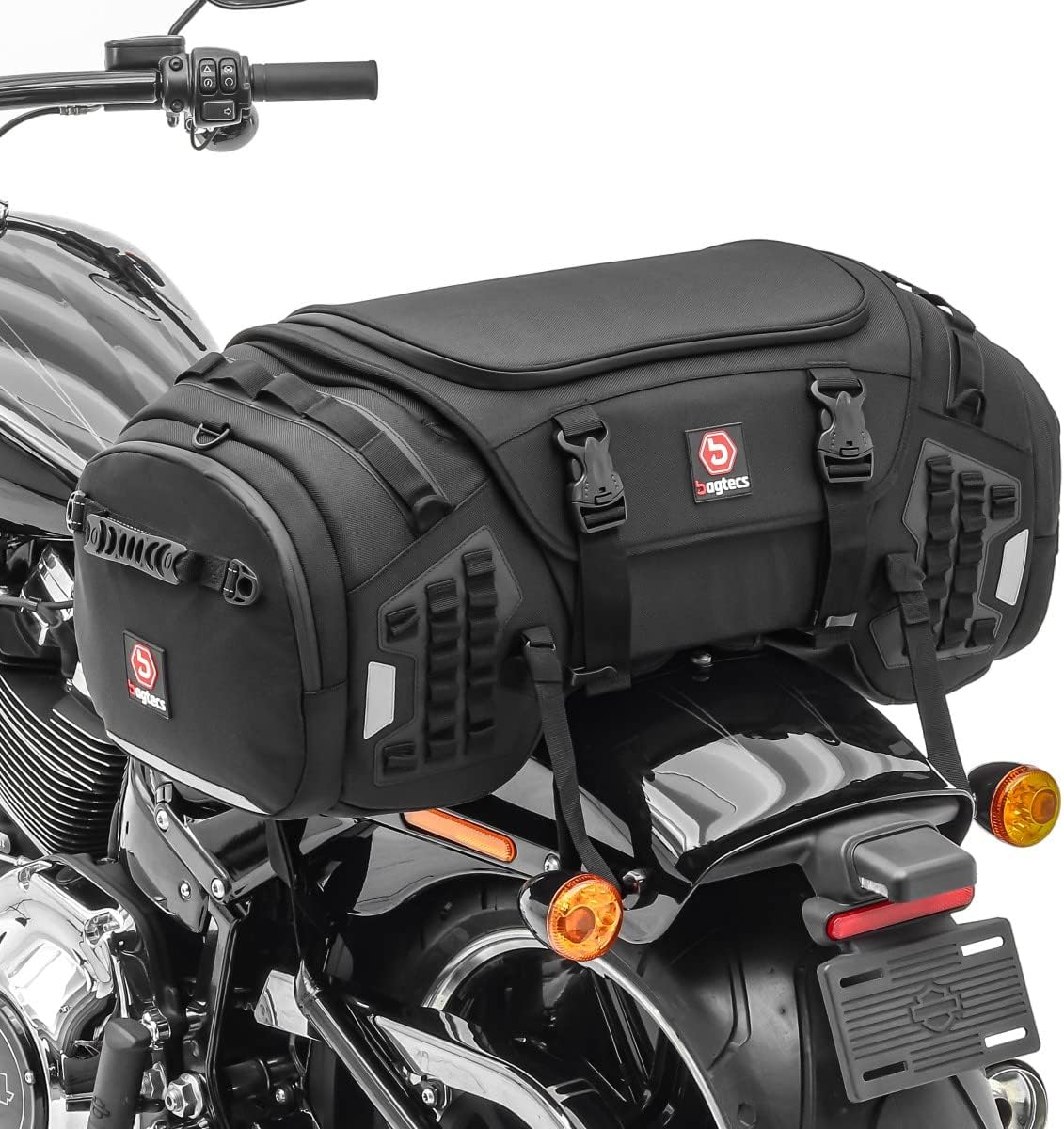

Image 1: Bagtecs XR65 rear bag mounted on a motorcycle, showing side attachment points.

Image 2: Rear view of the Bagtecs XR65 bag on a motorcycle, illustrating the strap routing.

Image 3: Top-down view of the Bagtecs XR65 bag on a different motorcycle model, showing overall fit.

Important: Refer to the images and dimensions provided in the specifications to ensure compatibility and proper fitment for your specific motorcycle model. The listed models are examples only.

Operating Instructions

Using your Bagtecs XR65 rear bag effectively:

• Packing the Bag: Utilize the 65-liter capacity for your gear. For items requiring extra protection from moisture, place them inside the included waterproof inner bag before putting them into the main compartment.
• Securing Contents: Ensure all zippers are fully closed before riding. The internal PE reinforcements help the bag maintain its shape, but proper packing contributes to stability.
• Visibility: The integrated reflective elements on the bag enhance your visibility to other road users, especially in low light conditions. However, always use appropriate motorcycle lighting.
• Off-Motorcycle Transport: For convenient carrying when off the motorcycle, attach the provided shoulder strap to the designated D-rings on the bag.

Image 4: The Bagtecs XR65 bag with the shoulder strap attached for easy carrying.

Image 5: Interior view of the Bagtecs XR65 bag, highlighting the main compartment and mesh pocket.

Maintenance

• Cleaning: Clean the exterior of the bag with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners, as these can damage the PU coating and fabric.
• Drying: Allow the bag to air dry completely before storage. Do not expose it to direct sunlight for prolonged periods, as this can degrade the material.
• Strap Inspection: Periodically inspect all straps, buckles, and zippers for signs of wear, fraying, or damage. Replace any compromised components to ensure continued safety and functionality.
• Storage: Store the bag in a cool, dry place away from direct sunlight when not in use.

Troubleshooting

• Bag feels loose after installation: Re-check all four buckle straps. Ensure they are threaded correctly and pulled taut. Verify that the attachment points on the motorcycle are secure.
• Contents getting wet: Ensure the waterproof inner bag is properly sealed and used for sensitive items. Check the main bag for any tears or damage to the PU coating.
• Zippers are stiff: Clean zippers with a small brush to remove dirt. Apply a silicone-based lubricant if necessary.

Specifications

Warranty and Support

For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your proof of purchase for any warranty claims.
