KUAFU BL1593 Center Console Gun Safe Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your KUAFU BL1593 Center Console Gun Safe. This heavy-duty steel safe is designed to provide secure, hidden storage for valuables within your vehicle's center console. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Compatibility

The KUAFU BL1593 Center Console Gun Safe is specifically designed for:

• 2009-2014 Ford F-150
• 2009-2014 Ford Raptor

Ensure your vehicle model and year match the compatibility requirements before proceeding with installation.

3. Package Contents

Please verify that all components are present in your package:

• 1x KUAFU BL1593 Center Console Safe (Black, Alloy Steel)
• 1x Removable Storage Tray
• 2x Keys for manual override
• 4x Mounting Screws
• 2x Carpet Liners
• 1x Instruction Manual (this document)

Image 3.1: All components included in the KUAFU BL1593 package. This includes the main safe unit, a removable interior tray, two keys for the lock, four mounting screws, and two carpet liners for the safe's interior.

4. Safety Information

• Always ensure the safe is securely mounted before storing any items.
• Do not store flammable materials or explosives inside the safe.
• Keep keys and combination codes in a secure location, away from the vehicle and unauthorized access.
• This safe is designed to deter theft and provide secure storage, but it is not completely impenetrable.
• Ensure the safe does not interfere with the safe operation of your vehicle.

5. Setup and Installation

The KUAFU BL1593 safe is designed for easy bolt-on installation using existing mounting points in your vehicle's center console.

1. Prepare the Console: Clear out the contents of your vehicle's center console.
2. Position the Safe: Carefully place the KUAFU safe into the center console opening. Ensure it sits flush and aligns with the console's contours.
3. Align Mounting Holes: The safe features pre-drilled mounting holes. Align these holes with the corresponding points in your vehicle's console.
4. Secure the Safe: Use the provided mounting screws to firmly attach the safe to the console. Tighten all screws securely, but do not overtighten to avoid damaging the console material.
5. Insert Carpet Liners: Place the provided carpet liners inside the safe to protect contents and reduce noise.
6. Install Storage Tray: Insert the removable storage tray into the designated slot within the safe.

Image 5.1: The KUAFU BL1593 safe installed within the center console of a compatible Ford F-150/Raptor, showing its integrated appearance.

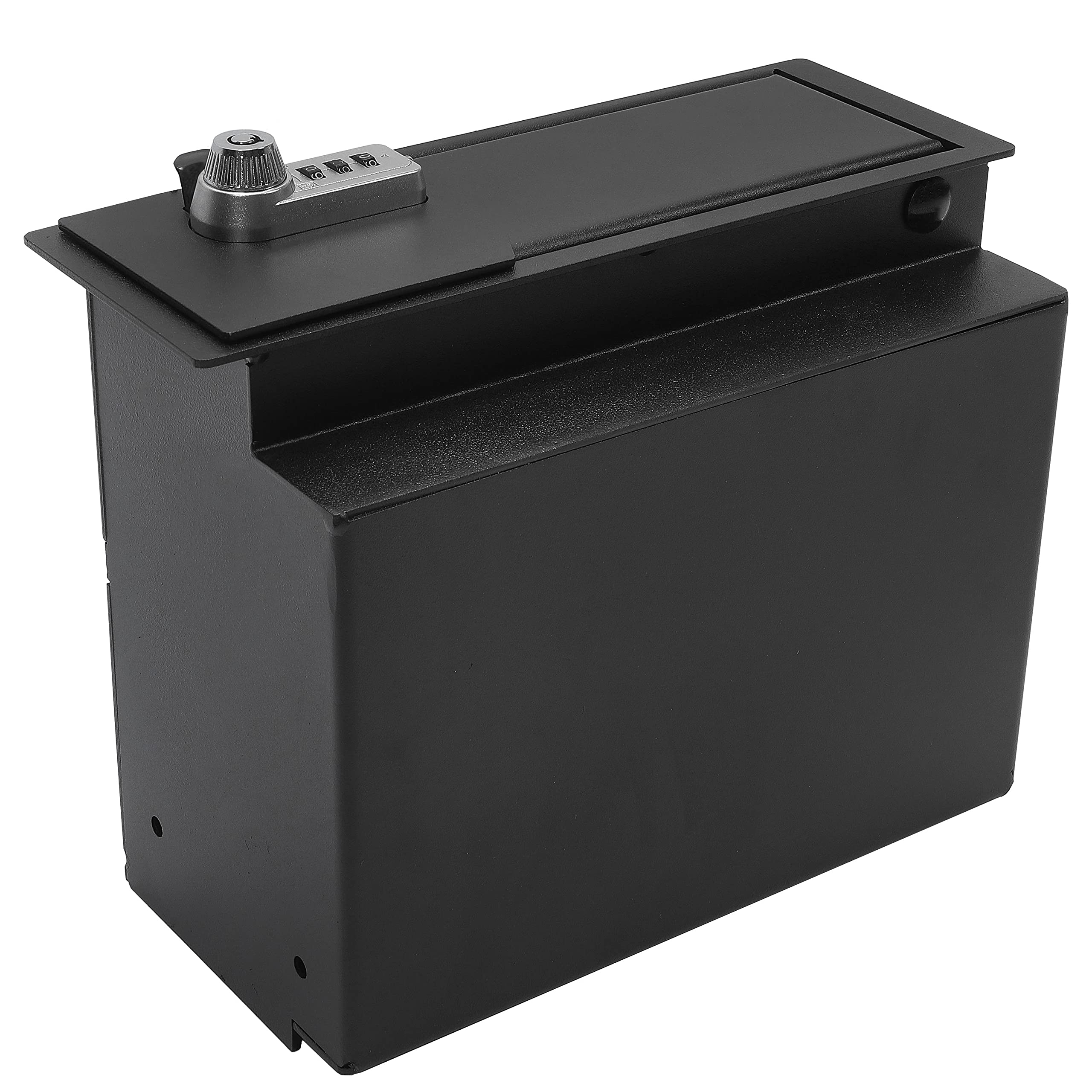

Image 5.2: An angled view of the KUAFU BL1593 safe, highlighting the top access panel and the combination lock mechanism.

6. Operating Instructions

The safe features a 3-point locking system with both a digital combination lock and a key override.

6.1. Setting the Combination Lock

Your safe comes with a factory-set combination (usually 0-0-0). To set your personal combination:

1. With the safe unlocked (using the factory code or key), locate the reset button or lever on the inside of the lock mechanism.
2. Use a pen or pointed object to press and hold the reset button/lever.
3. While holding the reset button/lever, set your desired 3-digit combination by rotating the dials.
4. Release the reset button/lever. Your new combination is now set.
5. Important: Test your new combination several times with the safe door open before closing it. Write down your combination and store it in a secure place, separate from the safe.

Image 6.1: A detailed view of the combination lock and key override mechanism on the safe's lid.

6.2. Locking the Safe

1. Close the safe lid firmly.
2. Scramble the combination dials to a random set of numbers.
3. Ensure the key is removed from the keyhole, if used.

6.3. Unlocking the Safe (Combination)

1. Rotate the combination dials to your personal 3-digit code.
2. Turn the knob or lever (if present) to the unlock position.
3. The safe lid should now open.

6.4. Unlocking the Safe (Key Override)

In case you forget your combination or for quick access, you can use the provided keys.

1. Insert one of the provided keys into the keyhole on the lock mechanism.
2. Turn the key to the unlock position.
3. The safe lid should now open.
4. Note: Always keep a spare key in a secure location outside the vehicle.

Image 6.2: The interior of the KUAFU BL1593 safe with the drawer extended, showing the storage space and the internal locking mechanism.

7. Maintenance

• Cleaning: Wipe the exterior of the safe with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
• Lock Mechanism: Periodically check the lock mechanism for smooth operation. Do not lubricate the lock unless specifically recommended by the manufacturer, as this can attract dust and debris.
• Mounting: Regularly inspect the mounting screws to ensure they remain tight and secure.
• Interior: Keep the interior clean and dry to prevent damage to stored items.

8. Troubleshooting

9. Specifications

• Model: BL1593
• Material: Alloy Steel (12 gauge steel construction)
• Color: Black
• Lock Type: Electronic Combination Lock with Key Override (3-point locking system)
• Compatibility: 2009-2014 Ford F-150 / Raptor
• Water Resistance: Not Water Resistant

10. Warranty Information

KUAFU products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official KUAFU website. Typically, warranty covers defects in materials and workmanship under normal use.

11. Customer Support

If you encounter any issues or have questions regarding your KUAFU BL1593 Center Console Gun Safe, please contact KUAFU customer support through the retailer where you purchased the product or visit the official KUAFU website for contact information.

Online Resources: KUAFU Store on Amazon
