Introduction
Thank you for choosing the 360 Lighting Luca Modern Swing Arm Wall Lamps. This instruction manual provides essential information for the safe and proper installation, operation, and maintenance of your new lighting fixtures. Please read this manual thoroughly before beginning installation and retain it for future reference.
Image: Two Luca Modern Swing Arm Wall Lamps with white fabric shades and warm brass finish, mounted on a wall above a bed, illustrating their use in a bedroom setting.
Safety Information
- Electrical Safety: Always disconnect power before installing, cleaning, or replacing the bulb. Do not use bulbs exceeding the specified wattage.
- Installation: Ensure the mounting surface is capable of supporting the weight of the fixture. Follow all local electrical codes.
- Handling: Handle glass and metal components with care to prevent damage or injury.
- Indoor Use Only: These lamps are designed for indoor use and are not water-resistant.
Package Contents
Verify that all components are present before beginning installation:
- 2 x Wall Lamp Fixtures (Warm Brass)
- 2 x White Fabric Drum Shades
- Mounting Hardware (screws, wall anchors)
- Instruction Manual (this document)
Note: Light bulbs are not included and must be purchased separately. Refer to the Specifications section for recommended bulb type and wattage.
Image: The two Luca Modern Swing Arm Wall Lamps, showing their individual components including the brass wall plate, swing arm, shade, and plug-in cord.
Specifications
| Feature | Detail |
|---|---|
| Brand | 360 Lighting |
| Model Number | 615N1 |
| Dimensions (Each) | 15 1/2" H x 7" W x 12" L (from wall) |
| Backplate Dimensions | 6 1/2" H x 4 1/2" W |
| Shade Dimensions | 5 3/4" Top x 7" Bottom x 7 1/2" H |
| Item Weight (Each) | 2.6 lbs |
| Material | Metal (Warm Brass Finish) |
| Shade Material | Polyester Fabric (White) |
| Power Source | Plug-In Electric (6-foot clear cord) |
| Voltage | 120 Volts |
| Bulb Base | E26 (Standard-Medium Base) |
| Max Wattage | 43 Watts (Incandescent or LED equivalent) |
| Control Method | Pull Chain |
| Adjustability | Swing arm moves side-to-side; shade can be adjusted up and down. |

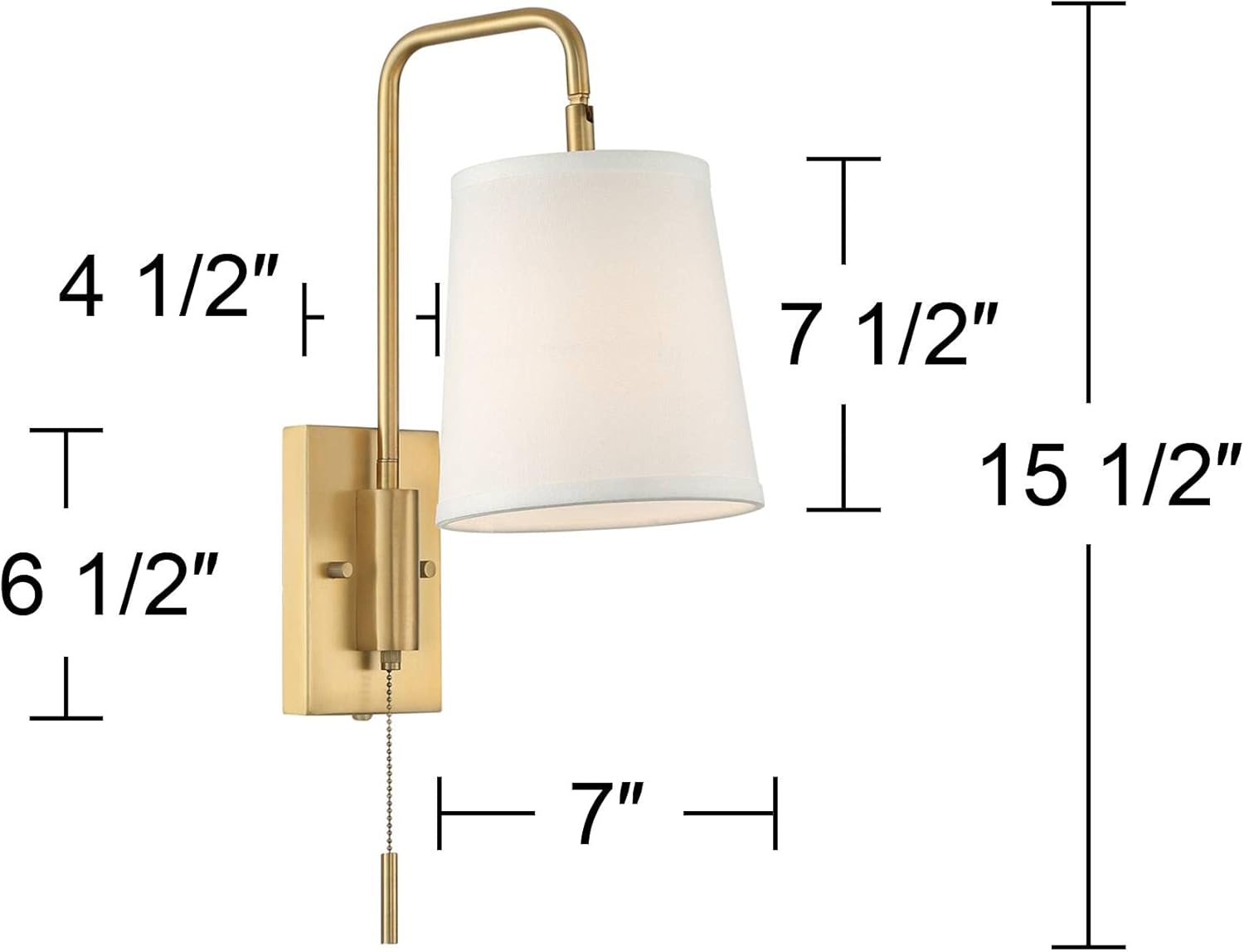

Image: A detailed diagram illustrating the key dimensions of a single Luca Modern Swing Arm Wall Lamp, including its overall height, width, and the specific measurements of the backplate and shade.
Setup and Installation
These plug-in wall lamps are designed for easy installation without the need for hardwiring. Follow these steps:
- Choose Location: Select a suitable wall location near an electrical outlet. Ensure the wall surface is clean and dry.
- Mark Mounting Points: Hold the lamp's backplate against the wall at the desired height. Use a pencil to mark the locations for the mounting screws.
- Install Wall Anchors (if needed): If mounting into drywall, drill pilot holes at the marked locations and insert the appropriate wall anchors (included).
- Secure Backplate: Align the backplate with the installed anchors/holes and secure it to the wall using the provided screws. Ensure it is firmly attached.
- Attach Shade: Carefully attach the white fabric drum shade to the lamp fixture.
- Install Bulb: Screw an E26 base bulb (max 43W) into the lamp socket. Do not overtighten.
- Plug In: Plug the lamp's power cord into a standard 120V electrical outlet.
- Cable Management: Use cable clips (not included) to neatly secure the power cord along the wall if desired.
Image: A close-up front view of one Luca Modern Swing Arm Wall Lamp, highlighting the warm brass finish of the backplate and arm, and the texture of the white fabric shade.
Operating Instructions
- Turning On/Off: The lamp is operated by a pull chain located beneath the shade. Pull the chain once to turn the light on, and pull it again to turn it off.
- Adjusting the Swing Arm: The swing arm allows for horizontal adjustment. Gently move the arm left or right to position the light as desired.
- Adjusting the Shade: The shade can be tilted up or down to direct the light. Hold the shade and gently pivot it to achieve the desired angle.
Image: A side profile of the Luca Modern Swing Arm Wall Lamp, demonstrating the flexibility of the swing arm and the ability to adjust the angle of the white fabric shade.
Maintenance
- Cleaning: To clean the lamp, ensure it is unplugged and cool. Wipe the metal surfaces with a soft, dry cloth. For the fabric shade, use a lint roller or a soft brush to remove dust. Do not use abrasive cleaners or solvents.
- Bulb Replacement: Before replacing the bulb, ensure the lamp is unplugged and the bulb is cool. Unscrew the old bulb and replace it with a new E26 base bulb, not exceeding 43 watts.
Troubleshooting
- Lamp Does Not Light Up:
- Check if the power cord is securely plugged into the outlet.
- Ensure the pull chain is fully engaged (pulled to the 'on' position).
- Verify that the light bulb is screwed in correctly and is not burnt out. Replace if necessary.
- Check the circuit breaker for the outlet.
- Light Flickers:
- Ensure the bulb is screwed in tightly.
- Try a different bulb to rule out a faulty bulb.
- Shade is Loose:
- Gently re-secure the shade to its fitting on the lamp.
Warranty and Support
This product is covered by the manufacturer's standard warranty. For specific warranty details, please refer to the product packaging or contact the retailer where the item was purchased. For technical support or assistance with parts, please contact 360 Lighting customer service through their official channels.
