Introduction
Thank you for purchasing the Nikai 58-inch UHD Smart LED TV. This manual provides essential information for the safe and efficient operation of your television. Please read it thoroughly before using the product and retain it for future reference.
Safety Information
Always follow basic safety precautions when using this television to reduce the risk of fire, electric shock, and injury.
- Do not expose the TV to rain or moisture.
- Do not block ventilation openings.
- Ensure proper grounding for the power plug.
- Unplug the TV during lightning storms or when unused for long periods.
- Refer all servicing to qualified service personnel.
Package Contents
Verify that all items are present in the package:
- Nikai 58-inch UHD Smart LED TV (Model: UHD60SVDLED)
- Power Cable
- Remote Control
- TV Stand
- User Manual (this document)

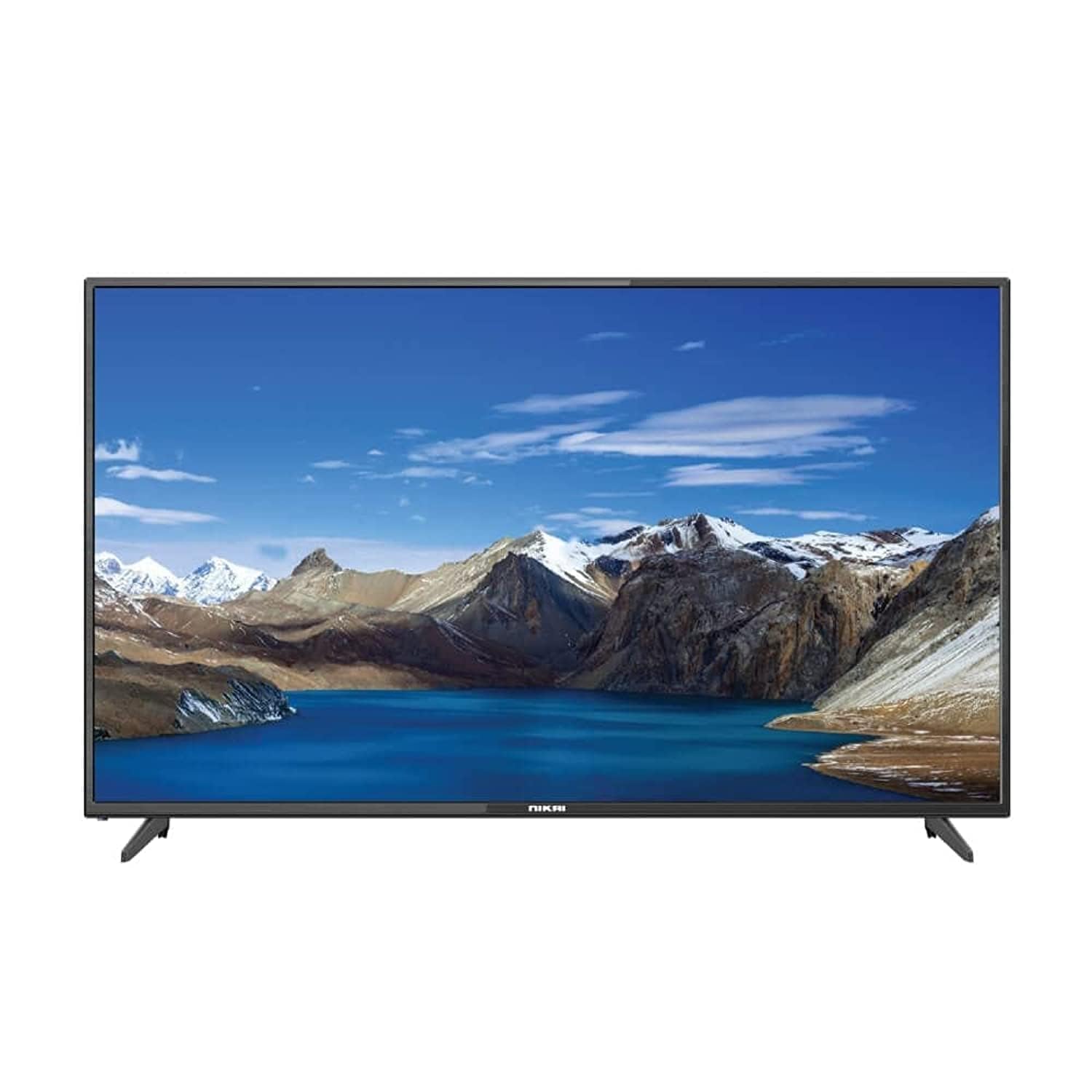

Image: The Nikai 58-inch UHD Smart LED TV, showing the screen, bezel, and included remote control and stand components.
Setup
1. Attaching the Stand
- Carefully place the TV screen-down on a soft, flat surface to prevent damage.
- Align the stand with the mounting holes on the bottom of the TV.
- Secure the stand using the provided screws.
2. Wall Mounting (Optional)
This TV supports VESA standard 400 x 400 mm wall mounts. Wall mount bracket is sold separately. Follow the instructions provided with your wall mount for installation.
3. Connecting Power
Connect the power cable to the TV's power input and then to a wall outlet. The TV is designed for tabletop placement or wall mounting.
Operating Instructions
1. Initial Power On
Press the power button on the remote control or on the TV itself. The TV will guide you through the initial setup process, including language selection, network connection, and channel scanning.
2. Remote Control Functions
Use the provided remote control to navigate menus, adjust volume, change channels, and access smart features. Refer to the remote control diagram (not included in this text) for specific button functions.
3. Smart TV Features (VIDAA U OS)
Your TV runs on the VIDAA U operating system, providing access to various applications and internet services. Supported services include Netflix, YouTube, Amazon Prime, and Shahid.
- Connecting to Wi-Fi: Navigate to the network settings menu to connect your TV to your home Wi-Fi network.
- Accessing Apps: Use the remote control to select and launch pre-installed applications or download new ones from the app store.
- Screen Mirroring: Utilize Bluetooth technology to mirror content from your mobile device to the TV.
Connections
The TV offers various ports for connecting external devices:
- HDMI Ports (x2): Connect Blu-ray players, gaming consoles, or set-top boxes.
- USB Ports: Connect USB drives for media playback.
- Antenna/Cable Input: Connect an antenna or cable for digital signal reception (ATSC tuner).
- Bluetooth: For wireless audio devices or screen mirroring.
- Wi-Fi: For internet connectivity and smart features.
Maintenance
Proper maintenance ensures the longevity of your TV:
- Cleaning the Screen: Gently wipe the screen with a soft, dry, lint-free cloth. Do not use liquid cleaners or sprays directly on the screen.
- Cleaning the Cabinet: Use a soft, dry cloth to clean the TV cabinet.
- Ventilation: Ensure that the ventilation openings are not blocked to prevent overheating.
- Power Cord: Regularly check the power cord for any damage.
Troubleshooting
| Problem | Possible Solution |
|---|---|
| No power | Check if the power cable is securely connected to both the TV and the power outlet. Ensure the outlet is functional. |
| No picture, but sound is present | Verify the input source is correctly selected. Check cable connections to external devices. |
| No sound, but picture is present | Check the volume level and mute settings. Ensure audio cables are properly connected. |
| Remote control not working | Replace the batteries. Ensure there are no obstructions between the remote and the TV's IR sensor. |
| Smart features not connecting to internet | Check your Wi-Fi connection in the TV settings. Restart your router. |
If the problem persists, please contact customer support.
Specifications
| Brand | Nikai |
| Model Name | UHD60SVDLED |
| Screen Size | 58 Inches |
| Display Technology | LED, 4K Ultra HD |
| Resolution | 4K (3840 x 2160) |
| Refresh Rate | 60 Hz |
| Operating System | VIDAA U |
| Supported Internet Services | Netflix, YouTube, Amazon Prime, Shahid |
| Connectivity Technology | Wi-Fi, Bluetooth |
| Hardware Interface | USB, HDMI (x2) |
| HDR Format Support | HDR10 |
| Audio Output Mode | Stereo |
| VESA Standard | 400 x 400 mm |
| Color | Black |
| Model Year | 2022 |
Warranty and Support
This product comes with a 2-year manufacturer's warranty from the date of purchase. For warranty claims, technical support, or service inquiries, please contact the manufacturer or its authorized service agent. You may also contact Amazon for further details regarding warranty support.
For the latest support information and contact details, please refer to the official Nikai website or your purchase documentation.
