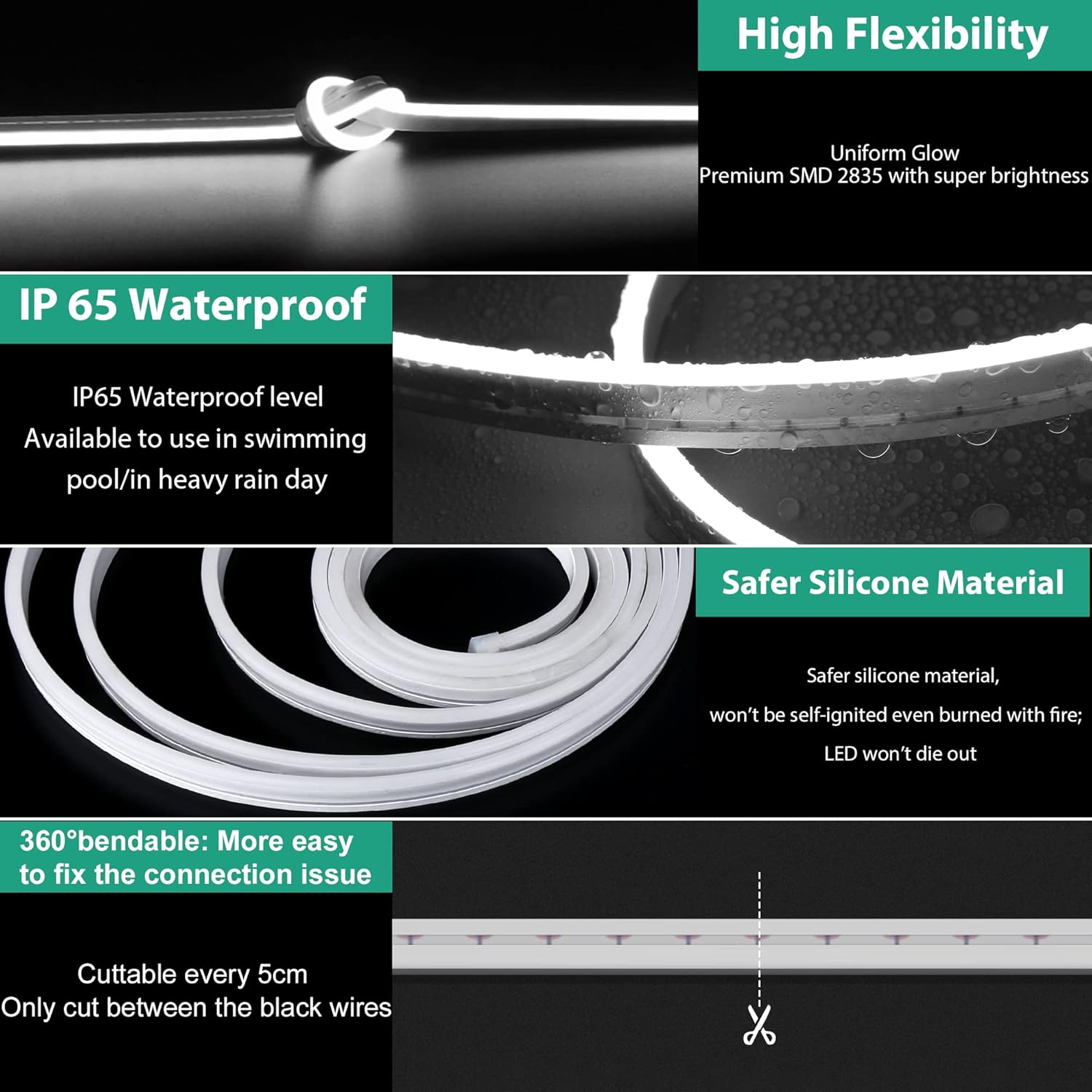

1. Product Overview
The Lamomo LED Neon Light is a versatile and flexible lighting solution designed for various indoor and outdoor applications. This 32.8ft (10m) white LED rope light features a dimmable controller, IP65 waterproofing, and a durable silicone construction. It operates on 24V and emits a 6000K daylight white light, suitable for creating custom lighting designs and enhancing ambient illumination.
2. Safety Information
- Power Supply: Use only the provided power adapter. Ensure the power adapter is kept dry and protected from water, as it is not waterproof.
- Installation: Disconnect power before installation or maintenance. Do not connect the LED strip directly to 120V AC power.
- Cutting: Cut the LED strip only along the designated black marker lines. Cutting elsewhere may damage the strip and void the warranty.
- Heat: The silicone material is heatproof, allowing for safe touching during operation.
- Environment: While the LED strip is IP65 waterproof, ensure all connections and the power adapter are protected from moisture if used outdoors.
3. Package Contents
Verify that all items are present in the package:
- Lamomo LED Neon Light Strip (32.8ft / 10m)
- Touchable Dimmable Controller
- 24V Power Adapter
- Mounting Clips and Screws
4. Specifications
| Feature | Detail |
|---|---|
| Model Number | SUSCW10M |
| Length | 32.8 Feet (10 meters) |
| Color Temperature | 6000 Kelvin (Daylight White) |
| Voltage | 24 Volts (DC) |
| Waterproof Rating | IP65 (LED strip only) |
| Material | Silicone |
| Dimmable | Yes, 10% to 100% via touch controller |
| Cuttable Interval | Every 0.98 inch (2.5 cm) along black marker lines |
| Control Method | Touch Controller |
5. Setup and Installation
5.1 Preparation
- Unroll the LED strip carefully.
- Plan your desired shape or path for the light strip.
- Ensure the installation surface is clean and dry.
5.2 Cutting and Customization
The LED strip can be cut to your desired length. Locate the black marker lines on the strip, which indicate safe cutting points. Cut only at these marked intervals (approximately every 0.98 inches or 2.5 cm) using sharp scissors.
5.3 Mounting
Use the provided mounting clips and screws to secure the LED strip. Position the clips along your planned path and fasten them. Then, gently press the LED strip into the clips.
5.4 Connecting Power
- Connect the LED strip to the touchable dimmable controller.
- Connect the dimmable controller to the 24V power adapter.
- Plug the power adapter into a standard electrical outlet.
For a visual guide on the product's features and installation, please refer to the video below:
6. Operating Instructions
6.1 Power On/Off
The LED strip is controlled by the in-line touchable dimmable controller. A single touch on the power icon will turn the lights ON or OFF.
6.2 Brightness Adjustment
To adjust the brightness, touch and hold the power icon on the controller. The brightness will gradually cycle between 10% and 100%. Release your finger when the desired brightness level is reached.
7. Maintenance
7.1 Cleaning
To clean the LED strip, ensure it is powered off and unplugged. Use a soft, damp cloth to gently wipe the silicone surface. Avoid using harsh chemicals or abrasive materials that could damage the strip.
7.2 Waterproofing Notes
The LED strip itself is IP65 waterproof, meaning it is protected against dust and low-pressure water jets. It is suitable for use in environments where it might encounter splashes or light rain. However, the power adapter and controller are not waterproof and must be protected from moisture. Ensure all connections are secure and dry, especially in outdoor installations.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power, loose connection, damaged strip/controller | Check power adapter connection to outlet and strip. Ensure controller is properly connected. Inspect strip for visible damage. |
| Light flickers or is inconsistent | Loose connection, insufficient power, damaged section | Verify all connections are secure. Ensure power adapter meets voltage requirements. If a section is damaged, it may need replacement. |
| Dimming function not working | Controller malfunction, incorrect operation | Ensure you are touching and holding the power icon for gradual dimming. If issue persists, the controller may be faulty. |
9. Applications
The flexibility and durability of the Lamomo LED Neon Lights make them suitable for a wide range of decorative and functional lighting applications:

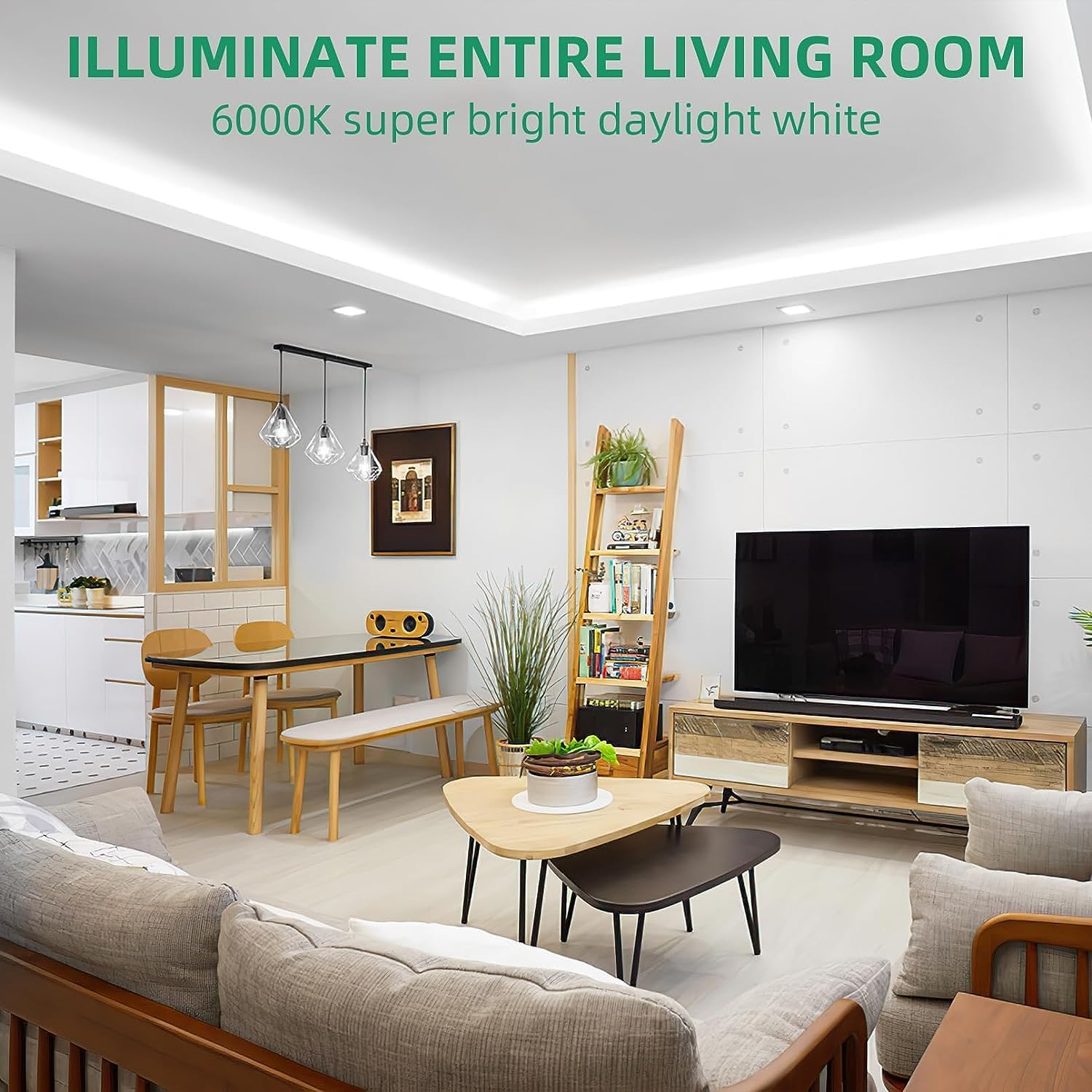

- Home Decor: Ideal for accent lighting in bedrooms, living rooms, hallways, and kitchens.
- Creative Designs: Shape the flexible strip into custom signs, patterns, or artistic installations.
- Cabinet and Shelf Lighting: Provide under-cabinet lighting in kitchens or illuminate display shelves.
- Outdoor Use: Suitable for patios, gardens, or around swimming pools (ensure power adapter and connections are protected).
10. Warranty and Support
Lamomo provides a 5-year warranty for this LED Neon Light product. This warranty covers manufacturing defects and ensures the product meets its stated performance specifications under normal use.
For any installation assistance, troubleshooting, or warranty claims, please contact Lamomo customer service. Our responsive support team is available to help you with any questions or issues you may encounter.
Contact information can typically be found on the product packaging or the official Lamomo website.
