DONGKER 5MP 720P Trail Camera User Manual

1. Introduction

Thank you for choosing the DONGKER 5MP 720P Trail Camera. This manual provides essential information for the proper setup, operation, and maintenance of your device. Please read this manual thoroughly before using the camera to ensure optimal performance and longevity.

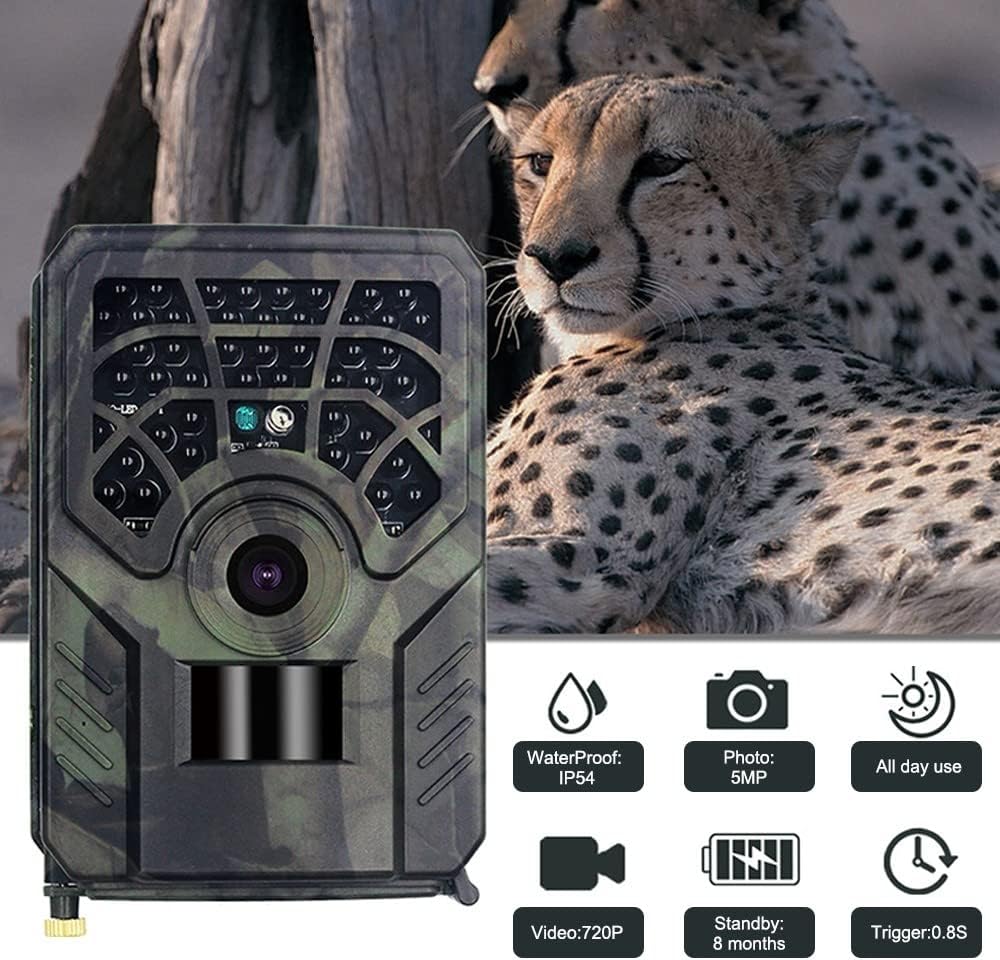

This image displays the DONGKER Trail Camera, highlighting its key features through accompanying icons. The camera is shown in its camouflage casing, suitable for outdoor environments.

2. Product Features

• Fast Motion Detection: 0.8-second trigger speed to capture up to 3 photos and 10-second video clips per event.
• Wide Angle Lens: 120-degree wide lens and 110-degree PIR detection angle for extensive coverage.
• IP54 Waterproof: Durable construction with IP54 rating ensures operation in challenging outdoor conditions.
• Versatile Applications: Suitable for wildlife observation, agricultural area monitoring, home security, office surveillance, and construction sites.
• High Resolution: 5MP photo resolution (2560x1440) and 720P video resolution (1280x720P, 640x480 30FPS).
• Night Vision: Equipped with 46 black 940nm IR LEDs for clear night vision up to 15 meters.
• Long Standby Time: Up to 8 months standby time with two 18650 batteries.

3. Package Contents

Please check the package to ensure all items are present:

• 1 x DONGKER Trail Camera
• 1 x Mounting Strap
• 1 x USB Cable
• 1 x Card Reader
• 1 x User Manual

4. Setup

4.1. Battery Installation

The camera requires two 18650 batteries or can be powered by a DC 5V external power source (batteries not included). Ensure correct polarity when inserting batteries.

This image illustrates the camera's extended standby time of up to 8 months when powered by two 18650 capacity batteries, emphasizing its long operational duration.

4.2. Micro SD Card Installation

Insert a Micro SD card (up to 32GB, not included) into the designated slot. Ensure the card is inserted correctly until it clicks into place. The camera will not function without a memory card.

4.3. Mounting the Camera

Use the provided mounting strap to secure the camera to a tree or pole. Position the camera to cover the desired monitoring area. Ensure it is stable and not easily dislodged by wind or animals.

5. Operating Instructions

5.1. Powering On/Off

Locate the power switch on the camera. Slide it to the 'ON' position to power on the device. To power off, slide the switch to 'OFF'.

5.2. Mode Selection

The camera operates in a specific working mode: 3 photos followed by a 10-second video clip upon motion detection. This sequence is automatically triggered.

This image highlights the camera's rapid 0.8-second trigger time, its ability to capture continuous photos, and its 5MP HD camera resolution, essential for capturing fast-moving subjects.

5.3. Adjusting Settings

The camera's settings are pre-configured for optimal performance. Key specifications include:

• Photo Resolution: 5MP (2560x1440)
• Video Resolution: 720P (1280x720P) or 640x480 at 30FPS
• Trigger Time: 0.8 seconds
• PIR Angle: 110 degrees
• Lens Angle: 120 degrees wide
• IR LED Range: 15 meters

This diagram illustrates the camera's detection angle, demonstrating its wide field of view for capturing wildlife.

5.4. Viewing Recordings

To view captured photos and videos, remove the Micro SD card from the camera and insert it into the provided card reader. Connect the card reader to a computer via the USB cable. Alternatively, connect the camera directly to a computer using the USB cable to access the memory card contents.

6. Maintenance

6.1. Waterproofing (IP54)

The camera has an IP54 waterproof rating, protecting it from splashes and dust. While it is designed for outdoor use, avoid submerging it in water or exposing it to heavy, prolonged rainfall.

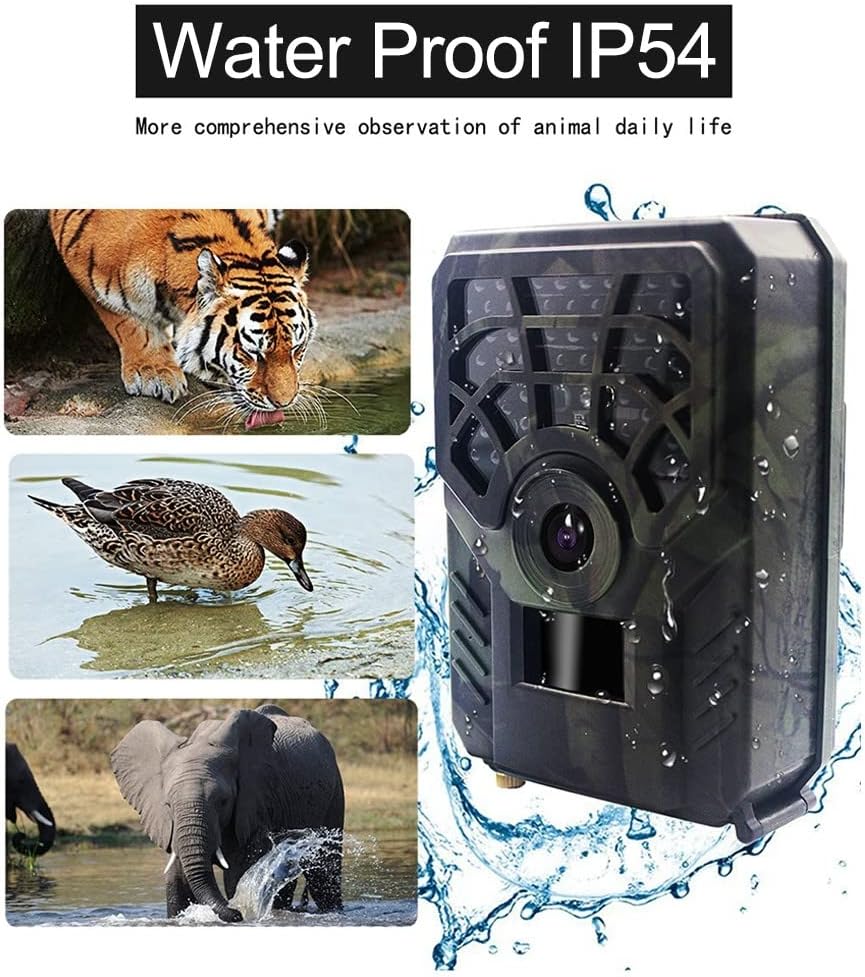

This image showcases the camera's IP54 waterproof rating, indicating its resilience against environmental elements, suitable for observing wildlife in various conditions.

6.2. Cleaning

Gently wipe the camera lens and body with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the lens is clean for clear image capture.

6.3. Battery Replacement

Replace batteries when the low battery indicator appears or when performance degrades. Always use fresh batteries of the same type (18650) and ensure correct polarity.

6.4. Storage

When not in use for extended periods, remove the batteries and store the camera in a cool, dry place away from direct sunlight.

7. Troubleshooting

• Camera Not Turning On: Check battery installation and charge level. Ensure the power switch is in the 'ON' position.
• Poor Image/Video Quality: Clean the camera lens. Ensure there are no obstructions in front of the lens or IR LEDs. Check ambient lighting conditions.
• Motion Detection Issues: Verify the PIR sensor is not obstructed. Ensure the camera is positioned correctly to detect motion in the desired area.
• Memory Card Errors: Ensure the Micro SD card is properly inserted and formatted. Try using a different, compatible Micro SD card.

8. Specifications

This image provides the physical dimensions of the DONGKER Trail Camera, showing its compact size for discreet placement.

9. Warranty and Support

For any questions, technical assistance, or support regarding your DONGKER Trail Camera, please do not hesitate to contact the seller or customer service. We are committed to providing high-quality after-sales service until you are satisfied.

This image demonstrates the versatile applications of the DONGKER Trail Camera, including home security, wildlife observation, and general surveillance in diverse settings.
