1. Product Overview
The Yaheetech Queen Bed Frame is an upholstered platform bed designed for comfort and functionality. It features a diamond button-tufted headboard, integrated storage drawers, and a sturdy metal and wooden slat support system. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting.
Figure 1: Yaheetech Queen Bed Frame with tufted headboard and pull-out storage drawers.
2. Setup and Assembly
Assembly of the Yaheetech Queen Bed Frame is straightforward and typically takes about 40-60 minutes with two people. All necessary tools and hardware are included. Please refer to the detailed installation manual (PDF) for step-by-step diagrams and ensure all parts are present before beginning assembly.
Video 1: Official Installation Guide for Yaheetech Upholstered Bed Frame. This video demonstrates the complete assembly process.
2.1. Unpacking and Part Identification
Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Refer to the included parts list in your manual to identify each piece. Ensure all hardware (screws, washers, Allen wrench) is present.
Figure 2: Product dimensions and components including headboard, frame, and drawers.
2.2. Frame Assembly
- Assemble the main metal frame components using the provided screws and Allen wrench. Ensure all connections are secure.
- Attach the upholstered headboard to the assembled frame. The headboard height is adjustable to accommodate different mattress thicknesses.
- Install the wooden slats onto the metal frame. These slats provide optimal mattress support and ventilation.

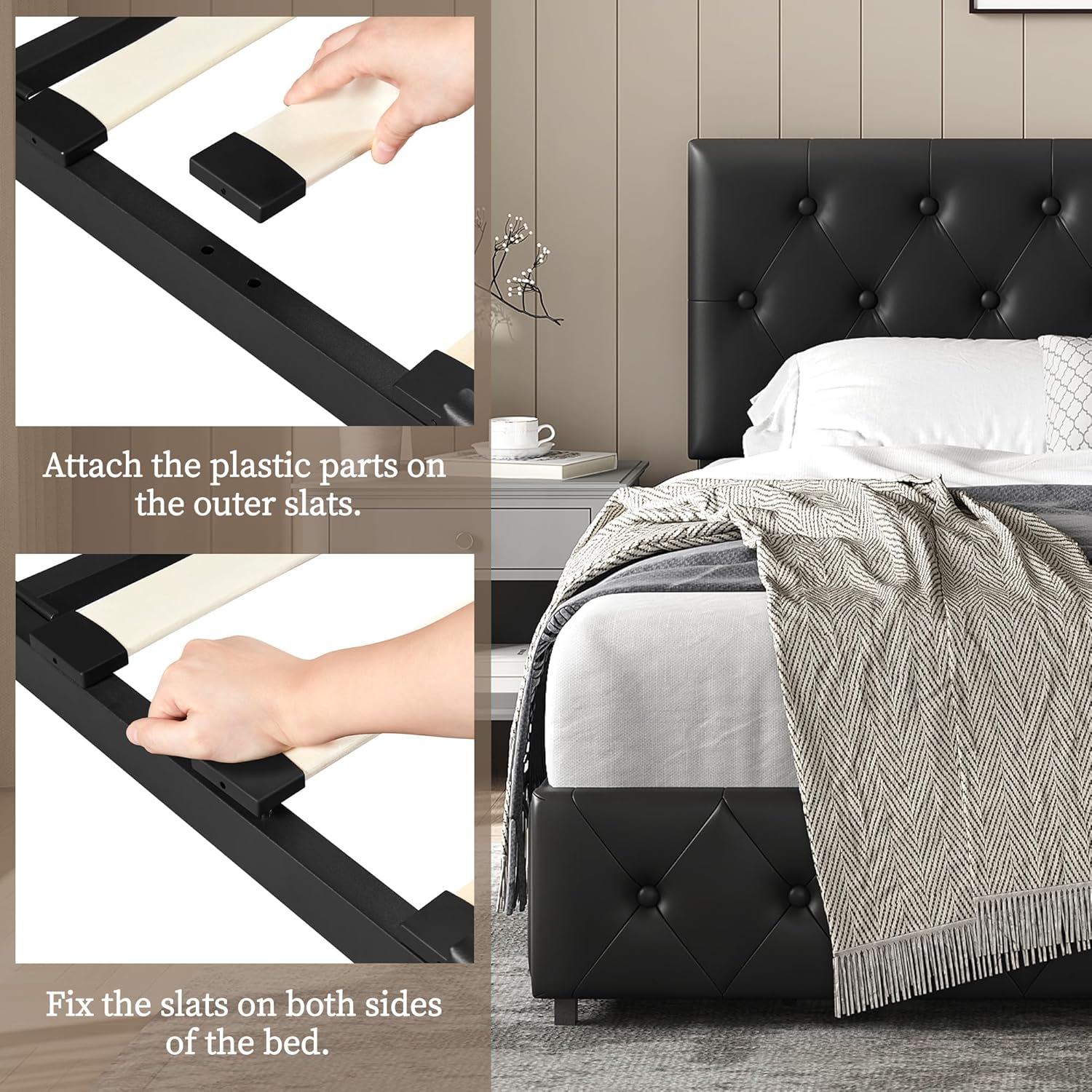

Figure 3: Proper method for attaching the wooden slats to the bed frame for secure mattress support.
2.3. Drawer Assembly and Installation
The bed includes three wire netting drawers with rollers for convenient under-bed storage. Assemble each drawer according to the manual. Once assembled, slide them into the designated spaces under the bed frame. The fixtures on the bed frame help stabilize the drawers and prevent sliding.
Figure 4: Close-up of a storage drawer, highlighting the wire netting, wheels, and the fixture that prevents unwanted movement.
3. Operating Instructions
3.1. Adjustable Headboard
The headboard offers three adjustable height positions: 36.2″, 38.6″, and 41″. This allows you to customize the headboard's height to perfectly fit your mattress thickness and personal preference for comfort and aesthetics.
Figure 5: The headboard can be adjusted to three different heights to suit various mattress sizes.
3.2. Storage Drawers
Utilize the three wire netting drawers for organized storage of bedding, clothing, or other items. The rollers on the drawers ensure smooth and easy pulling in and out. The design ensures ample space for nightstands without obstructing drawer access.
Figure 6: The bed frame design provides sufficient clearance for nightstands while allowing full access to the storage drawers.
4. Maintenance
4.1. Cleaning
The smooth painted metal surface and PU leather upholstery are designed for easy cleaning. Simply wipe the surfaces with a dry or damp cloth to remove dust and spills. Avoid using harsh chemicals or abrasive cleaners that may damage the finish.
4.2. General Care
- Regularly check all screws and connections to ensure they remain tight. Tighten if necessary to maintain stability and prevent squeaking.
- Ensure the bed is placed on a level surface to distribute weight evenly and prevent strain on the frame.
- Avoid excessive jumping or heavy impact on the bed to prolong its lifespan.
5. Troubleshooting
5.1. Squeaking Noises
If the bed frame begins to squeak, first check all assembly bolts and screws. Tighten any loose connections. Ensure the wooden slats are properly seated in their holders and are not rubbing against the metal frame. The design is intended to be squeak-resistant when properly assembled and maintained.
5.2. Drawers Not Sliding Smoothly
Check the rollers on the bottom of the drawers for any obstructions or debris. Ensure the drawers are correctly aligned within their tracks under the bed. Verify that the floor surface is clear and level where the drawers operate.
5.3. Missing Parts
In the rare event of missing parts upon delivery, please contact Yaheetech customer support immediately with your order details and a list of the missing components. Do not attempt to assemble the bed with incomplete parts.
6. Specifications
| Feature | Detail |
|---|---|
| Standard Size | Queen |
| Product Dimensions | 83"L x 62.5"W x 41"H |
| Materials | Plywood, Oak Wood, MDF, Metal, PU leather, Foam, Non-woven Fabric |
| Color | Black |
| Maximum Weight Capacity | 800 lb |
| Item Weight | 99.7 pounds |
| Assembly Required | Yes |
| Included Components | Installation Manual, Headboard, Slat, Drawer |
| Model Number | YTik5x0001-001 |
7. Warranty and Support
Yaheetech offers various protection plans for your product. For detailed information regarding warranty coverage, terms, and conditions, please refer to the official product page or contact customer support.
7.1. Customer Support
For any inquiries, assistance with assembly, or to report issues, please visit the Yaheetech Store on Amazon or contact Amazon Customer Service directly.
- Online Support: Access FAQs and troubleshooting guides on the product's Amazon page.
- Protection Plans: Consider purchasing extended protection plans for additional coverage. Options include 2-Year and 3-Year Protection Plans.
