1. Introduction
Thank you for choosing the NICREW Submersible Aquarium Mini Heater 25W. This compact and efficient heater is designed to maintain a stable water temperature of 77°F (25°C) in small aquariums up to 5 gallons, providing an optimal environment for most tropical fish, shrimp, and aquatic plants. Its automatic thermostat and overheat protection ensure safety and reliability.
2. Safety Information
- Read all instructions before use.
- This appliance is intended for indoor use only.
- Ensure the heater is fully submerged in water before plugging it into a power outlet. Operating the heater out of water will cause damage and void the warranty.
- Always unplug the heater from the power supply before performing any maintenance, cleaning, or handling the aquarium water.
- Do not operate the heater if the cord or plug is damaged, or if the heater malfunctions or has been dropped or damaged in any manner.
- Keep the power cord away from high temperatures and sharp edges.
- Do not attempt to repair this appliance yourself. Refer to qualified service personnel for repairs.
- Ensure the voltage indicated on the heater matches your local power supply.
3. Package Contents
- 1 x NICREW Submersible Aquarium Mini Heater 25W
- 1 x Instruction Manual
4. Product Features
- Preset Temperature: Automatically maintains a stable temperature of 77°F (25°C), suitable for most tropical aquatic life. No manual adjustments are required.
- Accurate Temperature Control: Features an accuracy of ±2°F and includes overheat protection to safeguard your aquarium from extreme temperature fluctuations.
- LED Indicator: A clear LED light indicates the heater's status: red when actively heating, and green when heating has stopped and the target temperature is reached.
- Compact Design: Its small and sleek profile, along with built-in suction cups, allows for easy and discreet placement within small aquariums.
- Full Submersion: Designed for complete submersion, allowing for flexible vertical or horizontal installation.

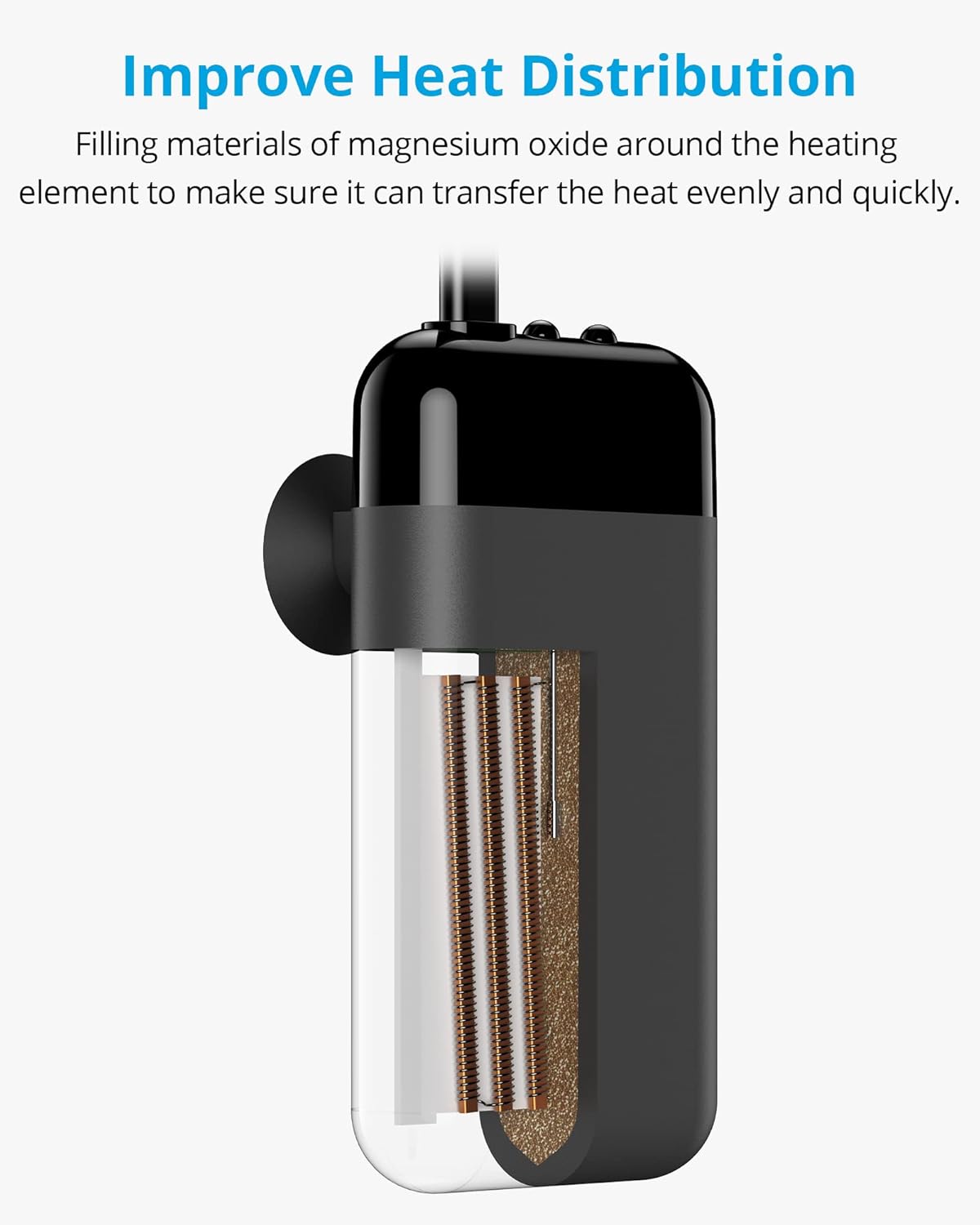

- Efficient Heat Distribution: Filled with magnesium oxide around the heating element for even and quick heat transfer.
5. Setup and Installation
- Unpack: Carefully remove the heater from its packaging. Inspect for any signs of damage.
- Placement: Choose a location in your aquarium where water circulation is good to ensure even heat distribution. The heater can be installed vertically or horizontally.
- Secure: Use the integrated suction cups to firmly attach the heater to the inside wall or bottom of your aquarium. Ensure it is securely fastened and will not detach.
- Submersion: Ensure the heater is fully submerged in water before connecting it to a power source. Operating it partially or completely out of water can cause damage.
- Acclimation: For optimal performance and to allow the heater to acclimate to the water temperature, it is recommended to place the heater in the aquarium for at least 30 minutes before plugging it in.
- Power Connection: Plug the heater into a suitable power outlet.
Figure 1: Correct and incorrect installation methods for the NICREW Mini Heater. The heater must be fully submerged and can be placed vertically or horizontally.
Figure 2: Visual guide for vertical or horizontal placement, highlighting the requirement for full submersion.
6. Operating Instructions
The NICREW Submersible Aquarium Mini Heater 25W operates automatically once plugged in and fully submerged. It is designed to reach and maintain a preset temperature of 77°F (25°C) without any manual adjustments.
- Heating Indicator: The LED indicator light will illuminate red when the heater is actively working to raise the water temperature.
- Temperature Reached: Once the water temperature reaches approximately 77°F (25°C), the LED indicator light will turn green, indicating that heating has stopped. The heater will automatically resume heating if the temperature drops below the preset level.
Figure 3: LED indicator light showing heating (red) and temperature reached (green) states.
Figure 4: The heater automatically maintains a preset temperature of 77°F.
7. Maintenance
- Cleaning: Periodically clean the heater surface to prevent algae or mineral buildup, which can affect its efficiency. Always unplug the heater and allow it to cool completely before removing it from the water for cleaning. Use a soft cloth or brush and aquarium-safe cleaning solutions if necessary.
- Inspection: Regularly inspect the power cord and the heater body for any signs of damage, cracks, or wear. If any damage is observed, discontinue use immediately and replace the heater.
- Suction Cups: Check the suction cups periodically to ensure they maintain a strong grip. Replace them if they become brittle or lose their suction.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater not heating (LED is off or green, but water is cold) | Not plugged in; power outage; heater not fully submerged; heater malfunction. | Check power connection; verify power outlet; ensure heater is fully submerged; if issues persist, contact customer support. |
| Water temperature is too high | Heater wattage too high for tank size; heater malfunction. | Ensure heater wattage is appropriate for your tank size (25W for up to 5 gallons); check for proper water circulation; if issues persist, contact customer support. |
| LED indicator not working | LED malfunction; heater malfunction. | Verify heater is receiving power and heating; if heater is not functioning, contact customer support. |
9. Specifications
| Feature | Detail |
|---|---|
| Model | NICREW Submersible Aquarium Mini Heater 25W |
| Power | 25 Watts |
| Recommended Tank Size | Up to 5 Gallons |
| Preset Temperature | 77°F (25°C) |
| Temperature Accuracy | ±2°F |
| Dimensions | Approximately 13.3 x 13.3 x 5.1 cm (5.2 x 5.2 x 2 inches) |
| Cable Length | 4.6 ft |
| Submersion | Fully Submersible |
Figure 5: Product dimensions and wattage recommendations.
10. Warranty and Support
NICREW products come with a 12-month warranty from the date of purchase. We also offer 24-hour friendly customer service to assist you with any questions or concerns.
For warranty claims, technical support, or general inquiries, please visit the official NICREW store or contact our customer service team through the retailer where you purchased the product.
You can find more information and contact details on the NICREW Brand Store.
