Hisense RIB312F4AWE Built-in Combined Refrigerator User Manual

1. Introduction

Thank you for choosing the Hisense RIB312F4AWE Built-in Combined Refrigerator. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your appliance. Please read these instructions carefully before using the refrigerator and keep them for future reference.

2. Safety Information

To ensure safe operation, always follow these basic safety precautions:

• Ensure the appliance is properly grounded before use.
• Do not damage the refrigerant circuit.
• Keep ventilation openings clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Unplug the appliance before cleaning or performing maintenance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Product Overview

The Hisense RIB312F4AWE is a built-in combined refrigerator-freezer designed for seamless integration into your kitchen. It features advanced cooling technologies and user-friendly controls.

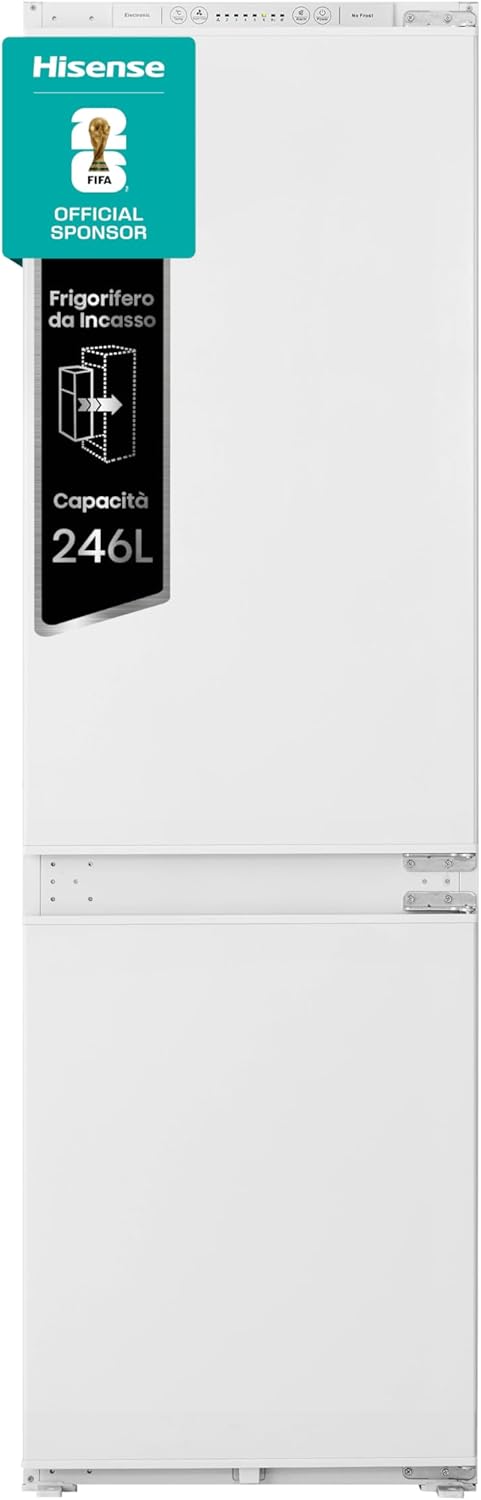

Figure 3.1: Front view of the Hisense RIB312F4AWE built-in combined refrigerator.

Key Features

• Built-in Combined Refrigerator-Freezer: Designed for integration into kitchen cabinetry.
• No Frost Technology: Prevents ice formation in the freezer, eliminating the need for manual defrosting and keeping food fresh longer.
• Electronic Temperature Control: Easy adjustment of temperature settings and activation of special modes.
• XXL Fruit and Vegetable Drawer: A spacious drawer dedicated to preserving large quantities of fresh produce.
• Bottle Rack Shelf: Convenient storage for bottles.
• Reversible Door Opening: Allows for flexible installation to suit your kitchen layout.
• LED Lighting: Efficient and bright illumination of the refrigerator interior.
• Low Noise Operation: Engineered for quiet performance.

Figure 3.2: Overview of main features.

Internal Layout and Dimensions

The appliance features a refrigerator compartment with 183 liters capacity and a freezer compartment with 63 liters capacity, totaling 246 liters. The internal layout includes multiple shelves, door racks, and a dedicated fruit and vegetable drawer.

Figure 3.3: Dimensions and internal capacity breakdown.

Figure 3.4: Interior view with organized food items.

4. Setup

Unpacking and Placement

1. Remove all packaging materials, including protective films and tapes.
2. Clean the interior and exterior of the appliance with a damp cloth.
3. Place the refrigerator in its designated built-in cavity, ensuring adequate ventilation around the unit as per installation instructions provided with the appliance.
4. Allow the appliance to stand upright for at least 4 hours before connecting it to power, to allow the refrigerant to settle.

Electrical Connection

Connect the appliance to a properly grounded electrical outlet (220 Volt, Type G plug). Ensure the voltage and frequency match the ratings on the appliance's data plate.

Door Reversal

The door opening direction is reversible. If you need to change the door swing, refer to the detailed instructions provided in the separate installation guide. This process typically involves moving hinges and door stops from one side to the other.

5. Operating Instructions

Electronic Temperature Control

Your refrigerator is equipped with an electronic display for precise temperature control. Use the control panel to adjust the temperature settings for both the refrigerator and freezer compartments. Refer to the specific controls diagram in your full manual for button functions.

No Frost Technology

The No Frost technology actively circulates cold air throughout the freezer compartment, preventing the buildup of ice and frost. This means you will not need to manually defrost the freezer, and your frozen food will remain free of ice crystals.

Figure 5.1: Illustration of No Frost technology.

Super Cool Function

Activate the Super Cool function to rapidly lower the temperature in the refrigerator compartment. This is ideal for quickly cooling newly added groceries or beverages, helping to preserve their freshness and flavor.

Figure 5.2: Super Cool function for rapid chilling.

Dual-Tech Cooling

The Dual-Tech Cooling system features separate cooling circuits for the refrigerator and freezer compartments. This independent control helps maintain optimal humidity levels in each section, preventing odor transfer and temperature fluctuations, ensuring ideal conditions for all your food items.

Figure 5.3: Dual-Tech Cooling system.

XXL Fruit and Vegetable Drawer

Utilize the spacious XXL drawer to store a large volume of fruits and vegetables. This dedicated compartment is designed to maintain optimal humidity, keeping your produce fresh for longer periods.

LED Lighting

The interior of your refrigerator is illuminated by energy-efficient LED lights, providing clear visibility of all contents while being gentle on the eyes.

Figure 5.4: LED interior lighting.

6. Maintenance

Cleaning

Regular cleaning helps maintain the hygiene and efficiency of your refrigerator:

• Always unplug the appliance before cleaning.
• Clean the interior with a solution of mild detergent and warm water. Wipe dry thoroughly.
• Clean the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents.
• Periodically clean the condenser coils at the back of the appliance (if accessible) with a soft brush or vacuum cleaner to ensure efficient cooling.
• The safety glass shelves are designed to support significant weight and are less prone to shattering. Clean them with standard glass cleaner or mild detergent.

Figure 6.1: Safety glass shelves.

Defrosting

Thanks to the No Frost technology, manual defrosting of the freezer compartment is not required. The refrigerator compartment also features an automatic defrost system. Any accumulated frost will melt and drain away automatically.

7. Troubleshooting

Before contacting customer service, please check the following common issues:

If the problem persists after checking these points, please contact Hisense customer support.

Figure 7.1: Illustration of low noise operation.

8. Specifications

9. Warranty and Support

Product Warranty

This Hisense RIB312F4AWE refrigerator comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions.

Customer Support

For technical assistance, warranty claims, or spare parts, please contact Hisense customer support. Refer to the contact information provided on the Hisense official website or your warranty card.

Note: Always provide your model number (RIB312F4AWE) and serial number when contacting support.
