Mienta Air Fryer Mega- AF47534A

1. Introduction

Thank you for choosing the Mienta Air Fryer Mega- AF47534A. This appliance is designed to cook your favorite foods with little to no oil, offering a healthier alternative to traditional frying. Please read this manual thoroughly before first use to ensure safe and optimal operation. Keep this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury.

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse the cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to 'off', then remove the plug from the wall outlet.
• Do not use the appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface with adequate ventilation around it.

3. Product Overview

The Mienta Air Fryer Mega- AF47534A is a versatile kitchen appliance designed for various cooking methods. It features a compact design and intuitive controls.

Figure 1: Front view of the Mienta Air Fryer Mega- AF47534A. This image shows the main unit in black, featuring the top-mounted control dial for temperature and timer settings, along with indicators for its 5.5-liter capacity and serving size for 8 persons.

Components:

• Main Unit: Houses the heating element and fan.
• Control Panel: Features a mechanical dial for setting temperature and time.
• Cooking Basket: Removable basket for holding food.
• Crisper Plate: Sits inside the cooking basket, allowing air to circulate around food.

Figure 2: Close-up of the control dial. This image provides a detailed view of the mechanical dial, which allows users to set the cooking temperature from 80°C to 200°C and the cooking time up to 60 minutes. It also shows the 'Power' and 'Heat' indicator lights.

4. Setup

1. Unpack: Carefully remove the air fryer and all packaging materials. Ensure all components are present and undamaged.
2. Initial Cleaning: Before first use, clean the cooking basket and crisper plate with warm soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth.
3. Placement: Place the air fryer on a stable, level, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of clear space around the back and sides of the appliance for proper ventilation. Do not place it directly against a wall or under cabinets.
4. Power Connection: Plug the power cord into a grounded wall outlet. Ensure the voltage (220V, 50Hz) matches your household supply.

5. Operating Instructions

The Mienta Air Fryer Mega- AF47534A offers 6-in-1 functions for versatile cooking.

Figure 3: Cooking function icons. This graphic illustrates the six primary cooking functions of the Mienta Air Fryer: Defrost, Grill, Roast, Preheat, Bake, and Fry, highlighting its multi-purpose capabilities.

1. Prepare Food: Prepare your ingredients as desired. For best results, pat food dry before cooking.
2. Place Food in Basket: Pull out the cooking basket using the handle. Place the crisper plate inside the basket, then arrange your food on the crisper plate. Do not overfill the basket; ensure food does not exceed the MAX fill line. The capacity is 5.5 liters, suitable for approximately 1.4 kg of food, serving up to 8 persons.

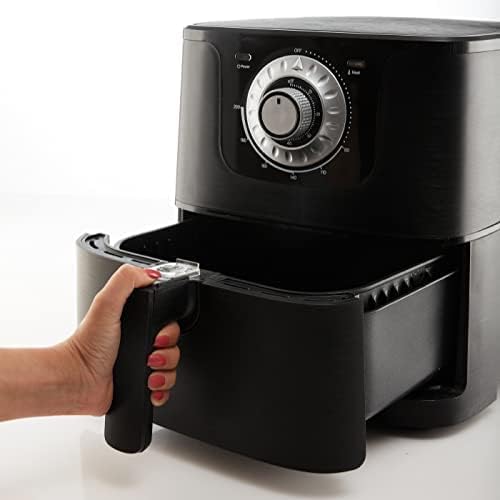

Figure 4: Removing the cooking basket. This image shows a hand gripping the handle and pulling out the cooking basket from the Mienta Air Fryer, illustrating the ease of access for loading or checking food.

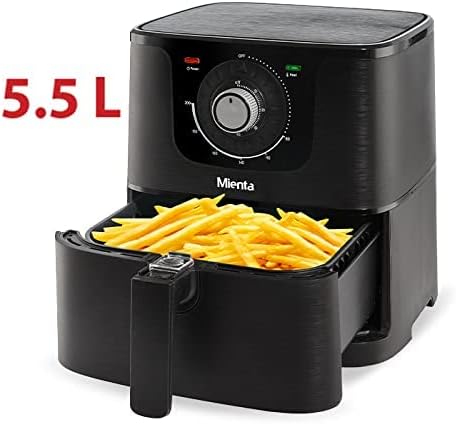

Figure 5: Air fryer basket with food. This image displays the Mienta Air Fryer with its cooking basket partially pulled out, containing a generous portion of golden-brown french fries, demonstrating the appliance's 5.5-liter capacity for cooking.

3. Insert Basket: Slide the cooking basket back into the main unit until it clicks securely into place.
4. Set Temperature: Turn the temperature control dial to your desired cooking temperature, ranging from 80°C to 200°C.
5. Set Timer: Turn the timer dial to the required cooking time. The air fryer will automatically start cooking. The 'Power' indicator light will illuminate, and the 'Heat' indicator light will turn on and off as the appliance maintains the set temperature.
6. Shaking/Turning Food: For even cooking, especially with smaller items like fries, pull out the basket halfway through the cooking time and gently shake or turn the food. Then, slide the basket back in.
7. Cooking Process: The air fryer uses rapid hot air circulation to cook food evenly.

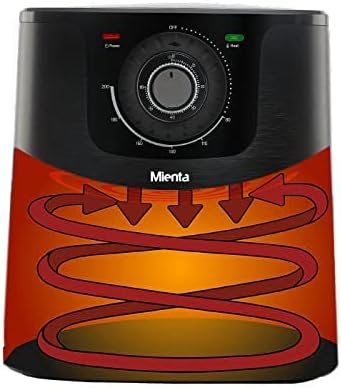

Figure 6: Hot air circulation diagram. This diagram visually explains how the Mienta Air Fryer distributes hot air throughout the cooking chamber, ensuring food is cooked thoroughly and evenly from all sides.

8. Completion: When the timer reaches zero, the air fryer will emit an audible signal and automatically shut off. Carefully pull out the basket and transfer the cooked food to a serving dish.
9. Cool Down: Allow the appliance to cool down completely before cleaning or storing.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your Mienta Air Fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool down completely before cleaning.
2. Clean Basket and Crisper Plate: The cooking basket and crisper plate are made of aluminum and plastic with a non-stick coating. They can be washed by hand with warm soapy water and a non-abrasive sponge. For stubborn residue, soak them in warm water for a few minutes before cleaning. Rinse thoroughly and dry completely.
3. Clean Exterior: Wipe the exterior of the main unit with a damp cloth. Do not use harsh abrasive cleaners or scouring pads, as they may damage the surface.
4. Clean Interior: If necessary, wipe the interior of the main unit with a damp cloth. Ensure no water enters the electrical components.
5. Storage: Once clean and dry, store the air fryer in a cool, dry place.

Important: Never immerse the main unit of the air fryer in water or any other liquid.

7. Troubleshooting

If you encounter issues with your Mienta Air Fryer, refer to the following common problems and solutions:

8. Specifications

• Model: AF47534A
• Brand: Mienta
• Capacity: 5.5 Liters (1.4 KG food capacity)
• Wattage: 1700 Watts
• Voltage: 220V
• Frequency: 50Hz
• Temperature Range: 80°C to 200°C
• Functions: Fry, Grill, Defrost, Reheat, Roast, Bake (6-in-1)
• Dimensions (D x W x H): 40D x 40W x 40H centimeters
• Item Weight: 10 Kilograms
• Material: Aluminum, Plastic
• Color: Black
• Special Features: Temperature Control

9. Warranty and Support

For information regarding warranty coverage, please refer to the warranty card included with your purchase or contact Mienta customer support. Keep your proof of purchase for any warranty claims.

For technical assistance, spare parts, or service, please contact Mienta customer service through their official channels.
