Introduction
This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your new Donner DJB-510 Electric Bass Guitar. Please read this manual thoroughly to ensure proper use and to maximize the lifespan of your instrument. The Donner DJB-510 is a full-size, 4-string, JB-style electric bass guitar designed for both beginner and intermediate players.
Figure 1: Donner DJB-510 Electric Bass Guitar and included accessories.
Setup
Follow these steps to prepare your Donner DJB-510 Electric Bass Guitar for playing.
- Unpacking: Carefully remove the bass guitar and all accessories from the packaging. Inspect the instrument for any signs of damage during transit.
- Accessory Identification: Your kit includes a gig bag, a fingers/thumb rest, a guitar cable, and a high-quality guitar strap.
- Connecting to an Amplifier:
- Ensure your amplifier is turned off and its volume is set to minimum.
- Connect one end of the provided guitar cable to the output jack on your bass guitar.
- Connect the other end of the guitar cable to the input jack on your amplifier.
- Turn on your amplifier and gradually increase the volume to a desired level.
- Tuning: Use an electronic tuner to tune your bass guitar. The standard tuning for a 4-string bass is E-A-D-G (from thickest to thinnest string).
- Attaching the Strap: Securely attach the guitar strap to the strap buttons located on the body of the bass.
- Installing the Fingers/Thumb Rest (Optional): The vintage-style fingers/thumb rest can be installed on the pickguard to provide a stable anchor point for your plucking hand. Use the provided screws to attach it if desired.
Figure 2: Included accessories for the Donner DJB-510.
Figure 3: Installation of the fingers/thumb rest.
Video 1: Overview of the Donner JB-Style Electric Bass Guitar Beginner Kit.
Operating
Understanding the controls and components of your bass guitar is crucial for optimal performance.
Controls
- Volume Knobs: The DJB-510 features two volume knobs, one for the neck pickup and one for the bridge pickup. Adjust these to control the output level of each pickup.
- Tone Knob: The tone knob allows you to adjust the overall tonal characteristics of the bass, from bright and crisp to warm and mellow.
Figure 4: Single Coil J-Bass Pickups and Control Layout.
Playing Techniques
The Donner DJB-510 is suitable for various playing styles. Experiment with fingerstyle, picking, and slapping to find your preferred sound. The laurel fingerboard and modern "C" neck profile are designed for comfortable playability.
Maintenance
Regular maintenance will help preserve your instrument's playability and appearance.
- Cleaning: After each use, wipe down the strings, fretboard, and body with a soft, dry cloth to remove sweat and grime. For a deeper clean, use guitar-specific cleaning products.
- String Replacement: Strings should be replaced periodically, depending on usage. Old strings can lose their brightness and intonation. When replacing, change one string at a time to maintain neck tension.
- Storage: Store your bass guitar in its gig bag or a hard case when not in use to protect it from dust, humidity changes, and physical damage. Avoid extreme temperatures and direct sunlight.
- Neck Adjustment: The neck of the bass guitar may require occasional adjustment (truss rod adjustment) due to changes in humidity or string tension. This is typically a task for an experienced technician.
Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound or weak sound | Loose cable connection, amplifier off, volume knobs down, faulty cable. | Check all cable connections, ensure amplifier is on and volume is up, check bass volume/tone knobs, try a different cable. |
| Buzzing or rattling strings | Low string action, uneven frets, worn strings, improper playing technique. | Adjust string action (bridge height), replace strings, consult a technician for fret leveling, review playing technique. |
| Poor intonation (notes out of tune higher up the neck) | Incorrect bridge saddle position, old strings. | Replace strings, adjust bridge saddles (intonation adjustment), consult a technician. |
| Scratchy sound when adjusting knobs | Dust or dirt in potentiometers. | Apply contact cleaner to the potentiometers (consult a technician if unsure). |
Specifications
Key technical details for the Donner DJB-510 Electric Bass Guitar:
- Model: DJB-510
- Body Material: Poplar
- Neck Material: Maple
- Fretboard Material: Laurel
- Number of Strings: 4
- Pickups: Ceramic Single Coil J-Bass Pickups
- Hardware: Korean Chrome, Vintage 4-Saddle Bridge, Open-Gear Tuning Machines
- Neck Profile: Modern "C" Shape
- Finish Type: Polished
- Item Weight: 15.97 pounds
- Dimensions: 52.12 x 16.25 x 4.93 inches
- Musical Style: Rock, Hard Rock, Blues, Pop, Funk, R&B
Figure 5: Product Information Diagram.
Figure 6: Modern "C" Neck Profile details.

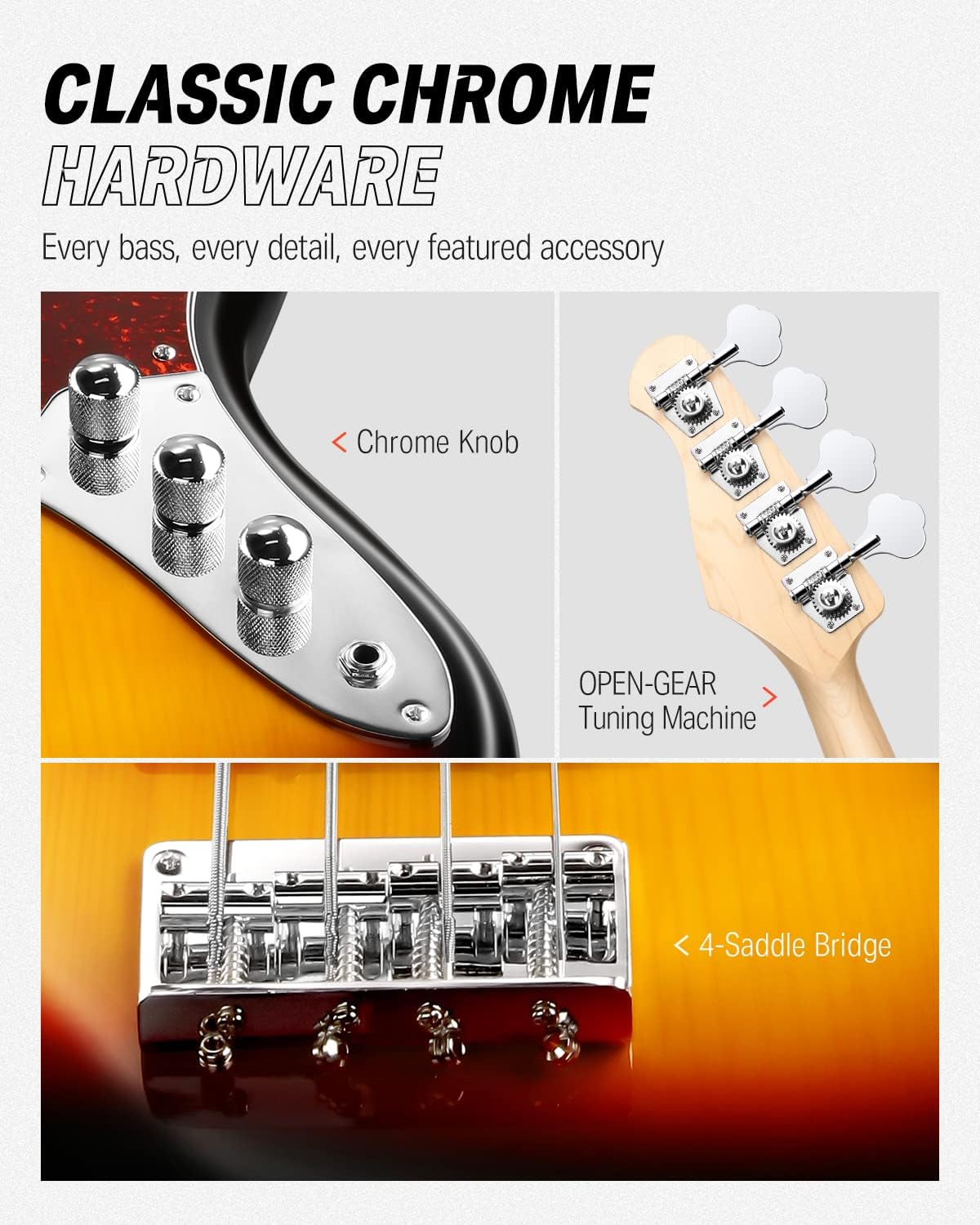

Figure 7: Classic Chrome Hardware components.
Warranty and Support
Donner provides comprehensive support for its products.
- Warranty Services: The product comes with up to a 12-month warranty. Please refer to the official Donner website or your purchase documentation for specific terms and conditions.
- Return Policy: A 30-day free return policy is available.
- Customer Care: 24/7 services are available, including phone, chat, and email assistance. For support, visit the official Donner website or contact their customer service directly.
