VLOXO CD-3800 Ultrasonic Cleaner User Manual

1. Introduction

Thank you for purchasing the VLOXO CD-3800 Ultrasonic Cleaner. This device is designed to provide powerful yet gentle 360° deep cleaning for a variety of items using ultrasonic technology. Please read this manual thoroughly before operation to ensure safe and effective use.

Image: Front view of the VLOXO CD-3800 Ultrasonic Cleaner, showing its compact design and digital display.

2. Safety Information

To prevent injury or damage to the device, always observe the following safety precautions:

• Always add water to the tank before turning on the machine. Operating without water can damage the device.
• Do not continuously use the cleaner for more than 10 minutes. Allow the device to cool down between cycles if continuous use is desired.
• Do not add hot water to the tank, as this may damage the converter. Use tap water at room temperature.
• Do not clean glasses or jewelry if they have very small scratches, as ultrasonic cleaning may exacerbate existing damage.
• Keep the device away from children and pets.
• Do not immerse the main unit in water or other liquids.
• Unplug the device when not in use or before cleaning.
• Avoid cleaning explosive or dangerous goods.
• Do not clean non-waterproof objects or circuit boards.
• Do not clean microfiber, pearls, coral, emeralds, or jades.

3. Product Overview and Components

The VLOXO CD-3800 Ultrasonic Cleaner consists of the following main components:

• Lid: Covers the cleaning tank.
• View Window: Allows observation of the cleaning process.
• LED Digital Display: Shows the remaining cleaning time.
• Control Buttons (ON/OFF/SET): For power control and timer settings.
• Stainless Steel Tank: The cleaning reservoir, made of SUS 304 stainless steel.
• Housing: The outer casing of the unit.
• Power Socket: For connecting the power cord.
• Removable Cleaning Basket: For holding items during cleaning.
• Watch Stand: A specialized accessory for cleaning watches.

Image: Labeled diagram illustrating the various components of the VLOXO CD-3800 Ultrasonic Cleaner.

4. Setup

1. Place the ultrasonic cleaner on a stable, flat, and dry surface.
2. Ensure the power socket is easily accessible.
3. Connect the power cord to the unit and then to a suitable power outlet.

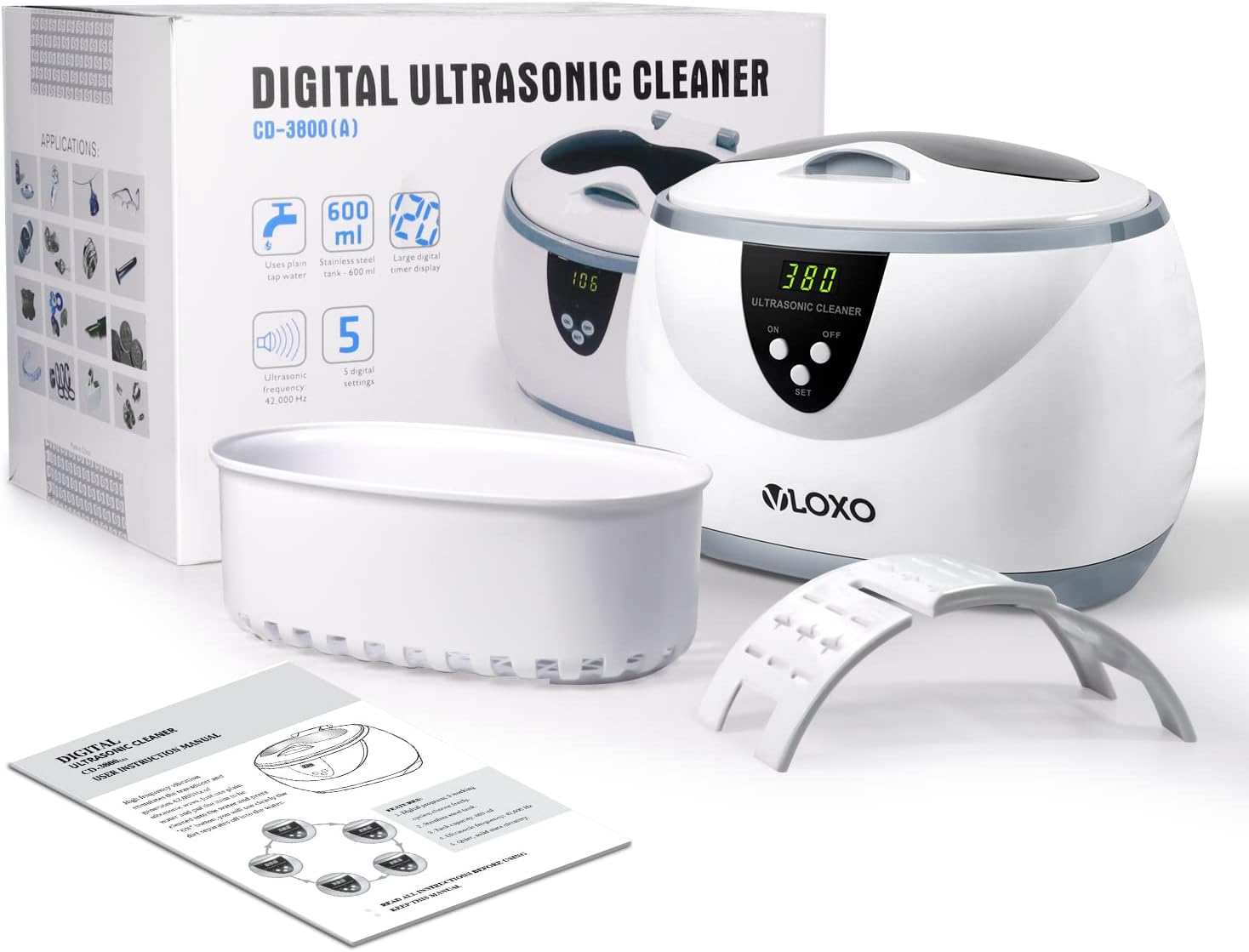

Image: The VLOXO CD-3800 Ultrasonic Cleaner, its packaging, removable cleaning basket, watch stand, and user manual.

5. Operating Instructions

5.1 General Cleaning Procedure

1. Prepare the Tank: Open the lid and fill the stainless steel tank with tap water up to the "Max" line. For enhanced cleaning, a few drops of non-corrosive detergent can be added.
2. Place Items: Carefully place the items to be cleaned into the removable cleaning basket, then lower the basket into the tank. Ensure items are fully submerged but not overcrowded. For watches, use the provided watch stand.
3. Set Timer: Close the lid. Press the "SET" button to cycle through the 5 available digital timer settings: 90s, 180s, 280s, 380s, and 480s. Select the appropriate time for your items.
4. Start Cleaning: Press the "ON" button to begin the ultrasonic cleaning process. The LED digital display will show a countdown. You may hear a low humming sound and observe mild water ripples, indicating the unit is working.
5. Finish Cleaning: The unit will automatically stop when the selected time elapses. To stop cleaning at any time, press the "OFF" button.
6. Remove Items: Open the lid, carefully lift the cleaning basket, and remove the cleaned items. Rinse them with clean water and dry them thoroughly with a soft cloth.
7. Empty Tank: Unplug the device and empty the water from the tank.

Image: Step-by-step visual guide demonstrating how to use the ultrasonic cleaner, from placing items to starting the cleaning cycle.

5.2 Timer Settings

The VLOXO CD-3800 offers 5 preset cleaning cycles:

• 90 seconds: For light cleaning or delicate items.
• 180 seconds: Standard cleaning cycle.
• 280 seconds: For moderately soiled items.
• 380 seconds: For items requiring deeper cleaning.
• 480 seconds: The longest cycle for heavily soiled items.

Image: The digital display of the VLOXO CD-3800, highlighting the five available timer settings for various cleaning needs.

5.3 Suitable Items for Cleaning

The VLOXO CD-3800 is versatile and can clean a wide range of items:

• Jewelry: Rings, bracelets, necklaces, earrings (including those with diamonds/pearls, but see safety notes for delicate stones).
• Eyewear: Optical glasses, sunglasses, contact lens accessories.
• Oral Hygiene: Dentures, toothbrushes.
• Personal Care: Razor heads, electric shaver heads, combs.
• Other: Waterproof watches & parts, coins, utensils (e.g., teaspoons), machine items, printer heads, Guiness surger cans (use sparingly to prolong device life).

Image: A visual representation of various items suitable for cleaning with the VLOXO CD-3800, including jewelry, glasses, watches, and small household items.

Image: An infographic detailing items suitable for ultrasonic cleaning (jewelry, glasses, oral hygiene items, watches, coins, shaver heads) and those not recommended (oxidized/scratched items, explosive goods, non-waterproof objects, microfiber, pearls, coral, emeralds, jades).

6. Maintenance

• After each use, unplug the device and empty the water from the tank.
• Wipe the stainless steel tank and the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners.
• Ensure the unit is completely dry before storing it.
• Store the cleaner in a cool, dry place away from direct sunlight.

7. Troubleshooting

Q: The unit does not turn on or the display is blank.

A: Check if the power cord is securely plugged into both the unit and the wall outlet. Ensure the power outlet is functional.

Q: The unit is on, but I don't see bubbles or strong water movement.

A: Ultrasonic cleaners produce large numbers of tiny air bubbles that may not be visible to the naked eye. You should hear a very low-pitched hum and feel a mild vibration or subtle water ripples. To test, place a small piece of aluminum foil in the water; if the cleaner is working, it should develop tiny perforations.

Q: The water temperature becomes higher after cleaning.

A: This is a normal phenomenon. When the converter transforms sound waves into kinetic energy, a portion of that energy is converted into heat, which can slightly raise the water temperature.

Q: Can I add cleaning fluid to improve efficiency?

A: For general items, clean water is sufficient. For items with oil stains or grease, a small amount of mild, non-corrosive detergent can be added. Avoid harsh chemicals.

Q: Does the ultrasonic cleaner kill bacteria?

A: Ultrasonic cleaners primarily provide a physical cleaning function by removing stains and dirt from surfaces and crevices. Sterilization is a biological/chemical function and cannot be achieved by any ultrasonic cleaner alone.

8. Specifications

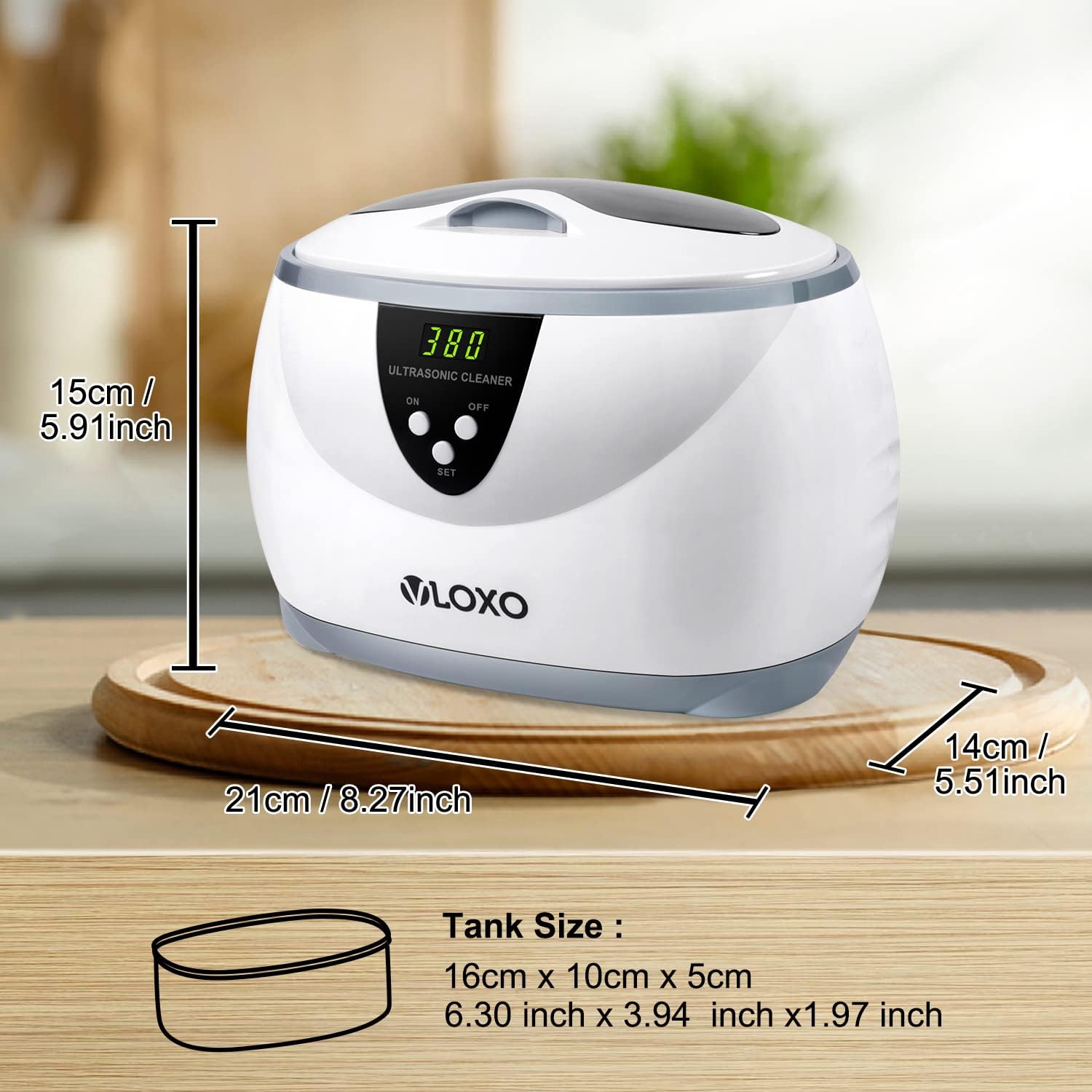

Image: Dimensions of the VLOXO CD-3800 Ultrasonic Cleaner and its internal tank.

Image: Key features of the VLOXO CD-3800, including its 42KHz ultrasonic frequency, 360-degree cleaning capability, 600ML capacity, and stainless steel water tank.
