Introduction
This manual provides essential information for the safe and effective use of your Sealey Hydraulic Ram for SC10.V3. Please read these instructions thoroughly before operation and retain them for future reference. Proper understanding and adherence to these guidelines will ensure optimal performance and longevity of the product.
Safety Information
Always prioritize safety when operating hydraulic equipment. Failure to follow these safety instructions may result in serious injury or damage to the equipment.
- Ensure the ram is securely mounted and stable before applying pressure.
- Do not exceed the rated capacity of the hydraulic ram. Refer to the specifications section for details.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Keep hands and other body parts clear of pinch points and moving parts during operation.
- Inspect the ram for any signs of damage or leaks before each use. Do not use if damaged.
- Only use the ram for its intended purpose as a hydraulic force application device.
- Store the ram in a clean, dry, and secure location when not in use.
Setup
Before using the hydraulic ram, ensure it is properly prepared and connected to a compatible hydraulic pump system (not included).
- Unpacking: Carefully remove the hydraulic ram from its packaging. Inspect for any shipping damage.
- Initial Inspection: Check all connections and the ram body for any visible defects, leaks, or loose components.
- Connecting to Pump: Connect the hydraulic hose from your pump system to the inlet port of the ram. Ensure connections are tight and secure to prevent leaks.
- Mounting: Securely mount the ram in the desired position for your application. Ensure the mounting points are robust enough to withstand the forces generated by the ram.

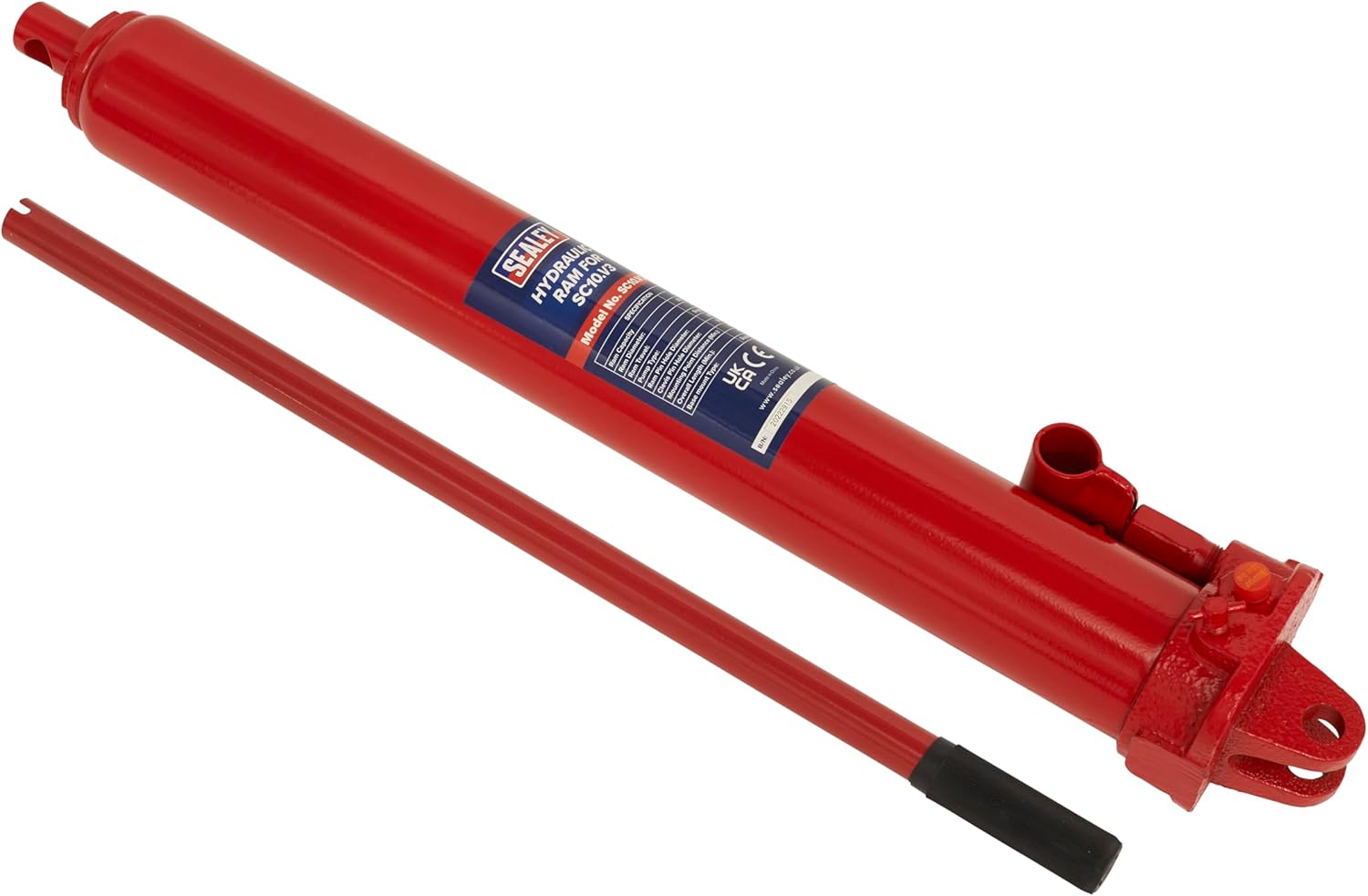

Figure 1: The Sealey Hydraulic Ram SC10.V3-E, showing its robust construction and connection points.
Operating Instructions
Follow these steps for safe and effective operation of the hydraulic ram.
- Positioning: Place the ram in the desired position for the task, ensuring the load is centered and stable.
- Applying Pressure: Slowly activate your hydraulic pump to extend the ram. Monitor the pressure gauge on your pump system to ensure you do not exceed the ram's maximum operating pressure.
- Holding Load: Once the desired extension or force is achieved, maintain pressure as required by your application.
- Retracting Ram: To retract the ram, slowly release the pressure from your hydraulic pump system. The ram will retract as pressure is relieved.
- Disconnection: After use, ensure all pressure is released before disconnecting the hydraulic hose.
Figure 2: The Sealey Hydraulic Ram SC10.V3-E, potentially shown with an accessory or in an operational context, demonstrating its form factor for use.
Maintenance
Regular maintenance ensures the longevity and reliable performance of your hydraulic ram.
- Cleaning: Keep the ram clean and free from dirt, dust, and debris. Wipe down the exterior with a clean cloth after each use.
- Lubrication: Periodically apply a thin layer of hydraulic oil to the exposed piston rod to prevent corrosion and ensure smooth operation.
- Fluid Check: Ensure your hydraulic pump system has adequate and clean hydraulic fluid. Contaminated fluid can damage the ram.
- Seal Inspection: Regularly inspect seals and connections for any signs of wear, cracking, or leaks. Replace damaged seals immediately.
- Storage: Store the ram in a dry, protected environment, ideally with the piston rod fully retracted to prevent exposure and corrosion.
Troubleshooting
This section addresses common issues you might encounter with your hydraulic ram.
| Problem | Possible Cause | Solution |
|---|---|---|
| Ram does not extend | Low hydraulic fluid level in pump; Air in hydraulic system; Damaged seals; Obstruction. | Check and refill hydraulic fluid; Bleed air from system; Inspect and replace seals; Check for obstructions. |
| Ram extends slowly or weakly | Low fluid pressure from pump; Contaminated fluid; Worn pump components. | Check pump pressure; Replace hydraulic fluid; Service or replace pump. |
| Hydraulic fluid leak | Loose connections; Damaged seals or hoses; Cracked housing. | Tighten connections; Replace damaged seals or hoses; Contact Sealey support for housing damage. |
| Ram does not retract | Pressure not fully released; Internal obstruction; Damaged return spring (if applicable). | Ensure pressure is fully released; Check for internal obstructions; Contact Sealey support. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Sealey customer support.
Specifications
Key technical specifications for the Sealey Hydraulic Ram for SC10.V3.
- Model Number: SC10.V3-E
- Manufacturer: Sealey
- Item Weight: 21.2 pounds
- Product Dimensions: 5.51 x 27.17 x 5.12 inches
- Color: Red
- Power Source: AC (refers to compatible pump, not the ram itself)
- Included Components: Hydraulic Ram for SC10.V3
- ASIN: B09MJLFPXX
- First Available: March 21, 2023
Warranty and Support
Sealey products are manufactured to a high standard and, subject to proper use and maintenance, will provide years of trouble-free performance. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Sealey website.
For technical support, spare parts, or warranty claims, please contact Sealey customer service through their official channels. Ensure you have your product model number (SC10.V3-E) and purchase details available when contacting support.
Official Sealey Website: www.sealey.co.uk
