1. Introduction
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your HayWHNKN Benchtop Mini Milling Drilling Machine, Model S028334. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.
The HayWHNKN Benchtop Mini Milling Drilling Machine is designed for precision drilling, milling, and tapping operations on various materials including metal and wood. It features an R8 spindle taper, micro-feed capability, and a variable speed brushless motor.
2. Safety Instructions
Operating any power tool can be dangerous if proper safety precautions are not followed. Always prioritize safety to prevent personal injury or damage to the machine.
- Read the Manual: Understand all instructions and warnings before operation.
- Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, and appropriate work attire. Avoid loose clothing, jewelry, and long hair that can get caught in moving parts.
- Work Area: Keep the work area clean, well-lit, and free from clutter. Ensure adequate space around the machine.
- Machine Stability: Securely mount the machine to a sturdy workbench to prevent tipping or movement during operation.
- Electrical Safety: Ensure the power supply matches the machine's requirements (110V). Do not operate in damp or wet conditions. Never bypass safety switches.
- Tooling: Use only sharp, correctly sized, and undamaged tooling. Ensure tools are properly secured in the chuck or collet.
- Workpiece Security: Always clamp the workpiece firmly to the worktable using a vise or appropriate clamps. Never hold the workpiece by hand.
- Adjustments: Disconnect power before making any adjustments, changing tools, or performing maintenance.
- Emergency Stop: Familiarize yourself with the location and operation of the emergency stop button.
- Supervision: Never leave the machine running unattended. Keep children and unauthorized persons away from the machine.
3. Product Features and Components
The HayWHNKN Benchtop Mini Milling Drilling Machine is equipped with several features designed for versatility and precision.
Key Features:
- High Efficiency: Capable of drilling, milling, grooving, plane milling, and chamfering on various materials.
- 1100W Brushless Motor: Provides powerful and consistent performance with overload and overheating protection.
- Variable Speed: Spindle speeds ranging from 50-2250rpm, adjustable without gear changes for different materials.
- R8-ER32 Drill Chucks: Includes a set of high-precision R8-ER32 chucks for reliable grip and tight tolerances.
- Integrated Cross Worktable: Spacious 27.5"x7.1" (700mmx180mm) work surface with T-slots for fixture fixation and high precision positioning.
- Adjustable Machine Head: Head can tilt ±45 degrees (up to 90° total range) for angled drilling and milling.

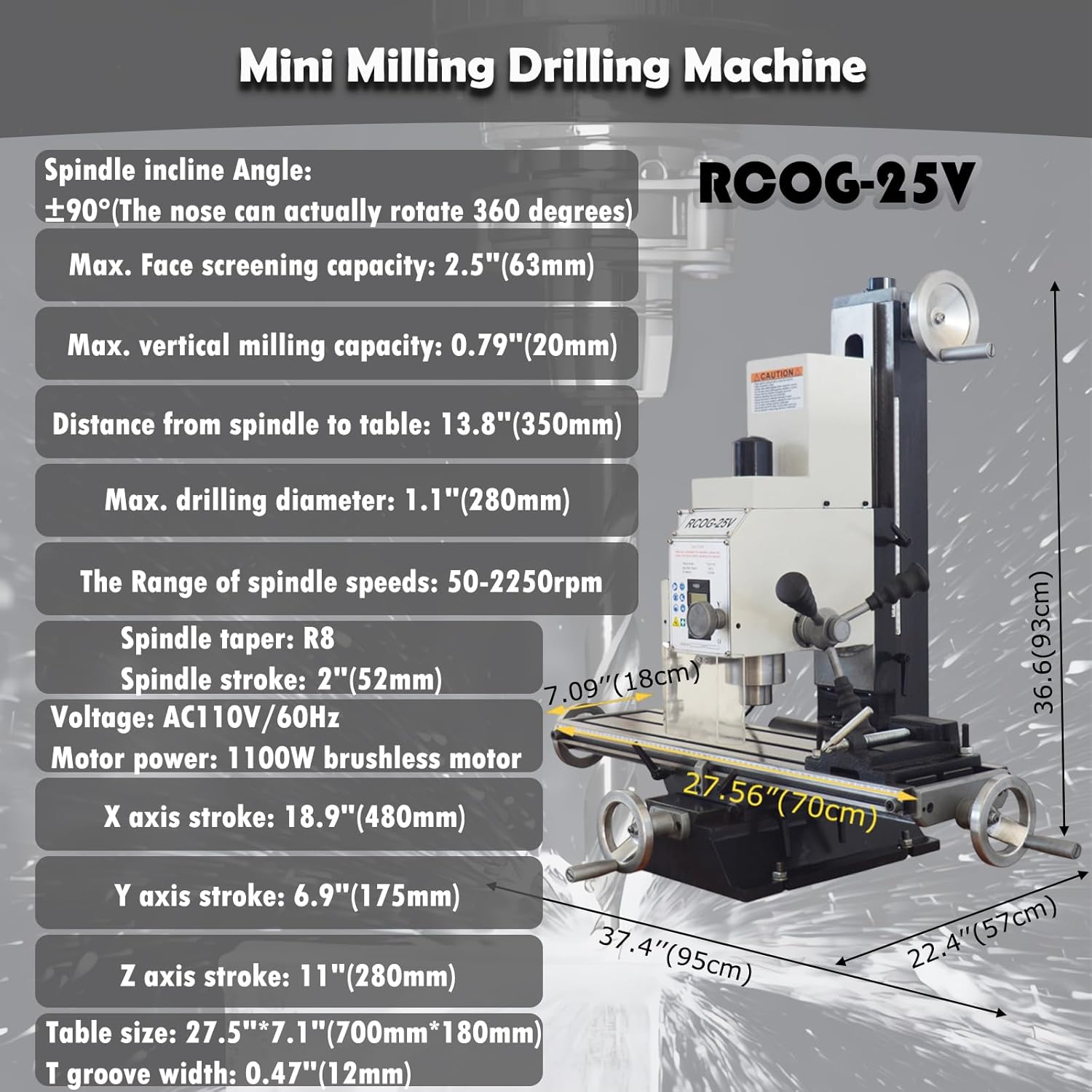

Product Overview and Dimensions
This image illustrates the overall dimensions and key operational parameters of the RCOG-25V Mini Milling Drilling Machine. It highlights the spindle incline angle, maximum drilling and milling capacities, spindle speeds, and worktable dimensions.
Precision Spindle and Capacities
The machine features a precision spindle equipped with tapered roller bearings for smooth and quiet operation. Maximum drilling diameter is 0.9" (25mm), face screening capacity is 2.5" (63mm), and vertical milling capacity is 0.79" (20mm).
Integrated Cross Worktable
The worktable, measuring 27.5" x 7.1" (700mm x 180mm), is artificially fine-ground and cast integrally. It includes T-slots for convenient fixture fixation, ensuring high precision positioning.

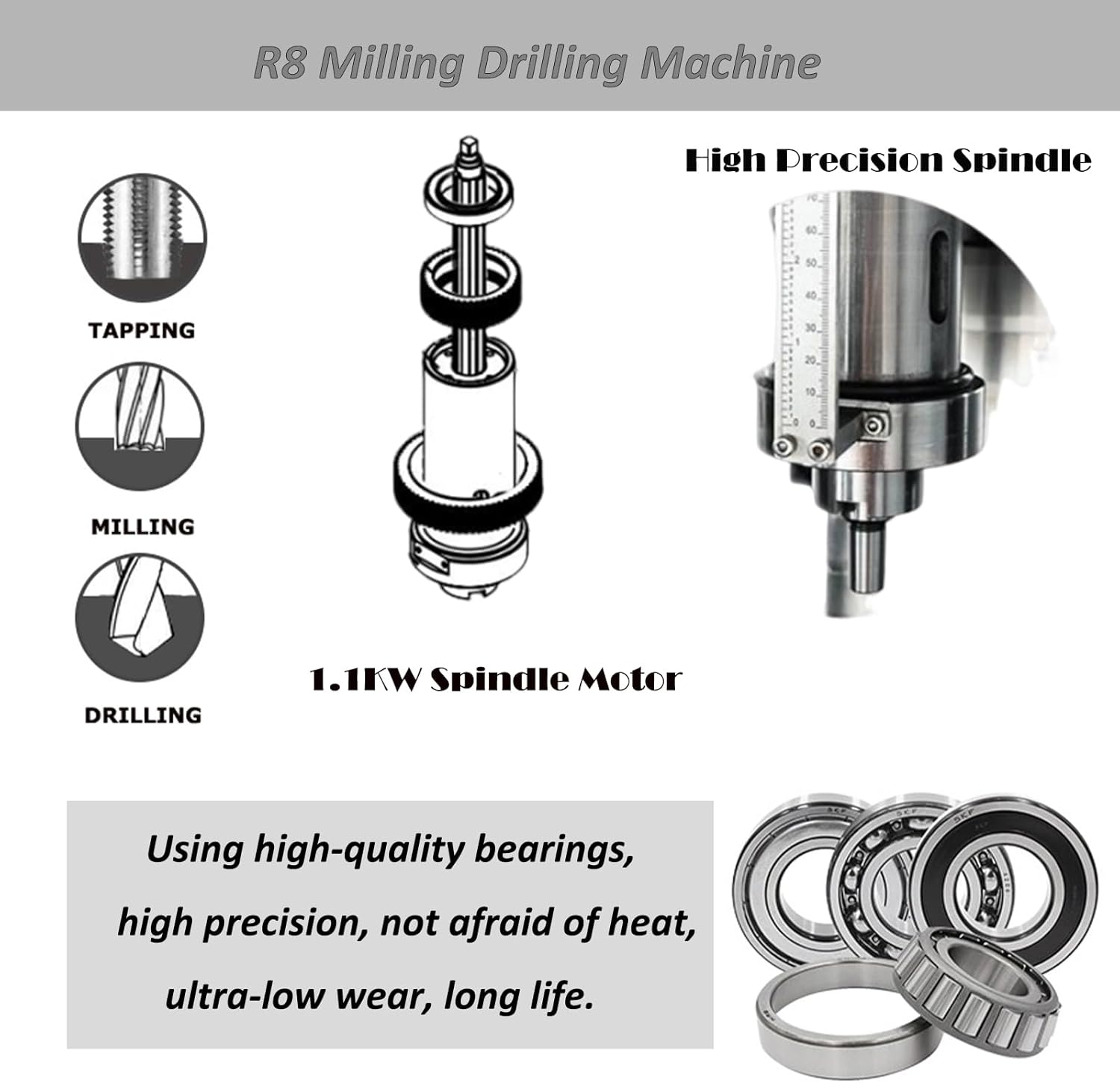

Spindle Motor and Bearings
The machine is powered by a 1.1KW spindle motor. High-quality bearings are used to ensure high precision, resistance to heat, ultra-low wear, and a long operational life.

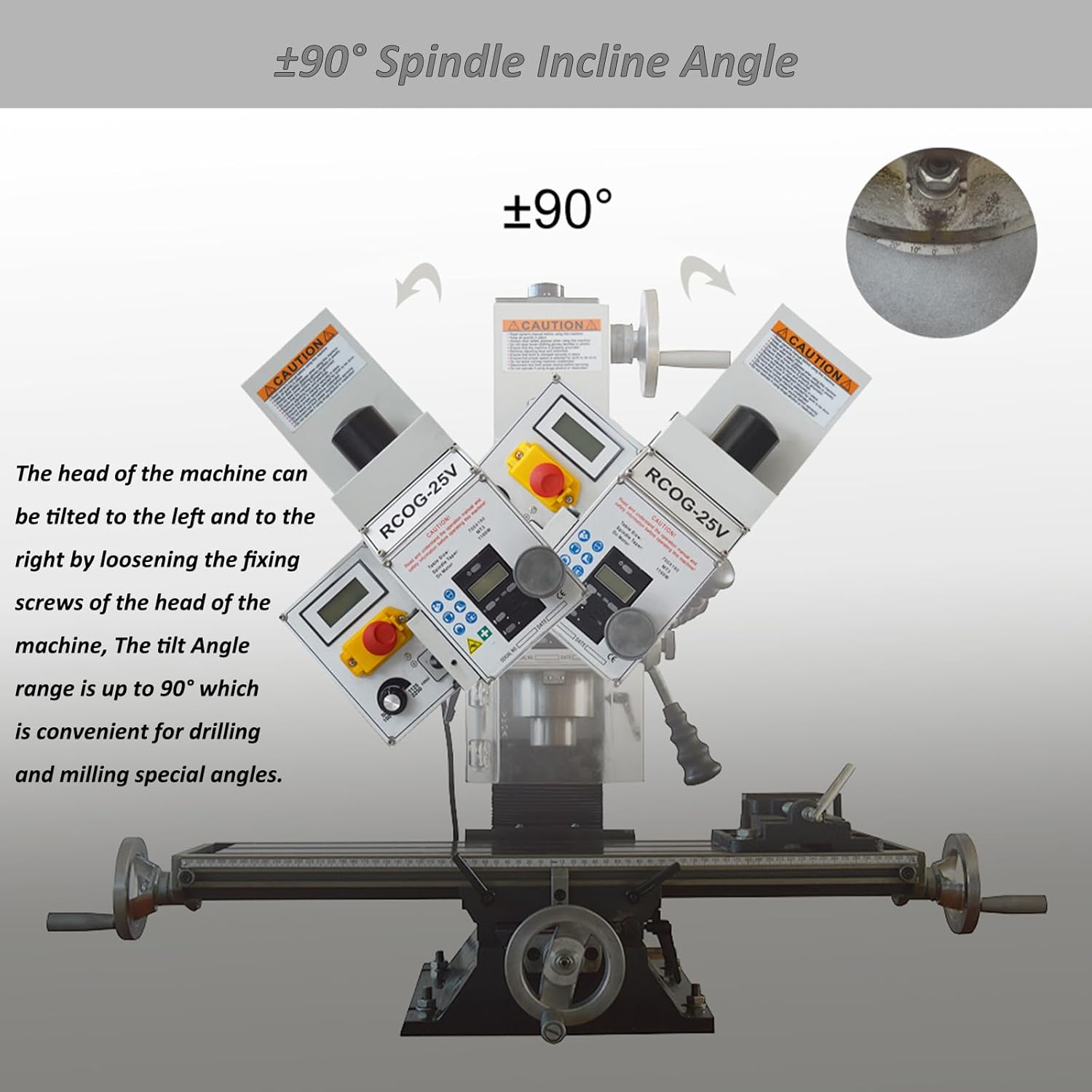

Adjustable Head Tilt
The machine head can be tilted to the left and right by loosening fixing screws, allowing for an angle range of up to 90°. This feature facilitates drilling and milling at special angles.
Included Accessories
The machine comes with a comprehensive set of accessories, including an R8-ER32 collet chuck set (sizes 4-3/5-4/6-5/8-7/10-9/12-11/14-13/16-15), a drill chuck, drill chuck retaining pin, parallel-jaw vice, fork wrenches, drill chuck wrenches, cross screwdriver, word screwdriver, and hexagon wrenches.
Product Video Overview
This video provides a visual overview of the HayWHNKN Mini Milling Drilling Machine in operation, demonstrating its capabilities for milling, drilling, and tapping. It showcases the machine's versatility in various metalworking tasks.
4. Setup
Proper setup is crucial for safe and accurate operation.
- Unpacking: Carefully remove all components from the packaging. Inspect for any shipping damage. Retain packaging for future transport if needed.
- Mounting: Securely bolt the machine to a heavy-duty workbench or stand. Ensure the mounting surface is level and capable of supporting the machine's weight (approx. 297 lbs).
- Cleaning: Clean all protective coatings and grease from the machine's surfaces using a suitable degreaser. Lubricate all moving parts as indicated in the maintenance section.
- Electrical Connection: Connect the machine to a grounded 110V AC power outlet. Ensure the circuit can handle the 1100W (10 Amps) power requirement.
- Initial Checks: Before powering on, manually check all moving parts for free movement. Ensure all fasteners are tight.
5. Operating Instructions
Follow these steps for general operation of the milling drilling machine.
- Power On: Turn on the main power switch. The digital display should illuminate.
- Tool Installation:
- Select the appropriate R8-ER32 collet or drill chuck for your tooling.
- Insert the tool into the collet/chuck and tighten securely.
- Install the collet/chuck assembly into the R8 spindle taper.
- Workpiece Clamping: Securely clamp your workpiece to the cross worktable using the parallel-jaw vice or T-slot clamps. Ensure it cannot move during operation.
- Spindle Speed Adjustment: Use the variable speed control to set the desired spindle RPM (50-2250rpm) based on the material and tooling. Refer to material cutting data for optimal speeds.
- Head Tilt Adjustment (if needed): Loosen the head fixing screws to tilt the machine head to the desired angle (up to ±45° from vertical), then re-tighten securely.
- Positioning: Use the X, Y, and Z axis handwheels to position the workpiece relative to the cutting tool. The precision positioning adjustment scale aids in accurate placement.
- Operation:
- Start the spindle motor.
- Slowly feed the cutting tool into the workpiece using the appropriate handwheel (Z-axis for drilling, X/Y for milling).
- Maintain a consistent feed rate to prevent tool breakage or poor surface finish.
- Monitor the cutting process for chip formation and sound. Adjust speed or feed as necessary.
- Completion: Once the operation is complete, retract the tool, turn off the spindle motor, and then turn off the main power switch. Remove the workpiece.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your machine.
- Daily Cleaning: After each use, clean chips and debris from the worktable, spindle, and other surfaces. Use a brush or shop vacuum. Never use compressed air directly on bearings.
- Lubrication: Regularly lubricate all lead screws, gibs, and other moving parts with appropriate machine oil. Refer to the machine's specific lubrication points.
- Inspection: Periodically inspect all fasteners for tightness. Check electrical cords for damage. Inspect tooling for wear or damage.
- Spindle Care: Keep the spindle taper clean and free of burrs to ensure accurate tool seating.
- Storage: When not in use, cover the machine to protect it from dust and moisture.
7. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on. | No power, tripped circuit breaker, faulty switch. | Check power cord, outlet, and circuit breaker. Ensure emergency stop is disengaged. |
| Spindle does not rotate. | Motor overload, loose belt, faulty motor. | Check for obstructions. Allow motor to cool if overloaded. Inspect belt tension. Contact support if motor is faulty. |
| Excessive vibration or noise. | Loose tooling, unbalanced workpiece, worn bearings, loose mounting. | Ensure tooling and workpiece are securely clamped. Inspect bearings. Check machine mounting bolts. |
| Poor surface finish or inaccurate cuts. | Dull tooling, incorrect speed/feed, loose gibs, workpiece not clamped securely. | Replace or sharpen tooling. Adjust speed and feed rates. Adjust gibs for proper tension. Re-clamp workpiece. |
8. Specifications
Detailed technical specifications for the HayWHNKN Benchtop Mini Milling Drilling Machine.
| Parameter | Value |
|---|---|
| Brand | HayWHNKN |
| Model Number | S028334 |
| Material | Metal |
| Power Source | Corded Electric |
| Voltage | 110 Volts (AC) |
| Product Dimensions (W x H) | 22.4"W x 36.6"H |
| Item Weight | 297 Pounds |
| Maximum Rotational Speed | 2250 RPM |
| Amperage | 10 Amps |
| Base Type | Fixed |
| Color | Black |
| UPC | 785869936508 |
| Wattage | 1.1 KW (1100 Watts) |
| Spindle Taper | R8 |
| X-axis Stroke | 18.9" (480mm) |
| Y-axis Stroke | 6.9" (175mm) |
| Z-axis Stroke | 11" (280mm) |
| Max. Drilling Diameter | 0.9" (25mm) |
| Max. Face Screening Capacity | 2.5" (63mm) |
| Max. Vertical Milling Capacity | 0.79" (20mm) |
| Spindle Stroke | 2" (52mm) |
| T-groove Width | 0.47" (12mm) |
| Table Size | 27.5" x 7.1" (700mm x 180mm) |
| Special Features | Variable Speed |
| Included Components | Drill chuck wrench *1, Oil can * 1, Cross screwdriver *1, Word screwdriver *1, Hexagon wrench *5, RCOG-25V drilling and milling machine *1, Drill chuck *1, Drill chuck retaining pin *1, Parallel-jaw vice *1, Fork wrench *2 |
9. Warranty and Support
For warranty information, technical support, or replacement parts, please contact HayWHNKN customer service. Keep your purchase receipt and model number (S028334) handy for faster service.
Contact information can typically be found on the product packaging or the official HayWHNKN website.
