HOWORK 1500W Stand Mixer

Introduction

Thank you for choosing the HOWORK 1500W Stand Mixer. This appliance is designed to simplify your baking and cooking tasks with its powerful motor and versatile attachments. Please read this instruction manual carefully before using the appliance for the first time to ensure safe and optimal performance. Keep this manual for future reference.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating the mixer.
• To protect against risk of electrical shock, do not immerse the motor unit, cord, or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce the risk of injury to persons and/or damage to the mixer.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter.
• Do not let cord contact hot surfaces, including the stove.
• Always operate the mixer on a dry, stable, and level surface.
• Ensure the appliance is switched off before connecting to the power supply.
• Do not use harsh or abrasive detergents for cleaning.

Product Overview and Parts Description

Familiarize yourself with the components of your HOWORK Stand Mixer before use.

Image: Detailed diagram illustrating the various parts of the HOWORK Stand Mixer, including the main unit, bowl, and attachments.

1. Output Shaft: Where attachments connect.
2. Rise Knob: Used to tilt the mixer head up for attachment changes or bowl removal.
3. Speed Knob: Controls the operating speed of the mixer.
4. Power Cord: Connects the mixer to an electrical outlet.
5. Mixing Bowl (8L): Large capacity stainless steel bowl for ingredients.
6. Dough Hook: For kneading heavy mixtures like bread dough.
7. Flat Beater: For medium-heavy mixtures like cake batter, cookies, and mashed potatoes.
8. Whisk: For light mixtures like egg whites, cream, and light batters.
9. Egg White Separator: Tool for separating egg yolks from whites.
10. Scraper (Spatula): For scraping down the sides of the bowl.
11. Splash Guard: Prevents ingredients from splashing out of the bowl during operation.

Image: The 8-liter stainless steel mixing bowl, along with the three primary attachments: the whisk, flat beater, and dough hook. These attachments feature a Teflon surface treatment for durability and corrosion resistance.

Assembly and Initial Setup

Before first use, clean all parts that will come into contact with food as described in the "Care and Cleaning" section.

1. Place the Mixer: Position the stand mixer on a clean, dry, and stable surface. Ensure the suction cups on the base firmly grip the countertop.
2. Tilt the Head: Press the Rise Knob (2) and tilt the motor head upwards until it locks into place.
3. Attach the Bowl: Place the 8L stainless steel mixing bowl (5) onto the base, aligning the grooves, and turn it clockwise until it locks securely.
4. Insert Attachment: Select the desired attachment (Dough Hook (6), Flat Beater (7), or Whisk (8)). Insert the attachment into the output shaft (1) and turn it counter-clockwise until it clicks into place.
5. Lower the Head: Press the Rise Knob (2) again and gently lower the motor head until it locks into its operating position.
6. Attach Splash Guard: If desired, slide the splash guard (11) onto the motor head, ensuring it covers the bowl opening.

Operating Instructions

This section details how to use your HOWORK Stand Mixer for various tasks.

Speed Control and Attachments

Image: Visual guide demonstrating the use of the dough hook for kneading at speeds 1-3, the flat beater for mixing at speeds 2-4, and the egg whisk for whipping at speeds 5-6.

• Dough Hook (Speeds 1-3): Use for kneading heavy mixtures such as bread dough, pizza dough, and pasta dough. Start at a low speed and gradually increase as the dough forms.
• Flat Beater (Speeds 2-4): Ideal for medium-heavy mixtures like cake batters, cookie dough, frostings, and mashed vegetables.
• Whisk (Speeds 5-6): Best for light mixtures such as whipping cream, egg whites, meringues, and light batters. Use higher speeds for maximum aeration.

Pulse Function (P)

Image: The speed control dial with the 'P' (Pulse) setting highlighted, indicating manual control for maximum power bursts. The image also shows the internal 1500W motor and belt drive system.

The 'P' setting on the speed knob provides a pulse function, delivering short bursts of maximum power. This is useful for quickly incorporating ingredients or for tasks requiring intermittent mixing.

Tilt-Up Head Mechanism

Image: Close-up view of the mixer's features, including the tilt-up knob for easy access to the bowl and attachments, the LED backlight on the speed dial, the durable metal top case, and cooling holes for motor ventilation.

To easily add ingredients, scrape the bowl, or change attachments, press the Rise Knob (2) to tilt the motor head upwards. Ensure the mixer is switched off and unplugged before performing these actions.

Care and Cleaning

Proper cleaning and maintenance will ensure the longevity and hygiene of your stand mixer.

1. Before Cleaning: Always unplug the power cord from the electrical outlet before cleaning.
2. Motor Unit: Never immerse the motor unit (main body) in water or any other liquid. Wipe the exterior with a damp cloth and mild detergent, then dry thoroughly.
3. Attachments and Bowl: The mixing bowl, dough hook, flat beater, and whisk are dishwasher safe. Alternatively, they can be washed by hand with warm, soapy water. Rinse thoroughly and dry completely before storing or reassembling.
4. Splash Guard and Egg Separator: Wash with warm, soapy water, rinse, and dry.
5. Avoid Harsh Cleaners: Do not use harsh or abrasive detergents, scouring pads, or chemical cleaners, as these can damage the surfaces.
6. Drying: Ensure all parts are completely dry before reassembling or storing the appliance.
7. Lubrication: After drying, a small amount of vegetable oil can be applied to the attachment shafts if needed to maintain smooth operation.

Troubleshooting

If you encounter any issues with your stand mixer, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

Technical Specifications

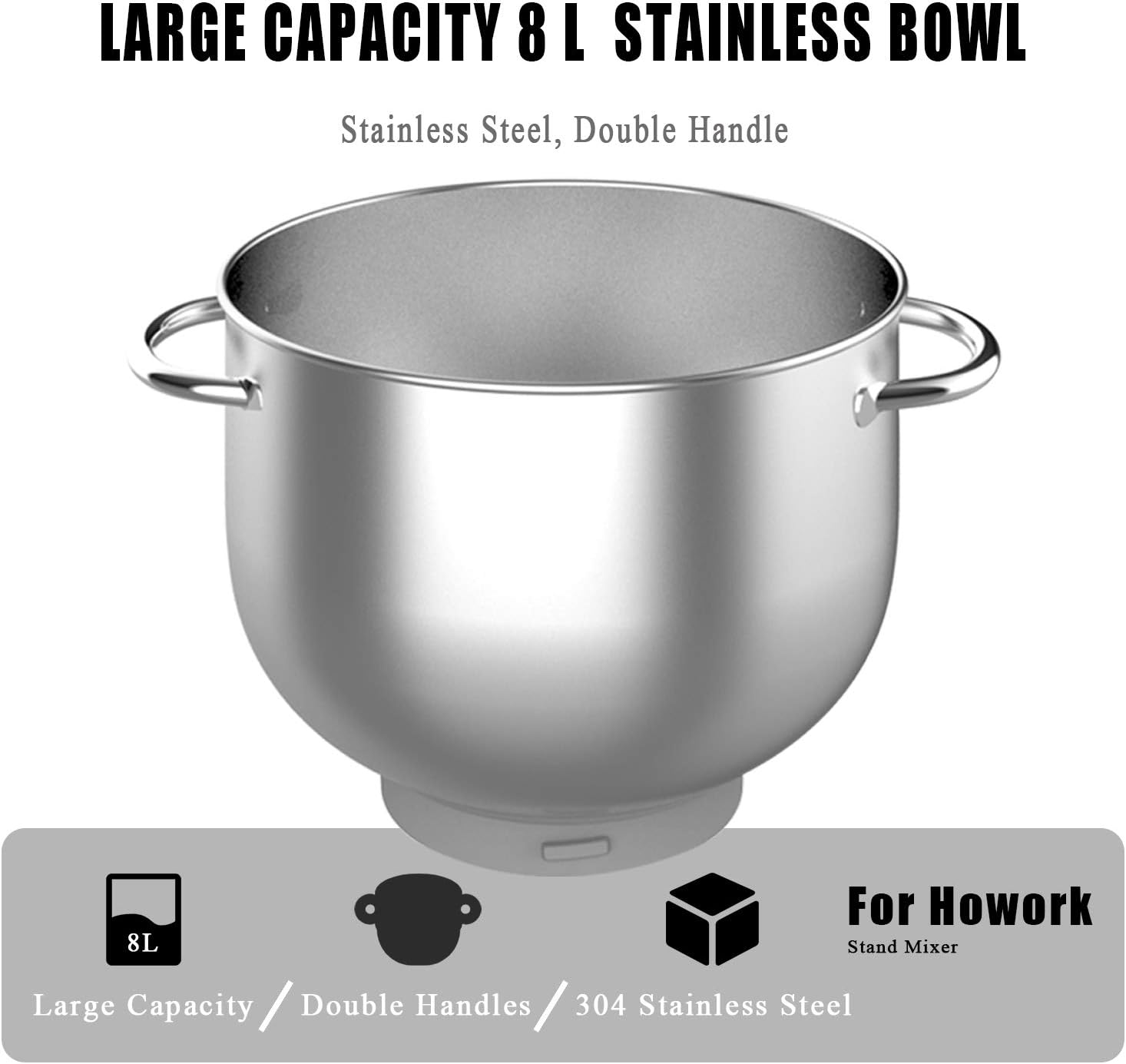

Image: The large capacity 8-liter stainless steel mixing bowl, featuring double handles for easy handling. It is made from food-grade 304 stainless steel.

Warranty and Support

HOWORK provides a 2-year warranty for this product, covering refunds or replacements. This product has passed ITS GS/CE/CB/LFGB/ROHS/REACH certifications, ensuring quality and safety standards.

For any questions, concerns, or warranty claims, please contact HOWORK customer support. Refer to your purchase documentation for specific contact details.
