1. Introduction
This manual provides instructions for the Shanrya Automatic Electric Spray Bottle, designed for various spraying tasks including plant watering, disinfection, and household cleaning. Constructed from durable ABS and HDPE materials, this electric sprayer features an adjustable water outlet, power display, and comfortable handheld design for efficient and convenient use.
The device is powered by a built-in lithium battery, offering high safety performance and up to 1000 charging cycles.
Image: An internal view highlighting the lithium-ion battery and motor, demonstrating the product's electric functionality.
Please read this manual thoroughly before operating the device to ensure proper use and longevity.
2. Setup
Follow these steps to set up your automatic electric spray bottle:
- Charge the Battery: Before first use, ensure the built-in lithium battery (2000mAh) is fully charged using the provided data cable. The power indicator lights will show the charging status.
- Add Liquid: Unscrew the top section (handle) from the bottle. Fill the bottle with the desired liquid (water, disinfectant, etc.). Do not exceed the maximum water level. Do not fill with corrosive solutions such as chemicals and pesticides.
- Install the Handle: Securely attach the handle (sprayer head) to the bottle by screwing it clockwise until tight. Ensure the soft rubber interface is properly seated to prevent water ingress.
- Check Accessories: Ensure all spare accessories are accounted for and stored safely.
Image: The Shanrya Automatic Electric Spray Bottle shown with its included data cable and spare accessories, ready for assembly.
3. Operating Instructions
The spray bottle features a dual-drive mode and adjustable water outlet for precise control.
3.1 Power On/Off and Spray Modes
The device offers two operating modes:
- Mode A (Continuous Spray): Long press the power button to start spraying. Release the button to stop.
- Mode B (Intermittent Spray): Double press the power button twice to start spraying continuously. Press once more to stop.
Image: The ergonomic grip and control panel of the sprayer, illustrating the power button for activating the dual drive modes.
3.2 Adjusting Water Outlet
To adjust the spray pattern and intensity:
- Rotate the nozzle left or right to change the spray mode from a fine mist to a direct stream.
- Adjust the rotation until the desired water intensity and pattern are achieved.

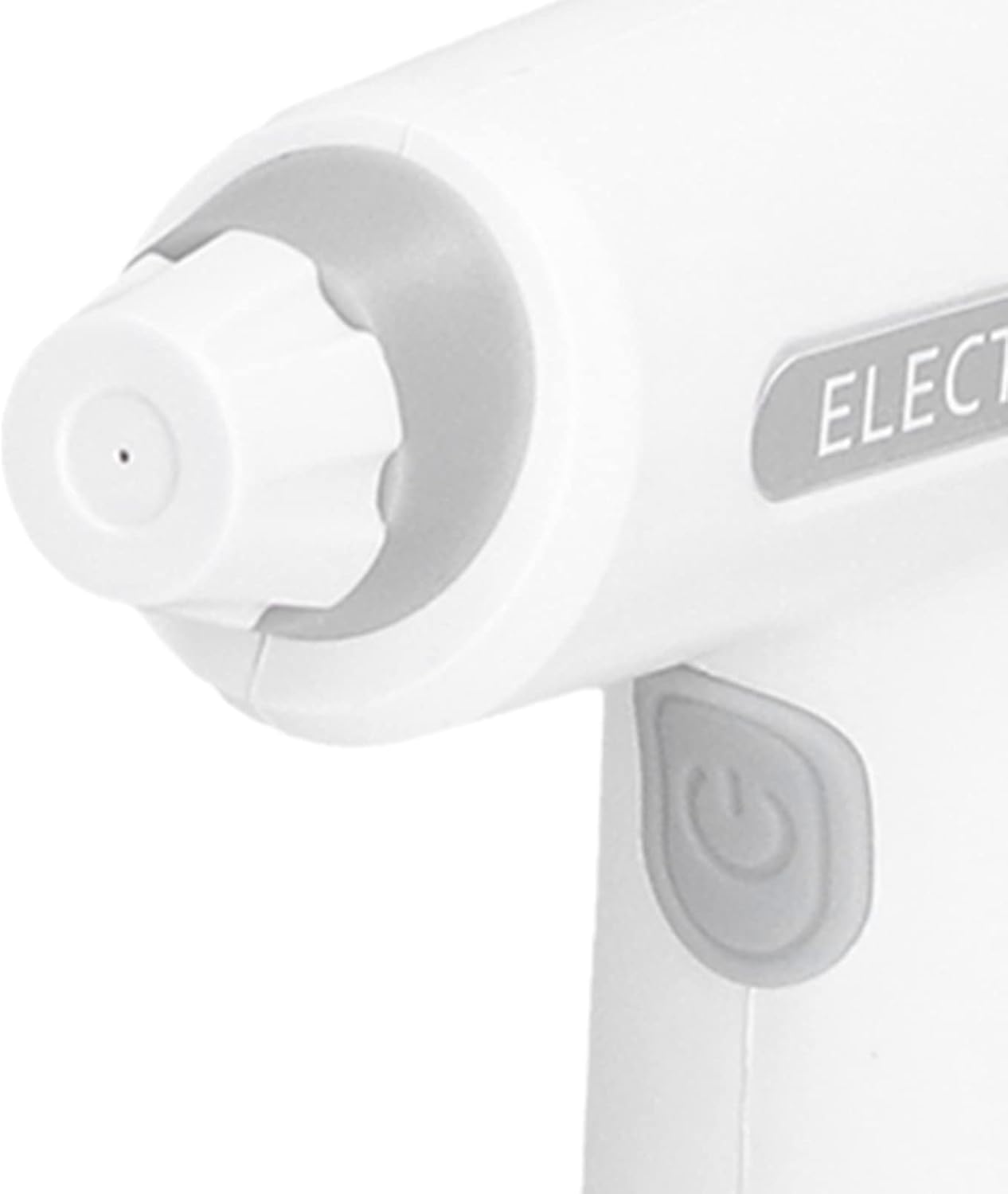

Image: A detailed view of the sprayer's nozzle, which can be rotated to adjust the water outlet pattern and intensity.
3.3 Power Display
The automatic spray bottle is equipped with an indicator light system to show the current power level. Monitor these lights to understand when recharging is necessary.

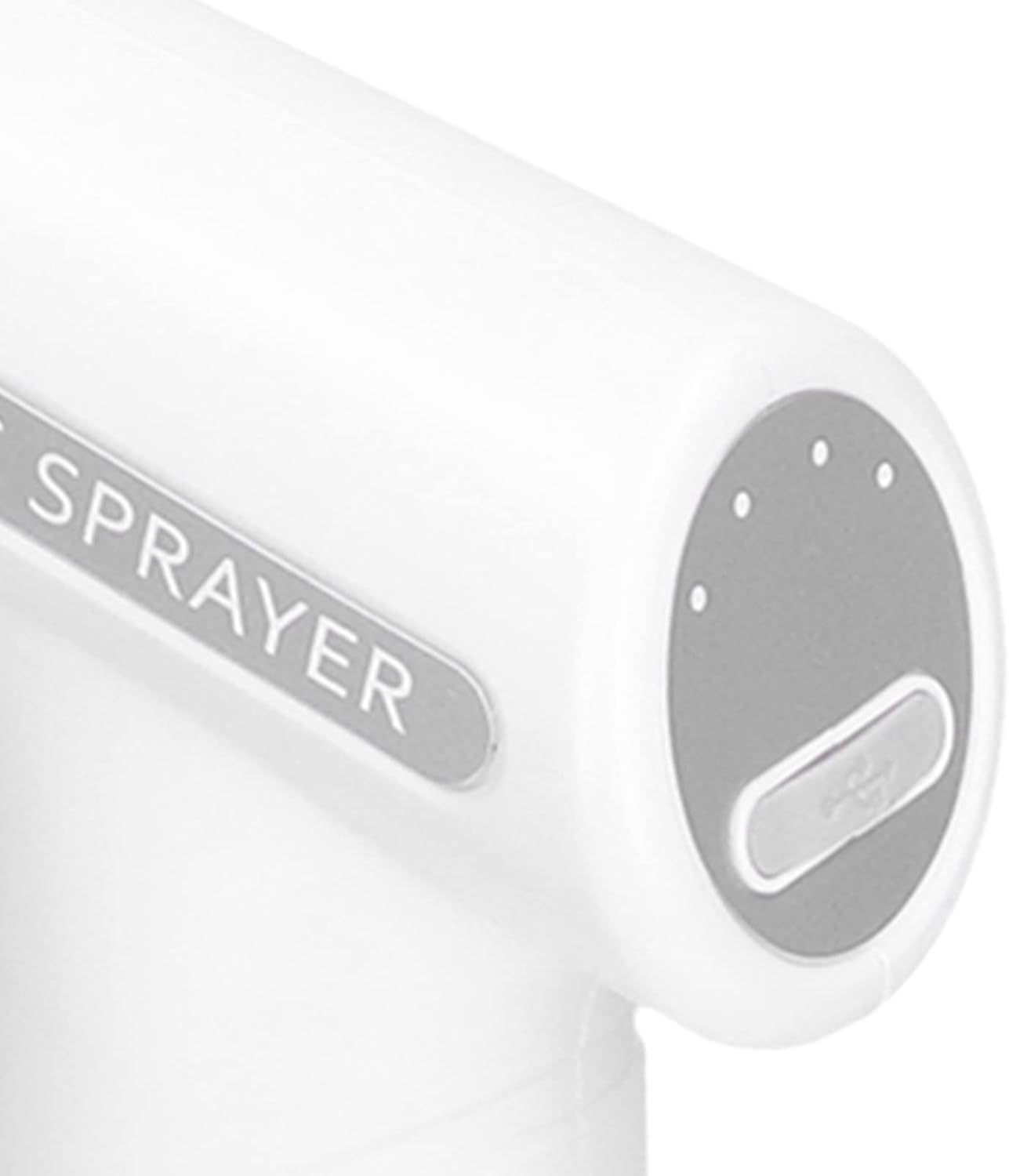

Image: A close-up of the control panel showing the power indicator lights, which provide a clear understanding of the battery level.
4. Maintenance
Proper maintenance ensures the longevity and optimal performance of your spray bottle.
- Cleaning: After each use, especially when using non-water liquids, rinse the bottle and nozzle with clean water to prevent clogging.
- Product Care: The product is designed for hand washing only. Do not immerse the electronic components in water.
- Storage: Store the spray bottle in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: Recharge the battery regularly, even if not in frequent use, to maintain battery health. The lithium battery supports up to 1000 charging cycles.
5. Troubleshooting
This section addresses common issues you might encounter.
- No Spray/Weak Spray:
- Check battery level and recharge if necessary.
- Ensure the nozzle is not clogged. Clean the nozzle by rotating it to a wide spray and flushing with clean water.
- Verify that the handle is securely attached to the bottle.
- Leaking:
- Ensure the handle is tightly screwed onto the bottle.
- Check the rubber seal at the interface for proper seating and any damage.
- Device Not Turning On:
- Confirm the battery is charged.
- Ensure the power button is being pressed correctly according to the desired mode (long press or double press).
6. Specifications
| Item Name | Shanrya Automatic Electric Spray Bottle |
| Model Number | Shanryag1qc3hgawm1711-11 |
| Material | ABS + HDPE Body, Rubber |
| Battery Type | Lithium Battery x1 (Built-in) |
| Battery Capacity | 2000mAh |
| Operating Time | 4-6 hours |
| Item Weight | 11.4 ounces |
| Package Dimensions | 6.3 x 5.91 x 5.12 inches |
| Special Feature | Waterproof (interface) |
| Reusability | Reusable |
7. Warranty and Support
Specific warranty information for the Shanrya Automatic Electric Spray Bottle is not provided in this manual. Please refer to the product packaging or contact your retailer for details regarding warranty coverage and customer support.
For technical assistance or inquiries, please contact Shanrya customer service through the contact information provided with your purchase or on the official Shanrya website.
