1. Product Overview
The BURCAM 506127SZ is a 1/2 HP cast iron shallow well jet pump system designed for residential applications. It delivers potable water from a well to homes, cottages, or farms. This system is suitable for wells with a maximum vertical lift of 25 feet.
Key features include a robust cast iron pump body for easy priming, a 1/2 HP dual voltage (115V/230V, 60 Hz) totally enclosed fan-cooled motor with automatic thermal and overload protection, and a built-in ejector. The system comes pre-assembled with a 30/50 PSI pressure switch and an epoxy-coated steel tank with a synthetic butyl rubber bladder, ensuring reliability and a long lifespan by preventing water-air and water-tank contact.

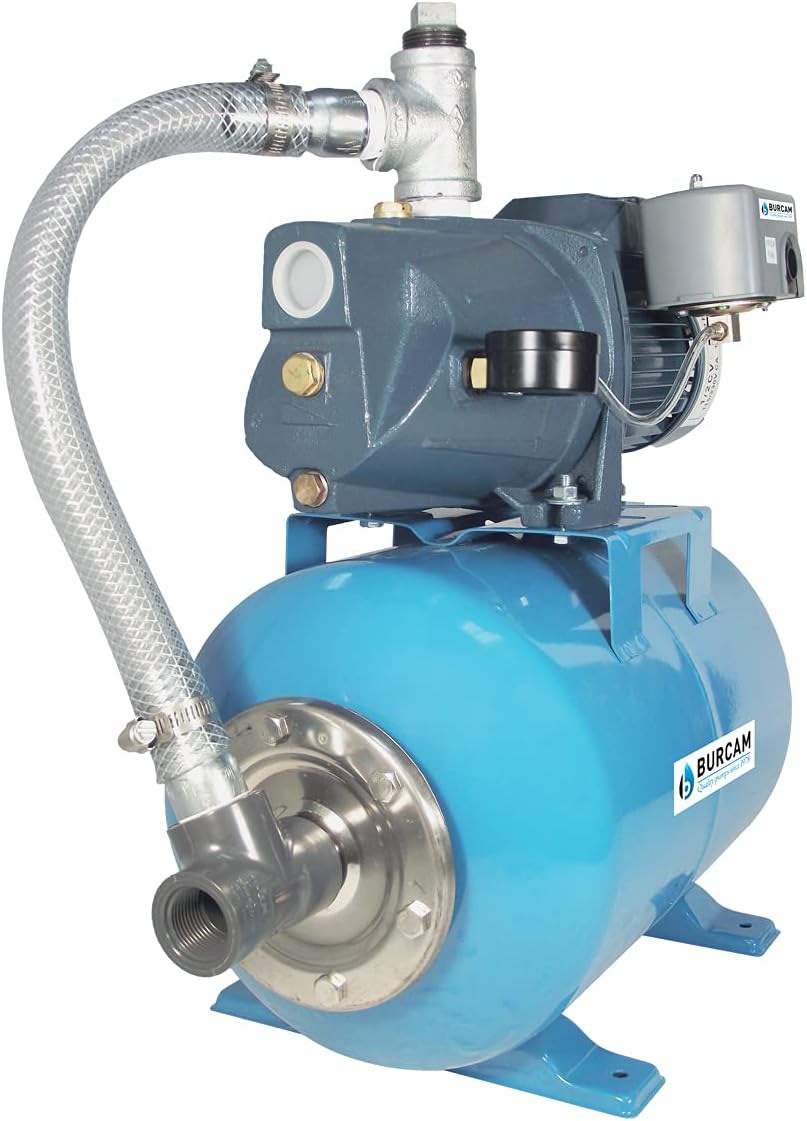

Image 1.1: The BURCAM 506127SZ 1/2 HP Cast Iron Shallow Well Jet Pump System. This image shows the complete pump and tank assembly, including the motor, pressure switch, and connection points.
2. Safety Information
Read and understand all instructions before installing, operating, or performing maintenance on this pump system. Failure to follow these instructions can result in serious injury or property damage.
- Electrical Safety: Ensure the power supply matches the pump's voltage requirements (115V/230V). All electrical wiring must be performed by a qualified electrician and comply with local codes. Always disconnect power before servicing.
- Pressure Safety: The pump operates under pressure. Do not exceed the maximum operating pressure. Relieve system pressure before performing any maintenance.
- Water Quality: This pump is designed for potable water. Do not use it for flammable liquids or chemicals.
- Installation: Install the pump in a dry, well-ventilated area, protected from freezing temperatures and direct sunlight.
- Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
3. Setup and Installation
The BURCAM 506127SZ system is pre-assembled for quick and easy setup. Proper installation is crucial for optimal performance and longevity.
3.1 Site Preparation
- Choose a location as close to the well as possible to minimize suction lift.
- Ensure the area is level, dry, and protected from freezing.
- Provide adequate ventilation around the pump motor.
3.2 Plumbing Connections
- The pump features a 1-inch NPT connection for both suction and discharge.
- Use appropriate pipe dope or Teflon tape on all threaded connections to ensure a watertight seal.
- Install a foot valve at the bottom of the well suction line to maintain prime.
- Install a shut-off valve on both the suction and discharge sides for easier maintenance.
3.3 Electrical Connections
- The motor is dual voltage (115V/230V). Verify the correct voltage setting before connecting.
- Connect the pump to a dedicated, properly grounded electrical circuit protected by a fuse or circuit breaker.
- Consult a qualified electrician for all electrical wiring to ensure compliance with local electrical codes.
3.4 Priming the Pump
- Remove the priming plug located on the top of the pump casing.
- Fill the pump casing completely with water until it overflows.
- Replace the priming plug securely.
- Open a faucet in the system to allow air to escape during initial operation.
4. Operating Instructions
Once installed and primed, the pump system is ready for operation.
- Initial Start-up: Turn on the power supply to the pump. The pump will start and begin to draw water.
- Pressure Switch: The system is equipped with a 30/50 PSI pressure switch. The pump will automatically turn on when the system pressure drops to 30 PSI and turn off when it reaches 50 PSI.
- Monitoring: Observe the pressure gauge to ensure the pump is operating within the expected pressure range.
- Automatic Protection: The 1/2 HP motor includes automatic thermal and overload protection, which will shut down the pump if it overheats or experiences an overload condition.
The pump has a capacity of up to 710 US GPH (Gallons Per Hour) and can deliver a maximum pressure of 65 PSI.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your BURCAM pump system.
- Winterization: In areas subject to freezing temperatures, drain the pump and all exposed piping completely to prevent damage.
- System Inspection: Periodically inspect all connections for leaks. Check the pressure tank for proper air charge (refer to tank manufacturer's instructions).
- Cleanliness: Keep the pump motor free from dirt and debris to ensure proper cooling.
- Tank Design: The epoxy-coated steel tank with a synthetic butyl rubber bladder is designed to prevent water-air and water-tank contact, minimizing maintenance related to air charge loss and corrosion.
6. Troubleshooting
This section provides solutions to common issues you might encounter with your pump system.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump runs but no water or low pressure |
|
|
| Pump cycles too frequently |
|
|
| Pump does not start |
|
|
7. Specifications
| Model Number | 506127SZ |
| Brand | BurCam |
| Horsepower (HP) | 1/2 HP |
| Voltage | 115V/230V, 60 Hz |
| Material | Cast Iron (Pump Body), Epoxy-Coated Steel (Tank) |
| Tank Capacity | 6.6 US Gallons |
| Maximum Vertical Lift | 25 ft |
| Maximum Pressure | 65 PSI |
| Pressure Switch Setting | 30/50 PSI (Pre-assembled) |
| Connection Type | 1-inch NPT |
| Maximum Capacity | 710 US GPH |
| Included Components | Shallow well jet pump and 6.6gal horizontal tank |
8. Warranty and Support
8.1 Warranty Information
This BURCAM pump system comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use and service.
8.2 Customer Support
For technical assistance, replacement parts, or warranty inquiries, please contact BurCam customer service. You can also visit the official BurCam store for more information and resources:
