1. Introduction
This instruction manual provides essential information for the safe and effective use of your BORYLI 7R 230W Sharpy Beam Moving Head Light Bulb. This bulb is designed for professional stage lighting applications, including DJ setups, KTV bars, event parties, and shows. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the product.
2. Safety Information
Improper handling or installation of this bulb can lead to serious injury or damage to the equipment. Observe the following safety precautions:
- High Temperature: This bulb operates at extremely high temperatures (up to 360°C). Always allow the fixture to cool completely before attempting any installation, replacement, or maintenance.
- Electrical Hazard: Ensure the moving head light fixture is completely disconnected from the power supply before handling the bulb.
- Handle with Care: Avoid touching the glass part of the bulb with bare hands. Oils from your skin can create hot spots, leading to premature failure. Use clean gloves or a soft cloth.
- Eye Protection: Never look directly into the light beam when the bulb is operating, as it can cause severe eye damage.
- Ventilation: Ensure the moving head light fixture has adequate ventilation to prevent overheating of the bulb and internal components.
- Disposal: Dispose of used bulbs according to local environmental regulations.
3. Product Overview
The BORYLI 7R 230W bulb is a high-performance lamp specifically designed for 7R Sharpy Beam Moving Head Light fixtures. It delivers a powerful, focused beam suitable for dynamic lighting effects.
Image 3.1: Front view of the BORYLI 7R 230W Sharpy Beam Moving Head Light Bulb.

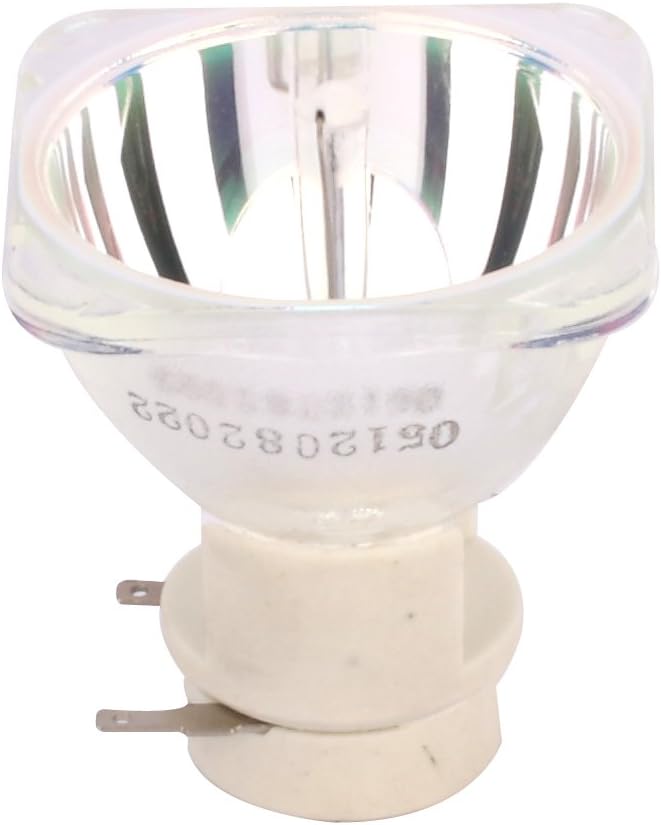

Image 3.2: Detailed close-up of the BORYLI 7R 230W Sharpy Beam Moving Head Light Bulb, showing its base and reflector.
Key Features:
- High Luminous Flux: 12000
- Color Temperature: 7600 Kelvin
- Color Rendering Index (CRI): 75
- Average Life: 1600 Hours
- Maximum Allowed Temperature: 360°C
4. Setup and Installation
This bulb is a replacement component for a 7R moving head light fixture. Installation should only be performed by qualified personnel following the fixture manufacturer's instructions.
Installation Steps:
- Power Disconnection: Ensure the moving head light fixture is completely unplugged from the power source.
- Cool Down: Allow the fixture to cool down for at least 30 minutes after operation before attempting to open it. The old bulb will be extremely hot.
- Access Bulb Compartment: Refer to your moving head light fixture's manual for instructions on how to safely open the bulb compartment.
- Remove Old Bulb: Carefully remove the old bulb. Note its orientation and connection type.
- Install New Bulb: Wearing clean gloves, carefully insert the new BORYLI 7R 230W bulb into the socket. Ensure it is seated correctly and securely. Do not force the bulb.
- Close Compartment: Securely close the bulb compartment according to the fixture's manual.
- Power On: Reconnect the fixture to the power supply.
- Test: Power on the fixture and test the bulb's operation.
5. Operating Principles
The BORYLI 7R 230W bulb functions as the light source within a compatible moving head light fixture. Its operation is controlled by the fixture's internal electronics and external DMX signals. The bulb produces a highly intense, narrow beam of light, ideal for creating sharp aerial effects and dynamic stage presence.
Image 5.1: Example of the sharp beam pattern produced by the 7R bulb.
Image 5.2: An example of a gobo pattern created using a 7R moving head light, demonstrating the bulb's clarity.
Image 5.3: Multiple moving head lights utilizing 7R bulbs creating dynamic stage lighting effects.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your BORYLI 7R 230W bulb.
- Cleaning: Periodically, when the fixture is cool and disconnected from power, gently clean the bulb's reflector and glass surface with a soft, lint-free cloth. Do not use abrasive cleaners.
- Inspection: Regularly inspect the bulb for any signs of damage, such as cracks or discoloration. Replace the bulb immediately if any damage is observed.
- Fixture Maintenance: Ensure the moving head light fixture's cooling fans and vents are clear of dust and debris to maintain proper operating temperature for the bulb.
- Replacement: The average life of this bulb is 1600 hours. Consider replacing the bulb proactively before it reaches its end-of-life to avoid unexpected failures during critical events.
7. Troubleshooting
If you encounter issues with your BORYLI 7R 230W bulb, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulb does not light up | No power to fixture Bulb not seated correctly Bulb has reached end-of-life Fixture fault | Check power connection Ensure bulb is securely installed (after cooling) Replace bulb Consult fixture manual or qualified technician |
| Dim or flickering light output | Bulb nearing end-of-life Poor electrical connection Overheating | Replace bulb Check bulb connections (after cooling) Ensure proper ventilation for the fixture |
| Bulb explodes or cracks | Overheating Physical damage during installation Manufacturing defect | Ensure proper ventilation Handle bulb with care, avoid touching glass Contact seller for replacement if within warranty |
If the problem persists after attempting these solutions, consult a qualified lighting technician or contact BORYLI customer support.
8. Specifications
Detailed technical specifications for the BORYLI 7R 230W Sharpy Beam Moving Head Light Bulb:
| Parameter | Value |
|---|---|
| Lamp Model | 7R |
| Power | 230W |
| Output Wattage | 220 Watts |
| Luminous Flux | 12000 |
| Color Temperature | 7600 Kelvin |
| Color Rendering Index (CRI) | 75 |
| Allowed Max Temperature | 360°C |
| Average Life | 1600 Hours |
| Product Dimensions | 3.15 x 2.76 x 2.36 inches |
| Item Weight | 2.89 ounces |
| Manufacturer | BORYLI |
| UPC | 737311167282 |
| ASIN | B09LL9JH8Z |
9. Warranty and Support
For warranty information and technical support regarding your BORYLI 7R 230W Sharpy Beam Moving Head Light Bulb, please refer to the documentation provided with your original purchase or contact the seller directly. Keep your purchase receipt as proof of purchase.
For general inquiries or further assistance, you may visit the BORYLI store on Amazon: BORYLI Store
