Mienta CM31835A Espresso Coffee Maker User Manual

Introduction

Thank you for choosing the Mienta CM31835A Espresso Coffee Maker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions carefully before first use and retain them for future reference.

Important Safety Instructions

• Always ensure the appliance is connected to a grounded power outlet with the correct voltage.
• Do not immerse the appliance, cord, or plug in water or any other liquid.
• Keep hands and cords away from hot surfaces and steam. The steam nozzle and portafilter can become very hot during operation.
• Unplug the coffee maker from the outlet before cleaning and when not in use. Allow it to cool down completely before handling parts.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Use only Mienta recommended accessories.

Product Overview

Familiarize yourself with the components of your Mienta CM31835A Espresso Coffee Maker.

Figure 1: Front view of the Mienta CM31835A Espresso Coffee Maker, showing the control panel, portafilter, and drip tray.

• Control Panel: Buttons for On/Off, single shot, double shot, and steam.
• Steam Control Knob: Adjusts steam intensity for frothing milk.
• Portafilter: Holds ground coffee for brewing.
• Drip Tray: Collects excess liquid and is removable for cleaning.
• Water Tank: Detachable 1.5 L capacity for water supply.
• Steam Nozzle: For frothing milk.
• Cup Warming Tray: Located on top of the machine to pre-heat cups.

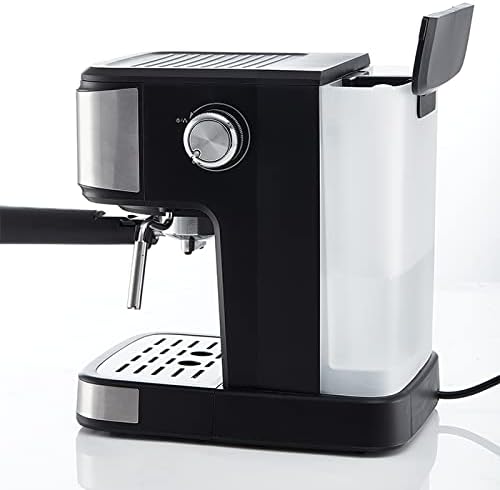

Figure 2: Side view illustrating the detachable 1.5 L water tank.

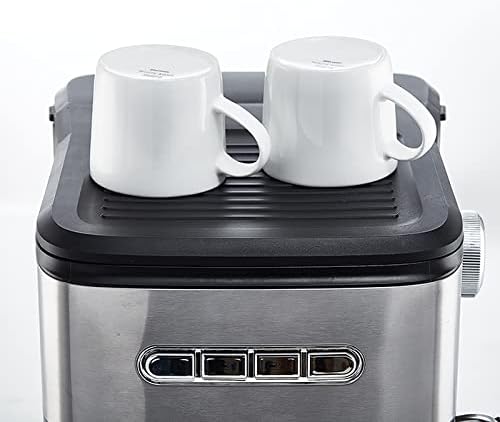

Figure 3: Top view showing the cup warming tray, suitable for pre-heating two espresso cups.

Setup and First Use

1. Unpacking and Initial Cleaning

1. Remove all packaging materials and stickers from the appliance.
2. Wash the water tank, portafilter, filter baskets, and drip tray with warm, soapy water. Rinse thoroughly and dry.
3. Wipe the exterior of the machine with a damp cloth.

2. Filling the Water Tank

1. Remove the detachable 1.5 L water tank from the back of the machine.
2. Fill the tank with fresh, cold water up to the MAX level indicator. Do not overfill.
3. Place the water tank back into its position, ensuring it is seated correctly.

3. Priming the Machine

1. Plug the power cord into a grounded electrical outlet.
2. Press the ON/OFF button. The indicator light will illuminate.
3. Place a cup under the portafilter spout (without coffee).
4. Press the single shot button to run water through the system. Repeat this process 2-3 times to flush any manufacturing residue and prime the pump.
5. Turn the steam control knob to the steam position and allow steam to release for a few seconds to prime the steam system. Close the knob.

Your Mienta CM31835A is now ready for use.

Operating Instructions

1. Making Espresso (Single or Double Shot)

1. Ensure the water tank is filled and the machine is powered on and preheated (indicator light stable).
2. Select the appropriate filter basket (single or double shot) and place it into the portafilter.
3. Add finely ground espresso coffee to the filter basket. For a single shot, use approximately 7-10g; for a double shot, use 14-20g.
4. Use the coffee dosing spoon and tamper to level and gently tamp the coffee grounds. Ensure the surface is even.

Figure 4: Proper tamping of coffee grounds in the portafilter for optimal extraction.
5. Attach the portafilter to the brewing head by aligning it and twisting firmly to the right until secure.
6. Place one or two espresso cups on the drip tray beneath the portafilter spouts.
7. Press the single shot or double shot button. The machine will begin brewing.

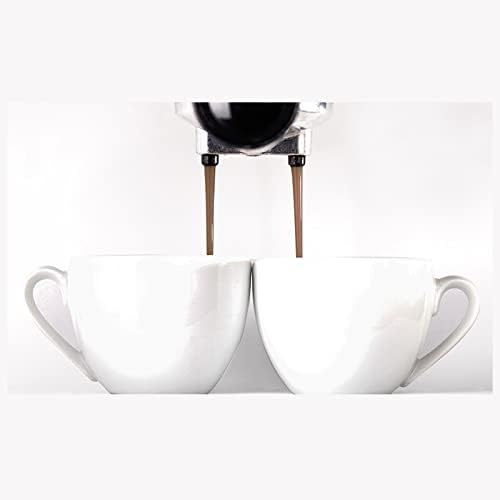

Figure 5: Espresso being dispensed into two cups, demonstrating the twin brewing cycle.

8. The machine will automatically stop when the programmed volume is reached. To manually stop, press the button again.
9. Carefully remove the portafilter by twisting it to the left. Dispose of the used coffee grounds.

2. Frothing Milk for Cappuccino and Lattes

1. Ensure the machine is powered on and preheated.
2. Fill a stainless steel frothing pitcher with cold milk (dairy or non-dairy) to about one-third full.
3. Press the steam button. Wait for the steam indicator light to illuminate steadily, indicating the machine has reached steaming temperature.
4. Position the steam nozzle just below the surface of the milk in the pitcher.
5. Slowly turn the steam control knob counter-clockwise to release steam.

Figure 6: Detail of the steam control knob, used to regulate steam output for milk frothing.
6. Move the pitcher up and down gently to create foam. Continue until the milk reaches the desired temperature and consistency.
7. Turn the steam control knob clockwise to shut off the steam.
8. Immediately wipe the steam nozzle with a damp cloth to prevent milk residue from drying.
9. Pour the frothed milk into your espresso to create a cappuccino or latte.

Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your Mienta CM31835A Espresso Coffee Maker.

Daily Cleaning

• Portafilter and Filter Baskets: After each use, remove the portafilter, discard coffee grounds, and rinse the portafilter and filter basket under running water.
• Drip Tray: Empty and rinse the detachable drip tray daily.
• Steam Nozzle: Immediately after frothing milk, wipe the steam nozzle with a damp cloth. Briefly release steam to clear any internal milk residue.
• Water Tank: Rinse the water tank and refill with fresh water daily.
• Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.

Descaling

Mineral deposits from water can build up in the machine over time, affecting performance. Descale your coffee maker every 2-3 months, or more frequently if you have hard water.

1. Prepare a descaling solution according to the descaler manufacturer's instructions (e.g., white vinegar and water, or a commercial descaling agent).
2. Fill the water tank with the descaling solution.
3. Place a large container under the portafilter and steam nozzle.
4. Run several brewing cycles (without coffee) until half of the solution has passed through.
5. Open the steam knob and let the remaining solution pass through the steam nozzle.
6. Turn off the machine and let it sit for 15-20 minutes.
7. Empty and rinse the water tank thoroughly. Fill with fresh water.
8. Run several cycles with fresh water through both the brewing head and steam nozzle to rinse out any descaling solution residue.

Troubleshooting Guide

Before contacting customer support, please refer to the following common issues and their solutions.

Technical Specifications

Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Mienta website. Keep your purchase receipt as proof of purchase.

If you encounter issues not covered in the troubleshooting section, please contact Mienta customer service for assistance.
