Introduction
Thank you for choosing the AGPTEK DW11 15W Qi Wireless Charging Station. This manual provides detailed instructions for the safe and efficient use of your new wireless charger. Please read this manual thoroughly before use and retain it for future reference.
Image: The AGPTEK DW11 15W Qi Wireless Charging Station, a circular white charging pad with a rose gold edge, connected to a USB-A cable.
Product Overview
The AGPTEK DW11 is a compact and efficient wireless charging pad designed for various Qi-enabled devices. Key features include:
- Fast Charging: Supports up to 15W fast charging for compatible devices.
- Enhanced Safety: Features battery protection, radiation shielding, foreign object detection, and temperature control.
- User-Friendly LED Indicator: A soft LED light indicates charging status without disturbing sleep.
- USB-C Power Supply: Utilizes a Type-C port for stable and efficient power input.
- Case Friendly: Charges through phone cases up to 8mm thick (excluding cases with magnetic or metal fixings).
Image: A smartphone wirelessly charging on the AGPTEK charging pad, illustrating its sleek design and ease of use.

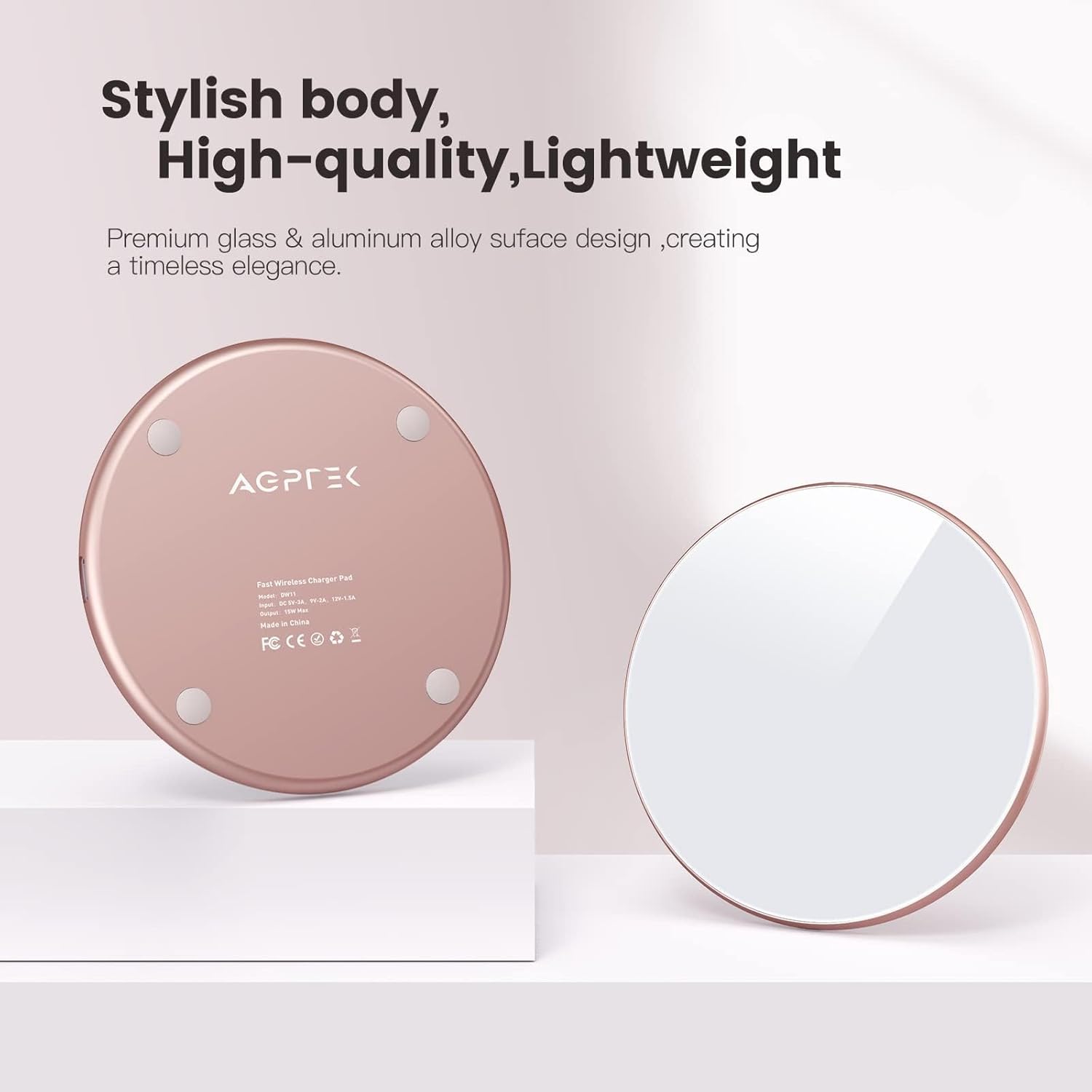

Image: The back view of the AGPTEK wireless charger, highlighting its stylish, high-quality, and lightweight design with a rose gold finish and anti-slip pads.
Image: A smartphone charging wirelessly on a stand next to a laptop, demonstrating the charger's versatile use in various settings like an office desk.
Setup Instructions
- Connect the Charger: Plug the provided USB-C cable into the charging pad's USB-C port.
- Connect to Power Adapter: Connect the other end of the USB-C cable to a compatible power adapter. For fast charging, a QC2.0 or QC3.0 adapter is required. Standard 5V/1A adapters will provide 5W charging.
- Power On: Once connected to a power source, the LED indicator will briefly flash, indicating the charger is ready.
Image: A diagram illustrating the correct connection of the AGPTEK wireless charger to a QC2.0 or QC3.0 power adapter for optimal performance, contrasting it with an incompatible 5V/1A adapter.
Operating Instructions
- Place Your Device: Center your Qi-enabled smartphone or AirPods on the charging pad.
- Confirm Charging: The LED indicator on the charging pad will illuminate blue to confirm that charging has begun.
- Charging Completion: The LED indicator will turn green when your device is fully charged.
Important Notes:
- Ensure your device is properly centered on the charging pad for efficient charging.
- The charger can accommodate phone cases up to 8mm thick. Remove cases with magnetic or metal attachments, as these can interfere with charging.
Image: A hand placing a smartphone onto the AGPTEK wireless charger, demonstrating its ability to charge through cases up to 8mm thick. It also shows examples of cases with magnets, metal, grips, or credit cards that should be removed.
Image: An iPhone and AirPods Pro case shown charging wirelessly on the AGPTEK pad, highlighting its compatibility with both smartphones and earbuds and its 15W charging capability via USB Type-C.
Compatibility
The AGPTEK DW11 wireless charger is compatible with a wide range of Qi-enabled devices, offering various charging speeds:
- 15W Fast Charging: Huawei P30 Pro, LG V50 ThinQ, LG V40 ThinQ, and other compatible devices.
- 10W Fast Charging: Samsung Galaxy S21/S20/S10/S9/S8 series, Note 20/10/9 series, and other compatible Android devices.
- 7.5W Fast Charging: iPhone 14/13/12/11/X/8 series, iPhone SE, and other compatible Apple devices.
- 5W Standard Charging: AirPods 2, AirPods Pro, and all other Qi-enabled phones and Bluetooth earbuds.
- 11W Fast Charging: Google Pixel series (e.g., Pixel 3/3XL/4/4XL/5/6/6 Pro).
Note: A QC2.0/3.0 adapter is required for fast charging modes.
Image: A visual chart displaying various charging modes (15W, 10W, 7.5W, 5W) and examples of compatible smartphones and earbuds for each mode, emphasizing the need for a QC2.0/3.0 charger.
Image: A comparison graphic showing a smartphone charging at 15W (AGPTEK) versus 10W (others), illustrating faster charging times for Android (2-2.5h vs 3.5-4h) and iOS (3-3.5h vs 4-4.5h) with the AGPTEK charger.
Safety Information
The AGPTEK DW11 is designed with multiple safety features to protect your devices and ensure safe operation:
- Battery Protection: Automatically stops charging when the phone is fully charged to prevent overcharging and extend battery life.
- Radiation Shielding: Minimizes electromagnetic radiation during charging.
- Foreign Object Detection (FOD): Detects metallic foreign objects on the charging surface and prevents charging to avoid overheating.
- Temperature Control: Built-in mechanisms to prevent overheating of the charger and your device.
- Surge Protection: Protects against power surges.
Image: An infographic highlighting the superior safety performance of the AGPTEK charger, including icons for battery protection, radiation shielding, foreign object detection, and temperature control, with a transparent view of the internal coil.
LED Indicator Guide
The LED indicator provides clear visual feedback on the charging status:
- Solid Blue Light: Indicates normal charging is in progress.
- Solid Green Light: Indicates the charging process is complete, and the device is fully charged.
- Green & Blue Flash Once: Indicates the charger is powered on and ready.
- Blue Flashes: Indicates the presence of a foreign object on the charging pad or an insufficient power supply.
Image: A person sleeping peacefully with a smartphone charging on the AGPTEK wireless pad on a bedside table, illustrating the charger's mild and sleep-friendly LED indicator.
Image: A smartphone charging on the AGPTEK wireless pad on a bedside table, with a clear guide to the mild LED indicator's colors and their meanings (Solid Blue for normal charging, Solid Green for fully charged, Green & Blue flash once for power on, Blue flashes for foreign object/insufficient power).
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device not charging or charging slowly. |
|
|
| LED indicator flashes blue. |
|
|
| Charger or device gets hot during charging. |
|
|
Specifications
| Feature | Detail |
|---|---|
| Brand | AGPTEK |
| Model Number | DW11 |
| Color | White |
| Connector Type | USB Type-C |
| Input Voltage | 5 Volts |
| Amperage | 2 A |
| Total USB Ports | 1 |
| Special Feature | Wireless Charging |
| Case Compatibility | Charges through cases up to 8mm (excluding metal/magnetic cases) |
Maintenance
- Keep the charging pad clean and free from dust and debris. Use a soft, dry cloth for cleaning.
- Avoid exposing the charger to extreme temperatures, humidity, or liquids.
- Do not disassemble or attempt to repair the device yourself.
Image: A person carefully placing the compact AGPTEK wireless charger into a small carrying bag, demonstrating its portability and ease of storage.
Warranty and Support
AGPTEK products are designed for reliability and performance. For any issues or support inquiries, please refer to your purchase documentation or contact AGPTEK customer service. Please note that information regarding specific warranty periods or spare parts availability may vary by region and purchase platform.
