Hysache 28.5-inch Recessed Electric Fireplace User Manual

1. Important Safety Information

Please read and understand this entire manual before attempting to assemble, operate, or install this electric fireplace. Failure to do so could result in electric shock, fire, serious injury, or death.

• Always disconnect power before cleaning or performing maintenance.
• Do not use this fireplace outdoors.
• Keep combustible materials at least 3 feet (0.9 m) away from the front of the fireplace.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the fireplace.
• This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Ensure the power outlet is properly grounded and rated for 120V AC, 60Hz, 15 Amp circuit.
• Do not run power cord under carpeting, throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.

2. Product Overview

The Hysache 28.5-inch Recessed Electric Fireplace provides realistic flame effects and adjustable heating for indoor use. It features multiple flame colors, brightness levels, two heat settings, a thermostat, and a timer function, all controllable via a touch panel or remote control.

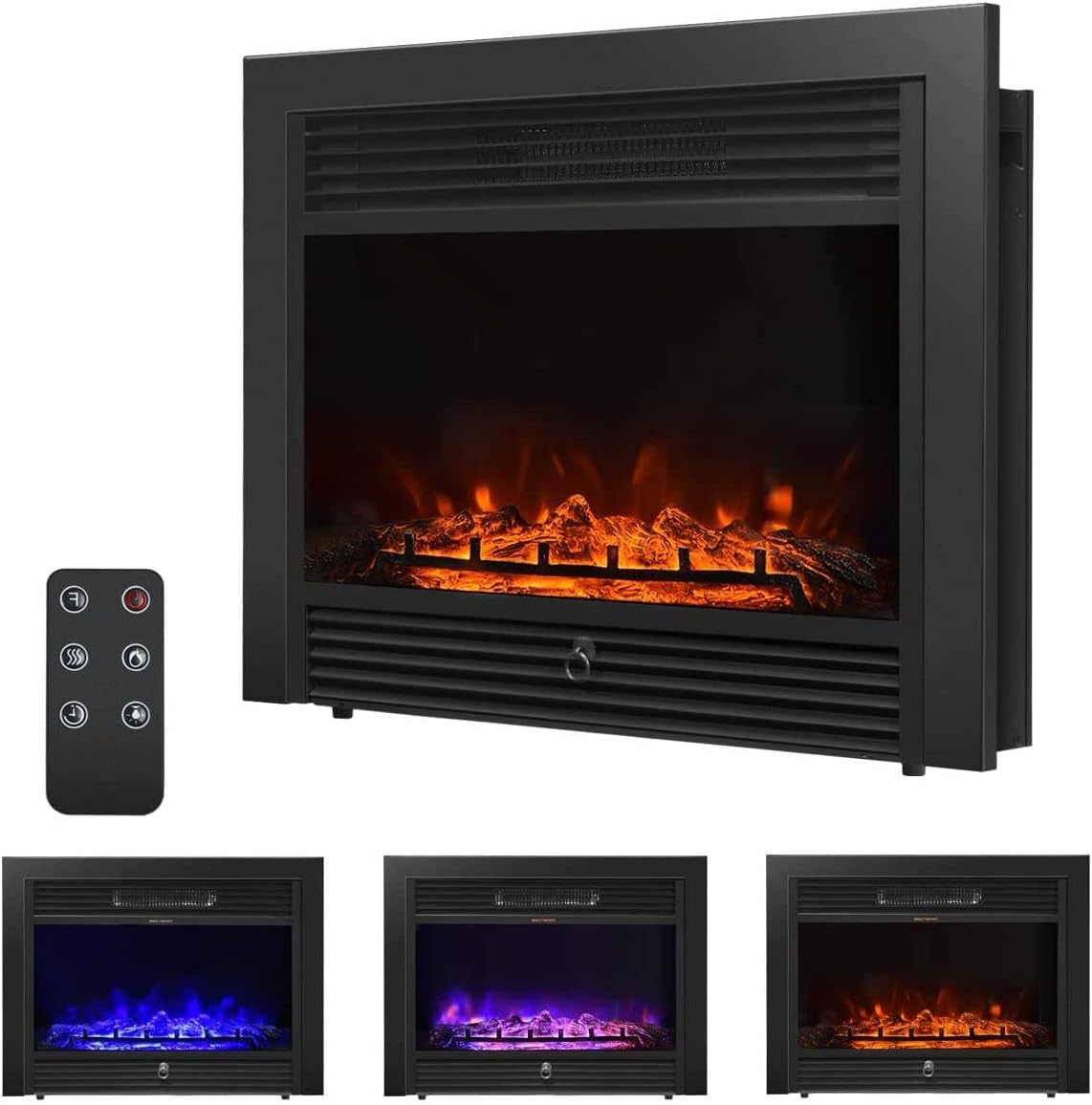

Image: The Hysache 28.5-inch Recessed Electric Fireplace, showcasing its sleek design, included remote control, and various flame color options.

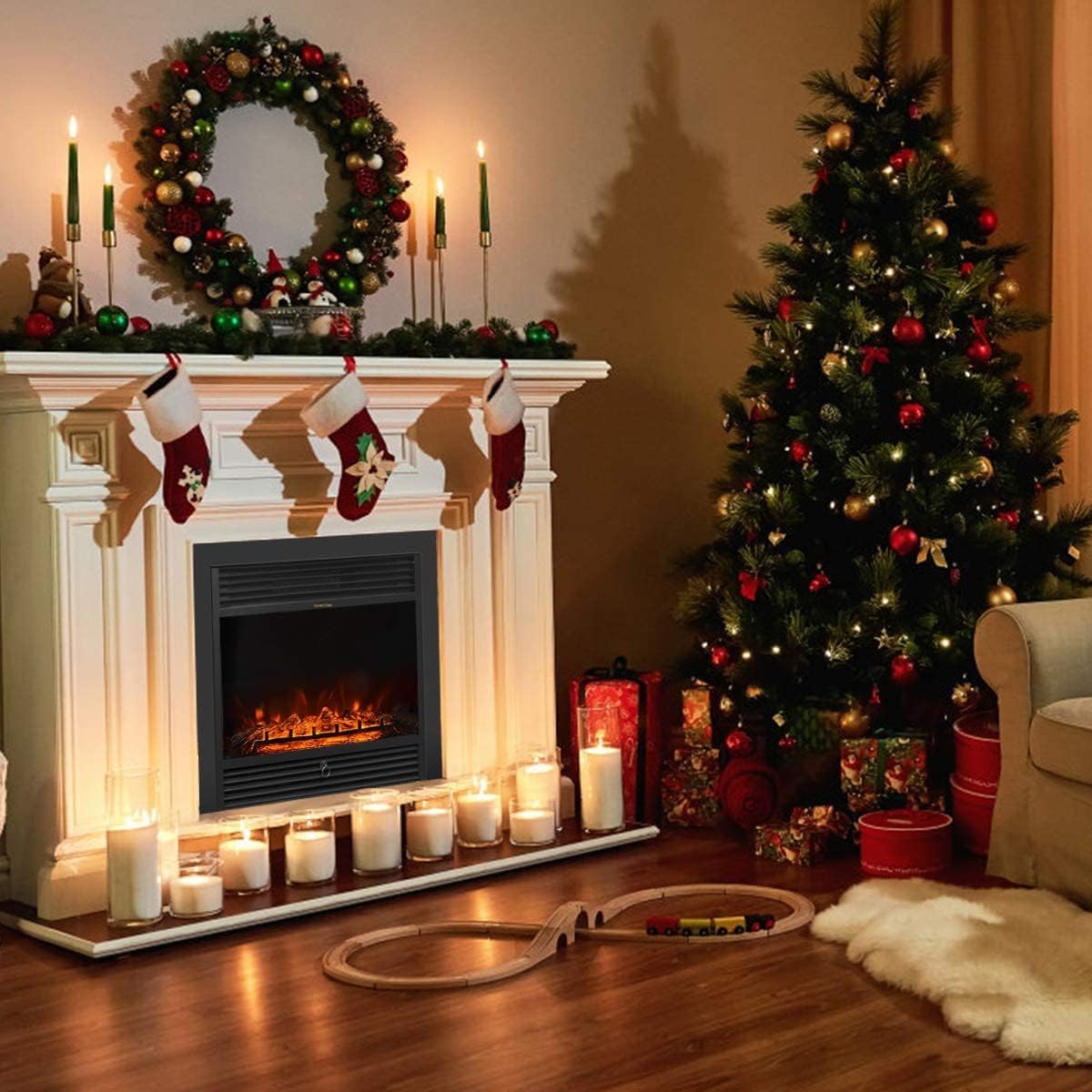

Image: The electric fireplace integrated into a living room, demonstrating its aesthetic appeal and ability to enhance home ambiance.

3. Specifications

Image: A diagram illustrating the precise dimensions of the electric fireplace unit, including width, height, and depth.

4. Setup and Installation

4.1 Choosing a Location

Select a location that is not susceptible to moisture and is away from drapes, furniture, and high-traffic areas. Ensure the location has a grounded 120V AC outlet.

4.2 Recessed Installation

This fireplace is designed for recessed installation into a wall or custom cabinet. Ensure the opening dimensions are appropriate for the unit.

• Measure the desired recess area. Recommended opening dimensions are approximately 25 inches wide by 20 inches high by 6 inches deep.
• Carefully slide the fireplace unit into the prepared opening.
• Secure the unit using appropriate mounting hardware (not always included, check packaging).

Image: A visual guide indicating the required wall opening dimensions for recessed installation of the fireplace.

4.3 Freestanding or Cabinet Installation

The unit can also be placed freestanding on a flat, stable surface or installed into a TV stand or cabinet opening, provided there is adequate ventilation and clearance from combustible materials.

Image: Examples of different installation methods, including recessed in a wall, installed in a TV stand, installed in a cabinet, and placed freestanding on a surface.

4.4 Power Connection

Once installed, plug the fireplace power cord into a standard 120V AC grounded outlet. Ensure the cord is not pinched or routed in a way that could cause damage.

Image: An illustration highlighting the simple plug-in operation, overheating protection, and heating coverage area of the fireplace.

5. Operating Instructions

The fireplace can be operated using the control panel on the unit or the included remote control.

Image: A detailed view of the remote control and the fireplace's touch control panel, with labels for each function.

5.1 Power On/Off

• Press the ON/OFF button on the control panel or remote to turn the unit on or off.

5.2 Flame Effect Adjustment

The fireplace offers 3 flame colors and 5 brightness levels.

• Press the FLAME COLOR button to cycle through orange, blue, and orange-blue mixed flame colors.
• Press the DIMMER button to adjust the flame brightness through 5 levels (L1 to L5).
• The flame effect can be used independently without heat.

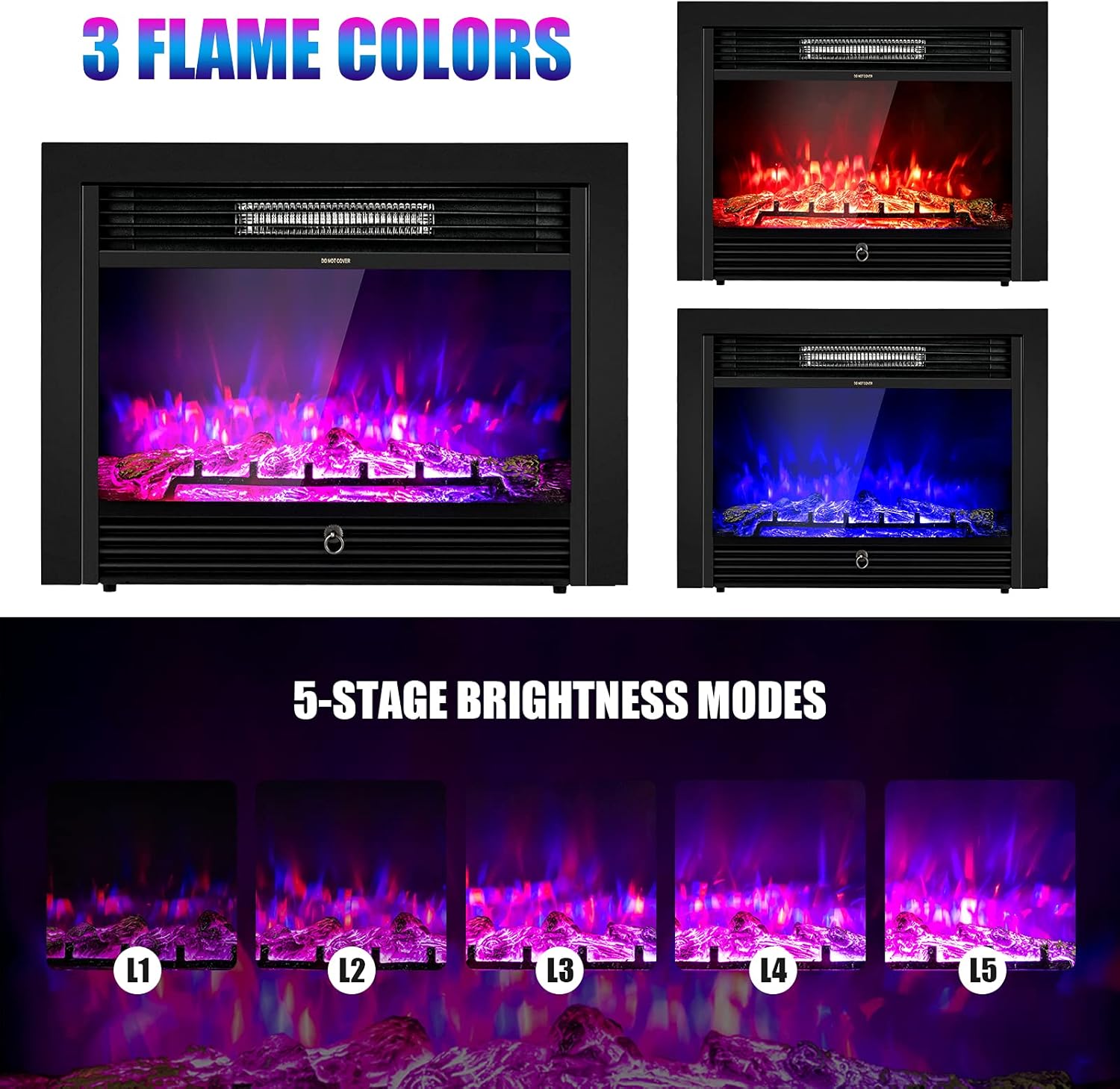

Image: Visual representations of the three available flame colors (red/yellow, blue, red & blue mix) and five distinct brightness levels (L1-L5).

5.3 Heat Settings

The unit has two heat settings: 750W (low) and 1500W (high).

• Press the HEAT button to toggle between 750W and 1500W heat output.

5.4 Thermostat Control

The thermostat maintains a desired room temperature between 62°F and 82°F.

• Press the TEMP button to adjust the target temperature. The unit will automatically turn the heater on or off to maintain this setting.

5.5 Timer Function

Set the fireplace to automatically turn off after a specified duration (0-8 hours).

• Press the TIMER button to set the auto-off time in hourly increments.

6. Maintenance

6.1 Cleaning

• Always turn off the fireplace and disconnect power before cleaning.
• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or sprays.
• Clean the air inlet and outlet vents regularly with a vacuum cleaner or soft brush to prevent dust buildup.

6.2 Remote Control Battery Replacement

• The remote control uses a 3V lithium cell battery.
• To replace, open the battery compartment on the back of the remote, remove the old battery, and insert a new one with the correct polarity.

7. Troubleshooting

8. Warranty and Support

This product is manufactured by Hysache. For specific warranty details, please refer to the warranty card included with your purchase or contact the manufacturer directly. If you encounter any issues not covered in this manual, please reach out to customer support for assistance.

Manufacturer: Hysache
