1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Shanrya Fuel Filter. Designed for durability and performance, this fuel filter helps ensure clean fuel delivery to your engine, contributing to its longevity and efficient operation. Please read this manual thoroughly before installation or use.
2. Product Overview and Features
The Shanrya Fuel Filter is a high-quality replacement component designed to effectively filter impurities from fuel. It is compatible with various Kohler engines and other applications requiring OE numbers 25 050 22-S, 25 050 03-S, and 25 050 08-S.
- Adaptation Type: Specifically designed as a replacement for Kohler engines, ensuring a precise fit and optimal performance.
- OE Number Compatibility: Replaces original equipment with part numbers 25 050 22-S, 25 050 03-S, and 25 050 08-S.
- High-Quality Material: Constructed from durable plastic, offering stability, wear resistance, and strength for reliable operation.
- Professional Manufacturing: Features exquisite craftsmanship and a high-accuracy design to enhance fuel system performance.
- Perfect Fit: An ideal accessory for garden tools and other compatible machinery, providing stable and consistent fuel filtration.

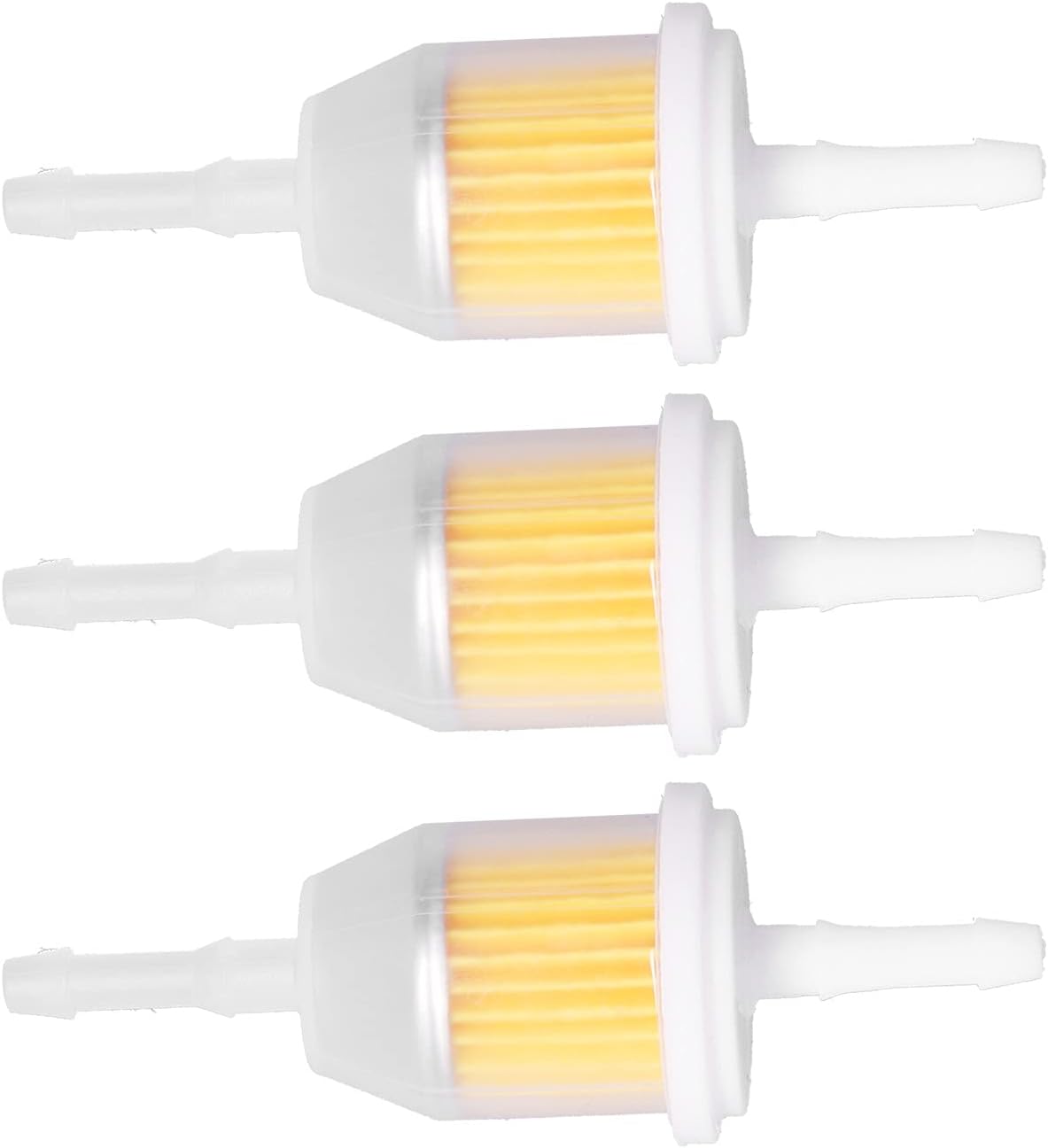

Figure 1: Three Shanrya Fuel Filters, showing their translucent casing and internal filter element.
3. Specifications
| Attribute | Detail |
|---|---|
| Brand | Shanrya |
| OE Numbers | 25 050 22-S, 25 050 03-S, 25 050 08-S |
| Material | Plastic |
| Product Grade | Performance, Replacement |
| Item Weight | Approximately 53 Grams (1.87 ounces) |
| Package Dimensions | Approximately 6.3 x 4.33 x 1.57 inches |
4. Package Contents
Upon opening the package, you should find the following items:
- 3 x Shanrya Fuel Filters
5. Installation Instructions
Safety First: Always ensure the engine is off and cool before attempting any maintenance. Disconnect the battery if necessary. Wear appropriate safety gear, including eye protection and gloves. Be prepared for fuel spills and have absorbent materials ready.
- Locate the Existing Fuel Filter: Refer to your equipment's service manual to identify the location of the fuel filter. It is typically found in the fuel line between the fuel tank and the carburetor/fuel pump.
- Prepare for Removal: Place a suitable container beneath the fuel filter to catch any spilled fuel. Use clamps or pliers to pinch off the fuel lines on both sides of the filter to minimize leakage.
- Remove Old Filter: Carefully disconnect the fuel lines from the old filter. Note the direction of fuel flow (usually indicated by an arrow on the filter) to ensure the new filter is installed correctly. Remove the old filter.
- Install New Filter: Orient the new Shanrya Fuel Filter according to the fuel flow direction. Connect the fuel lines securely to the inlet and outlet ports of the new filter. Ensure all connections are tight to prevent leaks.
- Check for Leaks: Remove the clamps from the fuel lines. Start the engine and allow it to run for a few minutes. Carefully inspect all connections around the new fuel filter for any signs of fuel leakage. Address any leaks immediately.
- Dispose of Old Filter: Dispose of the old fuel filter and any spilled fuel according to local environmental regulations.
Figure 2: A single Shanrya Fuel Filter, illustrating its inlet and outlet ports and the translucent body for visual inspection.
6. Maintenance
Regular maintenance of your fuel filter is crucial for optimal engine performance and longevity. The Shanrya Fuel Filter is designed for easy visual inspection.
- Inspection: Periodically inspect the fuel filter for visible contaminants or discoloration of the filter element. A dark or clogged filter indicates it needs replacement.
- Replacement Schedule: Consult your equipment's service manual for recommended fuel filter replacement intervals. As a general guideline, fuel filters should be replaced annually or every 100-200 hours of operation, whichever comes first, or more frequently in dusty or dirty environments.
- Cleanliness: Ensure the area around the fuel filter is clean during inspection and replacement to prevent contaminants from entering the fuel system.
Figure 3: Side view of the Shanrya Fuel Filter, highlighting the filter element within the clear casing.
7. Troubleshooting
If you experience issues related to fuel delivery, the fuel filter may be a contributing factor. Here are some common symptoms and potential solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine runs poorly or stalls | Clogged fuel filter, restricted fuel flow | Inspect and replace the fuel filter if clogged. |
| Difficulty starting engine | Insufficient fuel delivery due to a dirty filter | Replace the fuel filter. |
| Fuel leaks around filter connections | Loose connections, damaged fuel lines, incorrect installation | Tighten connections, inspect fuel lines for damage, ensure correct installation. |
If troubleshooting steps do not resolve the issue, consult a qualified service technician or your equipment's service manual.
8. Safety Information
- Always work in a well-ventilated area when handling fuel.
- Keep open flames, sparks, and other ignition sources away from fuel and fuel system components.
- Wear appropriate personal protective equipment (PPE), including safety glasses and fuel-resistant gloves.
- Ensure the engine is completely cool before working on the fuel system to prevent burns.
- Properly dispose of old fuel filters and any fuel-soaked materials according to local regulations.
- Do not modify the fuel filter or use it for purposes other than its intended design.
9. Warranty and Support
Specific warranty information for Shanrya products may vary. Please refer to the product packaging or contact your retailer for details regarding warranty coverage and support. For technical assistance, consult your equipment's manufacturer manual or a certified service professional.
