1. Introduction
Thank you for choosing the Zinus Maddon Storage Bed. This bed frame is designed to provide both comfort and practical storage solutions for your bedroom. Featuring a robust upholstered wood and metal frame, it includes a hydraulic lift system that allows easy access to a spacious storage compartment beneath the mattress. This manual provides detailed instructions for safe assembly, operation, and maintenance of your new bed.
Key features include:
- Smart Space Saving: The hydraulic storage system transforms the under-bed area into discreet storage, ideal for linens, pillows, luggage, or household items, keeping your room tidy.
- Easy Access: The ingenious hydraulic mechanism allows effortless lifting of the slatted base, providing quick access to your belongings without needing to move the mattress.
- Solid & Durable Support: The sturdy wood and metal frame ensures optimal support and extends the lifespan of any mattress (foam, latex, or spring).
- Easy Assembly: All tools, parts, and instructions are conveniently located in a zippered compartment within the headboard for assembly in under an hour.
2. Important Safety Information
WARNING:
- Please note the maximum recommended weight capacity of 318 kg (700 lbs). Exceeding this limit may cause damage to the bed and potential injury.
- Use the hydraulic lift mechanism with caution to avoid injury. Keep hands and fingers clear of moving parts when operating.
- Ensure the mattress is placed on the bed frame before attempting to close the hydraulic lift system for the first time. The weight of the mattress is necessary for proper operation.
- Do not allow children to play with or operate the hydraulic lift mechanism.
- Ensure all bolts and screws are securely tightened before use. Periodically check and retighten as necessary.
3. Package Contents
Your Zinus Maddon Storage Bed is delivered in a compact package. All necessary components, tools, and the detailed instruction manual are cleverly stored within a zippered compartment located at the back of the headboard.
Please verify that all the following components are present:
- Headboard
- Bed Frame (Foundation)
- Slats
- Hydraulic Lift Mechanism components
- Assembly Hardware (bolts, screws, washers)
- Assembly Tools (ratchet wrench)
4. Setup and Assembly
Assembly is required for this product. It is recommended to have two people for assembly, though it can be done by one person. The process typically takes less than an hour.
- Unpack Components: Locate the zippered compartment at the back of the headboard and retrieve all tools and the detailed step-by-step instruction manual. Carefully unpack all bed components.
- Follow Instructions: Refer to the included instruction manual for a precise, step-by-step guide to assemble the bed frame, headboard, and slatted base.
- Hydraulic Piston Installation (Important Note): The hydraulic pistons are designed to be very stiff and may seem blocked initially. They cannot be extended or retracted by hand alone. They are designed to function correctly only when installed on the bed frame with the mattress placed on top. When installing the pistons, it is crucial to have the mattress on the bed. If you install the pistons without the mattress, you may find it impossible to close the bed without significant force, which could cause damage.
- Secure All Connections: Ensure all bolts, screws, and connections are tightened securely. Do not overtighten.
5. Operating the Hydraulic Lift System
The Zinus Maddon Storage Bed features a hydraulic lift system for convenient access to under-bed storage.
- To Open: Gently pull the fabric tab located at the foot of the bed upwards. The hydraulic pistons will assist in lifting the mattress platform smoothly and securely.
- To Close: Apply firm, even downward pressure on the mattress platform. The hydraulic pistons will compress, allowing the bed to close. For the first few uses, or if the bed has been open for an extended period, more force may be required. Ensure the mattress is on the bed when closing.
- Access Storage: Once the platform is lifted, you can access the spacious storage area underneath.
6. Maintenance
- Cleaning: For the upholstered parts, spot clean with a damp cloth and mild detergent. Do not use harsh chemicals. The product specifications mention "Machine wash" for care instructions, which typically applies to removable fabric covers. For the bed frame's upholstery, gentle spot cleaning is recommended.
- Hardware Check: Periodically inspect all bolts and screws to ensure they remain tight. Retighten as needed to maintain stability and safety.
- Hydraulic System: The hydraulic pistons are designed for long-term use and generally require no specific maintenance. If you notice any issues with lifting or lowering, refer to the troubleshooting section.
7. Troubleshooting
Problem: Hydraulic lift mechanism is difficult to close or seems stuck.
Solution:
- Ensure Mattress is in Place: The hydraulic pistons are designed to work with the weight of a mattress on the bed. If you are trying to close the bed without a mattress, it will be extremely difficult or impossible.
- Apply Firm Pressure: For the first few uses, the pistons may require more force to compress. Apply firm, even downward pressure on the mattress.
- Check Assembly: Verify that all parts of the hydraulic mechanism and bed frame have been assembled correctly according to the instruction manual.
Problem: Bed frame feels unstable or makes noise.
Solution:
- Tighten Hardware: Check all bolts and screws throughout the bed frame and retighten them. Loose connections are a common cause of instability and squeaking.
- Even Surface: Ensure the bed is placed on a flat, even surface. Uneven flooring can cause the frame to twist and become unstable.
8. Product Specifications
| Feature | Detail |
|---|---|
| Brand | Zinus |
| Model Number | EU-FPPST4-12F |
| Color | Black |

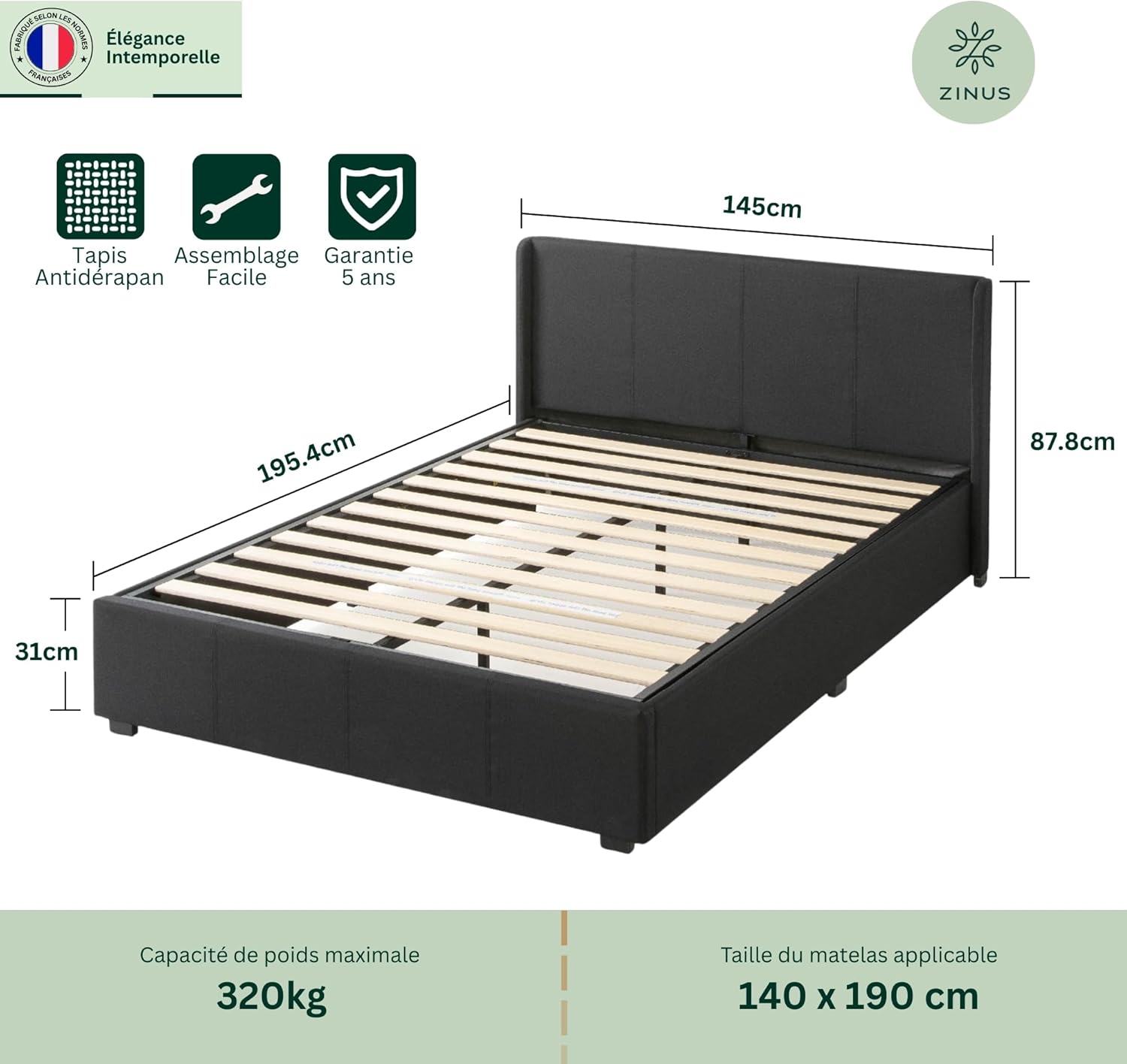

| Product Dimensions (L x W x H) | 195.4 x 145 x 87.8 cm (76.9 x 57.1 x 34.6 inches) |
| Product Weight | 37.92 kg (83.6 lbs) |
| Assembly Required | Yes |
| Primary Material | Upholstered Wood and Metal Frame |
| Finish Type | Black Powder Coating (on metal parts) |
| Capacity (Mattress Size) | 140 x 190 cm (Double) |
| Components Included | Headboard, Foundation, Slats |
| Product Shape | Rectangular |
| Mattress Comfort | Platform Bed |
| Care Instructions | Machine wash (for removable covers, otherwise spot clean upholstery) |
| Number of Cartons | 1 |
| Special Feature | Storage Drawer (Hydraulic Lift Storage) |
9. Warranty and Support
Your Zinus Maddon Storage Bed comes with a 5-year limited warranty, ensuring quality and durability. This warranty covers manufacturing defects and issues arising from normal use.
For warranty claims, technical assistance, or any questions regarding your product, please contact Zinus customer support. Details for contacting support can typically be found on the Zinus website or through your purchase platform.
When contacting support, please have your model number (EU-FPPST4-12F) and proof of purchase readily available.
