Cornat WC-Sitz Prime 'Black Steel' Toilet Seat Instruction Manual

1. Introduction

Thank you for choosing the Cornat WC-Sitz Prime 'Black Steel' toilet seat. This product features a high-quality MDF wood core, a soft-close mechanism, and quick installation for enhanced comfort and convenience. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new toilet seat. Please read these instructions carefully before use and retain them for future reference.

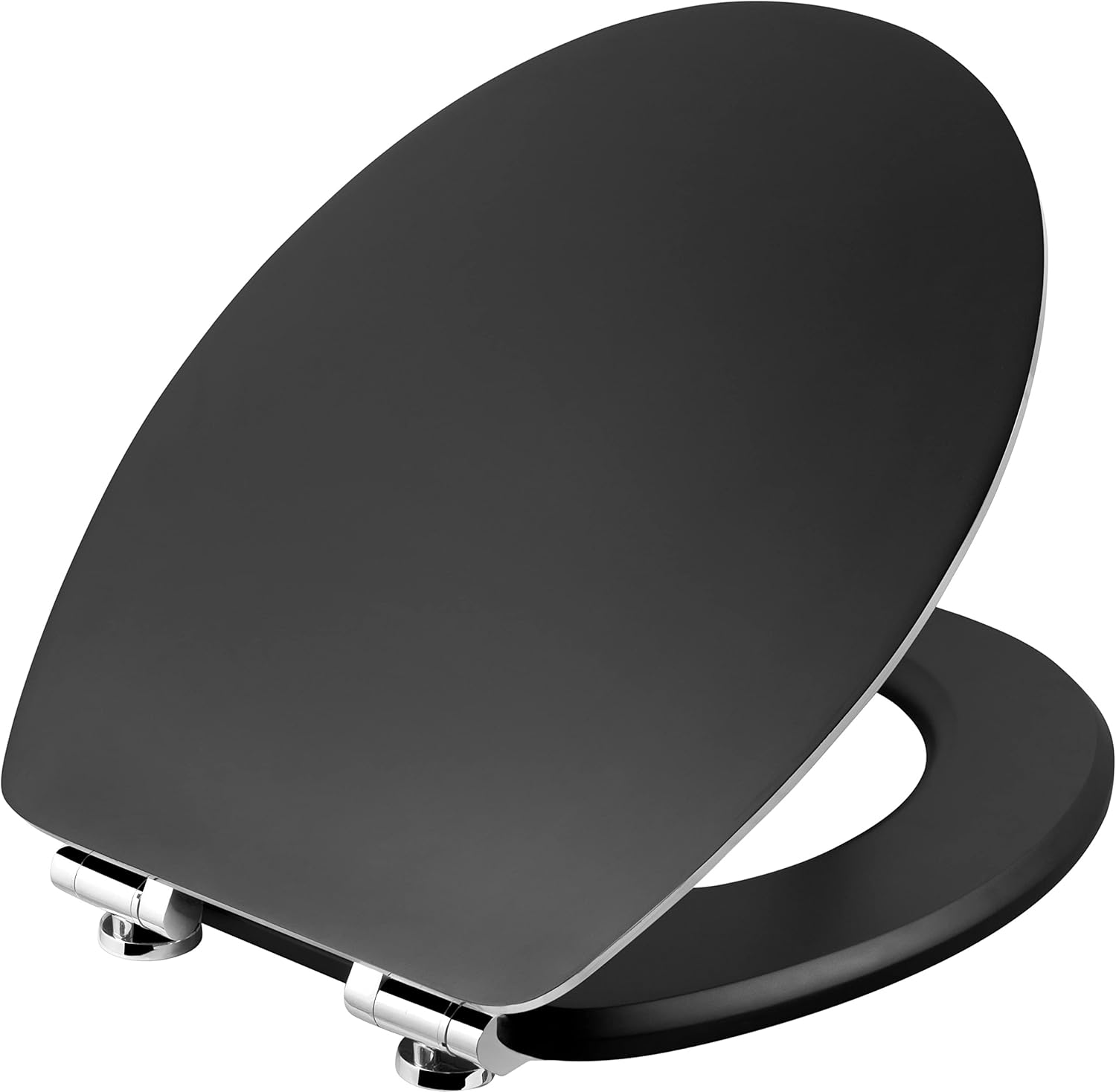

Image 1.1: Top view of the Cornat WC-Sitz Prime 'Black Steel' toilet seat in its closed position.

2. Safety Information

• Do not stand on the toilet seat or lid. This can cause damage to the product and lead to personal injury.
• Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface finish and material.
• Ensure all mounting hardware is securely tightened to prevent the seat from shifting during use. Periodically check the tightness of the fasteners.
• Keep children away from the hinges during operation to prevent pinching, although the soft-close mechanism minimizes this risk.
• The maximum load capacity for this toilet seat is 200 kg. Do not exceed this weight.

3. Package Contents

Please verify that all components are present before beginning installation:

• 1 x Cornat WC-Sitz Prime 'Black Steel' Toilet Seat (Lid and Seat)
• 1 x Set of Mounting Hardware (Hinges, screws, washers, nuts)

4. Setup and Installation

The Cornat WC-Sitz Prime 'Black Steel' toilet seat is designed for quick and tool-free installation on all standard wall-mounted and floor-standing toilets. Mounting is performed from below.

4.1. Before Installation: Check Dimensions

Before proceeding with installation, it is crucial to verify that the toilet seat dimensions are compatible with your toilet bowl. Refer to the diagram below for detailed measurements.

Image 4.1: Product dimensions. Outer dimensions: 43.8 cm (L) x 37.3 cm (W). Inner dimensions: 28.2 cm (L) x 22 cm (W). Hinge spacing: 15.5 cm.

4.2. Installation Steps

1. Prepare the Toilet: Ensure the toilet bowl is clean and dry where the seat will be mounted. Remove any old toilet seat and hardware.
2. Position the Hinges: Place the hinge posts into the mounting holes on the toilet bowl. The hinges are designed for quick assembly.
3. Secure from Below: From the underside of the toilet bowl, attach the washers and nuts to the hinge posts. Tighten them securely by hand. The quick-release mechanism allows for tool-free fastening.
4. Attach the Seat: Align the toilet seat with the secured hinges and press down until it clicks into place. The seat and lid should close flush.

Image 4.2: Underside view illustrating the mounting points and seat bumpers.

Image 4.3: Close-up of the durable zinc alloy hinges with silver trim.

5. Operating Instructions

5.1. Soft-Close Function

The Cornat WC-Sitz Prime 'Black Steel' toilet seat is equipped with a high-quality soft-close mechanism. This feature ensures that both the seat and the lid close gently and quietly with a light push, preventing loud slamming and reducing the risk of injury, especially for children.

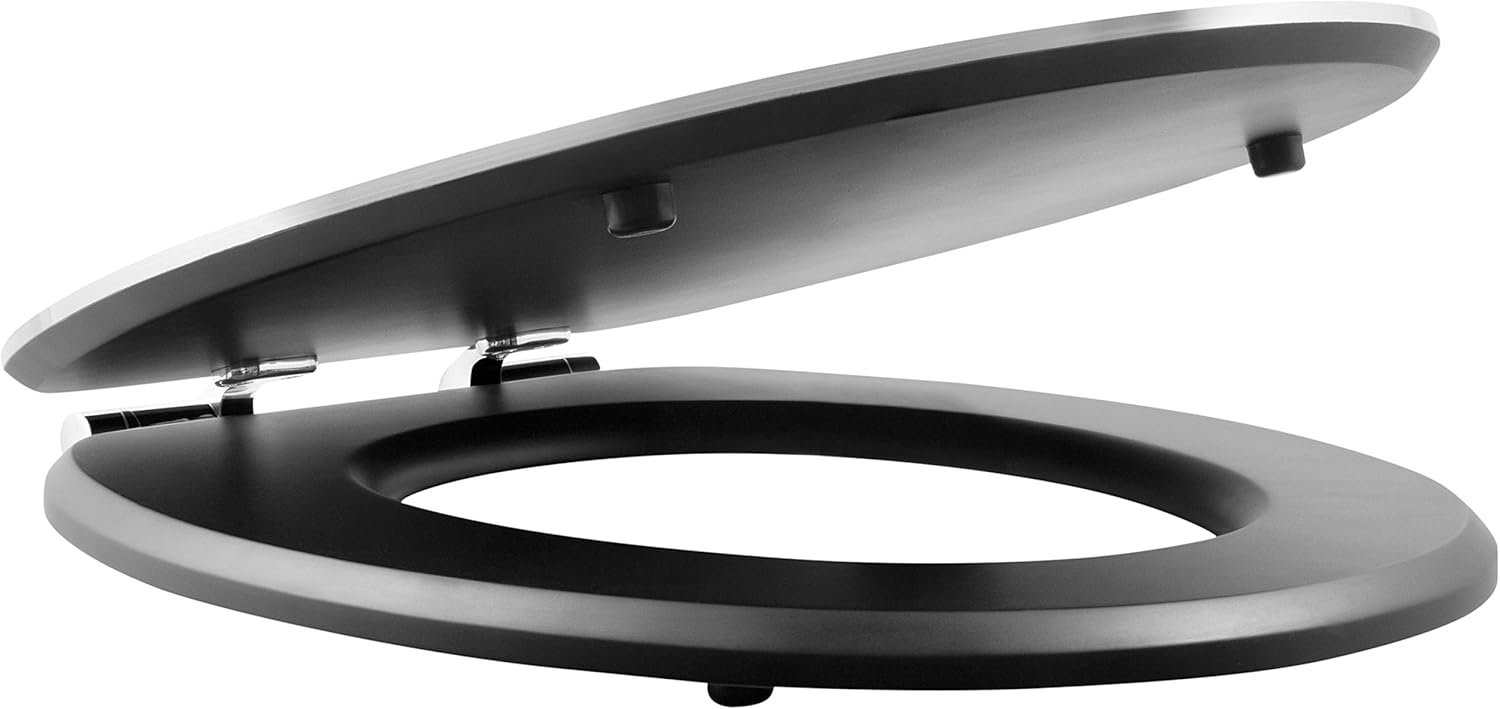

Image 5.1: Side view demonstrating the soft-close function with the lid partially open.

5.2. Quick-Release Mechanism

For thorough cleaning, the toilet seat can be easily detached from the hinges using its quick-release function. Simply press the release buttons (if present, typically near the hinges) or lift the seat straight up from the hinge posts after loosening the hinge covers, depending on the specific hinge design. Reattach by aligning and pressing down until it locks.

6. Maintenance and Cleaning

Regular cleaning and proper maintenance will ensure the longevity and hygienic condition of your toilet seat. The smooth surface of the MDF wood core with its seamless coating is designed for easy cleaning.

• Daily Cleaning: Wipe the seat and lid with a soft, damp cloth and a mild, non-abrasive soap solution.
• Deep Cleaning: For more thorough cleaning, utilize the quick-release mechanism to remove the seat. Clean all surfaces, including the hinges and the toilet bowl area underneath the seat.
• Avoid Harsh Chemicals: Do not use strong detergents, abrasive cleaners, scouring pads, or products containing chlorine, acids, or alcohol. These can damage the surface finish and the soft-close mechanism.
• Drying: Always dry the seat and hinges thoroughly after cleaning to prevent water spots and maintain hygiene.

7. Troubleshooting

If you encounter any issues with your toilet seat, please refer to the following common problems and solutions:

• Seat is Loose or Shifts:
  • Check the mounting hardware from underneath the toilet bowl. Tighten the nuts securely.
  • Ensure the hinge posts are correctly seated in the toilet bowl holes.
• Soft-Close Function Not Working Properly:
  • Inspect the hinges for any obstructions or damage.
  • Ensure the seat is correctly attached to the hinge posts. Remove and reattach if necessary.
  • Avoid forcing the seat or lid closed, as this can damage the soft-close mechanism over time.
• Seat Does Not Fit My Toilet:
  • Refer to Section 4.1 and the product specifications (Section 8) to re-verify the dimensions of your toilet bowl against the seat's dimensions. Toilet seats are not universally compatible.
• Mounting Screws Seem Too Short:
  • While the provided hardware is standard, some toilet designs may have thicker mounting points. If the screws are genuinely too short, contact customer support for assistance or consider purchasing longer compatible screws.

8. Specifications

9. Warranty and Support

This product is manufactured by Conmetall Meister GmbH. For warranty information or technical support, please refer to the retailer where the product was purchased or visit the official Cornat website. Keep your proof of purchase for any warranty claims.
