Tadeto CGD02A Natural Gas Detector Instruction Manual

1. Product Overview

The Tadeto CGD02A is a high-sensitivity natural gas detector designed to identify a wide range of combustible gases. Featuring a 2.6-inch LCD digital display, it provides clear and accurate readings of gas concentration. Its flexible 12-inch gooseneck sensor probe allows for easy detection in hard-to-reach areas. The device includes audible and visual alarms to alert users to potential gas leaks, ensuring safety.

A general view of the Tadeto Natural Gas Detector, highlighting its compact design, flexible gooseneck probe, and digital LCD screen.

An exploded diagram illustrating the internal structure of the Tadeto Natural Gas Detector, including the circuit board, LCD display, and battery housing, emphasizing its robust construction.

The Tadeto detector's screen showing a list of combustible gases it can detect, including Methane, Ethanol, Propane, Benzene, Ethylene Oxide, Ethane, N-butane, and Coalgas, demonstrating its wide detection capability.

A detailed view of the catalytic combustion sensor, emphasizing its high sensitivity, stability, and quick response for accurate gas detection.

2. Setup

Follow these steps to set up your Tadeto CGD02A Natural Gas Detector:

1. Battery Installation: Open the battery compartment on the back of the device. Insert three AAA batteries, ensuring correct polarity. Close the compartment securely. A small screwdriver is included for convenience.
2. Remove Protective Film: Carefully remove any protective plastic film from the LCD screen and the sensor head. The sensor head has a saran wrap covering that must be removed for proper gas detection.
3. Power On: Press and hold the power button (⏻) to turn on the device.
4. Initial Calibration: The detector will initiate a 30-second countdown for preheating and self-calibration. During this time, ensure the device is in a fresh air environment, free from any gas or strong odors, to establish an accurate zero reading.

The complete package contents, including the Tadeto gas detector, a protective carrying case, user manual, three AAA batteries, and a small screwdriver for battery installation.

3. Operating Instructions

Once calibrated, the detector is ready for use. The 2.6-inch LCD screen will display real-time gas concentration values and other relevant information.

Button Functions:

• Power Button (⏻): Press and hold to turn the device on or off.
• ZERO Button: Press to re-calibrate the device to zero in a fresh air environment. This ensures accurate readings.
• PPM/%LEL Button: Toggles between Parts Per Million (PPM) and Lower Explosive Limit (%LEL) measurement modes.
• APO Button: Activates or deactivates the Automatic Power Off function. When active, the device will shut down after 10 minutes of inactivity to conserve battery life.
• °C/°F Button: Switches the temperature display between Celsius and Fahrenheit.

Gas Detection:

1. Extend the 12-inch flexible gooseneck sensor probe towards the suspected area of a gas leak.
2. Observe the gas concentration readings on the LCD screen. The display will show the current gas level in either PPM or %LEL, depending on the selected mode.
3. Alarm Indication: When gas concentration exceeds a preset threshold (e.g., 10000 PPM or 20% LEL), the device will trigger an audible alarm (80 dB buzzer) and a visual alarm (red indicator on the screen) to alert you to a dangerous situation.

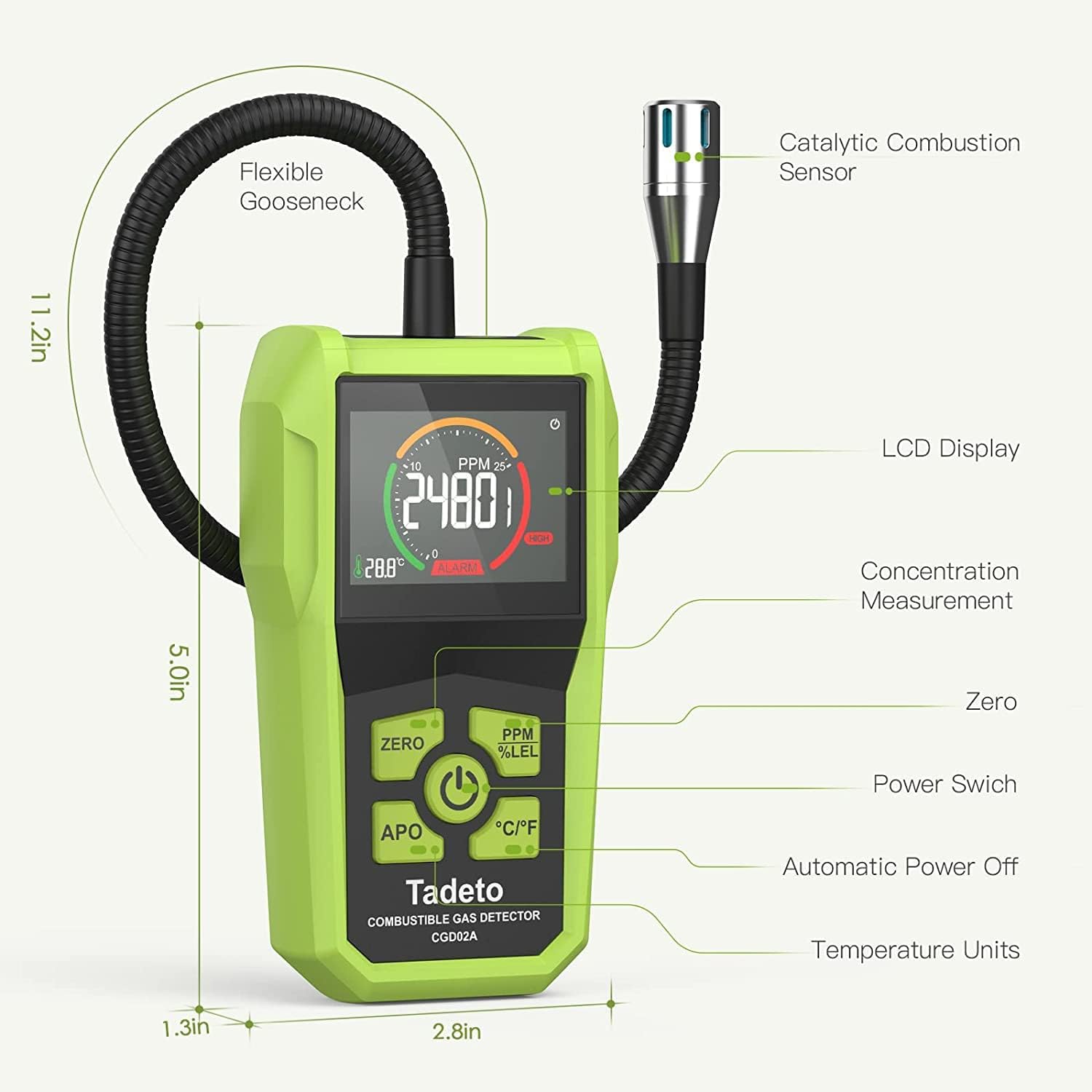

An annotated image detailing the dimensions of the Tadeto detector and the functions of its five control buttons: Zero, PPM/%LEL mode switch, Power, Automatic Power Off (APO), and Temperature Units (°C/°F).

The detector in use, with its flexible gooseneck probe extended to check for potential gas leaks around a residential gas meter and associated piping.

The flexible metal gooseneck probe of the detector being maneuvered to pinpoint a gas leak from a pipe, demonstrating its adaptability for hard-to-reach areas.

4. Maintenance

Proper maintenance ensures the longevity and accuracy of your Tadeto CGD02A detector.

• Sensor Care: Keep the catalytic combustion sensor clean and free from dust, debris, or liquids. Avoid touching the sensor directly.
• Battery Replacement: Replace the three AAA batteries when the low battery indicator appears on the LCD screen. Always use fresh, high-quality batteries.
• Cleaning: Wipe the device's exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the detector in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, remove the batteries.

5. Troubleshooting

If you encounter issues with your detector, refer to the following common troubleshooting tips:

• No Reading or Inaccurate Reading:
  • Ensure the protective saran wrap from the sensor head has been removed.
  • Verify that the device was calibrated in a fresh air environment. If not, move to a clean area and press the ZERO button.
  • Check battery levels and replace if necessary.
• False Alarms:
  • The detector is highly sensitive and can react to other volatile organic compounds (VOCs) or strong odors (e.g., alcohol, paint fumes, cleaning products). Ensure the area is free from such substances.
  • Recalibrate the device in a known fresh air environment.
• Device Not Turning On:
  • Check battery installation and ensure batteries are fresh.
  • Ensure the power button is pressed and held for a few seconds.

6. Specifications

A comparison chart illustrating the superior features of the Tadeto detector, such as its digital display, higher accuracy, and faster response time compared to traditional models.

7. Safety Information

Always prioritize safety when using gas detection equipment.

• This device is intended for detecting combustible gases and should not be used as a substitute for proper safety procedures or other gas detection equipment.
• In case of a detected gas leak, immediately ventilate the area, turn off gas sources if safe to do so, and evacuate. Contact emergency services or a qualified professional.
• Do not expose the device to extreme temperatures, humidity, or corrosive environments.
• Keep out of reach of children.
