Airbot Iclean Pro Wet Dry Cordless Vacuum Cleaner User Manual

1. Introduction

Thank you for choosing the Airbot Iclean Pro Wet Dry Cordless Vacuum Cleaner. This device is designed to simplify your cleaning routine by combining vacuuming and mopping functionalities into one efficient unit. It is suitable for various hard floor surfaces and is equipped with a self-cleaning feature and an OLED display for easy monitoring.

Please read this manual thoroughly before operating the appliance to ensure safe and effective use. Keep this manual for future reference.

2. Safety Information

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance.

• Read all instructions before using the appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filter in place.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance.

3. Product Overview and Components

The Airbot Iclean Pro is designed for efficient wet and dry cleaning. Familiarize yourself with the main components of your device.

Image: The Airbot Iclean Pro wet dry vacuum cleaner in its assembled state, showcasing its sleek design and main body.

Image: A detailed view of the Airbot Iclean Pro, highlighting the separate clean water tank (top) and dirty water collection tank (bottom) for effective cleaning and waste separation.

Key Components:

• Main Body: Contains the motor, battery, and control panel.
• Handle: Ergonomic handle for comfortable operation.
• Clean Water Tank: Holds fresh water or cleaning solution for mopping.
• Dirty Water Tank: Collects dirty water and debris during cleaning.
• Brush Roll: Actively scrubs and cleans surfaces.
• OLED Display Screen: Shows battery level, power mode, and other status indicators.
• Charging Dock Station: For convenient storage, charging, and self-cleaning.

4. Setup

4.1 Assembly

1. Carefully unpack all components from the packaging.
2. Insert the handle into the main body until it clicks securely into place.
3. Ensure the clean water tank and dirty water tank are correctly seated in their respective positions.

4.2 Charging the Battery

Before first use, fully charge the appliance. The battery has a capacity of 2600mAh and requires approximately 2.5 hours for a full charge.

1. Place the vacuum cleaner onto the charging dock station.
2. Connect the power adapter to the charging dock and plug it into a wall outlet.
3. The OLED display will indicate the charging status. A full charge is indicated when the battery icon shows full.

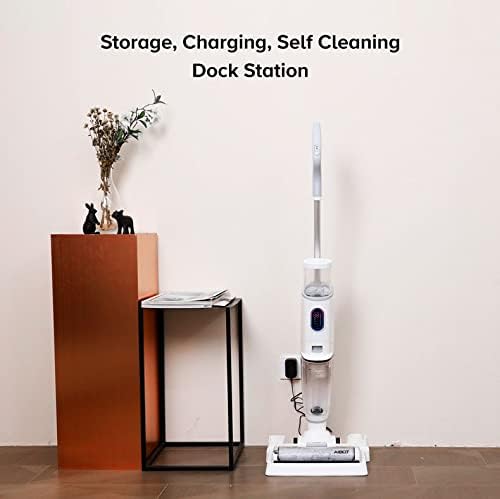

Image: The Airbot Iclean Pro positioned on its dedicated dock station, which serves for both storage and charging, and initiates the self-cleaning cycle.

4.3 Filling the Clean Water Tank

1. Remove the clean water tank from the main body.
2. Open the tank cap and fill with clean tap water. You may add a small amount of non-foaming cleaning solution suitable for wet vacuums, if desired. Do not exceed the MAX fill line.
3. Close the cap securely and reinsert the tank into the vacuum cleaner until it clicks into place.

5. Operating Instructions

The Airbot Iclean Pro offers both wet and dry cleaning capabilities with an intuitive OLED display.

Image: The Airbot Iclean Pro featuring its smart LED screen, which provides real-time information on battery status, cleaning mode, and other operational details.

5.1 Powering On/Off

• To turn on, press the Power button located on the handle. The OLED display will illuminate.
• To turn off, press the Power button again.

5.2 Cleaning Modes

The Airbot Iclean Pro is designed for multi-surface cleaning, effectively handling both wet and dry messes.

Image: The Airbot Iclean Pro actively cleaning a wet spill, demonstrating its capability to vacuum and mop simultaneously on hard floors.

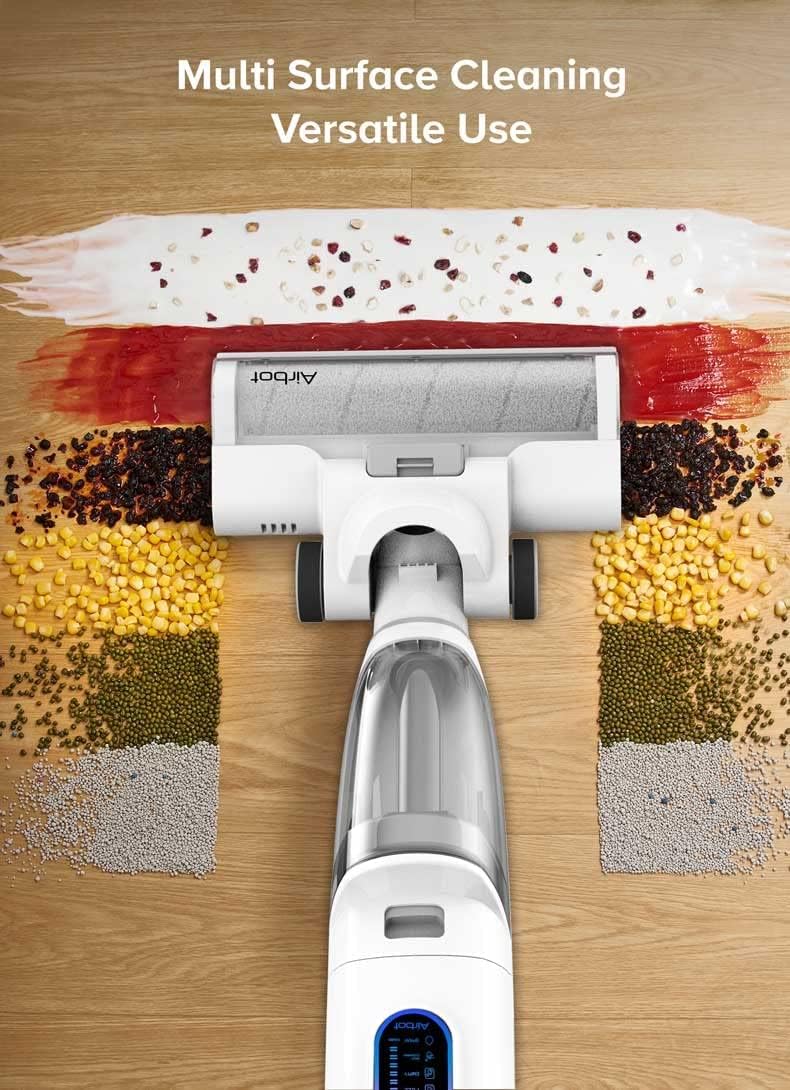

Image: The Airbot Iclean Pro demonstrating its multi-surface cleaning versatility, shown effectively cleaning various types of debris across different floor textures.

Image: The Airbot Iclean Pro efficiently picking up light debris such as feathers and dust from a hard floor, showcasing its dry vacuuming capability.

• Wet Cleaning: For spills, sticky messes, and general mopping. The device will dispense clean water and simultaneously vacuum up dirty water.
• Dry Cleaning: For dry debris, dust, and light particles. The device will vacuum without dispensing water.
• Adjust power levels using the controls on the handle, as indicated on the OLED display.

The active water recycling technology ensures that each inch of floor is washed with clean water, while dirty water is collected in a separate tank.

Image: A diagram illustrating the active water recycling technology of the Airbot Iclean Pro, showing clean water being supplied to the brush and dirty water being collected into a separate tank.

5.3 Operating Time

A fully charged battery provides approximately 25 minutes of operating time, depending on the selected power mode and cleaning intensity.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your Airbot Iclean Pro.

Image: The Airbot Iclean Pro engaged in its self-cleaning cycle, demonstrating its ability to clean its brush roll automatically after use.

6.1 Self-Cleaning Function

1. After each use, place the vacuum cleaner back on its charging dock station.
2. Ensure there is sufficient clean water in the clean water tank.
3. Press the dedicated self-cleaning button (refer to your device's specific button layout if different from general power button). The device will automatically clean the brush roll.
4. Once the self-cleaning cycle is complete, empty the dirty water tank.

6.2 Emptying the Dirty Water Tank

1. Press the release button to detach the dirty water tank from the main body.
2. Carefully open the tank and dispose of the collected dirty water and debris.
3. Rinse the dirty water tank thoroughly with clean water.
4. Allow the tank to air dry completely before reattaching it to the vacuum cleaner.

6.3 Cleaning the Brush Roll

Even with the self-cleaning function, occasional manual cleaning of the brush roll may be necessary.

1. Turn off the vacuum cleaner and remove it from the charging dock.
2. Locate the brush roll cover and open it.
3. Remove the brush roll. Use the provided cleaning tool (if included) to remove any tangled hair or debris.
4. Rinse the brush roll under running water. Ensure it is completely dry before reinserting.
5. Reinstall the brush roll and close the cover securely.

6.4 Filter Maintenance

The Airbot Iclean Pro uses a cartridge filter. Regular cleaning of the filter is crucial for maintaining suction power.

1. Locate and remove the filter from the dirty water tank assembly.
2. Tap the filter gently to remove loose dust and debris.
3. Rinse the filter under running water until clean. Do not use detergents.
4. Allow the filter to air dry completely for at least 24 hours before reinserting. Do not use the vacuum cleaner with a wet filter.

7. Troubleshooting

If you encounter any issues with your Airbot Iclean Pro, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

The Airbot Iclean Pro comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including coverage duration and limitations.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Airbot customer service through the retailer where the product was purchased or visit the official Airbot website for contact information.

Please have your model number (Iclean Pro) and purchase date available when contacting support.
