1. Product Overview
The TRQ Tailgate Handle Bezel is a direct replacement component designed for specific Chevrolet Silverado and GMC Sierra truck models. This bezel includes provisions for a camera and a key lock, ensuring functionality similar to the original equipment. It is constructed from durable plastic with a textured black finish.
Key features include:
- Direct replacement for original equipment.
- Integrated camera hole and lock provision.
- Durable plastic construction with textured black finish.
- Designed for ease of installation.
2. Vehicle Compatibility
This tailgate handle bezel is compatible with the following vehicle models:
- 2008-2013 Chevrolet Silverado 1500 (with Camera Hole and Lock Provision)
- 2008-2013 GMC Sierra 1500 (with Camera Hole and Lock Provision)
- 2008-2014 Chevrolet Silverado 2500 HD (with Camera Hole and Lock Provision)
- 2007 Chevrolet Silverado 1500 (with Camera Hole and Lock Provision)
- 2008-2014 GMC Sierra 2500 HD (with Camera Hole and Lock Provision)
- 2008-2014 Chevrolet Silverado 3500 HD (with Camera Hole and Lock Provision)
- 2007 GMC Sierra 1500 (with Camera Hole and Lock Provision)
- 2007 Chevrolet Silverado 2500 HD (with Camera Hole and Lock Provision)
- 2008-2014 GMC Sierra 3500 HD (with Camera Hole and Lock Provision)
- 2007 GMC Sierra 3500 HD (with Camera Hole and Lock Provision)
Reference Numbers: 82030, 22755304, 25958228.
3. What's Included
- 1 x TRQ Tailgate Handle Bezel (Model DHA64632)
4. Installation Instructions
This section provides a general guide for replacing the tailgate handle bezel. For a detailed visual walkthrough, please refer to the official installation video below.
Video: How to Replace Tailgate Handle Bezel 2007-2013 Chevy Silverado 1500. This video provides a step-by-step guide for removing the old bezel and installing the new TRQ unit, including transferring the camera and lock cylinder.
Tools Required:
- Trim removal tool
- T15 Torx socket or screwdriver
- Flat-blade screwdriver
Step-by-Step Guide:
- Remove the Old Bezel:
Using a trim removal tool, carefully pry the old tailgate handle bezel forward from the tailgate. There are clips holding it in place. Work your way around the edges to release all clips.

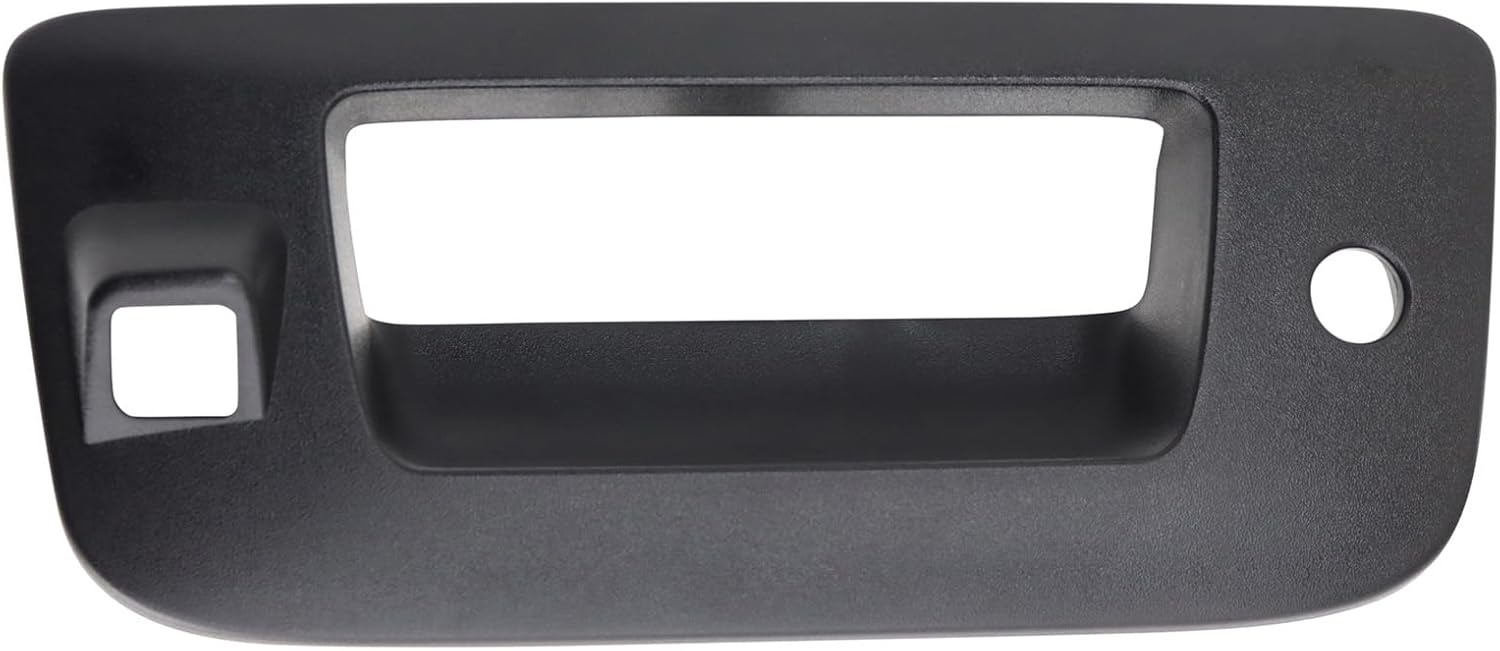

Image: Front view of the TRQ Tailgate Handle Bezel, showing the camera hole and lock provision.
- Separate Camera from Bezel:
Once the bezel is removed, locate the camera module attached to the back. Use a T15 Torx socket or screwdriver to remove the three screws securing the camera to the old bezel. Carefully separate the camera from the bezel.
Image: Back view of the TRQ Tailgate Handle Bezel, showing mounting points and internal structure.
- Transfer Lock Cylinder:
If your vehicle has a lock cylinder, you will need to transfer it from the old bezel to the new one. Use a flat-blade screwdriver to carefully pry up the retaining clip that holds the lock cylinder in place. Once the clip is released, push the lock cylinder out from the front of the old bezel. Insert the lock cylinder into the new bezel and secure it with the retaining clip.
Image: Angled view of the TRQ Tailgate Handle Bezel, highlighting the lock cylinder opening.
- Attach Camera to New Bezel:
Align the camera module with the mounting points on the new TRQ bezel. Secure it using the original T15 Torx screws. Do not overtighten, as the bezel is made of plastic.
Image: Close-up of the camera hole and lock provision on the TRQ Tailgate Handle Bezel.
- Install New Bezel:
Align the new bezel with the opening in the tailgate. Ensure all clips are properly aligned. Apply firm, even pressure to snap the bezel into place until it is securely seated.
Image: The TRQ Tailgate Handle Bezel with the handle mechanism, ready for installation.
5. Product Specifications
| Brand | TRQ |
| Model Number | DHA64632 |
| Material | Acrylonitrile Butadiene Styrene (ABS) Plastic |
| Color | Black |
| Finish | Textured |
| Key Lock Hole | Yes |
| Camera Hole | Yes |
| Item Weight | 6.5 ounces (0.19 Kilograms) |
| Product Dimensions | 15 x 19 x 4 inches |
6. Troubleshooting
- Bezel does not fit correctly: Double-check the compatibility list to ensure the part is correct for your vehicle's make, model, and year. Ensure all old clips or debris are removed from the tailgate opening.
- Lock cylinder or camera not functioning: Verify that the lock cylinder and camera were correctly transferred and secured to the new bezel. Ensure all electrical connections for the camera are properly reconnected.
- Clips not engaging: Ensure the bezel is aligned perfectly with the tailgate opening before applying pressure. Apply firm, even pressure around the perimeter until all clips snap into place. Avoid excessive force.
7. Warranty & Support
For information regarding product warranty, returns, or technical support, please refer to the official TRQ website or contact their customer service directly. Always retain your proof of purchase for warranty claims.
For additional resources and installation videos, visit the TRQ Store on Amazon.
