1. Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your new Owigift Washer Drain Pump. Please read these instructions carefully before proceeding with installation to ensure proper function and safety. This drain pump is designed as a replacement part for various Kenmore, Frigidaire, Crosley, and Gibson washer models.
2. Product Overview
The Owigift Washer Drain Pump is a critical component in your washing machine, responsible for removing water from the wash tub during and after cycles. This replacement unit is constructed with durable materials, including stainless steel components, to ensure reliable performance.
Figure 2.1: Main view of the Owigift Washer Drain Pump. This image shows the overall structure of the pump, including the motor housing and the water outlet.

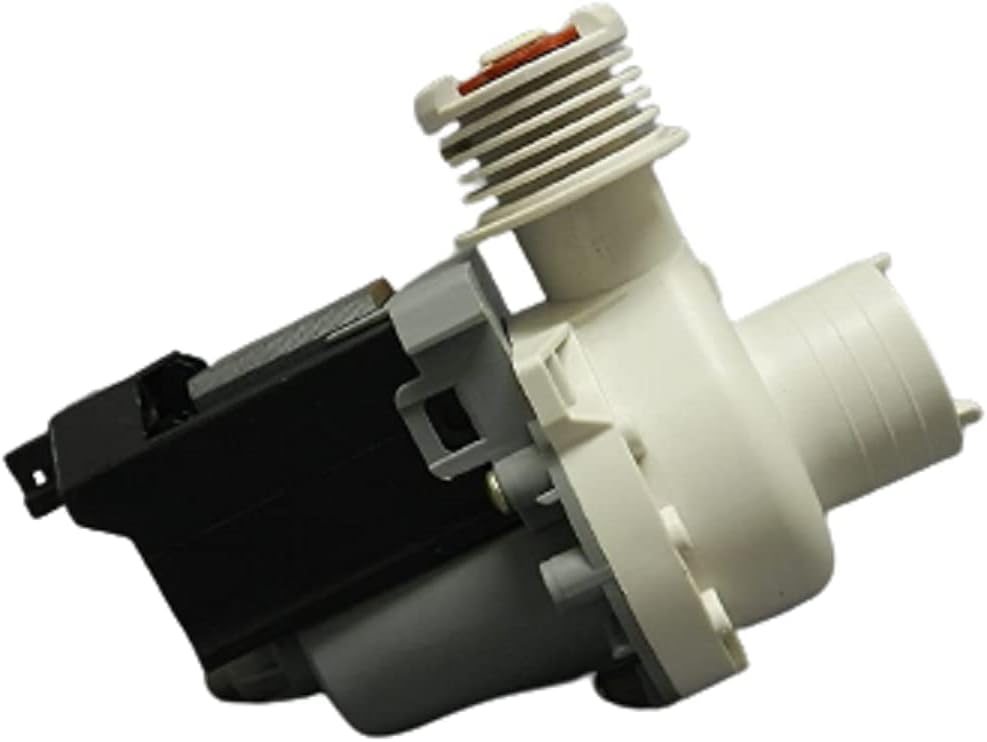

Figure 2.2: Side view of the Owigift Washer Drain Pump. This perspective highlights the motor and the pump's inlet/outlet connections.
Figure 2.3: Alternative side view of the Owigift Washer Drain Pump, showing the transparent housing section and red cap.
3. Compatibility
This Owigift Washer Drain Pump is an aftermarket replacement part compatible with a wide range of Kenmore, Frigidaire, Crosley, and Gibson washer models. Please verify your washer's model number against the list below to confirm compatibility. You can typically find your model number on a label inside the washer door, on the back, or near the control panel.
Compatible Kenmore Models:
- 417.41142000
- 417.42042100
- 417.42052100
- 417.42142100
- 417.43042200
- 417.43042300
- 417.43052200
- 417.43142200
- 417.43142300
- 417.44042400
- 417.44072300
- 417.44102300
- 417.44102301
- 417.44142400
- 417.47102700
- 417.47102701
- 970.3871220
- 970.3880220
- 970.C40032.00
- 970.C40042.00
- 970.C40052.00
- 970.C48112.10
- 970C4003200
- 970C4004200
Note: This list is not exhaustive. If your model number is not listed, or if you are unsure about compatibility, please contact customer support for assistance.
4. Installation
Safety First: Before beginning any repair, always disconnect your washing machine from the power supply and turn off the water supply. Failure to do so can result in electric shock, injury, or property damage.
- Prepare the Washer: Disconnect power and water. Drain any remaining water from the washer tub and hoses. You may need to tilt the washer or access it from the back or bottom, depending on your specific model.
- Locate the Old Pump: Identify the existing drain pump. It is typically located near the bottom of the washer, connected to the tub and drain hose.
- Remove Hoses and Wiring: Carefully detach the inlet and outlet hoses from the old pump. Be prepared for residual water. Disconnect any electrical wiring connected to the pump motor. Take note of the connections or take a picture for reference.
- Remove Old Pump: Unfasten the old pump from its mounting bracket. This may involve screws, clips, or a combination.
- Prepare New Pump (if necessary): The outlet on your new pump may need to be reversed. Rotate the pump head 180 degrees to match the orientation of your original pump and use the original mounting bracket if required. This step is crucial for proper fitment.
- Install New Pump: Secure the new Owigift drain pump to the washer's mounting bracket. Reconnect the electrical wiring, ensuring a secure connection.
- Attach Hoses: Reattach the inlet and outlet hoses to the new pump. Ensure all clamps are tightened to prevent leaks.
- Test: Once all connections are secure, restore water and power to the washer. Run a short drain or rinse cycle to check for leaks and proper pump operation.
If you are uncomfortable performing this installation, it is recommended to consult a qualified appliance technician.
5. Operating Principles
The drain pump functions automatically as part of your washing machine's cycle. When the washer needs to remove water from the tub, the control board sends a signal to the drain pump motor. The motor activates, causing an impeller inside the pump to spin, which then forces water out through the drain hose. Proper operation of the drain pump is essential for the washer to complete its cycles and prevent water accumulation.
6. Maintenance
While the drain pump itself requires minimal maintenance, periodic checks can help prevent issues and prolong its lifespan:
- Check for Clogs: Over time, lint, small objects (coins, buttons), or debris can accumulate in the pump's filter or impeller, hindering its operation. Refer to your washer's specific manual for instructions on how to access and clean the drain pump filter (if applicable).
- Inspect Hoses: Periodically check the drain hoses connected to the pump for kinks, cracks, or blockages. Ensure they are securely attached.
- Listen for Unusual Noises: A healthy drain pump operates with a consistent hum. If you hear grinding, rattling, or excessive noise, it could indicate an issue with the impeller or motor bearings.
7. Troubleshooting
If your washer is experiencing draining issues, the drain pump may be the cause. Here are some common problems and potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Washer not draining | Clogged pump filter or impeller | Disconnect power, access and clean the pump filter/impeller. |
| Washer not draining | Kinked or blocked drain hose | Inspect the drain hose for obstructions or kinks. Ensure proper routing. |
| Loud noise during drain cycle | Object stuck in pump impeller | Disconnect power, access and remove any foreign objects from the impeller. |
| Pump runs but no water drains | Air lock or faulty impeller | Check for air lock (sometimes tilting the washer helps). Inspect impeller for damage. |
| Pump does not run | No power, faulty wiring, or motor failure | Check power connections. If wiring is intact, the pump motor may need replacement. |
Always disconnect power before attempting any troubleshooting or repairs. If the issue persists after basic troubleshooting, professional assistance may be required.
8. Specifications
- Brand: Owigift
- Material: Stainless Steel (components)
- Style: Drain Pump
- Power Source: AC/DC
- Manufacturer: Owigift
- UPC: 718997268999
9. Support
For further assistance, questions regarding compatibility, or if you encounter issues not covered in this manual, please contact Owigift customer support. We aim to resolve your problems within 24 hours.
Please have your washer model number and the product's UPC (718997268999) ready when contacting support.
