HURI Ignition Coil Instruction Manual

1. Introduction and Product Overview

This manual provides essential information for the installation, maintenance, and troubleshooting of your HURI Ignition Coil. This ignition coil is designed as a direct replacement part, ensuring compatibility with Parkside PBK 4 A1 and PBK4A1 brushcutters. The ignition coil is a critical component in the engine's ignition system, responsible for transforming the battery's low voltage into the thousands of volts required to create an electric spark in the spark plug, igniting the fuel-air mixture.

Figure 1: Overview of the HURI Ignition Coil, displaying its primary components including the coil body, spark plug boot, and electrical wiring with connectors.

2. Safety Information

Always prioritize safety when working with power tools and electrical components. Failure to follow safety guidelines can result in serious injury or damage to equipment.

• Disconnect Power: Before beginning any installation or maintenance, ensure the brushcutter's engine is off and the spark plug wire is disconnected to prevent accidental starting.
• Wear Protective Gear: Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, to protect against potential hazards.
• Engine Cool Down: Allow the engine to cool completely before handling any components to avoid burns.
• Handle with Care: Ignition coils contain sensitive electronic components. Handle the coil carefully to avoid damage.
• Professional Assistance: If you are unsure about any step of the installation or repair process, consult a qualified service technician.

3. Package Contents

Verify that all items are present and undamaged upon opening the package:

• 1 x HURI Ignition Coil (compatible with Parkside PBK 4 A1 / PBK4A1 brushcutters)

4. Setup and Installation

Replacing the ignition coil requires careful attention to detail. Refer to your brushcutter's specific service manual for detailed disassembly instructions if needed. The following steps provide a general guide:

1. Preparation: Ensure the brushcutter is turned off, the engine is cool, and the spark plug wire is disconnected. Place the brushcutter on a stable, flat surface.
2. Access the Old Coil: Depending on your brushcutter model, you may need to remove engine covers or other components to gain access to the existing ignition coil. Use appropriate tools (e.g., screwdrivers, wrenches).
3. Disconnect Wiring: Carefully disconnect the electrical wires leading to the old ignition coil. Note their positions for reinstallation. These typically include a low-voltage wire and the high-voltage spark plug wire.
4. Remove Old Coil: Unscrew the mounting bolts or screws that secure the old ignition coil to the engine block. Carefully remove the old coil.
5. Install New Coil: Position the new HURI Ignition Coil in the same location as the old one. Ensure the mounting holes align.
6. Set Air Gap (Crucial Step): The air gap between the ignition coil and the flywheel magnets is critical for proper operation.
   • Loosely secure the new coil with its mounting bolts.
   • Rotate the flywheel until the magnets are directly under the coil's legs.
   • Insert a non-magnetic feeler gauge (typically 0.2mm - 0.4mm, consult your brushcutter's manual for exact specification) between the coil's legs and the flywheel magnets. A business card can often be used as a makeshift gauge if the exact specification is unknown, providing a common starting point.
   • Push the coil firmly against the feeler gauge and tighten the mounting bolts securely.
   • Remove the feeler gauge. The coil should now be correctly spaced.
7. Connect Wiring: Reconnect the electrical wires to the new ignition coil, ensuring they are securely attached and match the original configuration. Connect the spark plug boot firmly to the spark plug.
8. Reassemble: Reinstall any covers or components that were removed to access the coil.
9. Test: After reassembly, attempt to start the brushcutter according to its operating instructions. If the engine does not start or runs poorly, refer to the Troubleshooting section.

Figure 2: Side view of the ignition coil, highlighting the mounting points for installation.

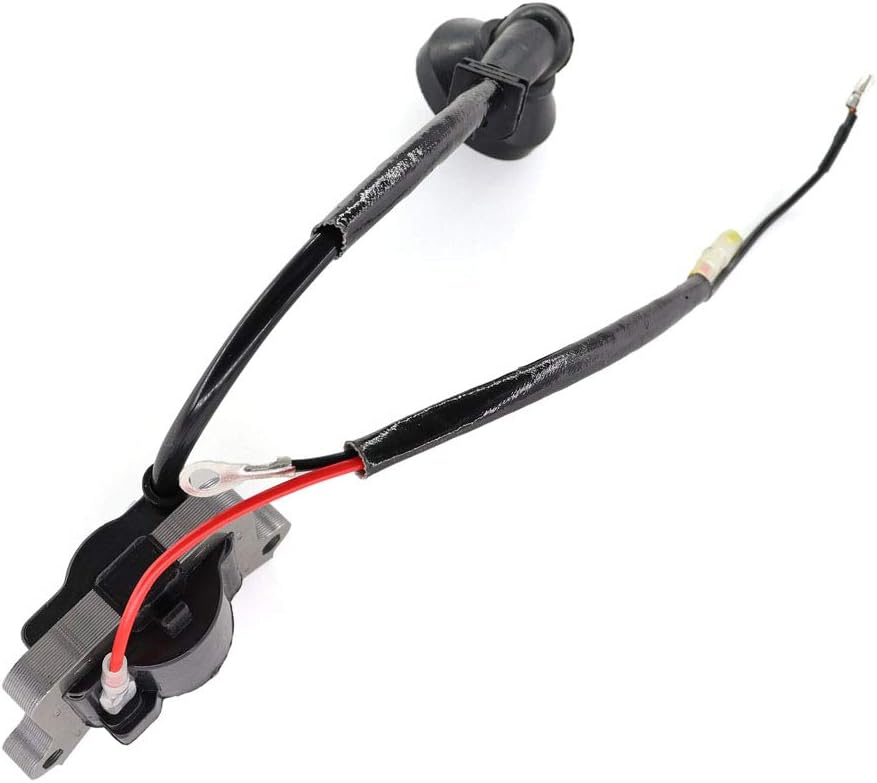

Figure 3: Detailed view of the electrical connections on the ignition coil, showing the low-voltage wire and spark plug boot connection.

5. Operating Instructions

Once the HURI Ignition Coil is correctly installed, the brushcutter's engine should operate as designed. Refer to your brushcutter's original instruction manual for specific starting procedures, operational guidelines, and safety precautions related to the brushcutter itself.

The ignition coil functions automatically as part of the engine's system, providing the necessary spark for combustion. No direct user interaction with the coil is required during operation.

6. Maintenance

The HURI Ignition Coil is designed for durability and typically requires minimal maintenance. However, regular inspection of related components can help ensure long-term performance:

• Keep Clean: Periodically inspect the coil and surrounding area for dirt, debris, or oil buildup. Clean gently with a dry cloth.
• Check Connections: Ensure all electrical connections to the coil and the spark plug boot remain secure and free from corrosion.
• Spark Plug Inspection: Regularly inspect and replace the spark plug according to your brushcutter's maintenance schedule. A worn or fouled spark plug can put undue stress on the ignition coil.
• Air Gap Verification: If you suspect ignition issues, re-verify the air gap between the coil and the flywheel as described in the installation section.

7. Troubleshooting

If your brushcutter experiences ignition problems after installing the new coil, consider the following common issues and solutions:

If problems persist after attempting these solutions, it is recommended to seek assistance from a qualified small engine technician.

8. Specifications

9. Warranty and Support

For information regarding warranty coverage, returns, or technical support for your HURI Ignition Coil, please refer to the purchase documentation or contact the retailer from whom the product was purchased. Specific warranty terms are typically provided by the manufacturer or seller at the time of purchase.

For general inquiries or further assistance, you may also visit the official HURI website or contact their customer service department if available.
