1. Safety Information
Read and understand all safety warnings and instructions before operating the SAKAWA 1G85 Tiller. Failure to follow these instructions may result in serious injury or property damage.
- Warning: Danger of debris projection during use. Always wear appropriate personal protective equipment, including eye protection, hearing protection, and sturdy footwear.
- Ensure the machine is stable and on level ground before attempting to start it manually.
- Keep hands, feet, and clothing away from moving parts, especially the tines, when the engine is running.
- Never operate the tiller in an enclosed space due to the risk of carbon monoxide poisoning.
- Before performing any maintenance or adjustments, always turn off the engine and disconnect the spark plug wire to prevent accidental starting.
- Store fuel in an approved container in a well-ventilated area, away from ignition sources.
2. Product Overview
The SAKAWA 1G85 Tiller is a robust machine designed for preparing gardens and cultivating land. It features a powerful 4-stroke gasoline engine and a versatile design for various soil conditions.
Key Features:
- Engine: 4-stroke, 208cc, 7 horsepower (HP) gasoline engine.
- Transmission: 2 forward speeds and 1 reverse speed for enhanced maneuverability.
- Working Width: Adjustable from 50 cm to 85 cm to suit different plot sizes.
- Working Depth: Cultivates soil to a depth of 17 cm to 35 cm.
- Clutch: Double-belt clutch system for efficient power transfer.
- Tines: Individually bolted steel blades mounted on a hexagonal axle for durability and effective soil turning.
- Air Filter: Oil bath filter for optimal engine protection and extended service life.
- Mobility: Equipped with a front wheel for improved handling and transport.

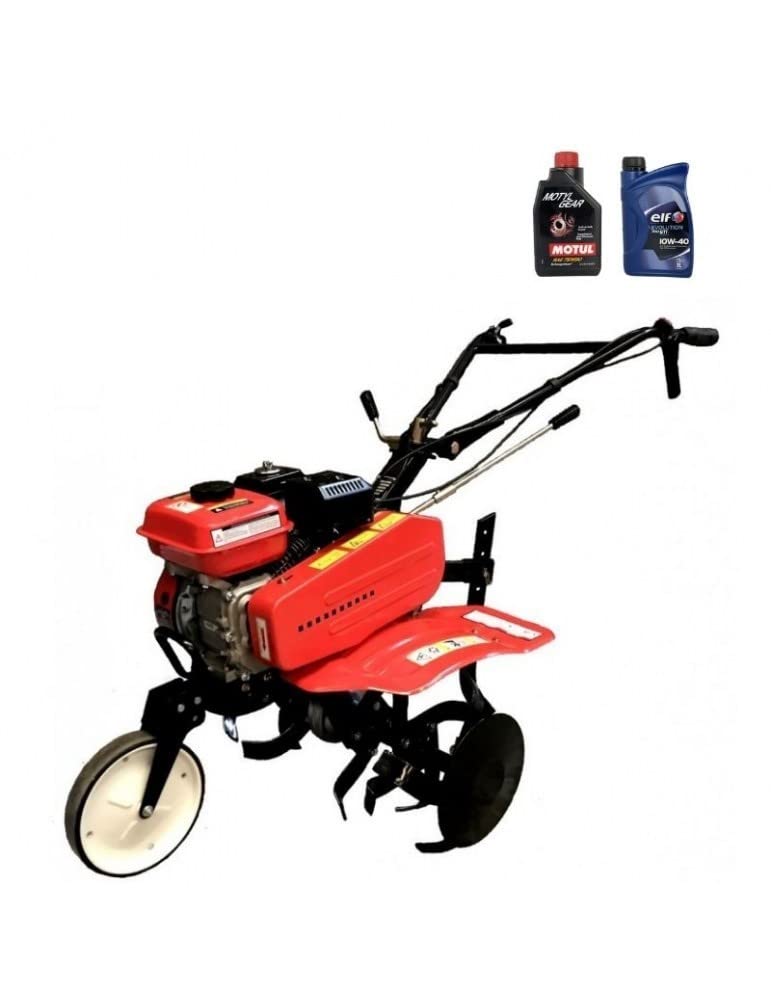

Figure 1: Overall view of the SAKAWA 1G85 Tiller.
3. Setup
Before initial use, the tiller requires some assembly and preparation.
3.1 Assembly
- Handlebar Assembly: Attach the handlebars to the main frame using the provided bolts and nuts. Ensure all connections are secure.
- Front Wheel Installation: Mount the front transport wheel assembly. This wheel aids in moving the tiller when not in operation.
- Tine Attachment: Ensure the tines are correctly installed on the hexagonal axle and securely bolted. Refer to the diagram for correct orientation.
Figure 2: Side view showing the front wheel and tines assembly.
3.2 Fluid Filling
The tiller is supplied without engine oil or fuel. These must be added before the first start.
- Engine Oil: Fill the engine crankcase with the recommended 4-stroke engine oil (typically SAE 10W-30 or 10W-40) up to the 'FULL' mark on the dipstick. The product includes oils for initial commissioning.
- Fuel: Fill the fuel tank with unleaded gasoline. Do not overfill. Ensure the fuel cap is securely tightened.
Figure 3: View of the engine and belt drive system. Ensure proper fluid levels before operation.
4. Operating Instructions
Follow these steps for safe and effective operation of your SAKAWA 1G85 Tiller.
4.1 Starting the Engine
- Ensure the fuel valve is open and the engine switch is in the 'ON' position.
- If the engine is cold, apply choke.
- Pull the recoil starter handle firmly and smoothly until the engine starts. Release the handle slowly.
- Once the engine starts, gradually open the choke.
4.2 Adjusting Working Parameters
- Working Width: The tines can be adjusted to vary the working width between 50 cm and 85 cm. Consult the manual for specific instructions on reconfiguring the tines.
- Working Depth: The working depth (17-35 cm) is typically adjusted by raising or lowering the depth stake or rear wheel.
Figure 4: Close-up of the tines and mechanism for depth adjustment.
4.3 Operating the Tiller
- Engage the desired gear (2 forward, 1 reverse) using the gear selector lever on the handlebars.
- Slowly engage the clutch to begin movement.
- Guide the tiller with a firm grip on the handlebars, allowing the tines to penetrate the soil.
- Maintain a steady pace. Do not force the machine.
- To stop, disengage the clutch and turn off the engine.
Figure 5: Handlebar controls for gear selection and throttle.
5. Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your SAKAWA 1G85 Tiller.
5.1 Engine Maintenance
- Oil Level Check: Check the engine oil level before each use and top up if necessary.
- Oil Change: Change the engine oil after the first 5 hours of operation, then every 25-50 hours or annually, whichever comes first.
- Air Filter: Clean the oil bath air filter regularly, especially when operating in dusty conditions. Replace the oil in the filter bowl as needed.
- Spark Plug: Inspect and clean the spark plug periodically. Replace if worn or fouled.
5.2 Tine Maintenance
- Inspection: Regularly inspect the tines for wear, damage, or bending.
- Cleaning: Remove any tangled weeds, roots, or debris from the tines after each use.
- Replacement: Replace worn or damaged tines promptly to maintain effective cultivation. SAKAWA offers all necessary spare parts for this machine.
5.3 General Maintenance
- Cleaning: Keep the tiller clean, especially the engine cooling fins, to prevent overheating.
- Fasteners: Check all bolts, nuts, and fasteners regularly and tighten as needed.
- Storage: For long-term storage, drain the fuel tank and carburetor, clean the machine thoroughly, and store in a dry, protected area.
6. Troubleshooting
This section provides solutions to common operating problems.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel, engine switch OFF, spark plug issue, choke setting incorrect | Check fuel level, turn engine switch ON, inspect spark plug, adjust choke |
| Loss of power during operation | Clogged air filter, old fuel, incorrect engine oil level | Clean air filter, use fresh fuel, check and adjust engine oil level |
| Excessive vibration | Loose tines, bent tines, unbalanced load | Tighten tine bolts, inspect tines for damage and replace if necessary, clear debris |
| Tiller not cultivating effectively | Worn tines, incorrect depth setting | Replace worn tines, adjust working depth |
7. Specifications
Detailed technical specifications for the SAKAWA 1G85 Tiller.
| Feature | Specification |
|---|---|
| Brand | SAKAWA |
| Model Number | 1G85 |
| Engine Type | 4-stroke OHV Gasoline Engine |
| Engine Displacement | 208 cc |
| Engine Power | 7 HP (Cv) |
| Starting Method | Manual Recoil Starter |
| Working Width | Adjustable 50 cm to 85 cm |
| Working Depth | 17 cm to 35 cm |
| Gearbox | 2 Forward, 1 Reverse |
| Clutch Type | Double Belt |
| Rotor Axle | Hexagonal |
| Tine Material | Steel (individually bolted) |
| Air Filter | Oil Bath |
| Frame Material | Reinforced Steel |
| Operating Mode | Manual |
8. Warranty and Support
For warranty information, please refer to the separate warranty document provided with your purchase or contact your retailer. For technical support, spare parts, or service inquiries, please contact SAKAWA customer service or an authorized service center.
SAKAWA is committed to providing high-quality products and support. Ensure you have your model number (1G85) and purchase details available when contacting support.
