1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Festo CPE14-M1CH-5L-1/8 Solenoid Pilot Valve. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage or injury.
2. Safety Information
Observe all local and national safety regulations and guidelines when installing, operating, or maintaining this device. Only qualified personnel should perform installation and maintenance tasks. Disconnect power and pressure sources before performing any work on the valve.
- Ensure the operating pressure and temperature are within the specified limits.
- Protect the valve from mechanical damage and contamination.
- Do not modify the valve.
3. Product Overview
The Festo CPE14-M1CH-5L-1/8 is a 5/2-way single solenoid pilot valve from the CPE14 series, designed for pneumatic applications. It features a G 1/8 connection port screw and operates with a 24V DC solenoid. The valve body is constructed from die-cast aluminum.

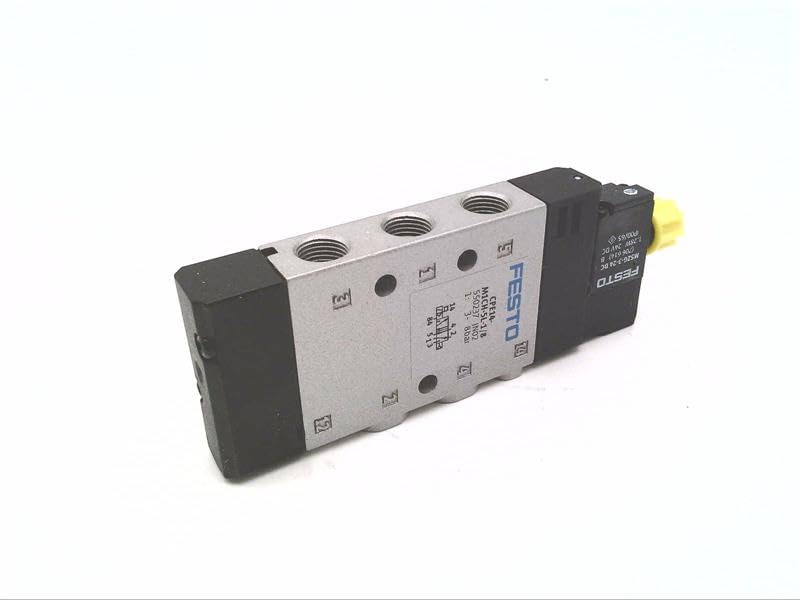

Image 1: Festo CPE14-M1CH-5L-1/8 Solenoid Pilot Valve. This image displays the compact design of the solenoid pilot valve, highlighting its main body and electrical connection point.
4. Setup and Installation
4.1 Mounting
The valve is designed for through-hole installation. Secure the valve firmly to a stable surface using appropriate fasteners. Ensure there is adequate space for connections and future maintenance.
4.2 Pneumatic Connections
- Connect the pneumatic supply line to the designated inlet port.
- Connect the working lines to the output ports (G 1/8 connection port screw).
- Ensure all connections are tight and leak-free.
4.3 Electrical Connections
Connect the 24V DC power supply to the solenoid. Observe correct polarity. Ensure the electrical connections are secure and protected from environmental factors.
5. Operation
The CPE14-M1CH-5L-1/8 is a 5/2-way valve, meaning it has five ports and two switching positions. When the solenoid is energized, the valve shifts to one position, directing airflow. When de-energized, it returns to its original position. The minimum working pressure is 3 bar, and the operating temperature range is -5°C to +50°C.
- Energizing the Solenoid: Applying 24V DC to the solenoid will actuate the valve, changing the flow path.
- De-energizing the Solenoid: Removing the 24V DC supply will cause the valve to return to its default position.
6. Maintenance
Regular maintenance ensures the longevity and reliable operation of the solenoid pilot valve.
- Inspection: Periodically inspect the valve for any signs of wear, damage, or leaks.
- Cleaning: Keep the valve and its surroundings clean and free from dust and debris.
- Connection Checks: Verify that all pneumatic and electrical connections remain secure.
No user-serviceable parts are inside the sealed solenoid unit. Do not attempt to disassemble the solenoid.
7. Troubleshooting
If the valve is not functioning as expected, consider the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Valve does not actuate | No electrical power to solenoid; incorrect voltage; solenoid faulty; insufficient air pressure. | Check 24V DC supply; verify voltage; replace solenoid if faulty; check air supply pressure. |
| Air leakage | Loose pneumatic connections; damaged seals. | Tighten connections; inspect and replace seals if necessary (contact Festo support). |
| Slow response | Low air pressure; contamination in valve. | Check air supply; clean air supply system; replace valve if internal contamination is severe. |
8. Specifications
| Feature | Specification |
|---|---|
| Manufacturer Series | CPE14 |
| Installation Method | Through Hole |
| Valve Type | 5/2 Way Valve Single Solenoid |
| Connection Port Screw | G 1/8 |
| Operating Type | Pilot |
| Solenoid Included | Yes |
| Body Material | Die-cast aluminum |
| Maximum Flow Rate | 800 L/min (176.6 gal/min) |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 1.28W |
| Minimum Working Pressure | 3 bar |
| Operating Temperature Min | -5°C |
| Operating Temperature Max | +50°C |
| Number of Positions | 2 |
| Item Weight | 1.61 pounds |
| Package Dimensions | 5.98 x 5.98 x 2.01 inches |
9. Warranty and Support
For warranty information or technical support, please contact Festo directly or refer to their official website. Keep your purchase receipt for warranty claims.
