1. Safety Information
Read this manual thoroughly before operating the Heybike RaceMax electric bike. Failure to follow instructions and safety guidelines can result in serious injury or property damage. Always wear a helmet and appropriate safety gear when riding. Ensure all components are correctly assembled and secured before each ride. Be aware of local traffic laws and regulations for electric bicycles.
- Always wear a certified helmet.
- Perform a pre-ride inspection: check tire pressure, brake function, and battery charge.
- Do not ride under the influence of alcohol or drugs.
- Observe all traffic laws and regulations.
- Be cautious in wet conditions, as braking distance may increase.
- Do not exceed the maximum weight recommendation of 264 pounds.
- Keep hands and feet away from moving parts.
2. Setup and Assembly
The Heybike RaceMax electric bike requires some assembly. A tool kit is included. Follow these steps carefully to ensure proper and safe assembly.
2.1 Unboxing and Initial Inspection
Carefully remove all components from the packaging. Inspect for any damage during transit. Ensure all parts listed in the packing list are present. The bike comes partially assembled.
2.2 Handlebar Installation
Attach the handlebars to the stem. Ensure they are centered and tightened securely. Adjust the angle for comfortable riding posture.
Video: HeyBike Race Max Unboxing And Assembly. This video demonstrates the unboxing and assembly process for the Heybike Race Max electric bike, including handlebar installation.
Video: Heybike Race Plus Electric Bike. This video provides an overview of the Heybike Race Plus, which shares similar assembly steps for handlebars and other components.
Image: The Heybike RaceMax handlebar area, showing the LCD display, gear shifter, and brake levers. Ensure these components are securely fastened and correctly positioned.
2.3 Pedal Installation
Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Apply a small amount of grease to the threads before installation. Tighten firmly with a wrench.
Video: Heybike Race Max 27.5" Electric Bike. This video demonstrates features of the Heybike Race Max, including aspects of its battery and charging.
2.4 Seat Post and Saddle Adjustment
Insert the seat post into the frame and adjust the saddle height to ensure your feet can comfortably touch the ground when stopped, or that your leg has a slight bend at the knee when the pedal is at its lowest point. Secure the quick-release lever firmly.
Image: An adjustable and soft seat for the Heybike RaceMax. Proper seat height is crucial for comfort and pedaling efficiency.
2.5 Tire Inflation
Inflate tires to the recommended pressure indicated on the tire sidewall. Over-inflation or under-inflation can affect ride quality and safety. The Heybike RaceMax features 27.5-inch tires.
Image: Close-up of the Heybike RaceMax front wheel, highlighting the 27.5-inch tire and front suspension. Ensure tires are properly inflated before riding.
2.6 Battery Installation and Charging
Ensure the 48V, 12.5Ah battery is securely installed in the frame. Charge the battery fully before the first use. The battery is removable and features a USB charging port and overcharge protection.
Image: The modular and safe 48V 12.5Ah lithium-ion battery for the Heybike RaceMax, showing its removable design and BMS for intelligent safety.
3. Operation
The Heybike RaceMax offers three distinct riding modes and a walk-assist mode to suit various riding conditions and preferences.
3.1 Powering On/Off and LCD Display
To power on the bike, press and hold the power button on the LCD display. The display will show speed, battery level, PAS level, and mileage. To power off, press and hold the power button again.
Image: The Heybike RaceMax LCD display, showing various metrics like speed, battery level, and pedal assist (PAS) level. This display provides essential ride information.
3.2 Riding Modes
- Bike Mode (Pedal Only): The electric motor provides no assistance. Ride the bike like a traditional bicycle.
- Pedal-Assist Mode (PAS): The motor provides assistance as you pedal. There are typically multiple levels of assistance (e.g., 1-3) which can be adjusted via the controls on the handlebar.
- Throttle Mode: Engage the throttle to propel the bike without pedaling. This mode provides full electric power up to the maximum speed.
- Walk-Assist Mode: This mode provides low-speed assistance to help you walk the bike, useful for pushing it up inclines or through crowded areas.
Image: Illustration of the three riding modes (Pedal Only, Pedal-Assist, Throttle) and the Walk-Assist mode available on the Heybike RaceMax electric bike.
3.3 Gear Shifting
The Heybike RaceMax is equipped with a 7-speed gear system. Use the trigger shifter on the handlebar to change gears, allowing you to adapt to different terrains and optimize pedaling efficiency.

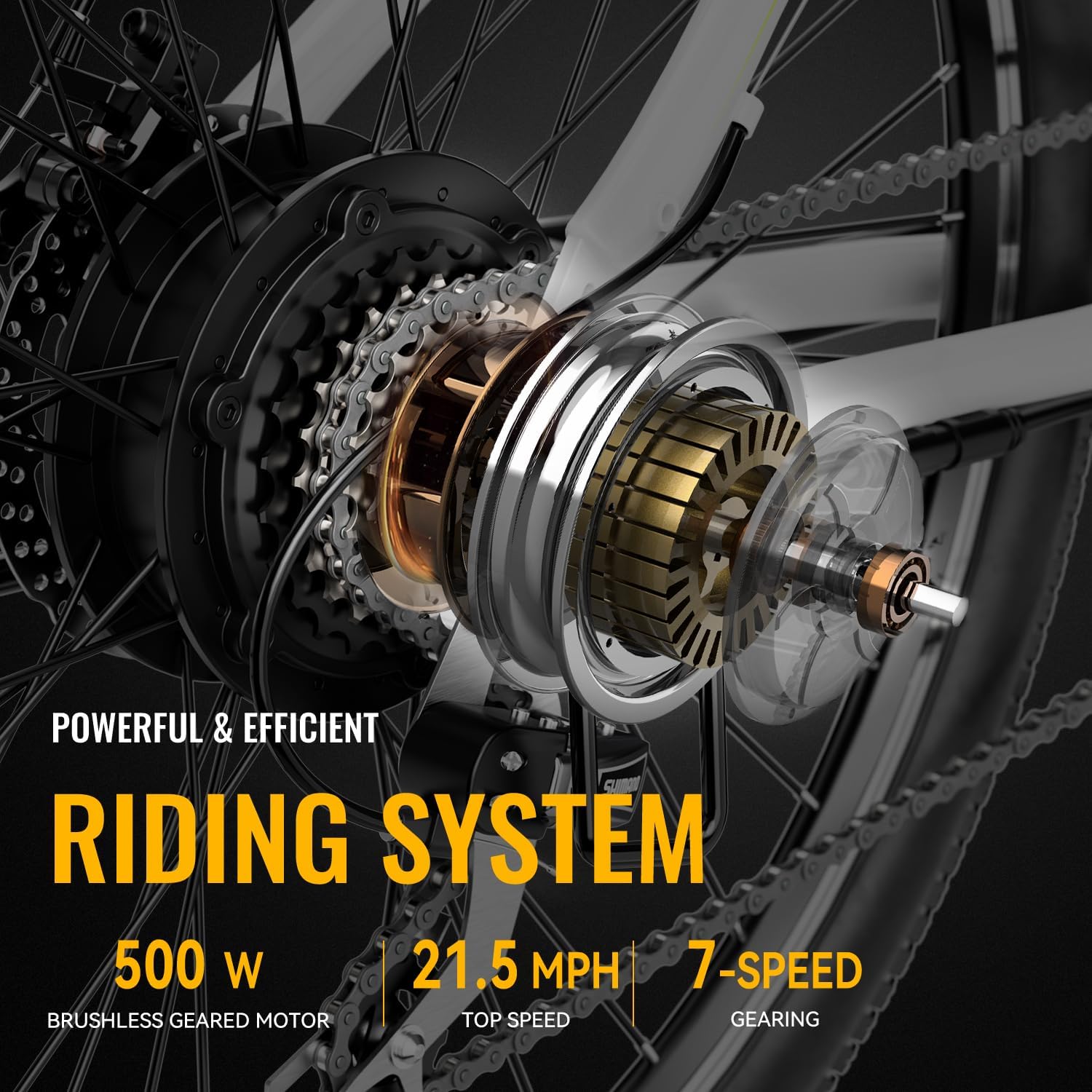

Image: Close-up of the Heybike RaceMax's rear wheel and 7-speed gearing system, powered by a 500W brushless geared motor.
3.4 Braking
The bike features dual disc brakes for reliable stopping power. Both brakes have motor inhibitors that cut power instantly when applied. Always use both front and rear brakes simultaneously for effective and safe stopping.
Image: Illustration of the dual disc brakes on the Heybike RaceMax, emphasizing efficient braking and balanced force distribution.
4. Maintenance
Regular maintenance ensures the longevity and safe operation of your Heybike RaceMax. Perform routine checks and address any issues promptly.
4.1 Battery Care
- Charge the battery regularly, even if not in use, to maintain its health.
- Avoid fully discharging the battery frequently.
- Store the battery in a cool, dry place.
- Do not expose the battery to extreme temperatures.
4.2 Tire and Wheel Maintenance
- Check tire pressure before each ride.
- Inspect tires for wear, cuts, or punctures.
- Ensure wheel spokes are properly tensioned.
- If a flat tire occurs, carefully disconnect the motor wiring if it's on the rear wheel before removing the wheel. Realign electrical pins correctly when reattaching.
4.3 Brake System
- Regularly check brake pads for wear and replace them when necessary.
- Ensure brake levers are responsive and provide adequate stopping power.
- Adjust brake cables if they feel loose or if braking performance decreases.
4.4 General Cleaning and Lubrication
- Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
- Lubricate the chain periodically to ensure smooth operation and prevent rust.
5. Troubleshooting
This section addresses common issues you might encounter with your Heybike RaceMax.
5.1 Bike Not Powering On
- Check if the battery is fully charged and properly seated in its compartment.
- Ensure the battery is turned on (if it has a separate power switch).
- Verify all electrical connections are secure, especially those leading to the LCD display and motor.
5.2 Motor Not Providing Assistance
- Confirm the battery has sufficient charge.
- Check the selected pedal-assist level on the LCD display; increase it if it's set to zero.
- Ensure brake levers are not partially engaged, as motor inhibitors will cut power.
- Inspect motor connections for any disconnections or damage.
5.3 Flat Tires
- Inspect the tire for punctures.
- Check the rim strip for proper alignment and condition, as misaligned or damaged rim strips can cause inner tube punctures.
- Replace the inner tube if punctured. If the rear wheel is affected, carefully disconnect the motor wiring before removal.
5.4 Squeaky Brakes
- Clean brake rotors and pads.
- Ensure brake calipers are properly aligned.
- If the issue persists, professional adjustment may be required.
6. Specifications
Key technical specifications for the Heybike RaceMax electric bike.
| Feature | Detail |
|---|---|
| Bike Type | Electric Bike |
| Brand | Heybike |
| Model Name | RaceMax |
| Motor Wattage | 500 watts |
| Battery | 48V, 12.5Ah Lithium-ion (600 watt-hours) |
| Number of Speeds | 7 |
| Wheel Size | 27.5 inches |
| Frame Material | Aluminum |
| Suspension Type | Front |
| Brake Style | Disc |
| Special Feature | LCD-Display |
| Item Weight | 60.6 pounds |
| Maximum Weight Recommendation | 264 pounds |
| Included Components | Tool Kit |
Image: A diagram illustrating the dimensions and weight of the Heybike RaceMax electric bike, including recommended rider height and load capacity.
7. Warranty & Support
Heybike provides a limited warranty for the RaceMax electric bike. For specific warranty details, please refer to the documentation included with your purchase or contact customer support.
7.1 Warranty Information
The Heybike RaceMax comes with a 12-month quality support warranty. This warranty covers manufacturing defects and ensures quality support for your riding experience.
7.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact Heybike customer support:
- Phone: +1 888-301-6908 or +1 888-859-1518 (Mon-Sat, 7:00-16:00 PST)
- Email: support@heybike.com
Image: Heybike customer service details, including phone numbers and email for support and warranty inquiries.
