DOBBOR 4-in-1 1000W Immersion Hand Blender

Important Safety Instructions

Please read all instructions carefully before using your DOBBOR 4-in-1 Immersion Hand Blender. Keep this manual for future reference.

• Electrical Safety: Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting. Do not immerse the motor unit in water or any other liquid. Always unplug the appliance from the power outlet before cleaning, assembling, or disassembling parts, and when not in use.
• Blade Safety: The blades are very sharp. Handle with extreme care, especially when removing, cleaning, or emptying the chopper bowl.
• Child Safety: This appliance should not be used by children. Keep the appliance and its cord out of reach of children. Close supervision is necessary when any appliance is used near children.
• Usage: Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• Overheating Protection: To prevent motor overheating, do not operate the blender continuously for more than 1 minute. Allow it to cool down for at least 10 minutes before resuming use.
• Attachments: Use only attachments recommended or sold by the manufacturer. The use of other attachments may result in fire, electric shock, or injury.
• Cleaning: Refer to the 'Cleaning and Maintenance' section for proper cleaning instructions.

Product Overview and Components

Your DOBBOR 4-in-1 Immersion Hand Blender is a versatile kitchen tool designed for blending, chopping, whisking, and pureeing. Familiarize yourself with its components:

• Motor Unit: The main body containing the motor and control buttons.
• Immersion Blender Shaft: Detachable stainless steel shaft with a 4-leaf blade for blending.
• Whisk Attachment: For whisking eggs, cream, and light batters.
• Chopper Bowl (600ml): With a sharp blade for chopping ingredients like meat, cheese, onions, carrots, and nuts.
• Measuring Beaker (600ml): For blending liquids and measuring ingredients.

Setup and Assembly

Before first use, clean all parts that will come into contact with food as described in the 'Cleaning and Maintenance' section.

1. Attaching the Immersion Blender Shaft: Align the motor unit with the immersion blender shaft and twist until it locks securely into place.
2. Attaching the Whisk: Insert the whisk into the whisk gear box, then align the gear box with the motor unit and twist to lock.
3. Using the Chopper: Place the blade onto the central pin inside the chopper bowl. Add your ingredients. Place the chopper lid onto the bowl, ensuring it fits securely. Then, attach the motor unit to the chopper lid by aligning and twisting until it locks.

Operating Instructions

Always ensure the appliance is properly assembled and plugged into a suitable power outlet before operation.

General Operation

• Power On/Off: Press and hold the power button on the motor unit to operate. Release to stop.
• Speed Control: The motor unit features two speed options. Press the top button for a lower speed, and the bottom button for a higher speed.

Using the Immersion Blender

Ideal for blending soups, sauces, smoothies, and baby food directly in pots, bowls, or the provided beaker.

• Insert the immersion blender shaft into the ingredients. Ensure the blade guard is fully submerged to prevent splashing.
• Press and hold the desired speed button. Move the blender up and down gently to ensure even blending.

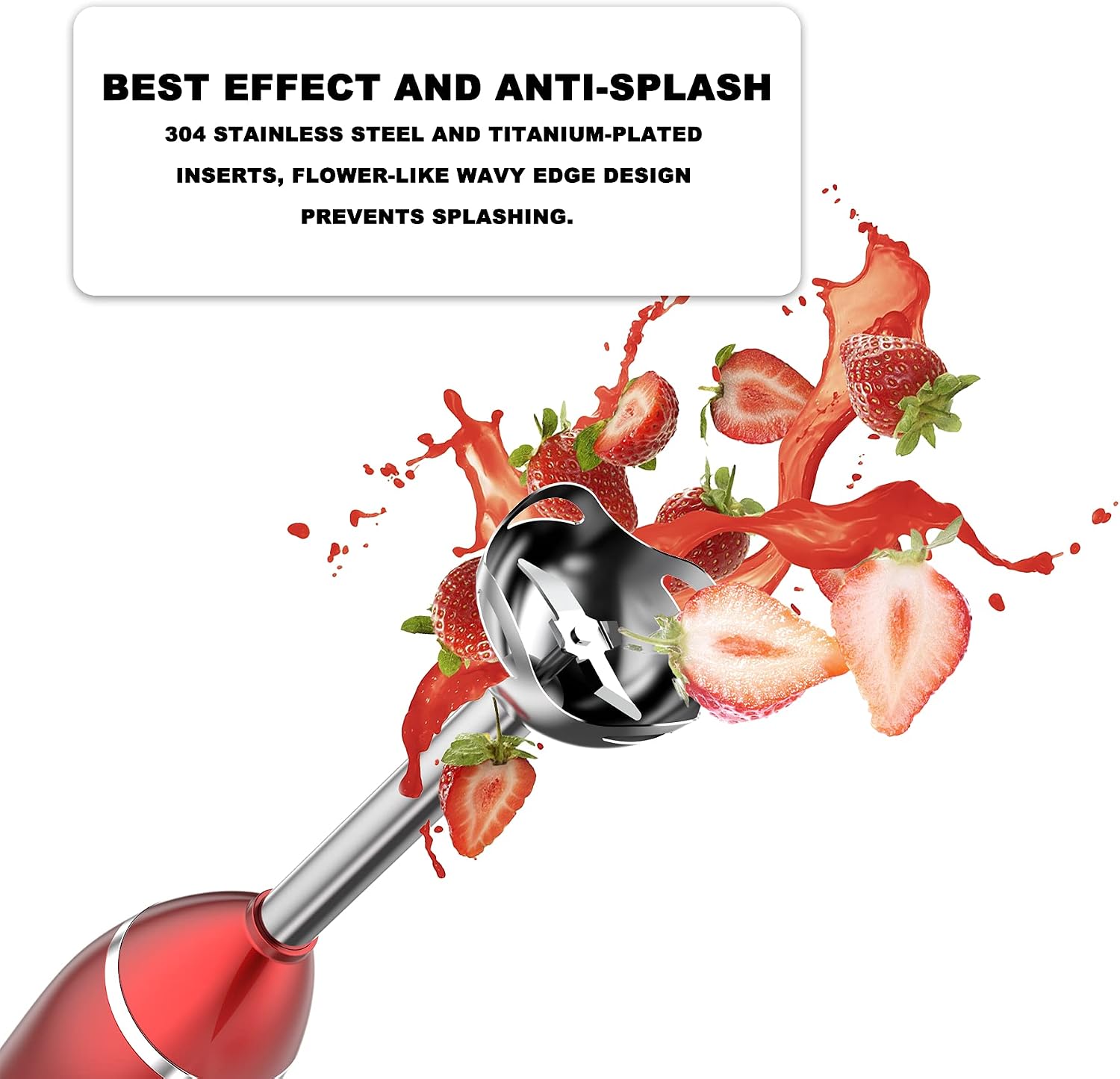

• The unique flower-like wavy edge design of the blade guard helps prevent splashing during operation.

Using the Chopper Attachment

Use the chopper for ingredients like meat, cheese, onions, carrots, and nuts.

• Ensure the chopper blade is correctly placed on the pin in the bowl.
• Add ingredients to the chopper bowl. Do not overfill.
• Attach the motor unit to the chopper lid.
• Press and hold the desired speed button to chop. Use short pulses for coarse chopping, or hold longer for finer results.

Using the Whisk Attachment

Perfect for whisking eggs, whipping cream, and preparing light batters.

• Attach the whisk to the motor unit.
• Place the whisk into the ingredients in a bowl or the measuring beaker.
• Press and hold the desired speed button to whisk until desired consistency is achieved.

Cleaning and Maintenance

Proper cleaning ensures the longevity and hygiene of your appliance.

• Always unplug the appliance before cleaning.
• Motor Unit: Wipe the motor unit with a damp cloth. Do not immerse it in water or any other liquid.
• Detachable Parts: The immersion blender shaft, whisk, chopper bowl, chopper lid, and measuring beaker are detachable and dishwasher safe for easy cleaning.
• Blades: Handle the chopper blade and immersion blender blade with extreme care due to their sharpness. Rinse under running water immediately after use to prevent food from drying on them.
• Storage: Store the appliance and its attachments in a dry place, away from direct sunlight and heat.

Troubleshooting

If you encounter issues with your DOBBOR Hand Blender, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact DOBBOR customer support.

Specifications

Warranty and Support

DOBBOR is committed to providing quality products and excellent customer service.

If you have any questions regarding the use, maintenance, or purchase of your DOBBOR 4-in-1 Immersion Hand Blender, please do not hesitate to contact us. Our customer support team will respond to your inquiries within 24 hours and assist you in resolving any issues.

For warranty information, please contact DOBBOR customer service directly with your purchase details.
