Introduction
This manual provides detailed instructions for the setup, operation, and maintenance of your Moultrie W800 All-Purpose Series A Trail Camera. Please read this guide thoroughly to ensure proper use and optimal performance of your device.
Product Overview
The Moultrie W800 is a high-performance trail camera designed for capturing images and videos of wildlife. It features an Illumi-Night Sensor for clear nighttime captures and a robust design for outdoor use.
Key Features:
- Captures 26 Megapixel images for high clarity.
- 70-foot flash and detection range.
- Fast 0.5 second trigger speed.
- Moultrie Smokescreen Camo Pattern for discreet placement.
What's in the Box:
- Moultrie W800 Trail Camera
- 8 AA Batteries
- Mounting Strap
Image: Moultrie W800 Trail Camera in its retail packaging, showing the camera, batteries, and key features on the box.

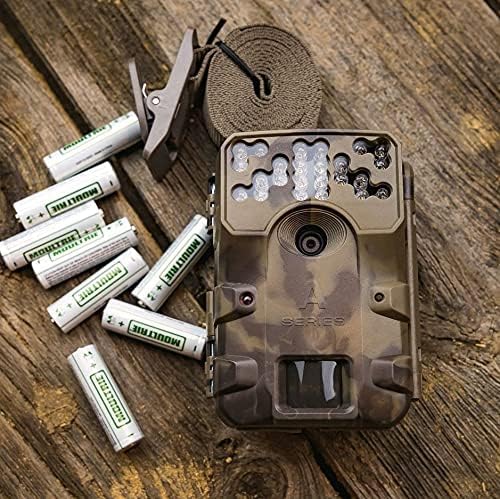

Image: The Moultrie W800 trail camera displayed with the included 8 AA batteries and a mounting strap, ready for setup.
Setup
1. Battery Installation
- Open the camera housing latch.
- Insert 8 AA batteries into the battery compartment, ensuring correct polarity (+/-).
- Close the camera housing latch securely.

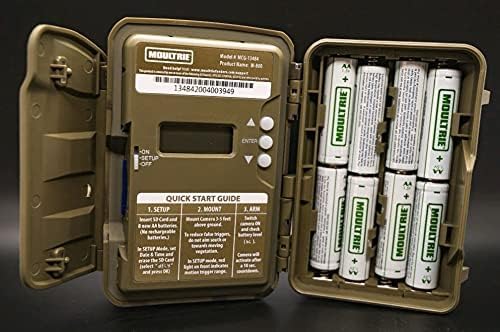

Image: An open Moultrie W800 camera, revealing the battery compartment on the right, the control panel with a small screen, and buttons on the left. This view is essential for battery and SD card installation.
2. SD Card Installation
- With the camera housing open, locate the SD card slot.
- Insert a standard SD card (up to 32GB) into the slot until it clicks into place. Ensure the card is inserted in the correct orientation.
- It is recommended to format the SD card using the camera's menu settings before first use.
3. Mounting the Camera
- Select a suitable location, typically a tree or post, where the camera can capture the desired area.
- Mount the camera approximately 3-5 feet above the ground.
- Use the provided mounting strap to secure the camera firmly. Thread the strap through the camera's mounting slots and tighten it around the object.
- Angle the camera to avoid direct sunlight and to minimize false triggers from swaying branches.
Image: A Moultrie W800 trail camera, in its camouflage casing, securely mounted to a tree trunk using a strap, demonstrating a typical field setup.
Operating Instructions
Basic Operation
- Power On/Off: Locate the power switch inside the camera housing. Slide it to the 'ON' position to power on the camera. Slide to 'OFF' to power off.
- Setup Mode: After powering on, the camera will typically enter 'SETUP' mode. In this mode, you can adjust settings such as date, time, photo/video mode, resolution, and trigger delay using the control buttons and display.
- Arming the Camera: Once settings are configured, slide the power switch to the 'ARM' position. The camera will initiate a countdown (e.g., 10 seconds) to allow you to leave the area without triggering a capture. After the countdown, the camera will be active and ready to detect motion.
- Checking Status: The small display inside the camera housing provides status information, including battery level, SD card status, and current mode.
Maintenance
- Cleaning: Periodically clean the camera lens and sensor window with a soft, lint-free cloth. Avoid abrasive materials or harsh chemicals.
- Battery Check: Regularly check battery levels, especially before extended deployment. Replace all batteries simultaneously to ensure consistent power.
- SD Card Management: Format the SD card regularly to prevent data corruption and ensure optimal performance. Back up important images/videos before formatting.
- Housing Integrity: Ensure the camera housing latch is always securely closed to protect against moisture and dust.
Troubleshooting
- Camera not taking pictures:
- Check if the camera is in 'ARM' mode.
- Ensure the SD card is properly inserted and has sufficient free space.
- Verify that batteries have adequate charge.
- Check camera settings for trigger delay or sensitivity.
- Format the SD card.
- Poor image quality:
- Clean the camera lens and sensor window.
- Ensure the camera is mounted at the recommended height and angle.
- Check for obstructions in front of the camera.
- Short battery life:
- Use fresh, high-quality alkaline or lithium AA batteries.
- Extreme temperatures can affect battery performance.
- Frequent video recording or high trigger frequency can consume more power.
Specifications
Detailed technical specifications for the Moultrie W800 Trail Camera:
| Feature | Specification |
|---|---|
| Effective Still Resolution | 26 MP |
| Trigger Speed | 0.5 seconds |
| Flash Range | 70 feet |
| Detection Range | 70 feet |
| Low Light Technology | Illumi-Night Sensor (Night Color) |
| Video Capture Resolution | 720p |
| Video Capture Format | MPEG-4 |
| Flash Memory Type | SD (up to 32GB) |
| Power Source | 8 AA Batteries |
| Connectivity Technology | Wireless (Wi-Fi) |
| Control Method | App |
| Special Features | Motion Sensor, Night Vision |
| International Protection Rating | IP54 |
| Item Weight | 1.12 pounds |
| Package Dimensions | 8.62 x 5.39 x 3.43 inches |
| UPC | 053695134840 |
Image: The back of the Moultrie W800 retail box, detailing performance specifications such as trigger speed, detection range, flash range, battery life, and SD card compatibility.
Image: Front view of the Moultrie W800 trail camera with its dimensions clearly labeled: 3.25 inches wide and 4.5 inches high.
Warranty and Support
Warranty Information:
The Moultrie W800 Trail Camera comes with a 2-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.
Customer Support:
For technical assistance, troubleshooting, or warranty inquiries, please visit the official Moultrie support website:
