1. Important Safety Information
Please read all instructions carefully before assembly and use. Failure to follow these instructions can result in serious injury or property damage.
- Drowning Risk: Always supervise children and individuals who cannot swim when near the pool.
- Entrapment Risk: Ensure all components are securely fastened to prevent accidental detachment.
- Suffocation Risk: Do not allow children to play on or under the pool cover.
- Proper Installation: Ensure the reel is installed according to the instructions to prevent instability.
- Usage Precautions: Operate the reel slowly and carefully to avoid sudden movements.
- Maintenance and Storage: Regularly inspect the reel for wear and tear. Store properly when not in use to prevent damage.
2. Product Overview

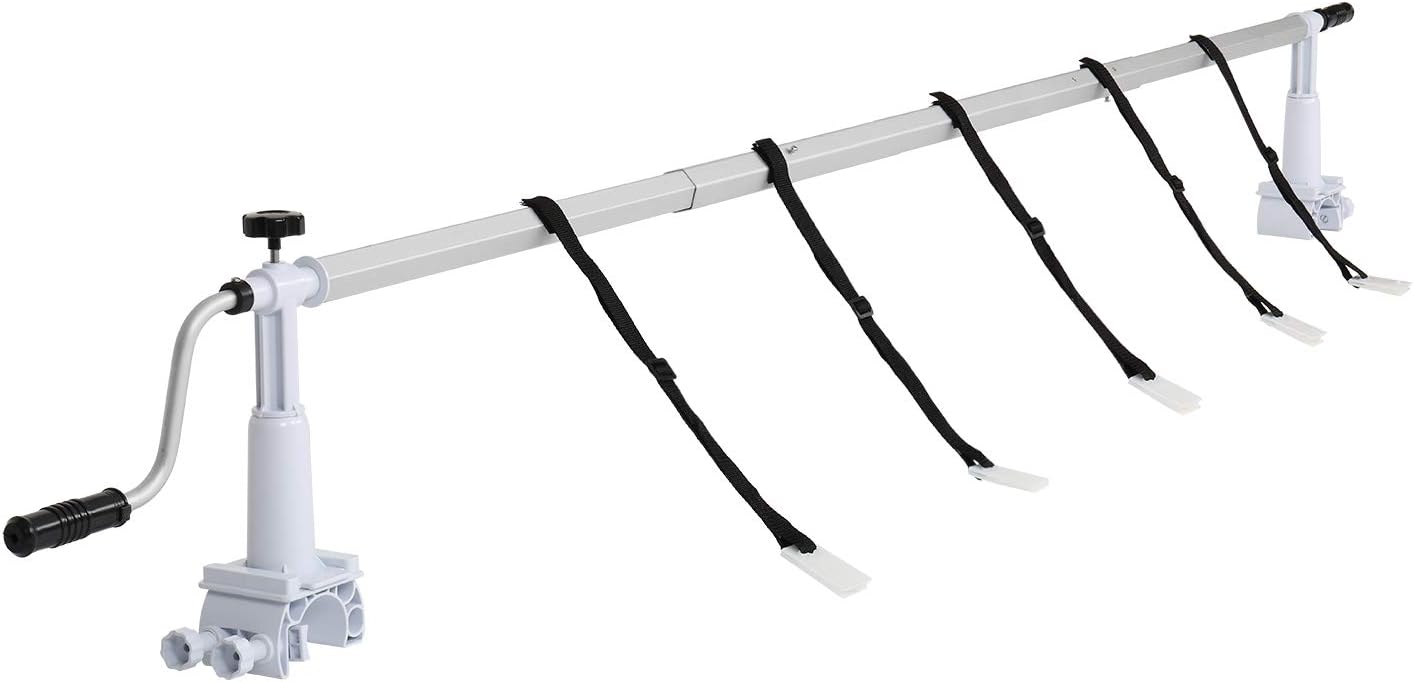

The VINGLI Pool Cover Reel Set is designed to simplify the process of covering and uncovering your above-ground swimming pool. This system includes a durable aluminum tube and versatile mounting brackets, suitable for various pool shapes without a deck.
2.1. Package Contents
Before beginning assembly, verify that all parts are present and undamaged. The package typically includes:
- 7 sections aluminum tube
- 1 manual (this document)
- 1 handle with plastic base
- 1 rotatable handle with Plastic Base
- 1 pack of straps
- 1 pack of screws
3. Setup and Installation
The VINGLI Pool Cover Reel is designed for easy installation. Follow these steps to assemble and set up your reel system.
3.1. Assembling the Tube Sections
- Connect the 7 aluminum tube sections. The 6-sided nozzle design ensures a strong connection and prevents sagging.
- Adjust the overall width of the assembled tube to match your pool's width, ranging from 5 feet to 16 feet.
3.2. Attaching the Bases and Handles
The system offers two types of bases for flexible mounting:
- Base Plate: For mounting on a pool ledge or flat surface.
- Clamp Base: For securely clamping onto the frame of an above-ground swimming pool.
- Select the appropriate base type for your pool setup.
- Attach the handle and rotatable handle to their respective plastic bases using the provided screws.
- Securely fasten the bases to your pool's frame or ledge. Ensure the bracket is firmly fixed for stability.

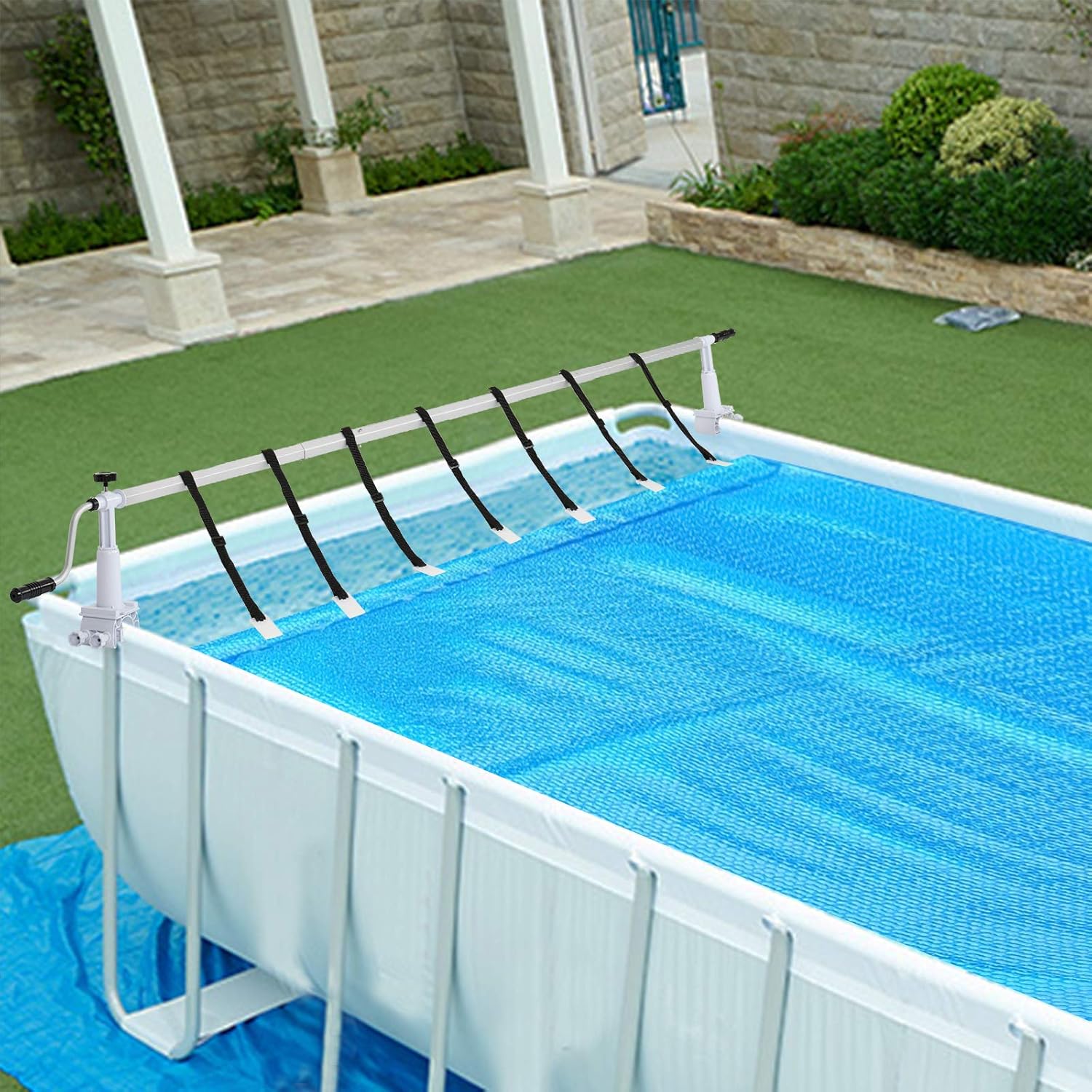

3.3. Attaching the Pool Cover
- Lay your solar pool cover flat on the water surface.
- Attach the provided straps and tabs to the pool cover and then to the reel bar. Ensure even spacing for balanced reeling.
4. Operating Instructions
Operating the VINGLI Pool Cover Reel is designed to be simple and efficient, even for a single person.
4.1. Reeling In the Cover
- Ensure the pool cover is properly attached to the straps on the reel bar.
- Turn the rotatable handle clockwise to slowly reel the pool cover onto the bar. Maintain a steady pace to prevent tangling.
- Continue reeling until the entire cover is neatly wrapped around the bar.
4.2. Unrolling the Cover
- Gently pull the leading edge of the pool cover away from the reel.
- Allow the rotatable handle to turn freely as the cover unrolls across the pool surface. Guide the cover to ensure it spreads evenly.
- Once the cover is fully extended, detach the straps from the cover if necessary, or leave them attached for easier re-reeling.
5. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your VINGLI Pool Cover Reel.
- Cleaning: Clean the aluminum tubes, bases, and handles with mild soap and water. Rinse thoroughly and dry completely to prevent mineral buildup and corrosion.
- Inspection: Periodically inspect all components, especially the connections between tube sections, the bases, and the straps, for any signs of wear, damage, or loosening.
- Lubrication: If the handle becomes stiff, apply a small amount of silicone-based lubricant to the rotating parts.
- Storage: While the reel is designed for year-round use, storing it indoors during extreme weather conditions or off-season can extend its lifespan. If storing, ensure it is clean and dry.
6. Troubleshooting
If you encounter issues with your VINGLI Pool Cover Reel, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reel sags in the middle | Excessive weight on the cover; improper tube connection; width set too wide. | Ensure pool cover is not excessively heavy (e.g., too much water). Verify all tube sections are securely connected. Adjust the reel width to be appropriate for your pool size, within the 5ft to 16ft range. |
| Difficulty reeling/unreeling | Straps unevenly attached; debris in mechanism; stiff handle. | Check that straps are evenly spaced and taut. Clean any debris from the reel mechanism. Apply silicone lubricant to the handle's rotating parts. |
| Reel feels unstable or wobbly | Bases not securely fastened; uneven surface; damaged components. | Re-tighten all screws and clamps on the bases. Ensure the mounting surface is stable and level. Inspect bases and frame for any cracks or damage and replace if necessary. |
| Straps detaching from cover or reel | Improper attachment; worn straps; excessive force. | Ensure straps are correctly threaded through tabs and securely fastened. Replace any worn or frayed straps. Avoid pulling or reeling with excessive force. |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | VINGLI |
| Model Name | Vingli Pool Cover Reel Set 16 Feet |
| Item Model Number | VINGLI |
| Color | White |
| Material | Aluminum |
| Product Dimensions (L x W) | 192 inches x 12 inches (Adjustable width: 5ft to 16ft) |
| Special Feature | Above Ground Pool Compatibility |
| Installation Type | Portable |
| Manufacturer | VINGLI |
8. Warranty and Support
For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official VINGLI website. For technical support, replacement parts, or any other inquiries, please contact VINGLI customer service directly through their official channels.
Manufacturer: VINGLI
Contact Information: Please refer to the VINGLI official website or product packaging for the most current contact details.
