Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Owigift Washer Drain Pump Motor Replacement. Please read these instructions thoroughly before beginning any work on your appliance. Proper installation is crucial for the correct functioning and longevity of the part.
Safety Information
Always prioritize safety when performing appliance repairs. Failure to follow these safety guidelines may result in personal injury or damage to property.
- Disconnect Power: Before attempting any installation or maintenance, always unplug the washing machine from its power source.
- Water Shut-off: Turn off the water supply to the washing machine to prevent leaks.
- Wear Protective Gear: Use appropriate personal protective equipment, such as gloves and safety glasses.
- Professional Assistance: If you are unsure about any step or lack the necessary tools or experience, consult a qualified appliance technician.
- Sharp Edges: Be aware of sharp edges or components inside the washing machine.
Compatibility
This Owigift drain pump motor is designed as an aftermarket replacement for various Kenmore washing machine models. Verify your washer's model number against the list below to ensure compatibility.
Compatible Kenmore Models:
- 796.41282311
- 796.41283310
- 796.41302610
- 796.41303610
- 796.41372210
- 796.41372211
- 796.41379210
- 796.41382410
- 796.41382411
- 796.41383410
- 796.41383411
- 796.41392510
- And many other similar models. Refer to your washer's documentation for the exact model number.
Setup and Installation
This section outlines the general steps for replacing a washer drain pump motor. Specific procedures may vary slightly depending on your washing machine model. Always refer to your washer's service manual if available.
Tools Required:
- Screwdrivers (Phillips and Flathead)
- Pliers
- Bucket and towels (for water drainage)
- Work gloves
Installation Steps:
- Prepare the Washer:
- Disconnect the washing machine from the electrical outlet.
- Turn off the water supply to the washer.
- Move the washer away from the wall to access the rear and sides.
- Drain any remaining water from the washer tub and hoses into a bucket.
- Access the Drain Pump:
- Depending on your model, you may need to remove the front panel, rear panel, or tilt the washer back to access the drain pump located at the bottom of the machine.
- Locate the existing drain pump assembly.
- Remove the Old Pump:
- Carefully disconnect the electrical wiring harness from the pump motor. Note the orientation for reassembly.
- Use pliers to release the clamps securing the drain hoses to the pump. Have towels ready to catch any residual water.
- Remove any mounting screws or clips holding the pump in place.
- Gently detach the old drain pump from the washer.
- Install the New Pump:

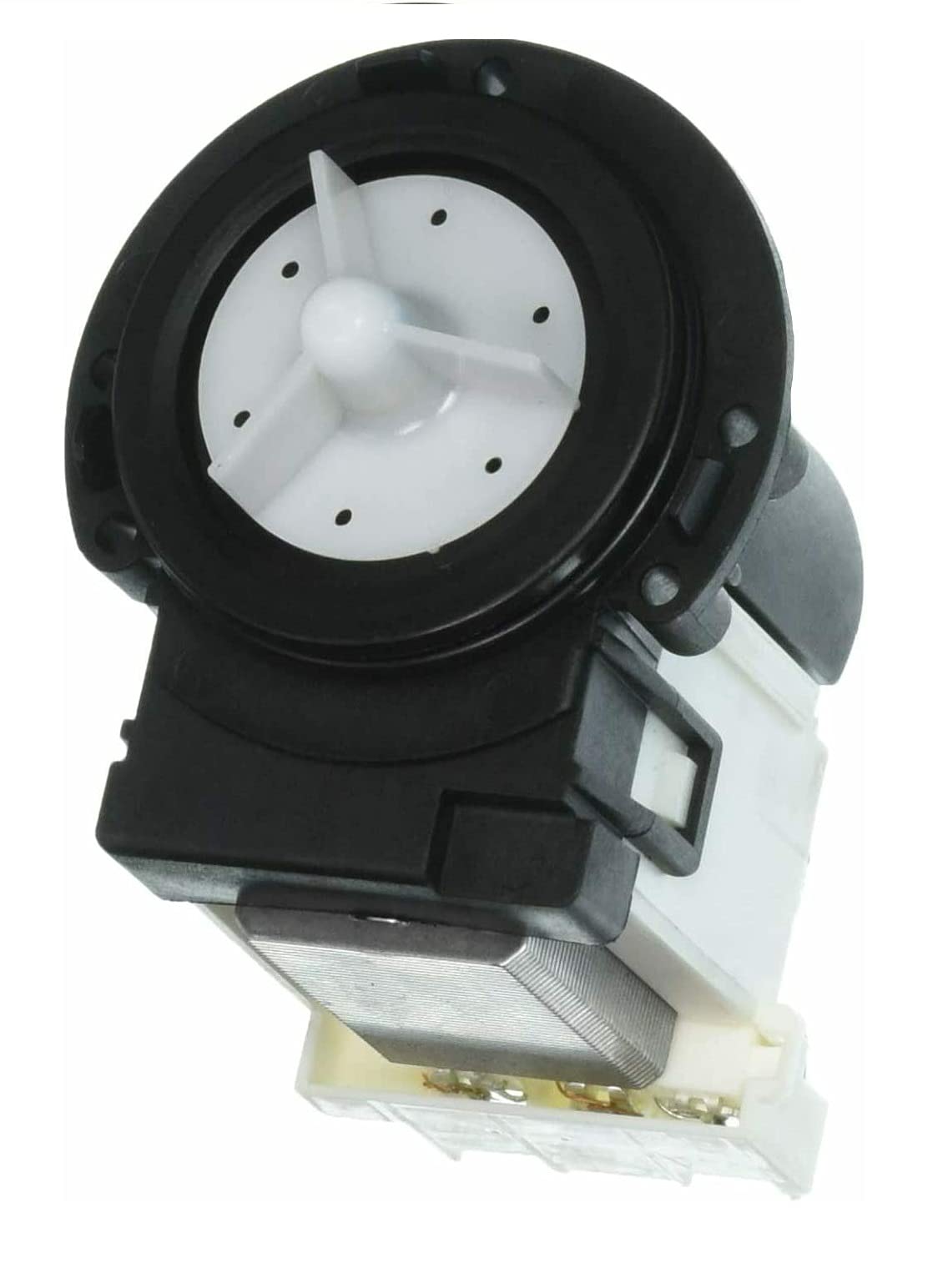

Image: Owigift Washer Drain Pump Motor Replacement. This image shows the overall view of the drain pump motor, highlighting its compact design and electrical connection points.
- Position the new Owigift drain pump motor in the same location as the old one.
- Secure it with the mounting screws or clips.
- Attach the drain hoses to the new pump, ensuring a tight seal with the clamps.
- Connect the electrical wiring harness to the new pump motor. Ensure connections are firm and correctly oriented.
Image: Close-up of Owigift Washer Drain Pump Motor connections. This image provides a detailed view of the electrical terminals and the motor housing, crucial for correct wiring during installation.
- Reassemble and Test:
- Reattach any panels removed during the process.
- Move the washer back into its original position.
- Turn on the water supply.
- Plug the washing machine back into the electrical outlet.
- Run a short wash cycle with no clothes to check for leaks and proper drainage.
Operating
Once the Owigift drain pump motor is correctly installed, the washing machine should operate normally, draining water efficiently during wash and rinse cycles. No special operating procedures are required for the pump itself; its function is integrated into the washer's normal operation.
- Listen for Normal Operation: During the drain cycle, you should hear the pump motor running smoothly, and water should be expelled through the drain hose.
- Check for Leaks: Periodically inspect the area around the drain pump and hoses for any signs of water leakage, especially after initial installation.
Maintenance
Regular maintenance can help extend the life of your drain pump and prevent future issues.
- Clean the Drain Filter: Many washing machines have a drain pump filter or coin trap. Regularly clean this filter to prevent blockages that can strain the pump motor. Refer to your washer's user manual for filter location and cleaning instructions.
- Avoid Overloading: Overloading the washing machine can lead to excessive lint and debris, which may eventually clog the drain pump.
- Inspect Hoses: Periodically check the drain hoses for kinks, cracks, or blockages. Ensure they are securely attached.
- Foreign Objects: Always check pockets before washing to prevent coins, keys, or other small items from entering the drain system.
Troubleshooting
If you encounter issues after installing the new drain pump, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Washer not draining | Clogged drain filter or hose | Clean the drain filter. Check drain hose for kinks or blockages. |
| Pump runs but no water drains | Air lock in the pump or hose | Ensure hoses are properly connected and free of air. Briefly disconnect and reconnect the drain hose to release air. |
| Loud noise during drain cycle | Foreign object in pump impeller | Disconnect power and water. Access the pump and inspect the impeller for debris. |
| Water leaking from pump area | Loose hose clamps or damaged seal | Check all hose connections and clamps for tightness. Inspect seals for damage and replace if necessary. |
| Pump does not run | Electrical connection issue or faulty pump | Verify electrical connections are secure. If connections are good, the pump may be faulty (unlikely for a new part). |
Specifications
- Brand: Owigift
- Material: Stainless Steel (internal components/shaft)
- Style: Drain Pump Motor
- Power Source: AC/DC (compatible with standard washer electrical systems)
- Number of Items: 1 (Washer Drain Pump Water Motor)
- Color: Black (housing)
Support
If you have questions regarding compatibility, installation, or require further assistance, please contact us. We aim to resolve your inquiries within 24 hours.
For specific washer model troubleshooting, it is recommended to consult the original manufacturer's service manual or a qualified technician.
