Graywind Motorized Vertical Blinds Instruction Manual

1. Product Overview

The Graywind Motorized Vertical Blind offers a sophisticated and convenient solution for light control and privacy in your home or office. This model features a 3-layer 100% blackout fabric in white, providing excellent UV protection and thermal insulation. It is designed for smart home integration, compatible with Alexa, Google, and Siri for voice control, alongside remote and app control options.

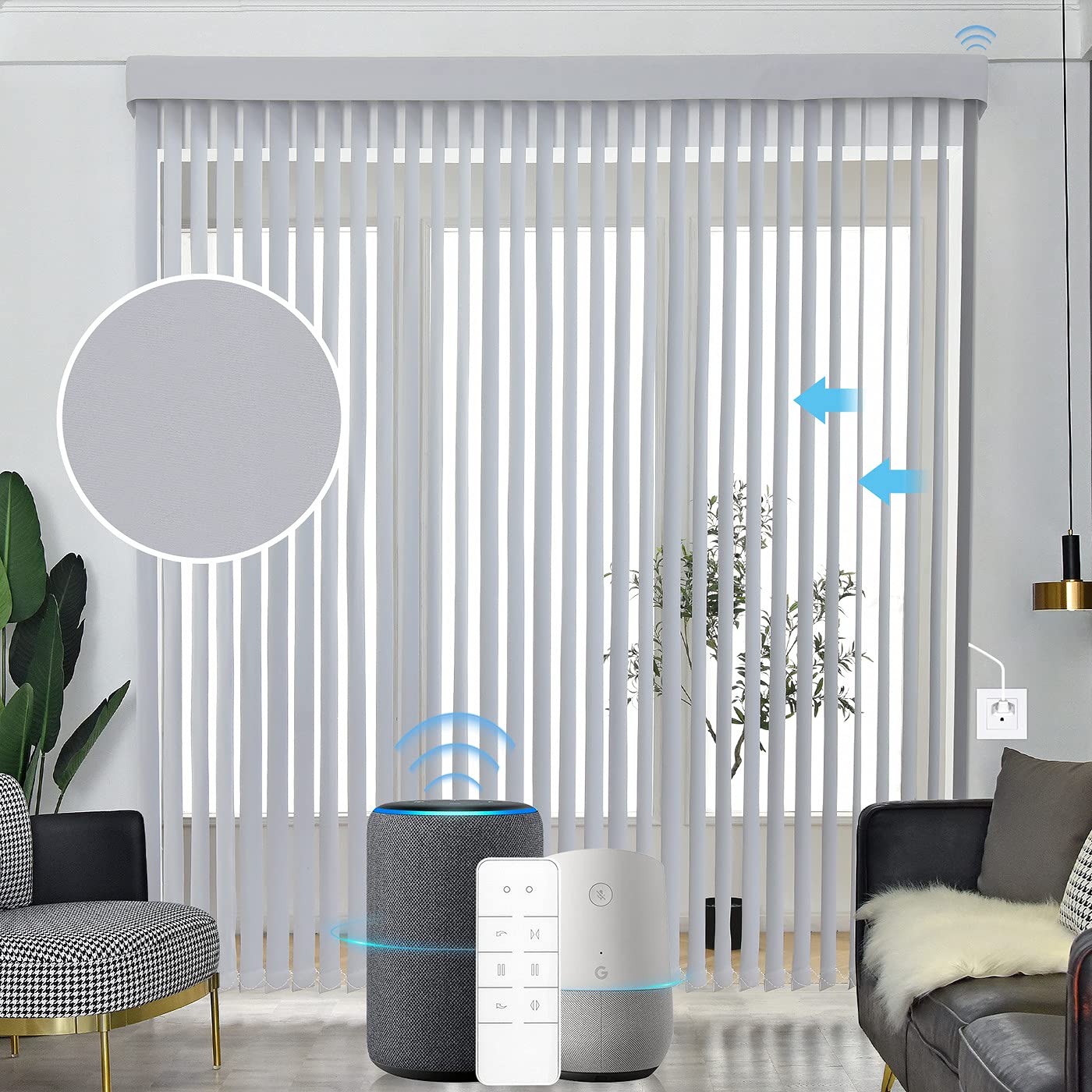

Image: Graywind Motorized Vertical Blind installed in a living room, showcasing its sleek design and functionality.

2. Safety Information

• Always ensure the power supply is disconnected before installation or maintenance.
• Keep children and pets away from the blinds during operation to prevent entanglement.
• Do not attempt to disassemble or repair the motor or control unit yourself. Contact qualified personnel for service.
• Ensure proper installation to prevent the blinds from falling, which could cause injury or damage.
• Avoid exposing the motor or electrical components to water or excessive moisture.

3. Package Contents

Your Graywind Motorized Vertical Blind package includes the following components:

• Motorized Vertical Blind Unit (with 3-layer blackout fabric and valance)
• Hardwired Motor (AC100-240V, power cord approx. 1.5 meters)
• Remote Control (one remote included for up to 5 blinds; additional remotes available upon request)
• Installation Brackets and Hardware
• User Manual (Japanese version included in package; English version available upon request)

Image: Detailed view of the vertical blind fabric, showing the bottom chain for stability and the decorative valance.

Image: Illustration of the smart track, motor placement options (left/right), power input (AC100-240V), frequency (433.92MHz), rated output (54W), rated load (35KG), wire length (150CM), IP20 protection, UL certification, and compatibility with Alexa, Google Home, IFTTT, and mobile app.

4. Installation & Setup

Proper installation is crucial for optimal performance. Please refer to the detailed measurement manual and consider watching the installation videos available on the official Graywind YouTube channels for visual guidance.

4.1 Measurement Guidelines

Refer to the diagram below for accurate measurements based on your mounting type (ceiling mount or face mount).

Image: Measurement manual illustrating calculations for product height, fabric height, and fabric width for both ceiling mount and face mount installations. Note: A minimum 0.3cm space on each side is required when installing near a wall.

4.2 Installation Steps

1. Prepare the Mounting Surface: Ensure the surface is clean, level, and strong enough to support the blind's weight.
2. Mark Drill Holes: Use the provided brackets as a template to mark the drill holes according to your chosen mounting type (ceiling or face mount).
3. Install Brackets: Drill pilot holes and securely attach the mounting brackets using appropriate screws and anchors.
4. Attach the Headrail: Carefully attach the blind's headrail to the installed brackets.
5. Connect Power: Connect the hardwired motor to your home's AC100-240V electrical circuit. Professional installation is recommended for electrical wiring.
6. Initial Testing: Once installed and powered, perform an initial test using the remote control to ensure basic open/close functionality.

For detailed visual instructions, please search for "Graywind Official Channel" or "Graywind Japan Official Channel" on YouTube.

5. Operating Instructions

Your Graywind Motorized Vertical Blinds can be operated via remote control, mobile app, or voice commands through compatible smart home assistants.

5.1 Remote Control Operation

• Open/Close: Press the UP/DOWN buttons to open or close the blinds.
• Stop: Press the STOP button to halt the blinds at any desired position.
• Adjust Slat Angle: Use the angle adjustment buttons to rotate the vertical slats for light filtering.
• Group Control: If you have multiple blinds paired to one remote, you can control them individually or as a group.

5.2 Smart Features & Control

Leverage the smart capabilities of your Graywind blinds for enhanced convenience:

• Limit Position Setting: Set precise upper, lower, and intermediate stop positions for your blinds.
• Rotation Direction Switching: Easily change the direction of slat rotation.
• Inching/Continuous Movement: Switch between precise incremental adjustments and continuous movement.
• Group Control: Manage multiple blinds simultaneously through the app or remote.
• Timing Settings: Schedule automatic opening and closing times for your blinds.
• Control Methods (WiFi 2.4G):
  • Remote Control
  • Mobile App Control
  • Voice Control (Alexa, Google, Siri compatible)

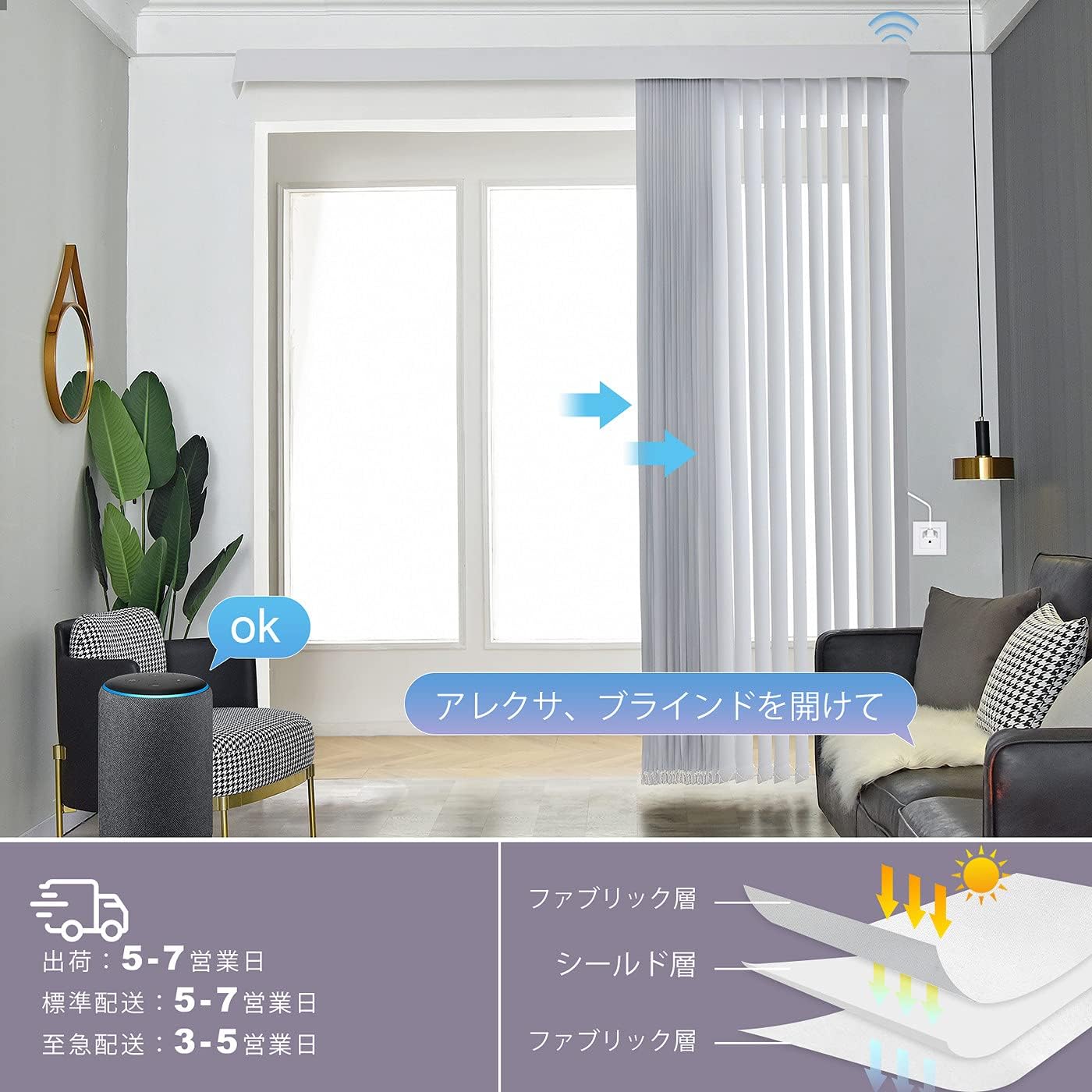

Image: A living room scene with Graywind vertical blinds, illustrating voice control functionality with an Alexa device.

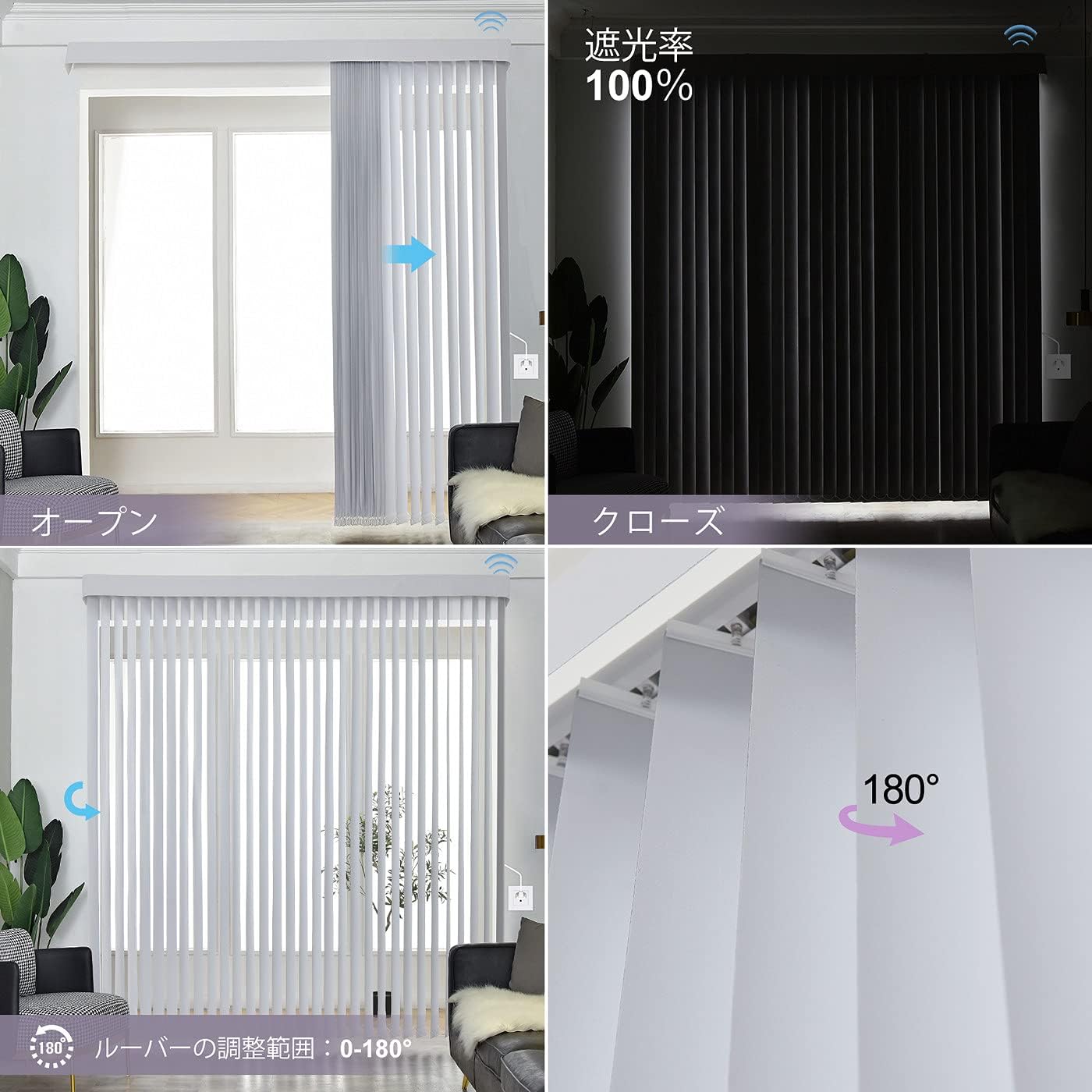

Image: Visual representation of the vertical blinds in various states: fully open, fully closed (100% blackout), and demonstrating 180-degree slat rotation for light adjustment.

Image: Illustration of the center open function for vertical blinds, detailing motor positions for left, right, and center opening configurations.

6. Maintenance & Cleaning

Regular maintenance helps prolong the life and appearance of your Graywind Vertical Blinds. Always handle with care.

6.1 General Dusting

For routine cleaning, gently remove dust using a feather duster or a handheld vacuum with a soft brush attachment. Ensure the blinds are fully extended when dusting.

6.2 Spot Cleaning

For partial cleaning or stains, use a well-wrung cloth or sponge dipped in a solution of mild dish-washing detergent and lukewarm water. Gently blot the stained area. Avoid harsh detergents or excessive scrubbing, as this may damage the fabric.

• Important: Do not iron vinyl fabrics or foam-coated fabrics directly.
• For wrinkled parts on non-vinyl/foam-coated fabrics, gently stretch the fabric by hand and iron at a low temperature.

7. Troubleshooting

If you encounter any issues with your Graywind Motorized Vertical Blinds, please refer to the following common troubleshooting tips:

• Blinds not responding to remote/app/voice:
  • Check if the power supply is connected and active.
  • Ensure the remote control batteries are not depleted.
  • Verify that the blinds are properly paired with the remote/app/smart assistant. Refer to the pairing instructions in the full manual.
  • Check your Wi-Fi connection (2.4G) if using app or voice control.
• Motor not moving:
  • Confirm the power connection.
  • If the motor is making a sound but not moving, check for any obstructions in the track or fabric.
  • If the motor is completely unresponsive, contact customer support for assistance.
• Blinds not stopping at desired limits:
  • Recalibrate the limit positions using the remote or app settings.

If the issue persists after attempting these steps, please contact Graywind customer support.

8. Specifications

9. Warranty & Support

Graywind products are designed for durability and performance. We stand by the quality of our products.

• Manufacturer's Warranty: This product comes with a 2-year manufacturer's warranty.
• Custom Orders: For custom-sized products, production takes approximately 5-8 business days after order confirmation, and delivery takes approximately 5-7 business days. There may be a 3mm error in the actual width compared to the order. A customization confirmation sheet will be sent via Amazon message after order confirmation; please contact us if any changes are needed.
• Returns/Exchanges: Once custom order specifications are confirmed, changes, returns, or exchanges are generally not accepted unless there is a quality issue. In case of product defects, we will replace it with a good product of the same specifications (size, color, etc. cannot be changed) instead of cancellation or refund.
• Contact Support: If you have any questions, require additional remotes (for purchases of 5 vertical blinds or less), or need assistance, please contact us via Amazon message or email at opm-jp@graywindhome.com. We aim to respond within 12 hours.
