Introduction
Thank you for purchasing the Vitantonio ACTY II VEK-20-K Temperature Controlled Drip Kettle. This kettle is designed for precise pouring and optimal temperature control, enhancing your coffee and tea brewing experience. Please read this manual thoroughly before use to ensure safe and correct operation, and keep it for future reference.
The Vitantonio ACTY II VEK-20-K Drip Kettle in use, precisely pouring hot water for coffee brewing.
Safety Precautions
To prevent injury, electric shock, fire, or damage to the product, always observe the following safety precautions:
- Do not immerse the kettle body or power plate in water or any other liquid.
- Ensure the kettle is placed on a stable, flat, heat-resistant surface, away from edges.
- Keep out of reach of children and supervise when in use near children.
- Unplug the kettle from the power outlet when not in use, before cleaning, or if any malfunction occurs.
- Do not operate the kettle without water (dry-boil). The kettle is equipped with dry-boil prevention, but continuous dry-boiling can damage the unit.
- Avoid touching hot surfaces. Use the handle. The kettle body becomes hot during operation.
- Do not overfill the kettle beyond the maximum fill line to prevent boiling water from overflowing.
- Use only with the provided power plate.
Product Components
Familiarize yourself with the parts of your Vitantonio ACTY II Drip Kettle:
- Kettle Body: The main vessel for heating water.
- Lid: Covers the kettle opening.
- Fine Spout: Designed for precise and controlled pouring.
- Handle: Ergonomically designed, made of natural wood for comfortable grip.
- Power Plate: The base unit that supplies power and houses the control panel.
- Control Panel: Features a digital display, temperature adjustment buttons (+/-), and a MODE button.
The kettle held by its natural wood handle, demonstrating its ergonomic design.
Setup
- Unpack: Carefully remove all packaging materials and ensure all components are present.
- Initial Cleaning: Before first use, fill the kettle with water to the maximum level, boil it, and discard the water. Repeat this process 2-3 times to remove any manufacturing residues.
- Placement: Place the power plate on a dry, flat, and stable surface. Ensure there is enough space around the kettle for proper ventilation.
- Power Connection: Plug the power cord into a suitable electrical outlet.
Operating Instructions
Filling the Kettle
Remove the lid and fill the kettle with fresh, cold water. Do not fill below the minimum mark or above the maximum mark. Replace the lid securely.
Setting Temperature
Place the kettle onto the power plate. The display will show the current water temperature. Use the '+' and '-' buttons to set your desired temperature between 50°C and 100°C in 1°C increments. Alternatively, press the 'MODE' button to cycle through preset temperatures: 100°C, 93°C, 80°C, and 70°C.

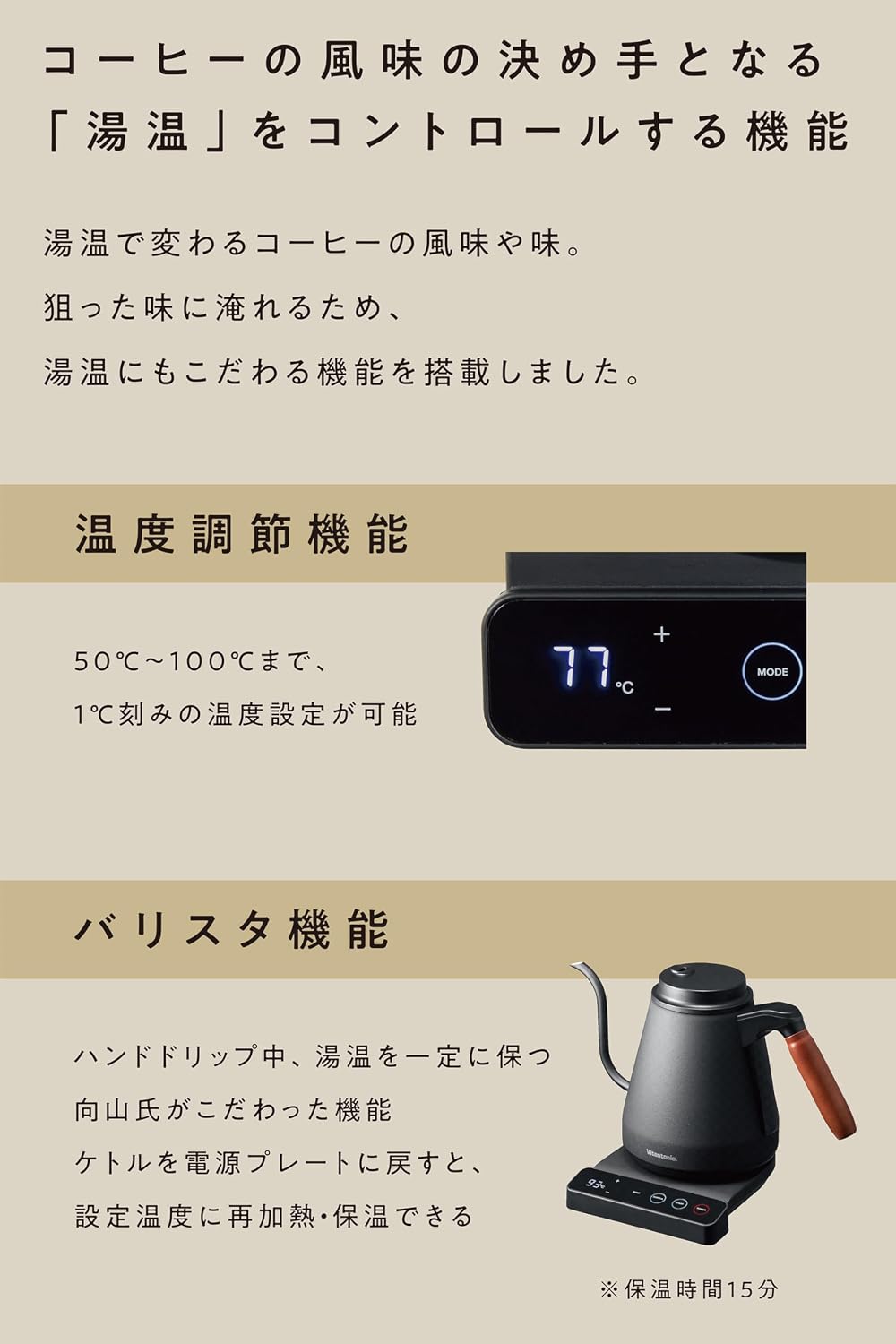

The digital control panel showing the temperature setting.
Examples of preset temperatures available via the MODE button.
Boiling and Keep Warm Function
Once the desired temperature is set, the kettle will begin heating. A buzzer will sound when the set temperature is reached. The kettle features a 'Barista Function' which allows it to reheat and maintain the set temperature for up to 15 minutes when returned to the power plate after pouring. This ensures a consistent temperature for multiple pours.
Pouring Technique
The fine spout is designed for precise pouring, ideal for drip coffee or delicate teas. You can control the flow rate from a slow, steady drip to a faster pour by adjusting the kettle's tilt.
The fine spout allows for a slow, controlled pour, perfect for delicate brewing.
The spout also allows for a faster, more abundant pour when needed.
Optimal Temperatures for Beverages
Different beverages require different water temperatures for optimal flavor extraction. Use the temperature control feature to customize your brewing:
Guideline temperatures for brewing different types of coffee and tea.
Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the life of your kettle.
- Always Unplug: Before cleaning, ensure the kettle is unplugged from the power outlet and has cooled down completely.
- Exterior Cleaning: Wipe the exterior of the kettle and the power plate with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals.
- Interior Cleaning (Descaling): Over time, mineral deposits (limescale) may build up inside the kettle. To descale, fill the kettle with a mixture of water and white vinegar (1:1 ratio) or a commercial descaling solution. Boil the mixture, then let it sit for at least 30 minutes (or as per descaler instructions). Empty the kettle and rinse thoroughly several times with fresh water.
- Storage: When not in use for an extended period, ensure the kettle is clean and dry. Store it in a cool, dry place.
Troubleshooting
If you encounter any issues, please refer to the following common problems and solutions:
- Kettle does not heat:
- Ensure the power cord is securely plugged into a working outlet.
- Check if the kettle is properly seated on the power plate.
- Verify that the desired temperature is set and the heating process has started.
- Kettle turns off unexpectedly:
- The kettle has an automatic power-off function if left inactive for 5 minutes.
- The dry-boil prevention feature may have activated if the kettle was operated with insufficient water. Allow it to cool down before refilling and restarting.
- Water tastes unusual:
- Perform initial cleaning steps again.
- Descale the kettle if mineral buildup is present.
If the problem persists, please contact customer support.
Specifications
Warranty and Support
For warranty information, please refer to the warranty card included with your product or contact your retailer. For product support, inquiries, or service requests, please contact Vitantonio customer service or the retailer where you purchased the product.
Please retain your proof of purchase for warranty claims.
