1. Introduction
Thank you for choosing the RIDDER Ken S Grip Handle. This high-quality grab bar is designed to provide enhanced safety and support in your bathroom. Crafted from robust, rust-proof stainless steel, it offers durability and a sleek chrome finish. This manual provides essential information for proper installation, use, and maintenance of your new grip handle.
Image 1.1: The RIDDER Ken S Grip Handle, showcasing its design and non-slip surface.
2. Safety Information
Your safety is paramount. Please read and understand all safety instructions before installation and use.
- The RIDDER Ken S Grip Handle is tested and certified by TÜV for a maximum load capacity of 110 kg (242 lbs). Ensure proper installation to maintain this load capacity.
- Always ensure the grip handle is securely fastened before applying weight.
- The non-slip surface provides a secure grip, even with wet hands.
- For installation on wall types other than solid brick M20 or reinforced concrete, consult a specialist. RIDDER is not responsible for advice or installation costs for alternative wall types.
Image 2.1: The grip handle is certified by TÜV Rheinland for a maximum load of 110 kg (242 lbs).
3. Package Contents
Please check that all items are present in the package:
- RIDDER Ken S Grip Handle
- Mounting material (screws and dowels)
- Assembly instructions (this document)
4. Setup and Installation
The RIDDER Ken S Grip Handle can be installed using screws and dowels (included) or optionally with RIDDER 'Fix&Clean' mounting adhesive (sold separately).
4.1. Screw Fixing (Recommended for maximum load capacity)
Image 4.1: Screw fixing method.
Tools required: Drill, drill bit (appropriate for dowel size), pencil, measuring tape, level.
- Choose Location: Select a suitable location on a solid wall (solid brick M20 or reinforced concrete) where the grab bar will provide optimal support. Ensure no hidden pipes or electrical wires are behind the wall.
- Mark Drill Holes: Hold the grab bar against the wall in the desired position. Use a pencil to mark the positions for the drill holes through the mounting plates. Ensure the marks are level.
- Drill Holes: Using the appropriate drill bit, carefully drill holes at the marked positions. The depth should match the length of the dowels.
- Insert Dowels: Insert the provided dowels into the drilled holes until they are flush with the wall surface.
- Attach Grab Bar: Position the grab bar's mounting plates over the dowels. Insert the screws through the mounting plates and into the dowels. Tighten the screws firmly until the grab bar is secure against the wall. Do not overtighten.
- Test Security: Gently pull on the grab bar to ensure it is firmly attached and does not wobble.
4.2. Glue Fixing (Optional, with RIDDER 'Fix&Clean' adhesive)
Image 4.2: Optional glue fixing method.
For a drill-free installation, you can use RIDDER 'Fix&Clean' mounting adhesive (sold separately). Follow the specific instructions provided with the 'Fix&Clean' adhesive for proper application and curing times. Ensure the surface is clean, dry, and suitable for adhesive mounting. Allow sufficient curing time before applying any load to the grab bar.
5. Operating Instructions
The RIDDER Ken S Grip Handle is designed to provide stable support for balance and assistance when moving in and out of the shower, bath, or toilet area. It is not intended to support full body weight for extended periods or to be used as a climbing aid.
- Grasp the handle firmly with your hand.
- Use it to steady yourself or to assist with standing and sitting movements.
- The non-slip surface ensures a secure grip even when wet.
6. Maintenance and Care
To ensure the longevity and appearance of your RIDDER Ken S Grip Handle, follow these care instructions:
- Cleaning: Clean the grip handle regularly with a soft cloth and mild, non-abrasive cleaning agents. Avoid harsh chemicals, abrasive sponges, or scouring powders, as these can damage the chrome finish and stainless steel.
- Drying: After cleaning, dry the handle thoroughly to prevent water spots and maintain its shine.
- Inspection: Periodically check the mounting screws or adhesive bond for any signs of loosening or damage. Re-tighten screws if necessary. If using adhesive, ensure the bond remains strong.
- Rust Prevention: The handle is made of rust-proof stainless steel. However, prolonged exposure to highly corrosive substances or environments can affect its finish. Ensure good ventilation in the bathroom.
Image 6.1: The grip handle is made from high-quality stainless steel.
7. Troubleshooting
If you encounter any issues with your RIDDER Ken S Grip Handle, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Grab bar feels loose after installation. | Screws not tightened sufficiently, or dowels not properly seated. Incorrect wall type for screw fixing. Adhesive not fully cured or improperly applied. | For screw fixing: Re-tighten screws. If problem persists, remove and re-install ensuring dowels are secure and wall type is appropriate. For glue fixing: Ensure adhesive instructions were followed and full curing time was observed. If still loose, consider screw fixing or professional re-installation. |
| Surface appears dull or stained. | Hard water spots, soap residue, or use of abrasive cleaners. | Clean with a soft cloth and mild, non-abrasive cleaner. Dry thoroughly after each use to prevent water spots. Avoid harsh chemicals. |
8. Specifications
Detailed technical specifications for the RIDDER Ken S Grip Handle:
- Model: Ken S
- Material: Stainless Steel
- Color: Chrome
- Finish Type: Satin finish
- Item Weight: 420 Grams
- Maximum Load Capacity: 110 kg (242 lbs) - TÜV certified
- Overall Length: Approximately 332 mm (13.1 inches)
- Grip Surface Length: Approximately 33.3 cm (13.1 inches)
- Grip Diameter: Approximately 31 mm (1.2 inches)
- Mounting Plate Diameter: Approximately 80 mm (3.1 inches)
- Distance from Wall: Approximately 90 mm (3.5 inches)
- Included Components: Handle, mounting material (dowels and screws)

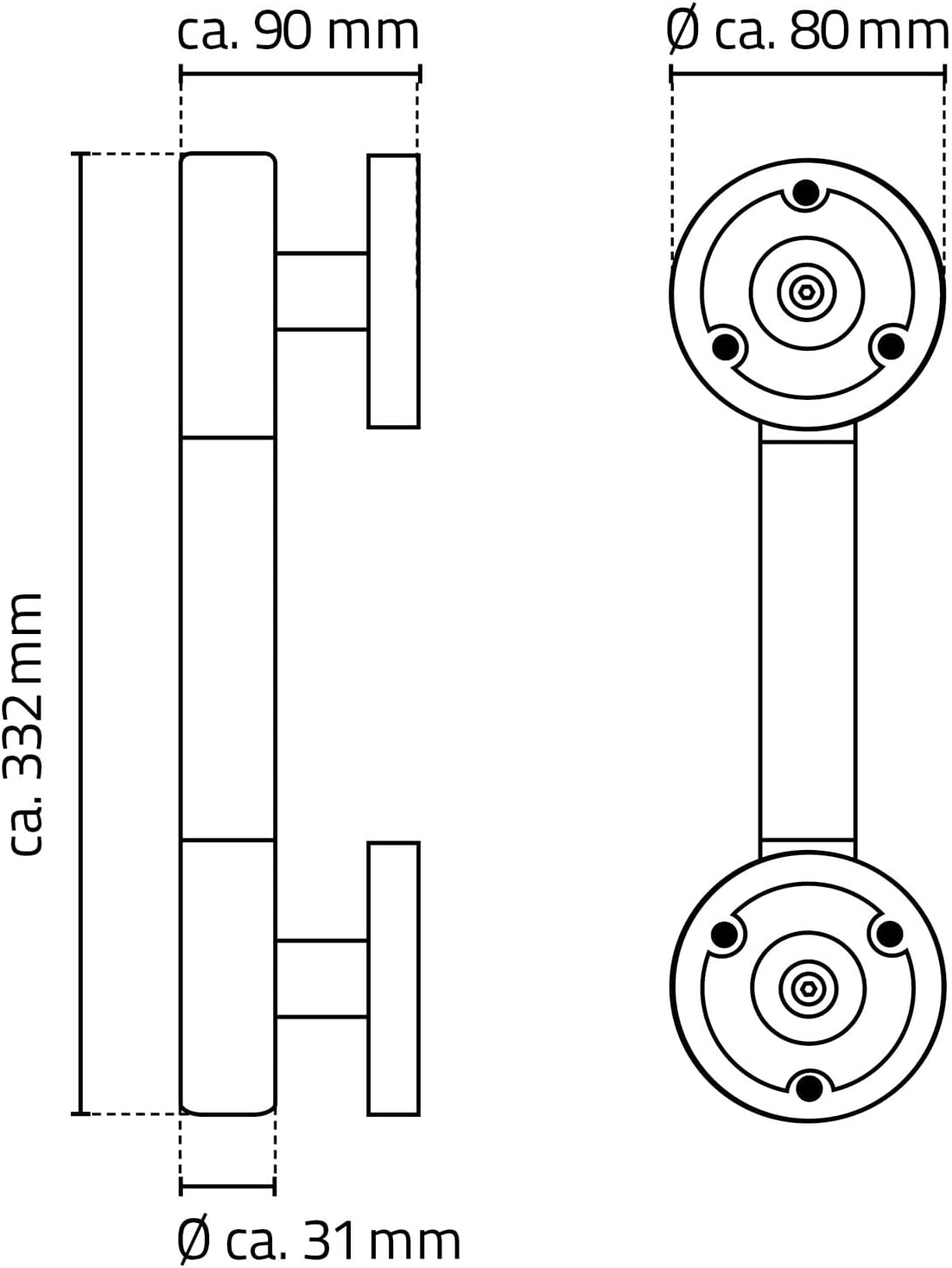

Image 8.1: Dimensional drawing of the RIDDER Ken S Grip Handle.
9. Warranty and Support
RIDDER products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided at the time of purchase or visit the official RIDDER website. For technical support or inquiries, please contact RIDDER customer service through their official channels.
