Tefal FW2018 Easy Fry Grill & Steam Hot Air Fryer User Manual
Model: FW2018
Introduction
The Tefal FW2018 Easy Fry Grill & Steam Hot Air Fryer is a versatile 3-in-1 appliance designed to simplify your cooking experience. It combines the functions of a hot air fryer, a grill, and a steamer, allowing for a wide variety of healthy and delicious meals with minimal effort and oil. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance.
Figure 1: Tefal FW2018 Easy Fry Grill & Steam Hot Air Fryer with included grill plate.
Safety Instructions
Always adhere to the following safety precautions to prevent electric shock, fire, injury, or damage to the appliance.
- Read all instructions before use.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
- Supervise children closely when the appliance is in use.
- Do not operate the appliance if the plug, power cord, or the appliance itself is damaged.
- Keep the appliance and its cord out of reach of children.
- Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place the appliance against a wall or other appliances. Leave at least 10 cm free space on the back and sides and 10 cm free space above the appliance.
- Hot air is released through the air outlet opening during hot air frying. Keep your hands and face at a safe distance from the steam and from the air outlet openings.
- Always return the appliance to an authorized service center for examination, repair, or adjustment.
- This appliance is intended for household use only.
Product Overview
Familiarize yourself with the components of your Tefal Easy Fry Grill & Steam.
Figure 2: Front view of the appliance, highlighting the digital control panel and drawer handle.
- A. Main Unit: Houses the heating element and fan.
- B. Digital Control Panel: Touch-sensitive interface for setting programs, temperature, and time.
- C. Cooking Drawer: Removable drawer for holding the cooking basket or grill plate.
- D. Cooking Basket: Used for air frying.
- E. Die-cast Aluminum Grill Plate: Used for grilling.
- F. Water Tank: For steaming function (located on top, under a lid).
Figure 3: Appliance dimensions: approximately 33 cm (height) x 23 cm (width) x 23 cm (depth).
Figure 4: The appliance features a 6.5-liter capacity, suitable for family meals.
Setup and First Use
- Unpacking: Carefully remove all packaging materials and stickers from the appliance.
- Cleaning: Clean the cooking drawer, cooking basket, and grill plate with hot water, dish soap, and a non-abrasive sponge. Wipe the inside and outside of the appliance with a damp cloth.
- Placement: Place the appliance on a stable, horizontal, and level surface. Ensure there is adequate ventilation around the unit (at least 10 cm clearance on all sides).
- Power Connection: Plug the power cord into a grounded wall outlet.
- Initial Run (Optional but Recommended): For the first use, it is recommended to run the appliance for about 10 minutes at maximum temperature without any food to burn off any manufacturing residues. A slight odor may be present, which is normal.
Figure 5: The cooking drawer slides out for easy loading and unloading of food.
Operating Instructions
General Operation
- Plug in the appliance. The digital display will illuminate.
- Press the power button to turn on the appliance.
- Select your desired cooking mode (Air Fry, Grill, or Steam) using the touch controls.
- Adjust temperature and time as needed using the '+' and '-' buttons.
- Press the start/pause button to begin cooking.
Air Frying Mode
For crispy results with little to no oil.
- Place the cooking basket into the cooking drawer.
- Place ingredients into the basket. Do not overfill.
- Slide the drawer back into the appliance.
- Select 'Air Fry' mode. Choose a preset program or manually set temperature and time.
- Start cooking. Shake the basket halfway through cooking for even results, if necessary.
Figure 6: Example of meals prepared using the air fryer, grill, and steam functions, including steak, salmon, vegetables, and fries.

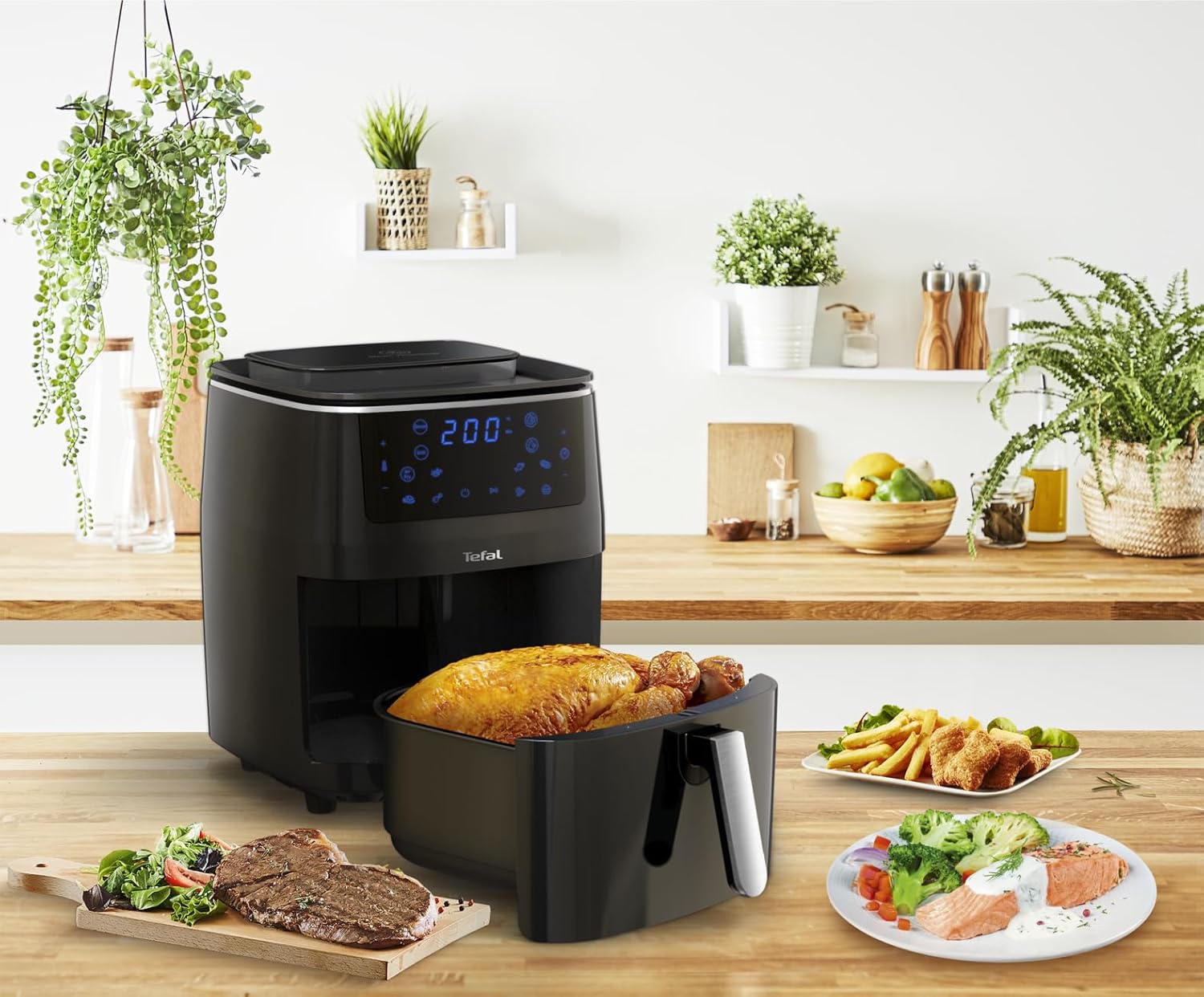

Figure 7: The large capacity allows for cooking larger items like a whole chicken.
Grilling Mode
For perfectly grilled meat or vegetable dishes with grill marks.
- Place the die-cast aluminum grill plate into the cooking drawer.
- Place ingredients directly onto the grill plate.
- Slide the drawer back into the appliance.
- Select 'Grill' mode. Choose a preset program or manually set temperature and time.
- Start cooking.
Figure 8: Grilled steak and air-fried fries, demonstrating the appliance's capabilities.
Steaming Mode
To gently prepare food while retaining valuable vitamins and nutrients.
- Fill the water tank with clean water. Do not exceed the maximum fill line.
- Place ingredients into the cooking basket or directly into the drawer if suitable.
- Slide the drawer back into the appliance.
- Select 'Steam' mode. Choose a preset program or manually set time.
- Start cooking.
Automatic Programs
The appliance features 7 automatic programs for convenience:
- 5 preset programs: Apple chips, Nuggets, Chicken, Vegetables, Dessert.
- 2 smart programs: Fish (steaming), Grilled Meat (grilling).

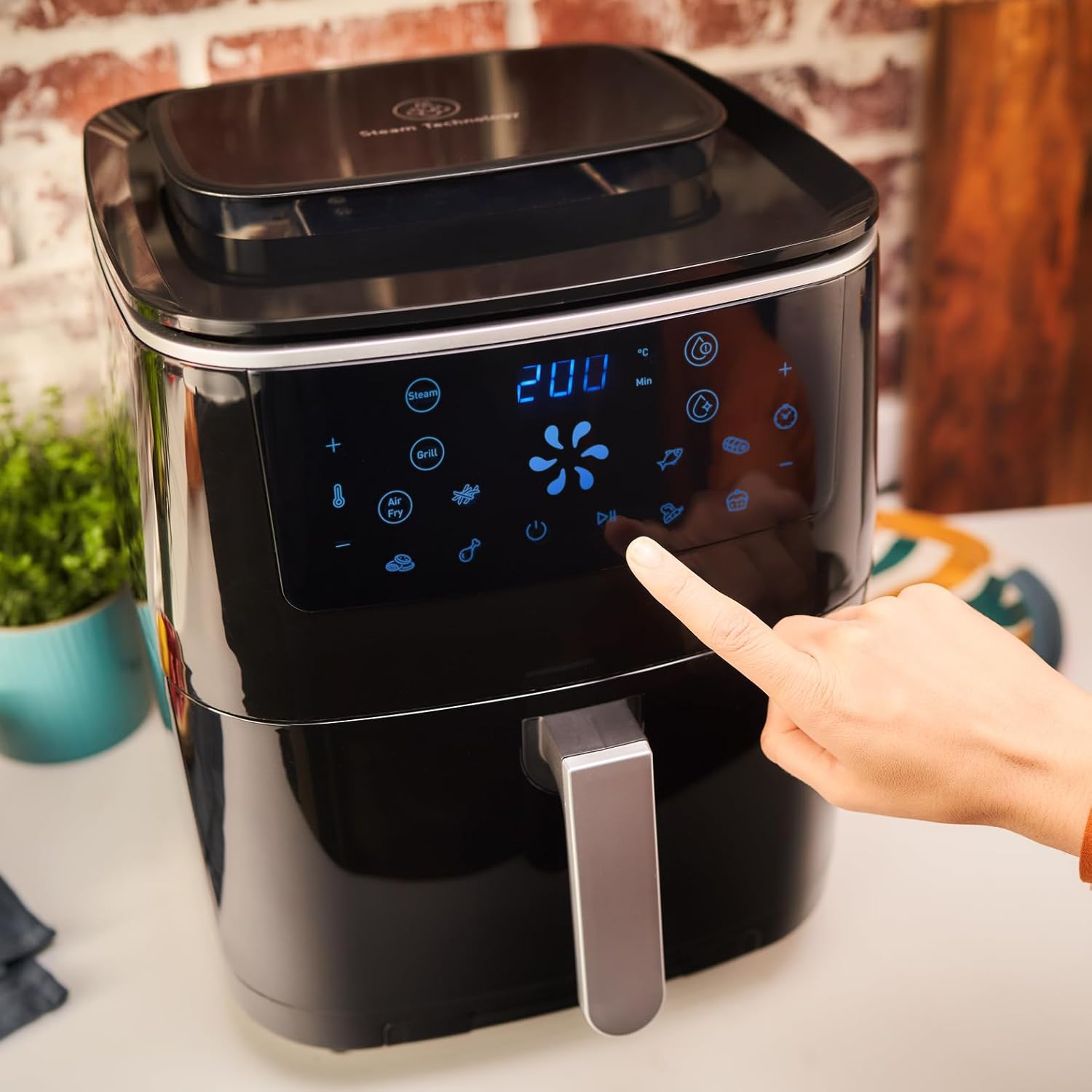

Figure 9: The intuitive digital control panel allows for easy selection of cooking modes and programs.
Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your appliance.
- Unplug: Always unplug the appliance and allow it to cool down completely before cleaning.
- Removable Parts: The cooking drawer, cooking basket, and grill plate are dishwasher safe. Alternatively, they can be cleaned with hot water, dish soap, and a non-abrasive sponge.
- Interior: Wipe the interior of the appliance with a damp cloth. For stubborn residue, use a non-abrasive cleaner.
- Exterior: Clean the exterior with a damp cloth. Do not use abrasive cleaning materials or scouring pads.
- Water Tank: Empty and clean the water tank after each use, especially after steaming.
- Storage: Store the appliance in a dry, cool place when not in use.
Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet issue; appliance damage. | Ensure plug is securely inserted. Test outlet with another device. If damaged, contact customer support. |
| Food is not cooked evenly. | Basket overloaded; food not shaken/turned. | Reduce food quantity. Shake or turn food halfway through cooking. |
| White smoke coming from appliance. | Grease from previous use; fatty ingredients. | Clean the cooking drawer and basket thoroughly. For fatty foods, absorb excess oil before cooking. |
| Appliance emits unusual odor during first use. | Manufacturing residues burning off. | This is normal. The odor will dissipate after a few uses. Ensure good ventilation. |
| Steaming function not producing steam. | Water tank empty; tank not properly inserted. | Fill the water tank. Ensure the water tank is correctly positioned. |
Specifications
- Model Name: FW2018 Easy Fry Grill & Steam
- Brand: Tefal
- Capacity: 6.5 Liters
- Output Wattage: 1700 Watts
- Voltage: 220 Volts
- Control Method: Touch
- Material: Aluminum (Inner Material)
- Special Feature: Temperature Control
- Product Dimensions: 12.76"D x 16.02"W x 15.71"H (approx. 32.4 cm D x 40.7 cm W x 39.9 cm H)
- Item Weight: 17.38 pounds (approx. 7.9 Kilograms)
- Dishwasher Safe Parts: Yes
Warranty and Support
This Tefal FW2018 Easy Fry Grill & Steam Hot Air Fryer is covered by a standard manufacturer's warranty. For detailed warranty terms, conditions, and to register your product, please refer to the warranty card included in the product packaging or visit the official Tefal website. For technical support, spare parts, or service inquiries, please contact Tefal customer service.
Please retain your proof of purchase for warranty claims.
